Slope Stabilization Geocell
Classification of Slope Stabilization Geocell:
Smooth surface with hole
Smooth surface without hole
Textured surface with hole
Textured surface without hole
Slope Stabilization Geocell

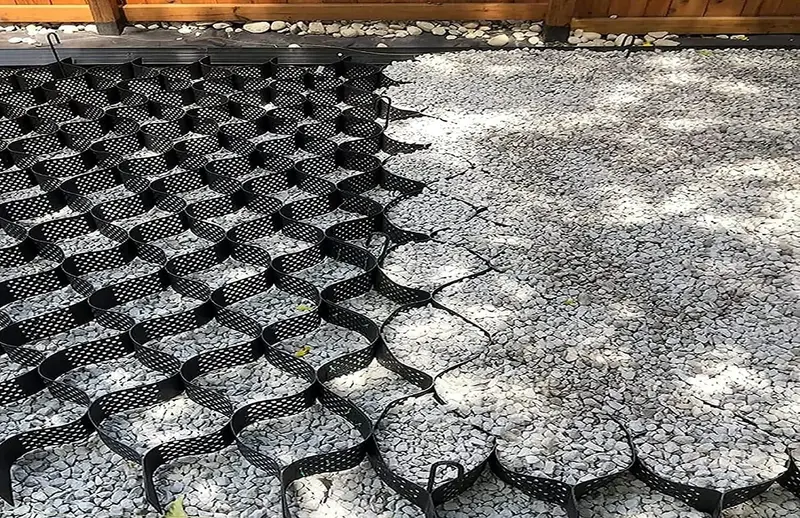

Slope stabilization geocell is a three-dimensional, honeycomb-like structure made from high-density polyethylene (HDPE) strips. When expanded on-site and filled with soil, aggregate, or concrete, it forms a rigid and flexible mattress that confines the infill material, creating a new, composite reinforced layer.
slope stabilization geocell
Slope Stabilization Geocell’s Feature
Superior Erosion Control: The cellular confinement drastically reduces surface erosion caused by water and wind by holding soil particles securely in place.
Unmatched Slope Stability: Our geocells provide robust lateral confinement, distributing loads evenly and significantly increasing the load-bearing capacity of the slope, preventing slippage and failure.
Promotes Sustainable Vegetation: The cells create an ideal environment for root systems to take hold, leading to permanent, bio-stabilized slopes that are both strong and eco-friendly.
Slope Stabilization Geocell
Rapid, Simple Installation: The lightweight, expandable panels are easy to transport and install with minimal labor and equipment, dramatically reducing construction time and costs compared to traditional methods like gabions or retaining walls.
Exceptional Durability: Manufactured from UV-stabilized HDPE, our geocells are resistant to chemical and biological degradation, ensuring long-term performance in even the harshest environments.
Slope Stabilization Geocell’s Specifications:
| Index Properties | Test Method | Units | Values | ||||||||||||
| Material | 100% Virgin HDPE | ||||||||||||||
| Carbon Black Content | ASTM D 1603 | % | ≥1.5 | ||||||||||||
| Density | ASTM D 1505 | g/cm3 | 0.935-0.965 | ||||||||||||
| Sheet Thickness +5% | ASTM D 5199 | mm | 1.5 | ||||||||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | ||||||||||||
| Tensile Strength at Yield | ASTM D 638 | KN/m | ≥22 | ||||||||||||
| Environmental Stress Crack Resistance ESCR | ASTM D 1693 | hrs | ≥5000 | ||||||||||||
| Oxidation Induction Time OlT | ASTM D 3895 | min | ≥150 | ||||||||||||
| Type No. | DK330 | DK356 | DK445 | DK660 | DK712 | ||||||||||
| Welding Distance(mm)3% | 330 | 356 | 445 | 660 | 712 | ||||||||||
| Cell Depth(mm)+3% | 50,75, 100,150,200,250 | ||||||||||||||
| Dimensions | |||||||||||||||
| Expanded Cell Size (widthxlength)(mm)+3% | 250×210 | 260 x225 | 320 x 288 | 470×450 | 510×475 | ||||||||||
| Expanded Cell Numbers (widthxlength) | 10×34 | 9 x 34 | 8 x 34 | 5 x34 | 5 x 34 | ||||||||||
| Expanded Section Size (widthxlength)(m)+3% | 2.50 x7.14 | 2.34 x 7.65 | 2.56 x 9.8 | 2.35 x 15.3 | 2.55 x 16.15 | ||||||||||
| Expanded Section Area (m2)+5% | 17.85 | 17.9 | 25.1 | 36 | 41.2 | ||||||||||
Slope Stabilization Geocell’s Applications
1.Road support:solve problems on damaged roads, parking lot and yard;
2.Slope protection: create a stable environment for long-term sustainability of embankment material;
3.Channel protection: ensure stability and protection of chanels exposed to all types of erosive conditions;
4.Vegetated retaining walls: inclueds steep slopes, retaining walls, gravity walls and so on.
5.Retaining Walls and earth retaining structures
6.Shoreline and Coastal Erosion control
7.Landfill Caps and Liners
Slope Stabilization Geocell
Slope Stabilization Geocell
Slope Stabilization Geocell
Slope Stabilization Geocell

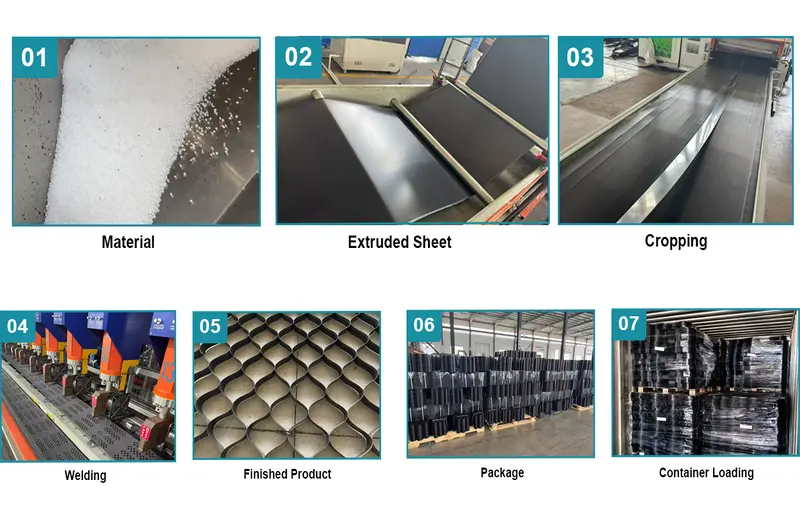

Geocell Production Process
Raw Material Preparation: Collect plastic resin raw materials such as HDPE to ensure that they meet quality standards
Additive Mixing: Mix raw materials with antioxidants, UV stabilizers and other additives in proportion
Extrusion Molding: Put the mixed material into the extruder, melt it at high temperature and extrude it into strips or sheets of semi-finished products
Welding/Assembly: Connect the semi-finished products through welding equipment to form a cell unit structure
Quality Inspection: Check the size, welding strength and other indicators, and eliminate unqualified products
Cutting & Shaping: Cut qualified products into specified sizes and complete shaping
Surface Treatment (Optional): Perform anti-slip or anti-corrosion treatment on the surface as needed
Packaging: Pack the finished products for easy storage and transportation
Slope Stabilization Geocell
Slope Stabilization Geocell
It is flexible to fold during transportation stretching out and being filled with stone or concrete during service and forming into structure with powerful
Can be used as cushion coat to strength loading capacity of weak ground.
Can be paved in slope as slope protection structure.
Can be used to build the support block structure.
