Piscina Geomembrana
Excellent resistance to environmental stress cracking.
Excellent chemical corrosion resistance.
Excellent chemical corrosion resistance.
Piscina Geomembrana—HDPE geomembrane is produced from high density polyethylene, anti-aging and UV-resistance. Mainly applied in planted roof,reservoir, subway, artificial lake, waste treatment and some industrial waterproofing projects.
Main Feature:
1) It has good flexibility and high impervious coefficient.
2) It has good heat and cold resistance and can be used in a wide temperature range.
3) It has good chemical properties and strong corrosion resistance.
4) It has strong weather resistance and excellent aging resistance.
5) It has high tensile strength and fracture elongation index and It can be used in various harsh geological and climatic conditions.
Piscina Geomembrana—Smooth geomembranes manufactured from quality high density polyethylene resins(HDPE) that comply with the most rigorous requirements established for their use. The 0.5mm hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond. Smooth geomembrane, is a geosynthetic material with a flat and smooth appearance.
Geomembrane is widely used: landfill liners, fish ponds in aquaculture, lining of shrimp ponds, agricultural reservoirs, artificial lakes, reservoirs, seepage prevention in chemical plants, tailings, construction projects, etc. Geomembrane is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties.
Piscina Geomembrana
|
Item
|
HDPE Geomembrane Technical Data
|
||||||||
|
Thickness mm
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density g/cm3
|
>=0.940
|
||||||||
|
Tensile yield strength(TD/MD)
|
≥4
|
≥7
|
≥10
|
≥13
|
≥16
|
≥20
|
≥26
|
≥33
|
≥40
|
|
Tensile Strength at Break(TD/MD)
|
≥6
|
≥10
|
≥15
|
≥20
|
≥25
|
≥30
|
≥40
|
≥50
|
≥60
|
|
Elongation at Yield(TD/MD)
|
_
|
_
|
_
|
≥11
|
|||||
|
Puncture Strength(N)
|
≥72
|
≥120
|
≥180
|
≥240
|
≥300
|
≥360
|
≥480
|
≥600
|
≥720
|
|
Elongation (TD/MD)
|
≥600
|
||||||||
|
Oxidation Induction Time(min)
|
≥60
|
||||||||
|
Water vapor permeability coefficient
( g*cm/(cm*s*Pa))
|
≤1.0×10-13
|
||||||||
|
Dimensional Stability
|
±2.0
|
||||||||

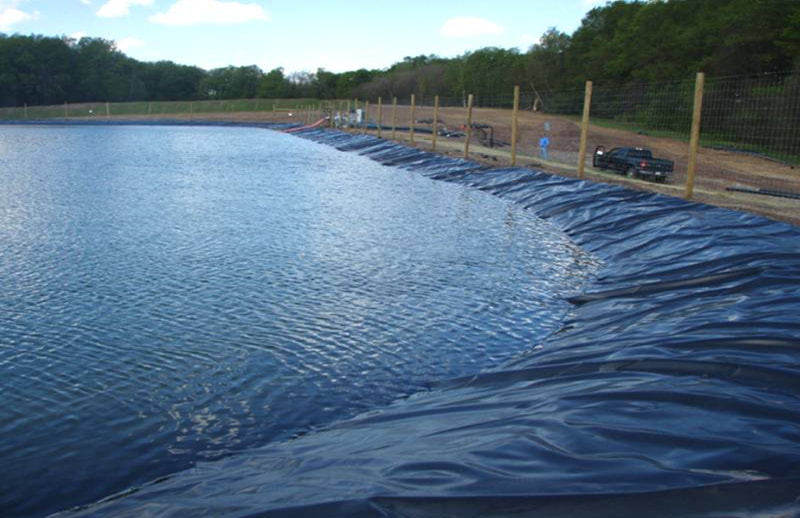

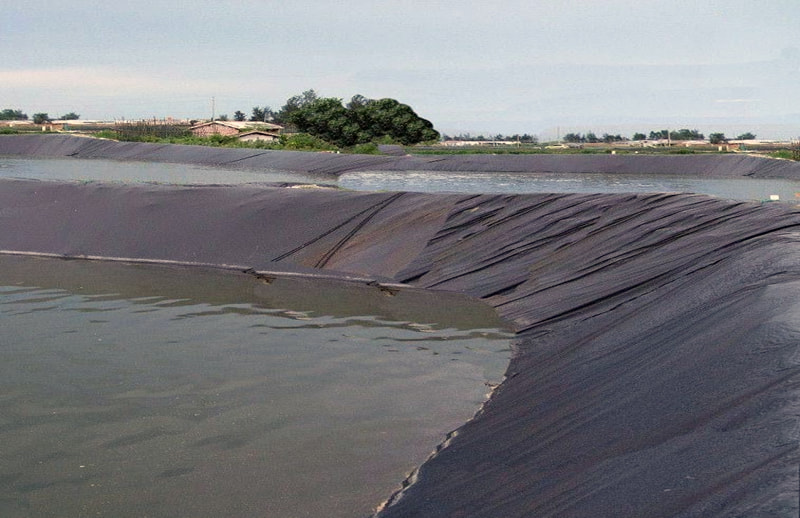

Fish Farming Projects
Applicable to agriculture: reservoirs, drinking water pools, water storage ponds, irrigation systems anti-seepage. Geomembrane is suitable for aquaculture: intensive, factory breeding ponds, fish ponds, shrimp pond linings, sea cucumber circle slope protection, etc.
Biogas Disgester Lining Projects
The application of geomembrane in biogas digesters has significant advantages, including reducing leakage rates, improving safety, extending service life, and reducing pollution risks. Geomembrane is a composite material made of chemical raw materials such as polyethylene, polypropylene, and PVC. It has the characteristics of waterproof, anti-seepage, corrosion resistance, and strong weather resistance.Usually the thickness of 2.0mm will be used for biogas digesters projects.

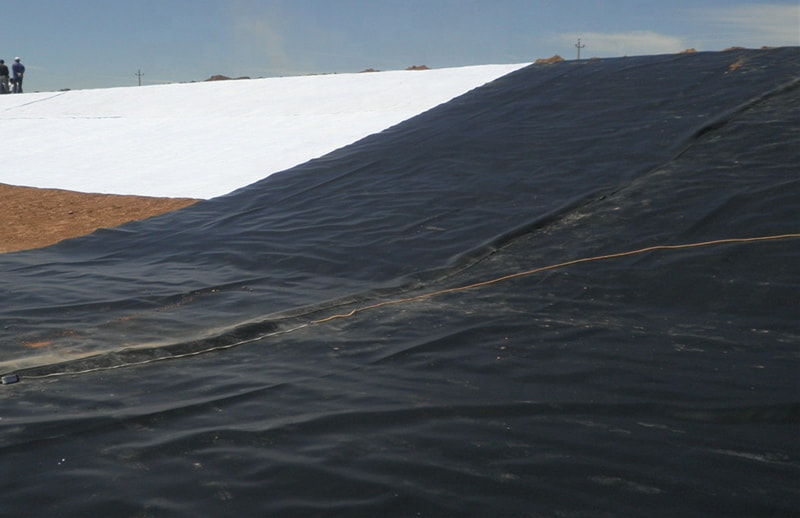

Mining Landfill Projects
Geomembrane is suitable for mining: washing pools, heap leaching pools, ash yards, dissolution pools, sedimentation tanks, yards, tailings bottom lining anti-seepage, etc.
Water Conservancy
Geomembrane used for water conservancy such as anti-seepage, plugging and reinforcement of river, lake and reservoir dams, anti-seepage of canals, vertical core walls, etc.
Gardens
Applicable to gardens: artificial lakes, rivers, reservoirs, golf course pond bottoms, slope protection, green lawn waterproofing and moisture-proofing, etc.
Our Company

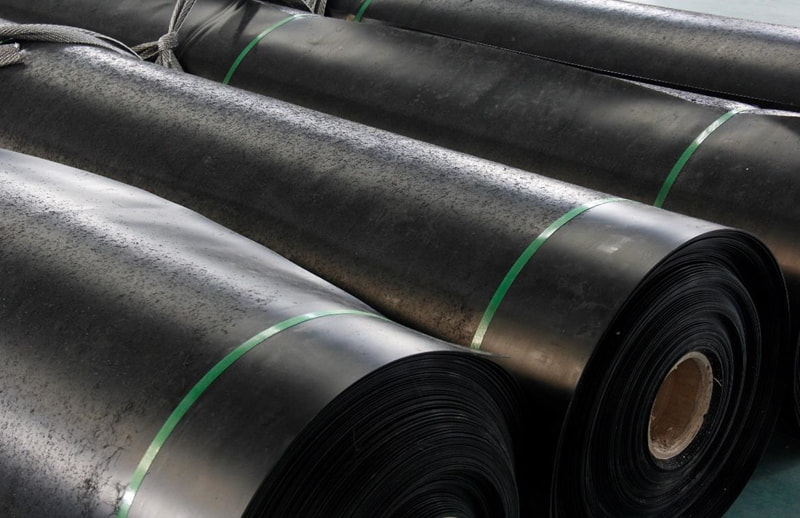

Package: Packed in woven geotextile and strength belt or PE film Or packed according tocustomers’ requirements such as mark the company Logo (Export standard package)Packaging size and container capacity vary according to product specifications.
Sticking on Quality : We don’t just manufacture HDPE geomembranes – we stick on quality at every stage of production, ensuring superior performance and long-term reliability for your projects.
Competitive Factory Advantages: Full control over raw materials, manufacturing, and QC reduces costs and lead times;Competitive rates with clear breakdowns;Tailored to fit your budget and project needs.
