HDPE Geomembrane Suppliers
Thickness: 0.3mm, 0.5mm, 0.75mm,1.0mm, 1.5mm, 2.0mm,3.0mm
Roll Width: 1m, 2m, 3m, 4m,5.8m, 6m, 7m, 8m
Roll Length: 50m, 100m, 150m, 200m
HDPE Geomembrane Suppliers
High-Density Polyethylene (HDPE) geomembrane is a robust, impermeable synthetic liner widely used in environmental, civil, and industrial applications. Known for its exceptional chemical resistance, UV stability, and long service life, HDPE geomembrane is ideal for landfills, mining operations, water reservoirs, and agricultural ponds. Its high tensile strength and puncture resistance ensure reliable performance even under harsh conditions. With excellent weldability, HDPE geomembranes can be seamlessly installed to create a continuous barrier, preventing leakage and contamination.
As an eco-friendly and cost-effective solution, HDPE geomembranes are the preferred choice for sustainable infrastructure projects worldwide.
As a waterproofing liner, HDPE membrane is favored over other materials for its modest economic and operational advantage. Economically, HDPE membrane is superior thanks to its relatively straight forward manufacturing process, which has driven up supply and kept prices low in contrast to other kinds of geomembranes. Furthermore, hdpe geomembrane is a very stable polyolefin that is chemically inert and able to maintain long-term integrity and durability. These properties make the HDPE membrane a popular choice to waterproof and mining, landfill and other containment applications.
HDPE Geomembrane Suppliers
|
Item
|
HDPE Geomembrane Technical Data
|
||||||||
|
Thickness mm
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density g/cm3
|
>=0.940
|
||||||||
|
Tensile yield strength(TD/MD)
|
≥4
|
≥7
|
≥10
|
≥13
|
≥16
|
≥20
|
≥26
|
≥33
|
≥40
|
|
Tensile Strength at Break(TD/MD)
|
≥6
|
≥10
|
≥15
|
≥20
|
≥25
|
≥30
|
≥40
|
≥50
|
≥60
|
|
Elongation at Yield(TD/MD)
|
_
|
_
|
_
|
≥11
|
|||||
|
Puncture Strength(N)
|
≥72
|
≥120
|
≥180
|
≥240
|
≥300
|
≥360
|
≥480
|
≥600
|
≥720
|
|
Elongation (TD/MD)
|
≥600
|
||||||||
|
Oxidation Induction Time(min)
|
≥60
|
||||||||
|
Water vapor permeability coefficient
( g*cm/(cm*s*Pa))
|
≤1.0×10-13
|
||||||||
|
Dimensional Stability
|
±2.0
|
||||||||
HDPE (High-Density Polyethylene) geomembranes are versatile, impermeable liners widely used in engineering and environmental protection due to their durability, chemical resistance, and cost-effectiveness. Key applications include:
- Environmental Protection

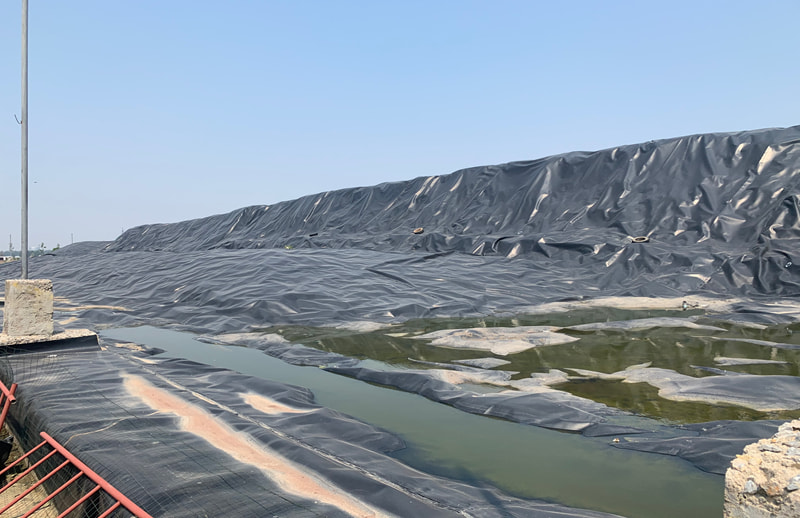

Landfill Liners & Caps: Prevents leachate contamination of soil and groundwater in municipal and hazardous waste landfills.
Wastewater Ponds: Liners for industrial effluent, sewage treatment, and anaerobic lagoons.
- Water Management

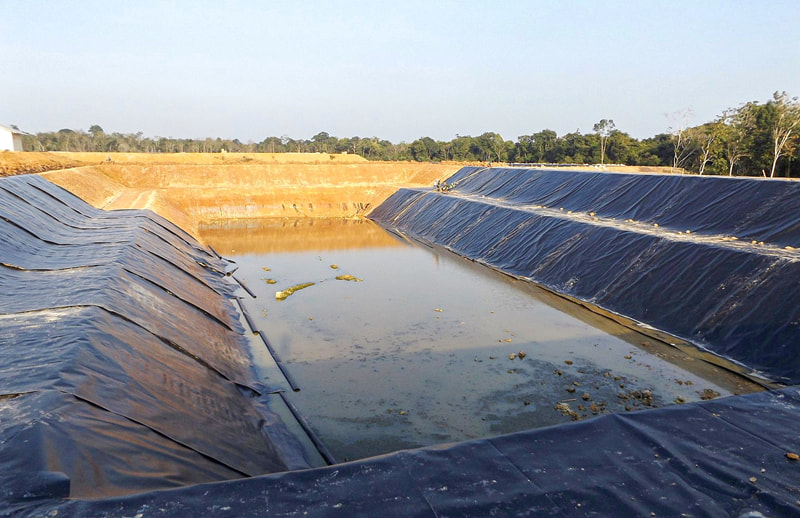

Reservoirs & Canals: Ensures water retention and prevents seepage in irrigation, drinking water, and aquaculture ponds.
Stormwater Control: Used in detention basins and flood control systems.
- Mining & Energy
Heap Leach Pads: Contains toxic chemicals in metal extraction (e.g., gold, copper).
Oil & Gas Pits: Liners for brine ponds, fracking fluid containment, and secondary containment.
- Agriculture

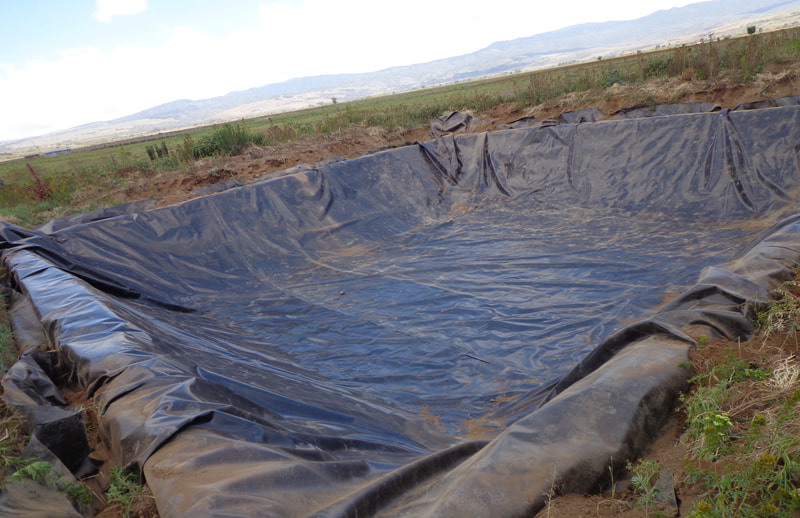

Pond Liners: For irrigation storage, fish farms, and livestock wastewater.
Silt Fencing: Erosion control in sensitive areas.
- Civil Engineering
Tunnel & Roadway Waterproofing: Prevents moisture infiltration in infrastructure.
Secondary Containment: For chemical storage tanks and industrial facilities.

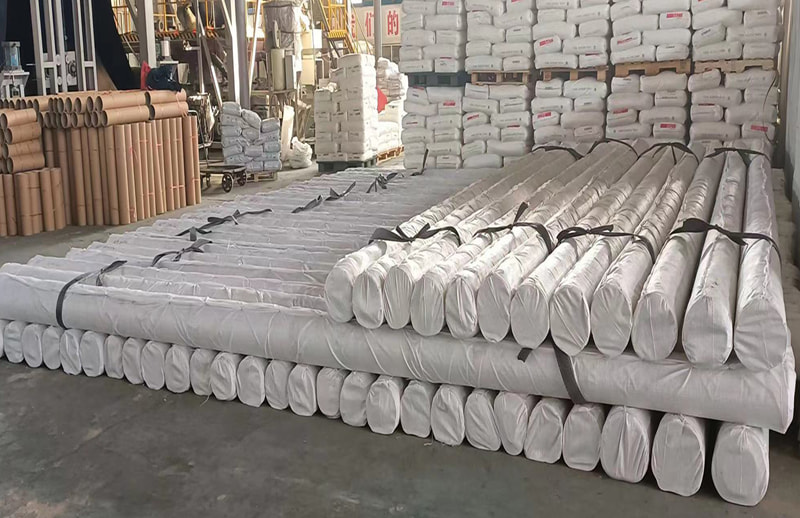

Package: Packed in woven geotextile and strength belt or PE film Or packed according tocustomers’ requirements such as mark the company Logo (Export standard package)Packaging size and container capacity vary according to product specifications.
Sticking on Quality : We don’t just manufacture HDPE geomembranes – we stick on quality at every stage of production, ensuring superior performance and long-term reliability for your projects.
Competitive Factory Advantages: Full control over raw materials, manufacturing, and QC reduces costs and lead times;Competitive rates with clear breakdowns;Tailored to fit your budget and project needs.
