Hdpe Geomembrane China
hdpe geomembrane china
100% HDPE virgin material--High tensile strength and elongation
UV-resitance added to have long service life
For service temperature range:-70°C~110°C
Hdpe Geomembrane China is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties. Hdpe Geomembrane China is widely used in landfills,water conservancy projects, agricultural irrigation, environmental protection facilities and other fields to prevent liquid leakage and gas diffusion, and to ensure the stability of engineering structures and environmental safety.Due to their ability to block fluids, they can help to prevent the dispersal of contaminants and may be used with soil liners or permeable geotextiles to create a composite lining system that provides added security.
Advantages of Hdpe Geomembrane China
* Cost-Effectlveness
The initial cost incurred in the purchase and installation of geomembranes are low compared to traditional concrete or clay liners. You also don’t have to worry about incurring high costs in their maintenance as they are highly durable.
* Installatlon Efficlency
Hdpe Geomembrane China can be manufactured in small sections that can easily be assembled allowing faster and more efficient installation.
* Versatlllty
Geomembrane liners can be customized to meet your project needs. They can therefore be used for a wide array of applications.
* Envlronment Frlendly
The materials are highly impervious and resistant to hazardous substances hence contribute to the preservation of ecosystems and safeguard human health. Geomembranes offer effective containment of liquids and gases, preventing the contamination of soil and groundwater.
Hdpe Geomembrane China
| Item | Hdpe Geomembrane Technical Data | ||||||||
| Thickness mm | 0.3 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| Density g/cm³ | ≥0.940 | ||||||||
| Tensile yield Strength(TD/MD) | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
| Tensile Strength at Break(TD/MD） | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
| Elongation at Yield(TD/MD) | – | – | – | ≥11 | |||||
| Puncture Strength(N) | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
| Elongation(TD/MD) | ≥600 | ||||||||
| Oxidation Induction Time(min) | ≥600 | ||||||||
| Water Vapor Permeability Coefficient(g*cm/(cm*s*Pa)) | ≤1.0×10-13 | ||||||||
| Dimensional Stability | ±2.0 | ||||||||
Applications of HDPE Geomembranes China
HDPE (High-Density Polyethylene) geomembranes are widely recognized for their superior strength, chemical resistance, and long-term durability. These impermeable synthetic liners are extensively used in environmental, hydraulic, and industrial applications where reliable containment is critical.
Primary Uses of HDPE Geomembranes China
-
-

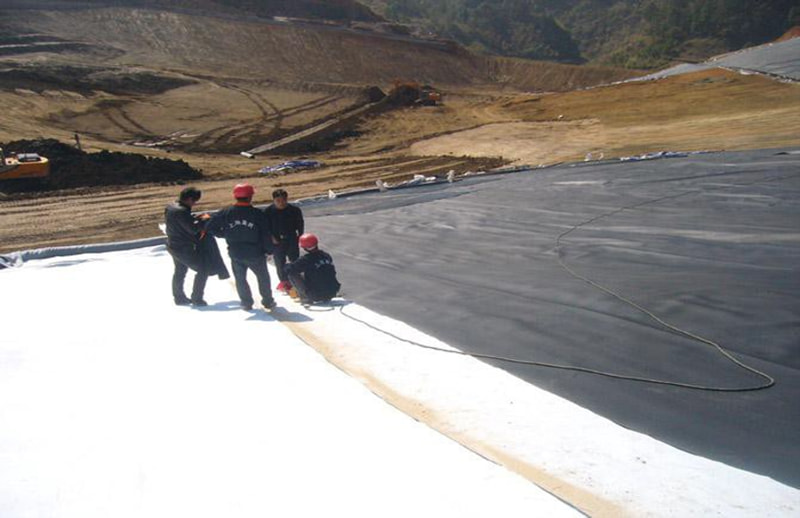

Landfill Liners & Caps
-
Used as primary and secondary liners in solid waste landfills to prevent leachate from contaminating soil and groundwater.
-
Also employed as landfill caps to seal closed waste sites.
-
-
Mining & Tailings Ponds
-
Lines heap leach pads, tailings storage facilities, and process ponds to contain toxic chemicals and acidic solutions.
-
-
Water & Wastewater Containment
-

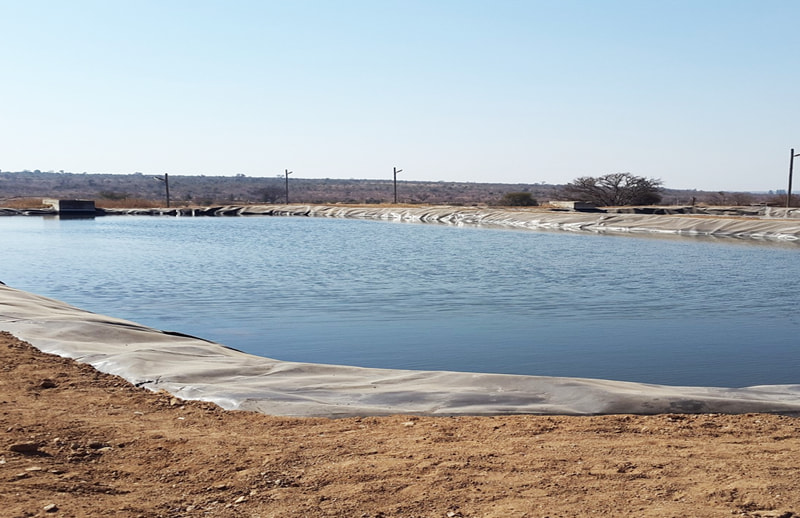

Installed in reservoirs, canals, sewage lagoons, and treatment plants to prevent seepage and ensure efficient water storage.
-
-

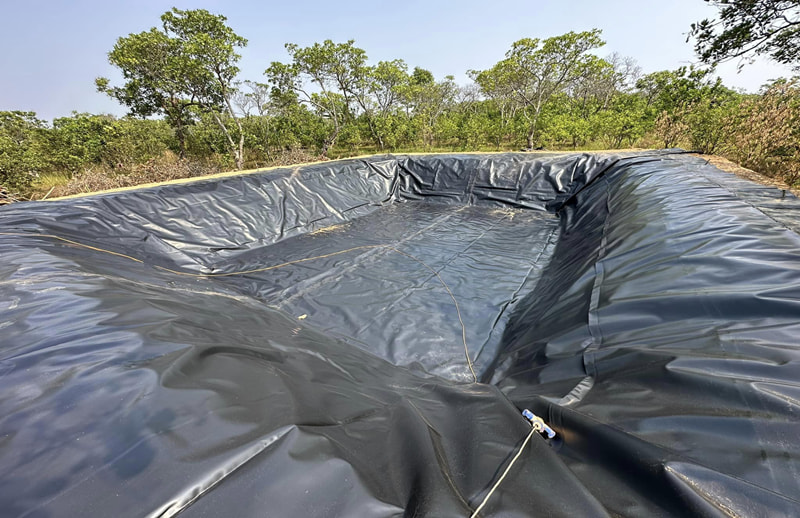

Aquaculture & Decorative Ponds
-
Provides a durable, non-toxic lining for fish farms, shrimp ponds, and artificial lakes
-
-
hdpe geomembrane china
hdpe geomembrane china

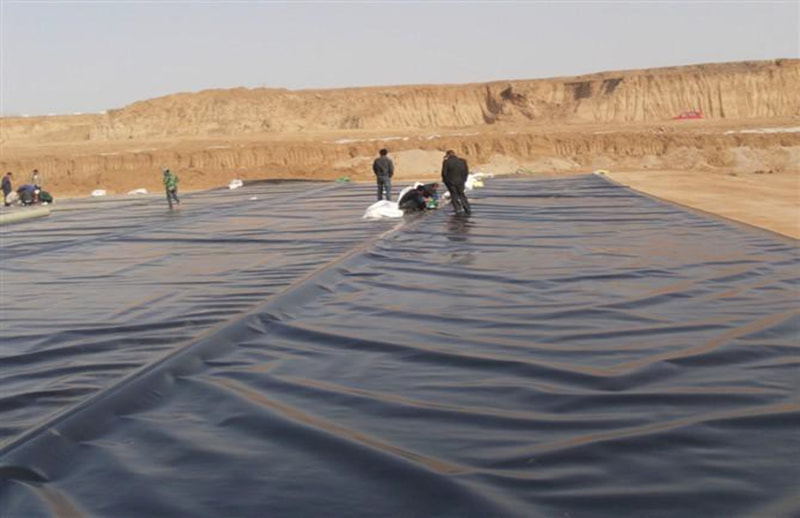

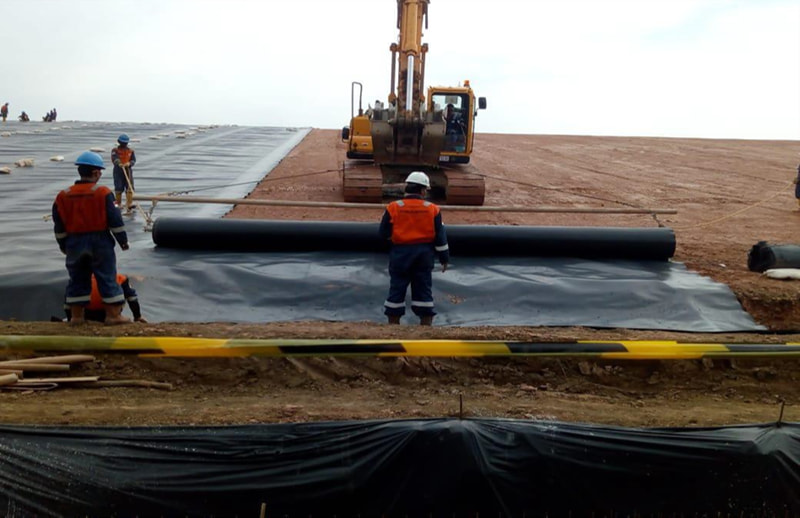

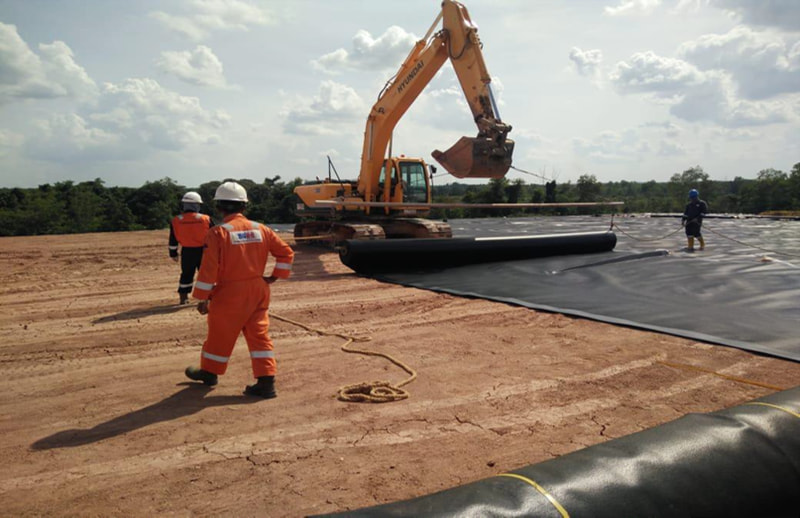

Geomembrane Project Cases
For the world-renowned large-scale projects of mines, oil and gas, and waste landfills, customers have confidence in the quality of geomembrane. The textured geomembrane liner in the project provides a complete waterproof system, and the textured surface makes the installation of the slope area easier and increases its coefficient of friction. The customer is very satisfied with the quality and delivery time of the textured geomembrane lining.
As a waterproofing liner, HDPE membrane is favored over other materials for its modest economic and operational advantage. Economically, HDPE membrane is superior thanks to its relatively straight forward manufacturing process, which has driven up supply and kept prices low in contrast to other kinds of geomembranes.
Furthermore, hdpe geomembrane is a very stable polyolefin that is chemically inert and able to maintain long-term integrity and durability. These properties make the HDPE membrane a popular choice to waterproof and mining, landfill and other containment applications.
Why Choose HDPE Geomembranes China?
-
High Chemical Resistance – Withstands harsh acids, alkalis, and hydrocarbons.
-
UV & Weather Resistance – Long-term stability even under direct sunlight.
-
Puncture & Tear Resistance – Suitable for heavy-duty applications.
-
Long Service Life – Typically lasts decades with proper installation.
