Geomembrane Liner
100% HDPE virgin material
UV-resitance Extended service life
High anti-seepage ratio
Low cost due to Environmental protection formulation Rapid constructio
Main Colors: Black, Blue, Green, White
Other colors are all customized
Description
Geomembrane Liner
Geomembranes liner are impermeable synthetic liners and barriers engineered to provide secure containment solutions for liquids, gases, and solids. As a core component of modern geosynthetic systems, our geomembranes liner offer unmatched durability, chemical resistance, and long-term performance across environmental, industrial, and civil applications.
geomembrane line
Geomembrane Liner’s Features
Quality Materials: HDPE pond liners are the most heavy-duty and long-lasting option, made of a thick, high-density plastic material that is resistant to punctures and tears.
Protect Your Pond: Pond liner can reduce the soil accumulation since it creates a plat surface. It can also keep away the harmful substances in the soil from penetrating into the pond to pollute the water, you can clean the pond more easily and effectively.
geomembrane line
Excellent Impermeability: Extremely low permeability coefficient prevents fluid migration
Chemical Resistance: Withstands acids, alkalis, hydrocarbons, and other aggressive substances
UV Stability: Contains UV stabilizers for extended outdoor exposure
Mechanical Strength: High tensile, tear, and puncture resistance
Flexibility: Maintains performance across temperature variations
Specifications
| Geomembrane Liner —-HDPE Geomembrane Technical Parameter – Smooth (GRI GM13) | ||||||||||
| Tested Property | Test Method | Frequency | Minimum Average Value | |||||||
| Product Code | HDPE | |||||||||
| Thickness, mm | ASTM D 5199 | every roll | 0.3 | 0.5 | 0.75 | 1 | 1.5 | 2 | 2.5 | 3 |
| Density, g/cm3 | ASTM D 1505 / D 792 | every 5th roll | 0.94 | |||||||
| Tensile Properties (eachdirection) Strength at Break, N/mm-width Strength at Yield, N/mm width Elongation at Break,% Elongation at Yield, % |
ASTM D 6693, Type IV | every 5th roll | ||||||||
| Dumbbell, 50 mm/min | 8 | 14 | 21 | 28 | 43 | 57 | 71 | 85 | ||
| 4 | 7 | 11 | 15 | 23 | 30 | 38 | 45 | |||
| G.L. 51 mm | 600 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | ||
| G.L. 33 mm | 12 | 12 | 13 | 13 | 13 | 13 | 13 | 13 | ||
| Tear Resistance, N | ASTM D 1004 | every 5th roll | 40 | 65 | 93 | 125 | 187 | 249 | 311 | 374 |
| Puncture Resistance, N | ASTM D 4833 | every 5th roll | 105 | 176 | 263 | 352 | 530 | 670 | 840 | 980 |
| Carbon Black Content, % (Range) | ASTM D 4218 / D 1063 | every 5th roll | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Carbon Black Dispersion | ASTM D 5596 | every 5th roll | Note(2) | Note(2) | ||||||
| Notched Constant Tensile Load, hours | ASTM D 5397,Appendix | 90,000 kg | 500 | |||||||
| Oxidative Induction Time,minutes | ASTM D 3895, 200℃;O2, 1 atm | 90,000 kg | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 |

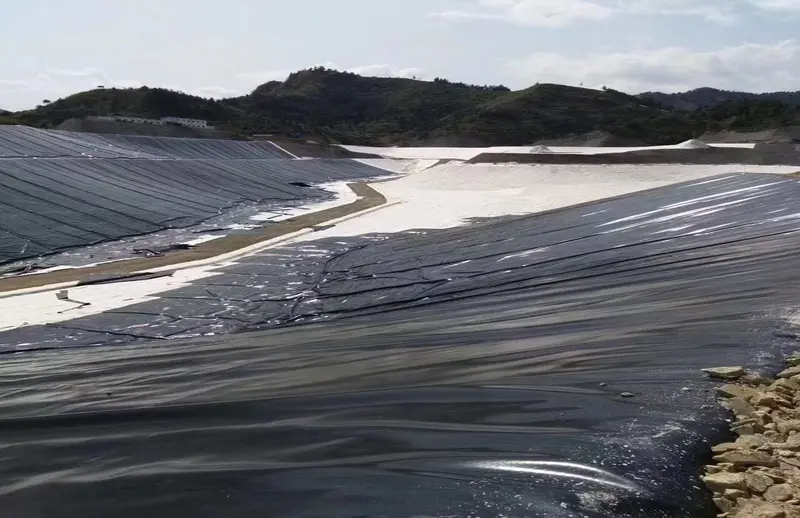

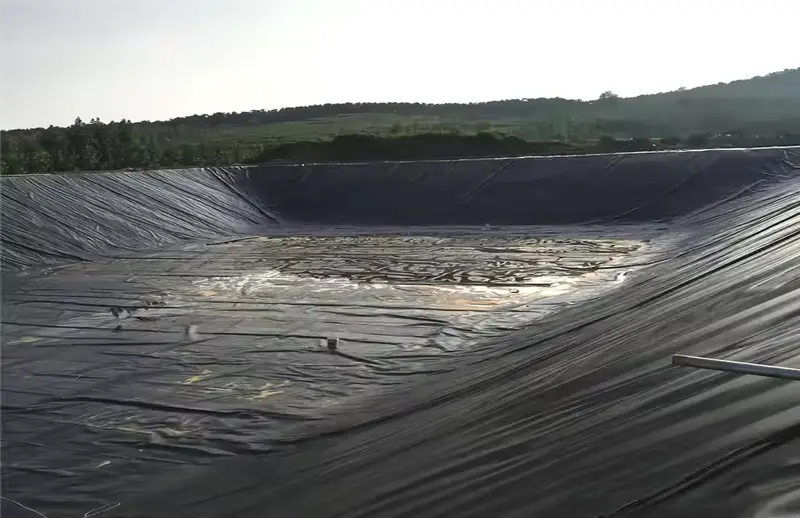

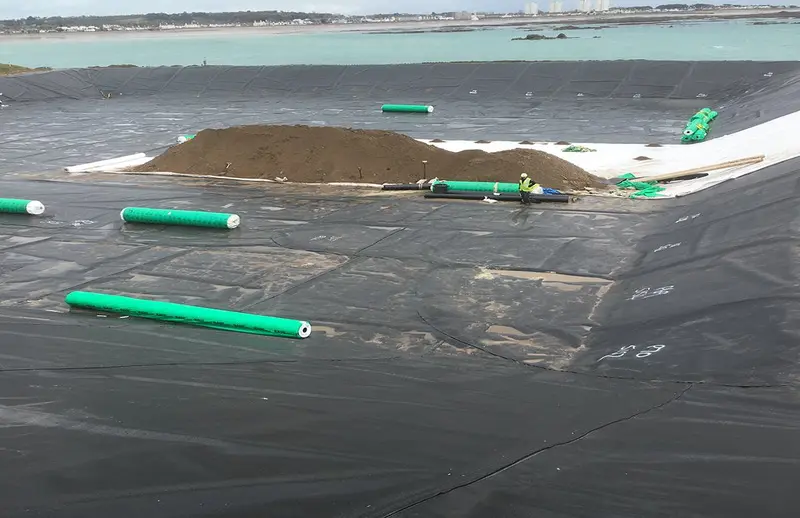

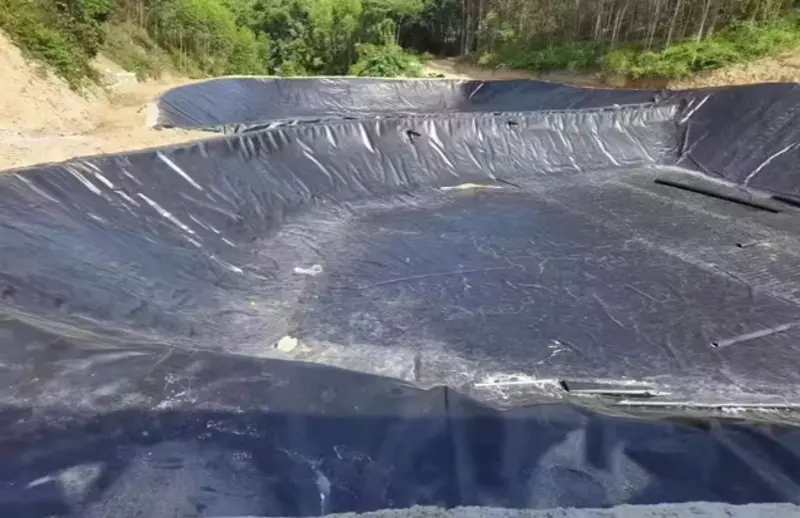

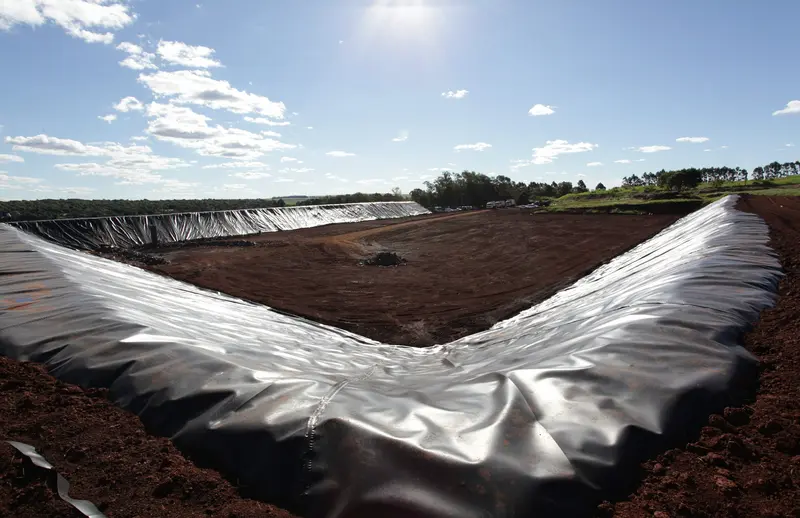

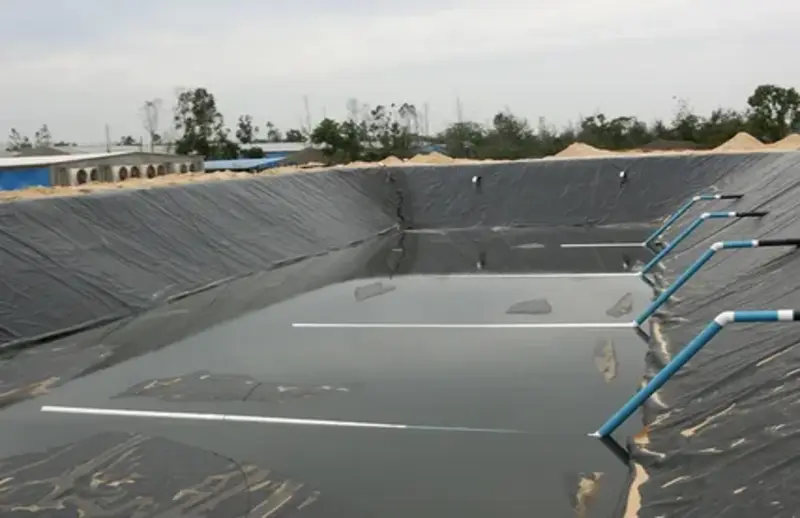

Applications
Geomembrane Liner
Environmental Protection
Landfill base liners and caps
Mining leach pads and tailings dams
Wastewater treatment lagoons
Contaminated site remediation
Water Management
Potable water storage reservoirs
Irrigation canals and ponds
Aquaculture and fish farming
Decorative water features
Industrial & Civil Engineering
Secondary containment systems
Tunnel and underground waterproofing
Roofing and plaza deck membranes
Floating covers for reservoirs
geomembrane line
geomembrane line
geomembrane line
geomembrane line
Related Videos
Geomembrane Liner
Our geomembrane liner comes in a variety of sizes and the material is soft to suit different shapes and sizes of ponds. Just put the pond liner in the pond and the smooth HDPE pond liner will provide a plat surface for better cleaning. Widely Use: Pond Liner can be used in different sizes of koi ponds, fish ponds, garden fountains, waterfalls, pond waterfall, garden pond. A pond liner can last for decades with proper care and maintenance, offering a beautiful and sustainable backyard oasis for you, your family, and your aquatic pets.
