Geomembrane Liner Sale
100% HDPE virgin material
UV-resitance Extended service life
High anti-seepage ratio
Low cost due to Environmental protection formulation Rapid constructio
Main Colors: Black, Blue, Green, White
Other colors are all customized
Geomembrane Liner Sale
A geomembrane is a synthetic membrane liner or barrier used to control fluid migration in various engineering and environmental applications. Made from impermeable materials, geomembranes are highly resistant to chemicals, UV radiation, and mechanical stress, making them essential in containment systems for liquids, gases, and solids.
Geomembranes are widely used in:
Water containment (reservoirs, ponds, canals)
Waste management (landfills, hazardous waste storage)
Mining (heap leach pads, tailings dams)
Agriculture (irrigation ponds, biogas lagoons)
Civil engineering (tunnels, roadways, erosion control)
Geomembrane Liner Sale

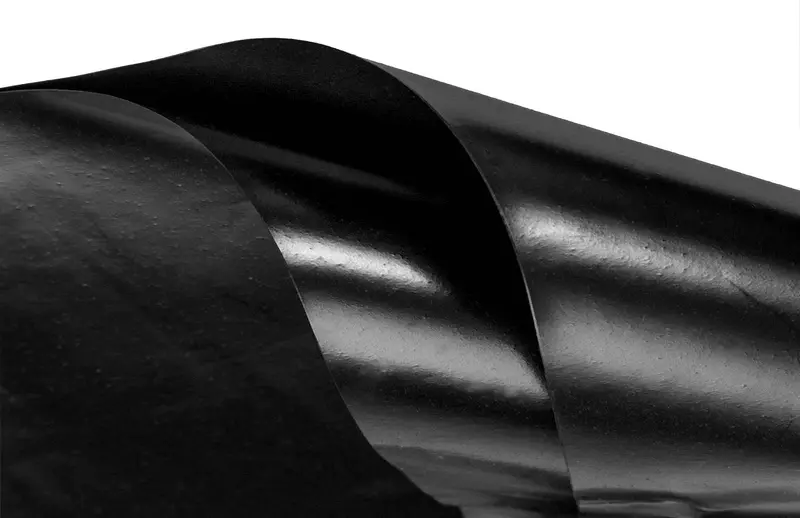

Smooth geomembranes manufactured from quality high density polyethylene resins(HDPE) that comply with the most rigorous requirements established for their use. The 0.5mm hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond.smooth Geomembrane, is a geosynthetic material with a flat and smooth appearance.
Smooth Geomembrane has extremely low permeability, which can effectively prevent the penetration of water and other liquids,ensuring the stability and safety of engineering structures.
The material can withstand the erosion of a variety of chemical substances,including acids, alkalis, salts, etc., and is suitable for various complex environments
Geomembrane Liner Sale
Smooth Geomembrane has high tensile strength and elongation at break, can withstand large stress and deformation,and is not easy to break.
Due to the addition of auxiliary materials such as anti-aging agents,Smooth Geomembrane can maintain its stable performance for a long time and extend its service life.
Geomembranes, also known as waterproof geomembranes, is a type of impermeable membrane, usually made of primary resins such as high density polyethylene (HDPE). They have excellent impermeability and chemical resistance, can effectively prevent water and other liquids from penetrating into the soil, and protect groundwater and surface water resources. For this reason, they are commonly used in projects such as landfills, chemical plants, mines and reservoirs as seepage barriers.
| Geomembrane Liner Sale—-HDPE Geomembrane Technical Parameter – Smooth (GRI GM13) | ||||||||||
| Tested Property | Test Method | Frequency | Minimum Average Value | |||||||
| Product Code | HDPE | |||||||||
| Thickness, mm | ASTM D 5199 | every roll | 0.3 | 0.5 | 0.75 | 1 | 1.5 | 2 | 2.5 | 3 |
| Density, g/cm3 | ASTM D 1505 / D 792 | every 5th roll | 0.94 | |||||||
| Tensile Properties (eachdirection) Strength at Break, N/mm-width Strength at Yield, N/mm width Elongation at Break,% Elongation at Yield, % |
ASTM D 6693, Type IV | every 5th roll | ||||||||
| Dumbbell, 50 mm/min | 8 | 14 | 21 | 28 | 43 | 57 | 71 | 85 | ||
| 4 | 7 | 11 | 15 | 23 | 30 | 38 | 45 | |||
| G.L. 51 mm | 600 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | ||
| G.L. 33 mm | 12 | 12 | 13 | 13 | 13 | 13 | 13 | 13 | ||
| Tear Resistance, N | ASTM D 1004 | every 5th roll | 40 | 65 | 93 | 125 | 187 | 249 | 311 | 374 |
| Puncture Resistance, N | ASTM D 4833 | every 5th roll | 105 | 176 | 263 | 352 | 530 | 670 | 840 | 980 |
| Carbon Black Content, % (Range) | ASTM D 4218 / D 1063 | every 5th roll | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 |
| Carbon Black Dispersion | ASTM D 5596 | every 5th roll | Note(2) | Note(2) | ||||||
| Notched Constant Tensile Load, hours | ASTM D 5397,Appendix | 90,000 kg | 500 | |||||||
| Oxidative Induction Time,minutes | ASTM D 3895, 200℃;O2, 1 atm | 90,000 kg | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 | > 100 |
Fish Farming Projects
Applicable to agriculture: reservoirs, drinking water pools, water storage ponds, irrigation systems anti-seepage.Geomembrane is suitable for aquaculture: intensive, factory breeding ponds, fish ponds, shrimp pond linings, sea cucumber circleslope protection, etc.
Mining Landfill Projects
Geomembrane is suitable for mining: washing pools, heap leaching pools, ash yards, dissolution pools, sedimentation tanks, yards,
tailings bottom lining anti-seepage, etc.
Water Conservancy
Geomembrane used for water conservancy such as anti-seepage, plugging and reinforcement of river, lake and reservoir dams, anti-seepage of canals, vertical core walls, etc.
Biogas Disgester Lining Projects
The application of geomembrane in biogas digesters has significant advantages, including reducing leakage rates, improving safety, extending service life, and reducing pollution risks. Geomembrane is a composite material made of chemical raw materials such as polyethylene, polypropylene, and PVC. It has the characteristics of waterproof, anti-seepage, corrosion resistance, and strong weather resistance. Usually the thickness of 2.0mm will be used for biogas digesters projects.
Gardens
Applicable to gardens: artificial lakes, rivers, reservoirs, golf course pond bottoms, slope protection, green lawn waterproofing and moisture-proofing, etc.
Geomembrane Liner Sale
Geomembranes are vital in modern engineering, offering reliable containment solutions across industries. Selecting the right type, proper installation, and maintenance ensure optimal performance. As technology advances, geomembranes will continue to evolve, providing even more sustainable and efficient solutions.
As a core material in modern engineering impermeability,geomembranes have become the preferred solution for liquid containment, pollutant isolation,and environmental protection challenges,thanks to their exceptional sealing performance,durability,and environmental adaptability.From water resource management to environmental remediation, and from infrastructure reinforcement to energy industry applications, they transcend industry boundaries, delivering long-lasting, reliable protective barriers for demanding scenarios. Choosing high-performance geomembranes means choosing long-term project safety and a sustainable environmental future.
Geomembrane Liner Sale—How to choose thickness
Aquaculture/Fish Pond/lrrigationWater Tank,etc———Our suggestion:0.5-1.0mm Thickness
Mid-range Landfill/Wastewater Pond————————Our suggestion:1.0-1.5mm Thickness
Major Landfill Base/Large Mining /Tailing Dam,etc——Our suggestion:2.0-3.0mm Thickness
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package)Packaging size and container capacity vary according to product specifications.
And we can package and transport the products according to the requirements of the customers.please contact us if you need.
