Geomembrane Liner Manufacturers
Use only high-quality raw materials
Complete width and thickness specifications
OEM/ODM availability
Best factory price, fast delivery
Description
Geomembrane is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties.It is widely used in landfills, water conservancy projects, agricultural irrigation, environmental protection facilities and other fields to prevent liquid leakage and gas diffusion, and to ensure the stability of engineering structures and environmental safety.Due to their ability to block fluids, they can help to prevent the dispersal of contaminants and may be used with soil liners or permeable geotextiles to create a composite lining system that provides added security.
- 30mil/0.75mm HDPE Geomembrane

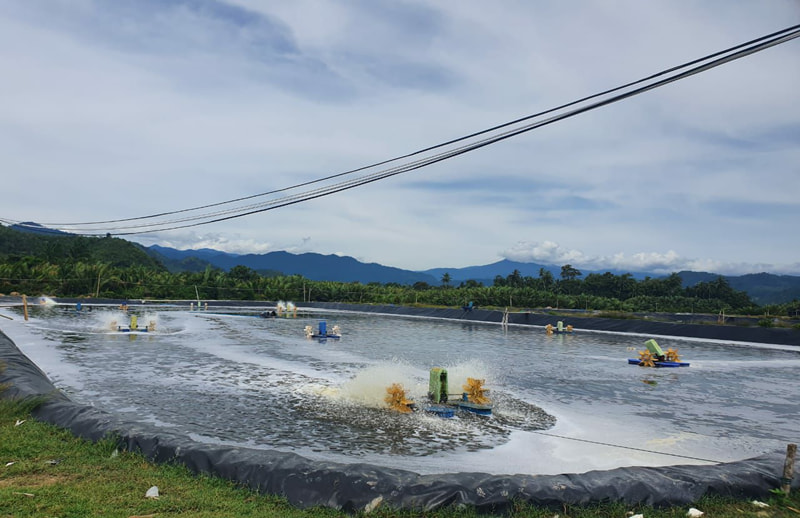

The 30mil hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond.
- 40mil/1mm HDPE Geomembrane
The 40 mil hdpe geomembrane is popular thickness,its widely used in reservior and project,the reservior for storage water and irrigation.
- 60mil/1.50mm HDPE Geomembrane
The 60 mil hdpe geomembrane is popular thickness,its widely used in anti-seepage project,like landfill and oil and gas project,etc
- 80mil/2.00mm HDPE Geomembrane
The 80 mil hdpe geomembrane is popular thickness,its widely used in industry project,like gold mining,oil and gas project,etc.
Specifications
Geomembrane Liner Manufacturers
| Item | HDPE Geomembrane Technical Data | ||||||||
| Thickness mm | 0.3 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| Density g/cm³ | ≥0.940 | ||||||||
| Tensile yield Strength(TD/MD) | ≥4 | ≥7 | ≥10 | ≥13 | ≥16 | ≥20 | ≥26 | ≥33 | ≥40 |
| Tensile Strength at Break(TD/MD） | ≥6 | ≥10 | ≥15 | ≥20 | ≥25 | ≥30 | ≥40 | ≥50 | ≥60 |
| Elongation at Yield(TD/MD) | – | – | – | ≥11 | |||||
| Puncture Strength(N) | ≥72 | ≥120 | ≥180 | ≥240 | ≥300 | ≥360 | ≥480 | ≥600 | ≥720 |
| Elongation(TD/MD) | ≥600 | ||||||||
| Oxidation Induction Time(min) | ≥600 | ||||||||
| Water Vapor Permeability Coefficient(g*cm/(cm*s*Pa)) | ≤1.0×10-13 | ||||||||
| Dimensional Stability | ±2.0 | ||||||||
Applications
Practical Advantages of Geomembranes
- Superior Impermeability – Effectively blocks liquids, gases, and contaminants, ensuring zero leakage in containment applications.
- Chemical Resistance – Withstands harsh acids, alkalis, and industrial waste, ideal for landfills and mining.
- UV & Weather Resilience – UV-stabilized formulations prevent degradation under prolonged sun exposure.
- Cost-Effective Installation – Lightweight and flexible, enabling faster deployment than concrete or clay alternatives.
- Long Lifespan – Durable polymer materials last 20–30+ years with minimal maintenance.
- Adaptability – Customizable thickness (0.5–3mm+) and textures (smooth/rough) for slope stability or friction needs.
- Environmental Protection – Safeguards soil and groundwater by isolating pollutants in landfills, ponds, or oil pads.
- Puncture Resistance – Reinforced options available for high-stress applications like mining or construction.
- Cost-Effectiveness– The initial cost incurred in the purchase and installation of geomembranes are low compared to traditional concrete or clay liners. You also don’t have to worry about incurring high costs in their maintenance as they are highly durable.
- Installation Efficiency– Geomembranes can be manufactured in small sections that can easily be assembled, allowing faster and more efficient installation.
- Versatility– Geomembrane liners can be customized to meet your project needs. They can therefore be used for a wide array of applications.
- Environment Friendly– The materials are highly impervious and resistant to hazardous substances hence contribute to the preservation of ecosystems and safeguard human health. Geomembranes offer effective containment of liquids and gases, preventing the contamination of soil and groundwater.
geomembrane liner manufacturers
geomembrane liner manufacturers
Production workshop
Tai’an Dingkun New Material Co., Ltd. covers an area of 200,000 square meters, with a total investment of 90 million US dollars, and an annual production of 80 million square meters of various geosynthetics. It has long been committed to the development and application of new polymer materials for geotechnical engineering.Our company’s products have been sold to more than 50 countries and regions in the world, and our goal is to become the world’s largest an best manufacturer of high-performance geosynthetics.
Packing &Transport
1.Package
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package). Packaging size and container capacity vary according to product specifications.
2.Transportion
we can package and transport the products according to the requirements of the customers. please contact us if you need.
