Geomembran HDPE 0.5mm
Material: HDPE / LDPE /LLDPE/ PVC
Color: Black, White, Blue, Green (as request)
Standard: ASTM GRI-GM13
Thickness:0.2mm-3mm
Geomembran HDPE 0.5mm is a versatile and economical flexible barrier liner, engineered for projects where dependable fluid containment and vapor control are essential. Made from premium high-density polyethylene resins, it offers an exceptional balance of performance and value for a wide range of applications.
geomembran hdpe 0.5mm
Advantages of the Geomembran HDPE 0.5mm
Excellent Chemical Resistance: Highly resistant to a wide range of chemicals, including acids, alkalis, and salts, making it ideal for containing leachate, agricultural waste, and various industrial byproducts.
Outstanding UV Resistance: Formulated with high-quality carbon black, our liner provides superior resistance to ultraviolet radiation, ensuring long-term durability and performance when exposed to sunlight.
geomembran hdpe 0.5mm
High Durability & Tensile Strength: Offers strong mechanical properties, including puncture and tear resistance, to withstand installation stresses and subgrade conditions.
Low Permeability: Provides an exceptional impermeable barrier with extremely low hydraulic conductivity, effectively isolating contaminants and controlling moisture.
Cost-Effective Solution: The 0.5mm thickness provides a perfect balance of performance and economy for projects that require a robust barrier without the need for a heavy-duty liner.
Specifications of the Geomembran HDPE 0.5mm
| Properties | Test Method | HDPE-Smooth | ||||
| Thickness (min.ave.) | mm(mil) | 0. 5(20) | 0.75(30) | 1.00(40) | 1.5(60) | 2.0(80) |
| Density | ASTM D 792 g/cm3 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 |
| Tensile Properties (min.ave.) | ASTM D 638 Tipo IV | |||||
| Yield Strength | /M(lb/in) | 7(40) | 11(63) | 15(84) | 22(126) | 29(168) |
| Break Strength | /M(lb/in) | 13(74) | 20(114) | 27(152) | 40(228) | 53(304) |
| Yied Elongation | % | 12 | 12 | 12 | 12 | 12 |
| Break Elongation | % | 700 | 700 | 700 | 700 | 700 |
| Tear Resistance (min.ave.) | ASTM D 1004 N(lb) | 62(14) | 93(21) | 125(28) | 187(42) | 249(56) |
| Puncture Resistance (min.ave.) | ASTM D 4833 N(lb) | 160(36) | 240(54) | 320(72) | 480(108) | 640(144) |
| Carbon Black Content | ASTM D 1603 (%) | 2~3 | 2~3 | 2~3 | 2~3 | 2~3 |

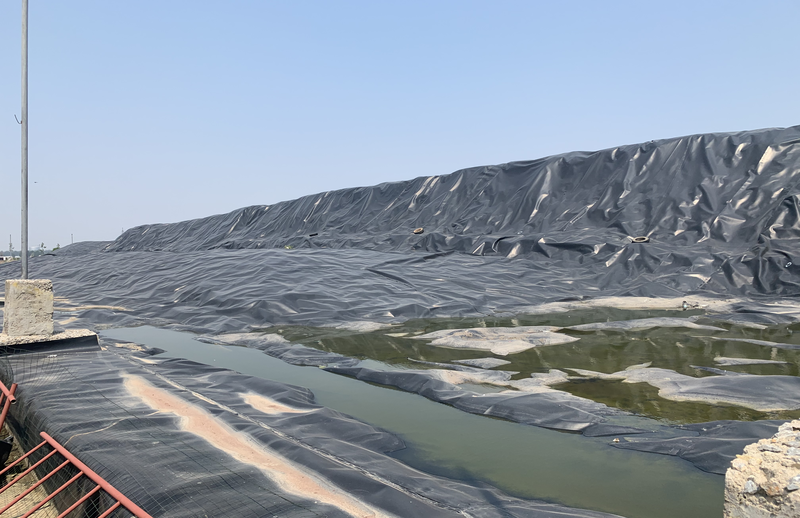

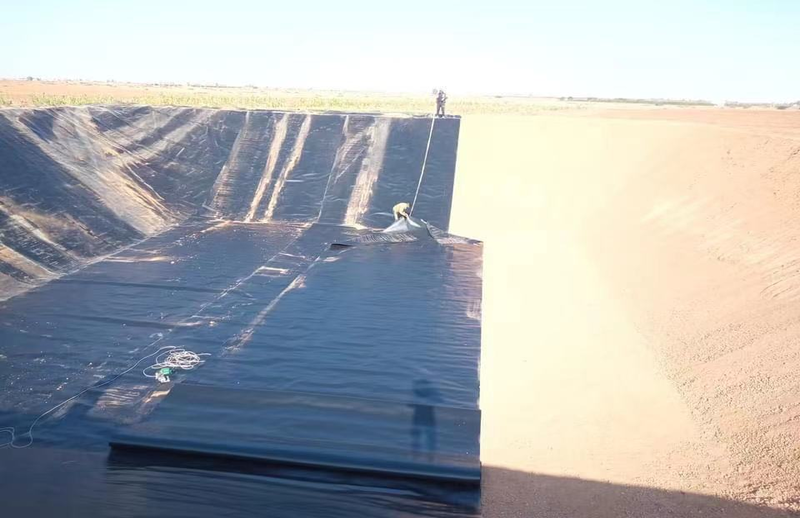

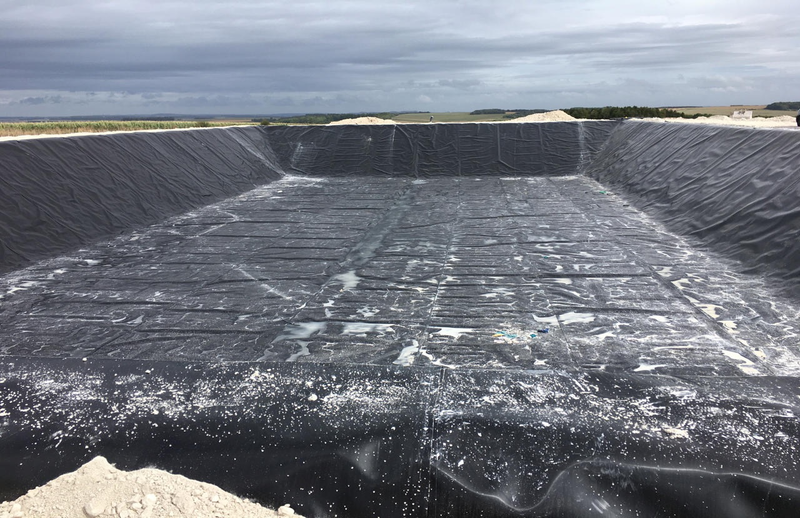

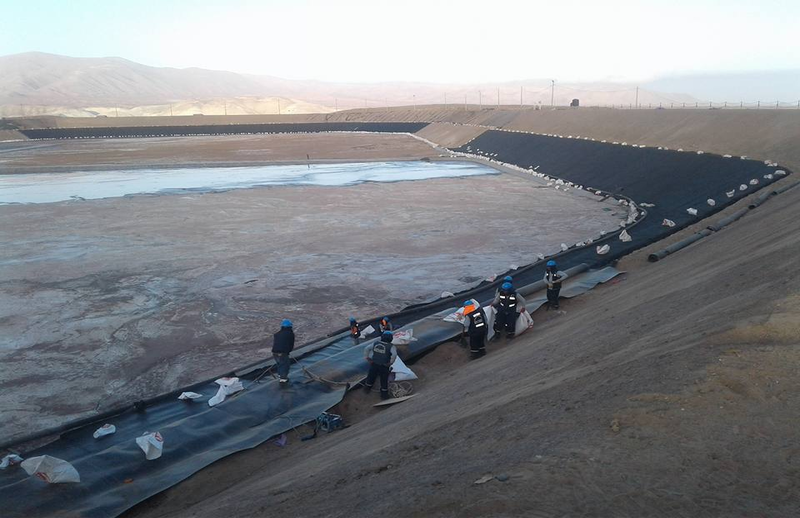

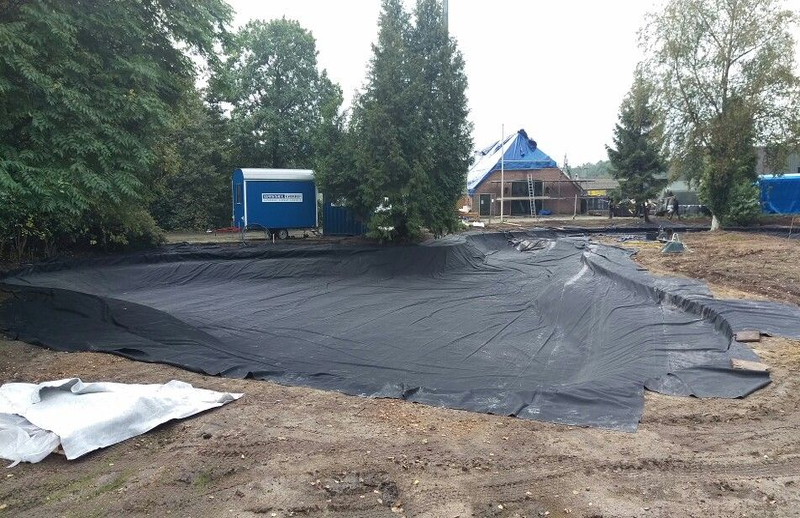

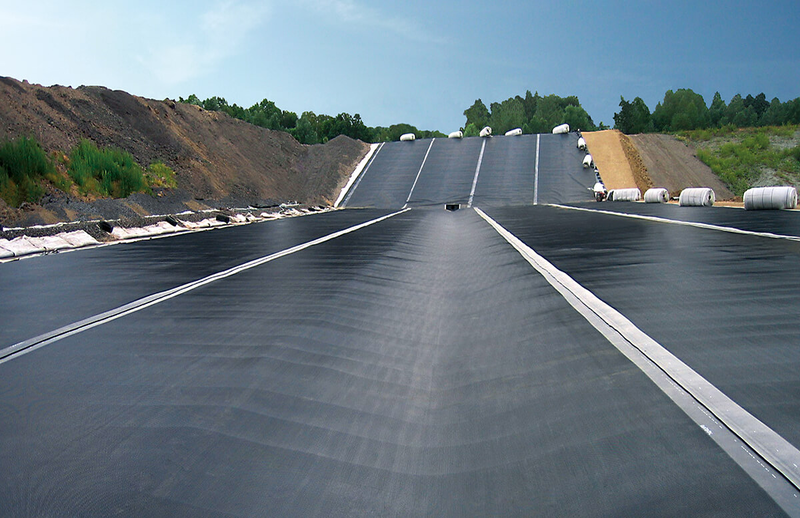

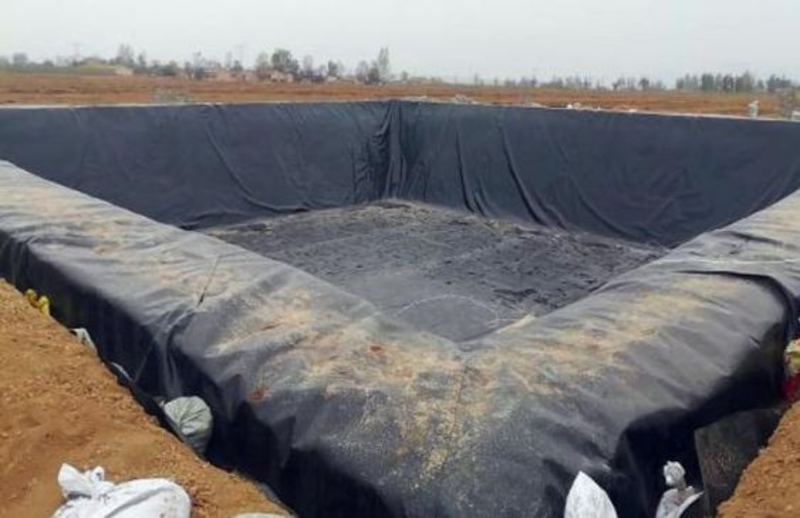

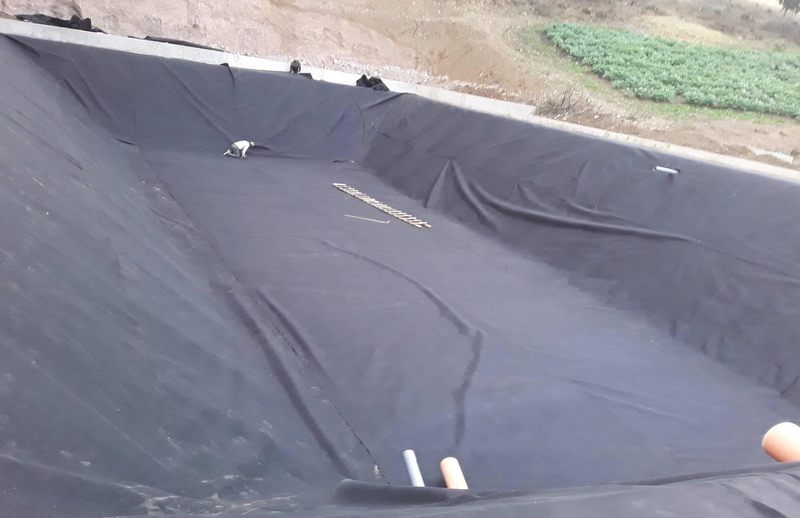

Applications of the Geomembran HDPE 0.5mm
Geomembrane is widely used: landfill liners, fish ponds in aquaculture, lining of shrimp ponds, agricultural reservoirs, artificial lakes, reservoirs, seepage prevention in chemical plants, tailings, construction projects, etc. Geomembrane is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties.
Pond & Reservoir Liners: For water storage, irrigation, fire suppression ponds, and decorative water features.
Landfill Caps: As a part of a final cover system to prevent rainwater infiltration.
Agricultural & Aquaculture Liners: For manure lagoons, silage leachate pads, and shrimp/fish ponds.
Construction & Industrial Mats: Used as a temporary vapor barrier or for containment on construction sites.
Erosion Control Projects: As a barrier beneath revetments.
geomembran hdpe 0.5mm
geomembran hdpe 0.5mm
geomembran hdpe 0.5mm
geomembran hdpe 0.5mm
Geomembran HDPE 0.5mm
The HDPE geomembrane is 100%waterproof products.The raw material is high density polyethylene and carbon black,mixed in three lay co-extrustion blowing machine. It has good mechanical strength, tensile strength at break 28Mpa, elongation at break 700%. The anti-seepage principle is ordinary physical changes. It is the best choice for environmental protection, aquaculture, and drinking water ponds.
Smooth geomembranes manufactured from quality high density polyethylene resins(HDPE) that comply with the most rigorous requirements established for their use. The 0.5mm hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond.
