Geocells for Erosion Control
Geocells for erosion control is mainly made in reinforced HDPE sheet material. After being treated with flame-retardant and antistatic technology, the overall structure of the "double-resistance" plastic net formed by the biaxial stretching method is a new type of high-strength geosynthetic material.
Geocells for Erosion Control
Our specially designed Geocells (Cellular Confinement Systems) provide a robust, three-dimensional solution to control erosion and protect slopes, channels, and embankments. When filled with soil and vegetation, they create a durable, monolithic structure that locks the earth in place, resisting the destructive forces of water and wind.
Geocells for Erosion Control
The Problem with Conventional Erosion Control
Washing Away: Loose soil is easily carried away by stormwater and runoff.
Surface Sloughing: Unstable slopes gradually deteriorate, leading to failures.
Temporary Fixes: Traditional mats and blankets can be insufficient for high-flow channels or steep slopes
High Cost of Repair: Reactive repairs are expensive and disruptive.
The Geocell Solution: How It Works

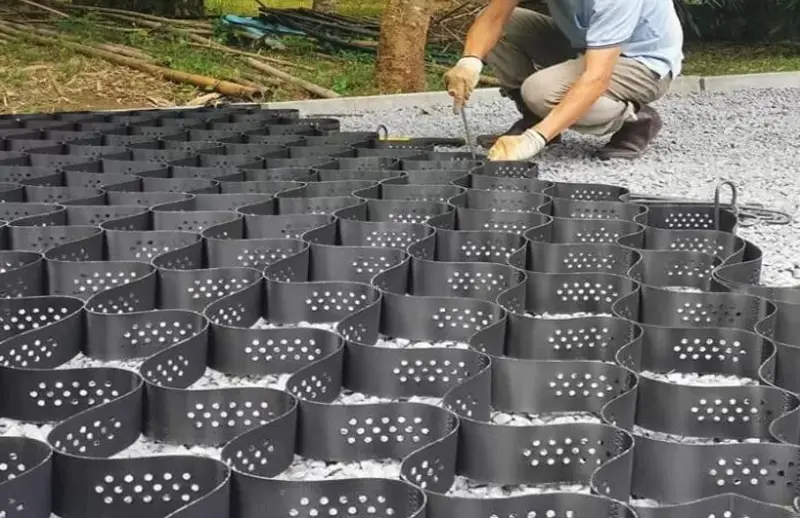

Deploy: The lightweight, expandable Geocell panels are placed on the prepared slope or channel.

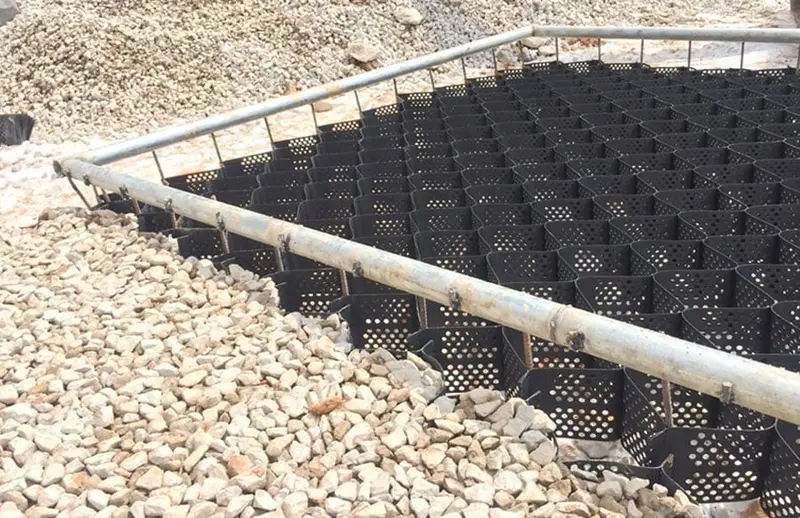

Infill & Vegetate: The cells are filled with native soil, sand, gravel, or a growth medium and seeded.
Stabilize: The cellular structure provides all-around confinement, creating a reinforced “mattress” that is highly resistant to hydraulic forces and surface erosion.
geocells for erosion control
The Key Benefits of Geocell for Erosion Control
Superior, Permanent Protection: The 3D honeycomb structure dissipates flow energy, prevents soil particle movement, and provides deep-rooted reinforcement that simple mats cannot match.
Promotes Sustainable Vegetation: The cells protect seedlings and create an ideal environment for root systems to establish and intertwine, forming a natural, living reinforcement that becomes stronger over time.
Cost-Effective & Rapid Installation: Significantly reduces labor and material costs compared to hard armor like riprap or concrete. Lightweight panels install quickly without heavy machinery in most cases.
Geocell for Erosion Control for Driveway:
| Index Properties | Test Method | Units | Values | ||||||||||||
| Material | 100% Virgin HDPE | ||||||||||||||
| Carbon Black Content | ASTM D 1603 | % | ≥1.5 | ||||||||||||
| Density | ASTM D 1505 | g/cm3 | 0.935-0.965 | ||||||||||||
| Sheet Thickness +5% | ASTM D 5199 | mm | 1.5 | ||||||||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | ||||||||||||
| Tensile Strength at Yield | ASTM D 638 | KN/m | ≥22 | ||||||||||||
| Environmental Stress Crack Resistance ESCR | ASTM D 1693 | hrs | ≥5000 | ||||||||||||
| Oxidation Induction Time OlT | ASTM D 3895 | min | ≥150 | ||||||||||||
| Type No. | DK330 | DK356 | DK445 | DK660 | DK712 | ||||||||||
| Welding Distance(mm)3% | 330 | 356 | 445 | 660 | 712 | ||||||||||
| Cell Depth(mm)+3% | 50,75, 100,150,200,250 | ||||||||||||||
| Dimensions | |||||||||||||||
| Expanded Cell Size (widthxlength)(mm)+3% | 250×210 | 260 x225 | 320 x 288 | 470×450 | 510×475 | ||||||||||
| Expanded Cell Numbers (widthxlength) | 10×34 | 9 x 34 | 8 x 34 | 5 x34 | 5 x 34 | ||||||||||
| Expanded Section Size (widthxlength)(m)+3% | 2.50 x7.14 | 2.34 x 7.65 | 2.56 x 9.8 | 2.35 x 15.3 | 2.55 x 16.15 | ||||||||||
| Expanded Section Area (m2)+5% | 17.85 | 17.9 | 25.1 | 36 | 41.2 | ||||||||||
The Applications Geocell for Erosion Control

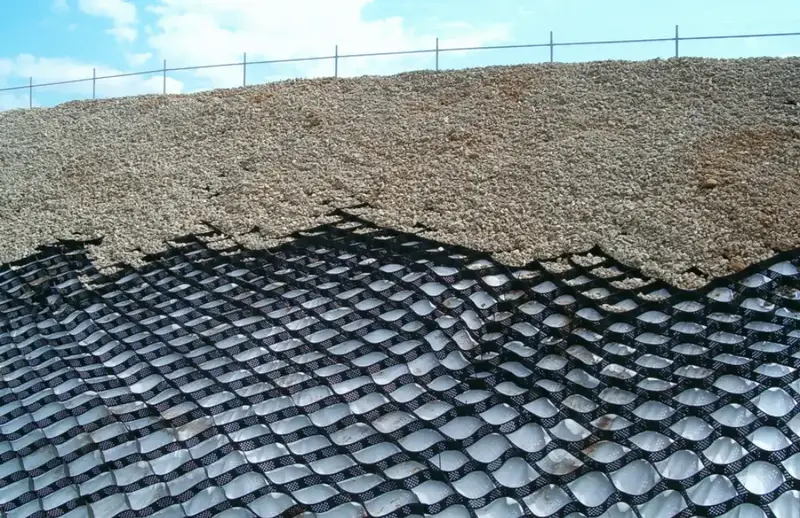

Steep Slope Stabilization: Prevents surface erosion and shallow sloughing on hillsides and highway embankments.

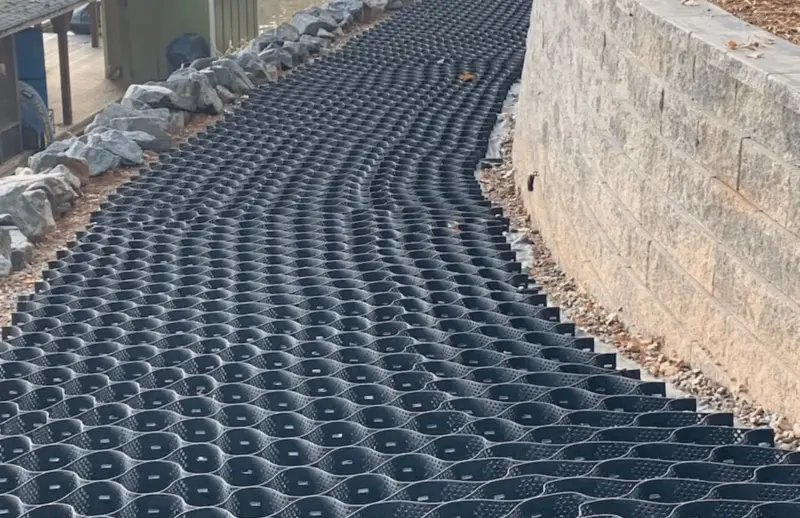

Channel & Ditch Linings: Protects against scouring in stormwater channels, drainage ditches, and riverbanks.
Shoreline & Coastal Protection: Stabilizes banks against wave action and tidal currents.
Landfill Caps & Land Reclamation: Provides stable, vegetated cover for closed sites and restored areas.
Hydraulic Project Protection: Used around culvert outlets and spillways to prevent scour.
Geocell for Erosion Control
Geocell for Erosion Control
Geocell for Erosion Control
Geocell for Erosion Control
Geocell for Erosion Control
Environmentally Friendly Solution: Uses on-site infill materials and facilitates the growth of natural vegetation, blending the structure seamlessly into the landscape.
Proven Durability: Manufactured from UV-stabilized HDPE, our geocells are resistant to chemical and biological degradation, ensuring long-term performance in the harshest conditions.
Durability & Long-Term Performance
Manufactured from UV-stabilized HDPE, our Geocells are resistant to chemical and biological degradation, ensuring long-term performance and structural integrity in harsh environmental conditions.
Versatility & Ease of Installation
The panels are delivered as lightweight, easy-to-handle sheets that are quickly expanded into a flexible network of cells. This adaptability makes them ideal for a wide variety of terrains and complex project sites.
Geocell for Erosion Control
Geocell for Erosion Control
