Geocell Tarifi
HDPE Material: Provides durability and flexibility for long-term use.
High Environmental Stress Crack Resistance: Enhances stability in harsh conditions.
Lightweight Design: Easy to handle and install for efficiency.
Durable Joints: Ensures strong connections for reliable load support.
Geocell Tarifi

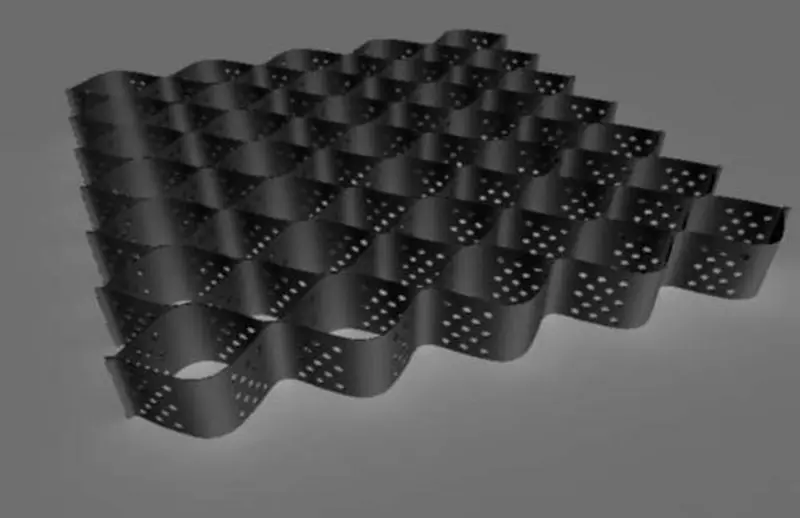

The three-dimensional geocell tarifi systems are a revolutionary geosynthetic solution engineered to provide unparalleled confinement, stabilization, and erosion control for weak and unstable soils. By transforming loose, granular materials into a cohesive, rigid mattress, our geocells create a durable, load-bearing platform for the most demanding infrastructure and environmental projects.
geocell tarifi
Geocell Tarifi’s Advantages
3D Cellular Confinement: The honeycomb structure provides all-around confinement to infill materials, preventing lateral movement and displacement under dynamic and static loads.
Exceptional Load Distribution: Reduces vertical stress on the subgrade by up to 40-50%, transforming unsuitable ground into stable terrain capable of supporting heavy traffic and structures.
Flexible & Durable: High-quality, UV-stabilized polymers ensure long-term flexibility, resilience, and resistance to environmental stress cracking, chemical degradation, and extreme temperatures.
geocell tarifi
Rapid, Cost-Effective Installation: Lightweight and easy to deploy, significantly reducing construction time, labor costs, and the need for imported high-quality fill materials.
Permeable & Vegetation-Friendly: Allows for natural drainage and can be filled with topsoil to promote vegetation growth, combining structural strength with green, sustainable solutions.
Superior Slope Protection: Provides an armored, flexible facing for slopes that is more effective than rigid structures and more durable than loose riprap.
The Specifications of Geocell Tarifi
| Index Properties | Test Method | Units | Values | ||||||||||||
| Material | 100% Virgin HDPE | ||||||||||||||
| Carbon Black Content | ASTM D 1603 | % | ≥1.5 | ||||||||||||
| Density | ASTM D 1505 | g/cm3 | 0.935-0.965 | ||||||||||||
| Sheet Thickness +5% | ASTM D 5199 | mm | 1.5 | ||||||||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | ||||||||||||
| Tensile Strength at Yield | ASTM D 638 | KN/m | ≥22 | ||||||||||||
| Environmental Stress Crack Resistance ESCR | ASTM D 1693 | hrs | ≥5000 | ||||||||||||
| Oxidation Induction Time OlT | ASTM D 3895 | min | ≥150 | ||||||||||||
| Type No. | DK330 | DK356 | DK445 | DK660 | DK712 | ||||||||||
| Welding Distance(mm)3% | 330 | 356 | 445 | 660 | 712 | ||||||||||
| Cell Depth(mm)+3% | 50,75, 100,150,200,250 | ||||||||||||||
| Dimensions | |||||||||||||||
| Expanded Cell Size (widthxlength)(mm)+3% | 250×210 | 260 x225 | 320 x 288 | 470×450 | 510×475 | ||||||||||
| Expanded Cell Numbers (widthxlength) | 10×34 | 9 x 34 | 8 x 34 | 5 x34 | 5 x 34 | ||||||||||
| Expanded Section Size (widthxlength)(m)+3% | 2.50 x7.14 | 2.34 x 7.65 | 2.56 x 9.8 | 2.35 x 15.3 | 2.55 x 16.15 | ||||||||||
| Expanded Section Area (m2)+5% | 17.85 | 17.9 | 25.1 | 36 | 41.2 | ||||||||||
The Applications of Geocell Tarifi
Transportation Infrastructure: Subgrade stabilization for highways, railways, airport runways, and parking lots.
Earth Retention & Slope Armoring: Retaining walls, steep slope stabilization, landslide repair, and cliff face protection.
Hydraulic & Coastal Engineering: Channel lining, dam overlays, shoreline revetment, and spillway chutes.
Environmental & Landscaping: Stormwater management basins, green retaining walls, landfill slope protection, and artificial sports surfaces.
Construction & Mining: Temporary access roads, heavy equipment working platforms, and tailings dam reinforcement.
geocell tarifi
geocell tarifi
geocell tarifi
geocell tarifi
Geocell Tarifi
Load Support & Stabilization: Enhances the bearing capacity of soft subgrades for roads, railbeds, working platforms, and foundations.
Erosion Control: Provides permanent, armored protection for channel beds, slopes, shorelines, and hillsides against hydraulic and wind forces.
Earth Retention: Creates stable, vertical or steeply sloped walls for retaining structures and embankments.
Hydraulic Applications: Functions as a flexible mattress for riverbank revetment, coastal defenses, and spillway protection.
geocell tarifi
geocell tarifi
