Geocell Price
Classification of Geocell Price:
Smooth surface with hole
Textured surface with hole
Smooth surface without hole
Textured surface without hole
Geocell Price

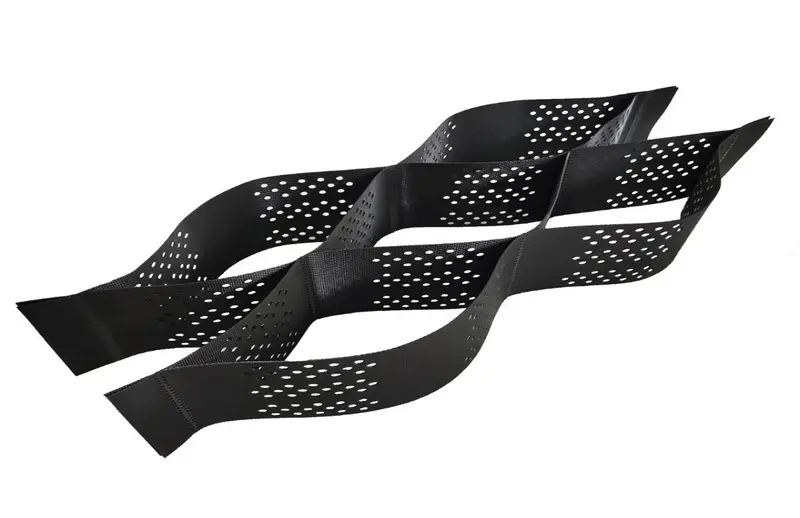

Geocell is a revolutionary three-dimensional cellular confinement system made from high-density polyethylene (HDPE) or other advanced polymer alloys. When expanded on-site into a flexible, honeycomb-like mat and filled with soil, aggregate, or concrete, it creates a rigid and durable layer that significantly enhances the load-bearing and erosion control capabilities of the infill material.
geocell price
How Does Geocell Price Work?
The principle is simple yet powerful: Confinement.
Expansion: The compacted panels are expanded into a flexible, 3D network of cells.

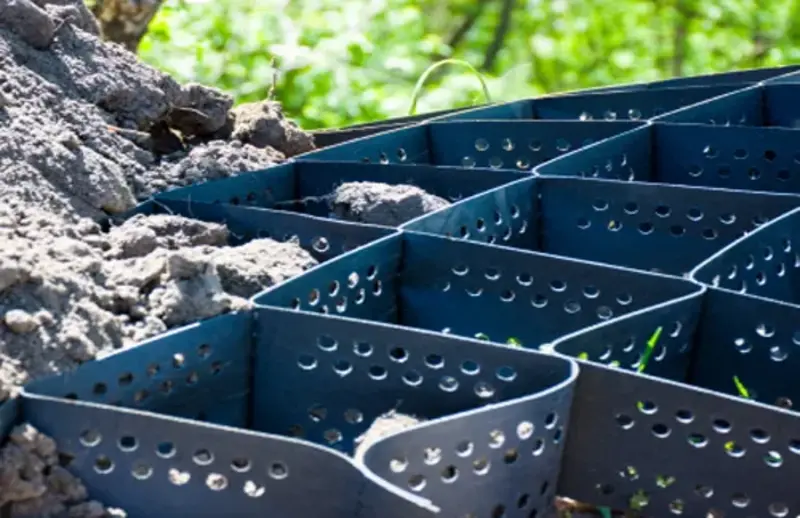

Infilling: The cells are filled with compacted soil, sand, gravel, or concrete.

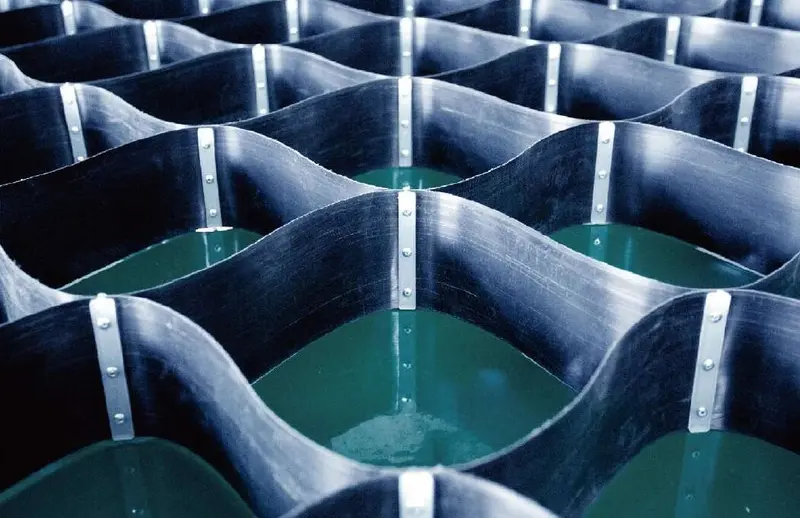

Confinement: The cell walls laterally confine the infill, creating a “composite” mattress. This confinement prevents the material from moving laterally under load, forcing it to behave as a unified, rigid slab.
Load Distribution: This composite layer effectively distributes vertical loads over a wider area, reducing pressure on the weak subgrade and preventing rutting and settlement.
geocell price
Geocell Price’s Key Features & Benefits:
Superior Load-Bearing Capacity: Dramatically increases the stiffness and strength of infill materials, enabling construction on very soft subgrades.
All-Around Confinement: The 3D structure provides lateral confinement to the infill, preventing movement and spreading.
Cost-Effective: Significantly reduces the amount of expensive, imported aggregate required. Allows the use of on-site or lower-quality fill materials.
Durable & Long-Lasting: UV-stabilized, resistant to chemicals and biological degradation, ensuring a long design life.
Geocell Price’s Specifications:
| Index Properties | Test Method | Units | Values | ||||||||||||
| Material | 100% Virgin HDPE | ||||||||||||||
| Carbon Black Content | ASTM D 1603 | % | ≥1.5 | ||||||||||||
| Density | ASTM D 1505 | g/cm3 | 0.935-0.965 | ||||||||||||
| Sheet Thickness +5% | ASTM D 5199 | mm | 1.5 | ||||||||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | ||||||||||||
| Tensile Strength at Yield | ASTM D 638 | KN/m | ≥22 | ||||||||||||
| Environmental Stress Crack Resistance ESCR | ASTM D 1693 | hrs | ≥5000 | ||||||||||||
| Oxidation Induction Time OlT | ASTM D 3895 | min | ≥150 | ||||||||||||
| Type No. | DK330 | DK356 | DK445 | DK660 | DK712 | ||||||||||
| Welding Distance(mm)3% | 330 | 356 | 445 | 660 | 712 | ||||||||||
| Cell Depth(mm)+3% | 50,75, 100,150,200,250 | ||||||||||||||
| Dimensions | |||||||||||||||
| Expanded Cell Size (widthxlength)(mm)+3% | 250×210 | 260 x225 | 320 x 288 | 470×450 | 510×475 | ||||||||||
| Expanded Cell Numbers (widthxlength) | 10×34 | 9 x 34 | 8 x 34 | 5 x34 | 5 x 34 | ||||||||||
| Expanded Section Size (widthxlength)(m)+3% | 2.50 x7.14 | 2.34 x 7.65 | 2.56 x 9.8 | 2.35 x 15.3 | 2.55 x 16.15 | ||||||||||
| Expanded Section Area (m2)+5% | 17.85 | 17.9 | 25.1 | 36 | 41.2 | ||||||||||
Geocell Price’s Applications:
Support for Road Construction
Geocell is a lightweight, expandable cellular confinement system which creates an erosion barrier or structural foundation for embankment and channel slopes, river banks, bridge abutments and for reinforcement of walls of artificial accumulations and as a protection of membranes in landfills.
Retaining Walls
Geocell retention systems strengthen retaining walls and increase soil stabilization for areas that are steep or have irregular topography. Using geocells eliminates the need for concrete formwork, and curing ad allows for use of native soils for fill whereappropriate. They are also appropriate for lining channels to direct water flow or to reinforce soft soil for large footings for retaining wall strip footings.

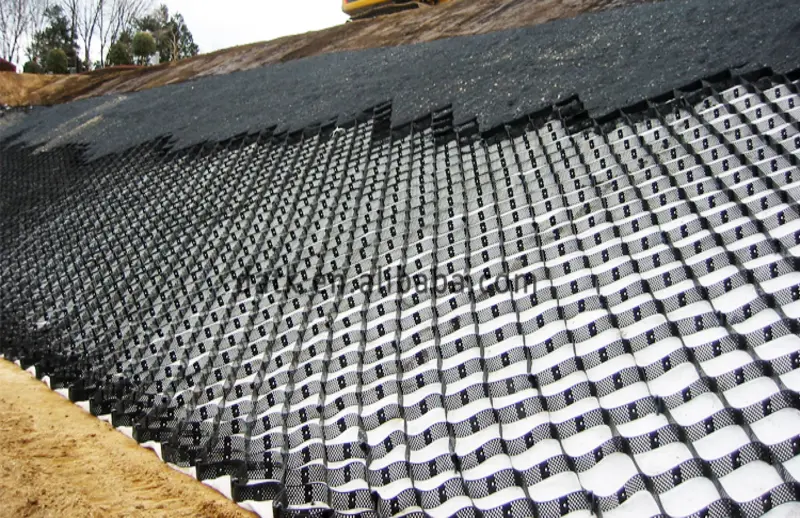

Erosion Protection
Three-dimensional interconnected geocells help prevent soil erosion and ensure the long-term stability of steep slopes and channels.
Pipeline stabilization
Enlarge road loadings; lasting the life of road;Bear the greatest loading change;Prevent the road from cracks and deformation.
geocell price
geocell price
geocell price
geocell price

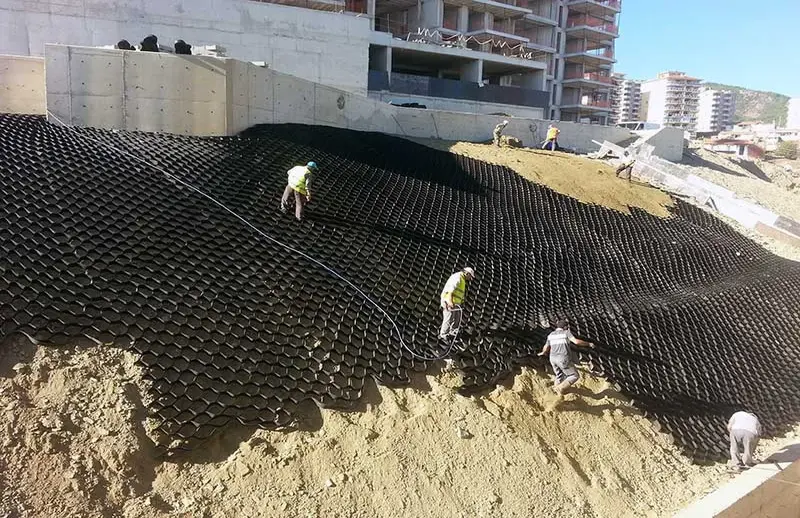

General Design Overview for DK Geocell Price Slope Erosion Control

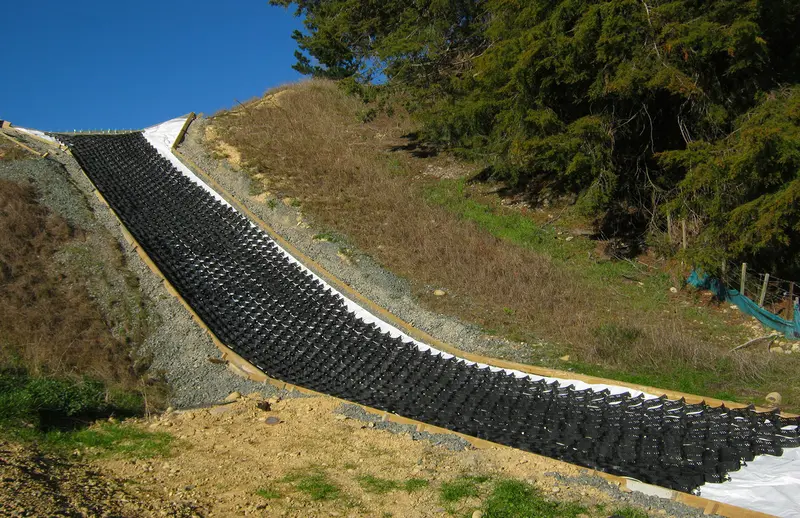

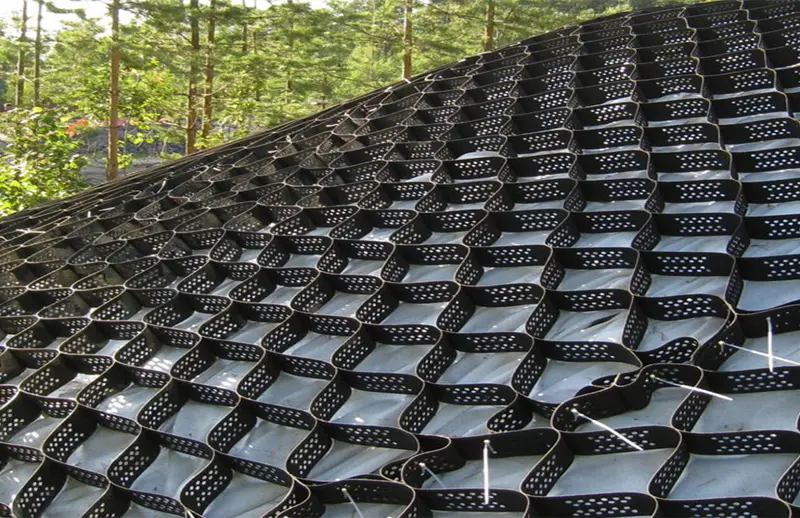

DK geocell price is a three dimensional geocellular confinement system designed for steep slopes, river banks, ditches, spillways, and other exposed areas that are often prone to damage caused by erosion due to wind or water.

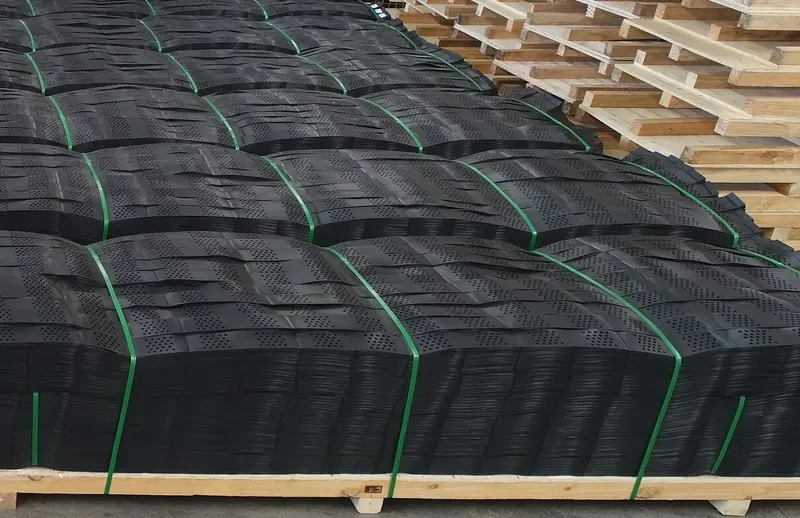

A DK geocell price system can help to prevent erosion by confining soils and aggregates within the cell structure. Varying degrees of protection can be afforded by selecting alternative in-fill materials. Seeded topsoil provides protection for less exposed areas. Protection may be increased by introducing vegetation such as small shrubs. For greater protection, a granular in-fill can be used in certain circumstances. Appropriate in-fills can also be chosen to give a desired surface appearance. The standard DK geocell price system for erosion protection is normally suitable for use on slopes with an incline of up to 45 degrees (1:1 Slopes). If the slope angle is greater than 45 degrees, additional considerations need to be given to the design of the cellular system and the standard DK geocell price may not be suitable. In these instances please contact DK for further assessment. DK geocell price are supplied flat packed and open to form a strong three dimensional geocellular structure.
geocell price
geocell price
