Geocell Panels
Material: HDPE PP
Welding distance: 330mm-1000mm
Height: 50mm~250mm
Color: Black Yellow White Green
Thickness: Textured: 1.5mm Smooth: 1.1mm
Surface: Textured Perforated Smooth Non-Perforated
Peel Strength of welding point: 1000N 1200N 1420N/10cm
Geocell Panels

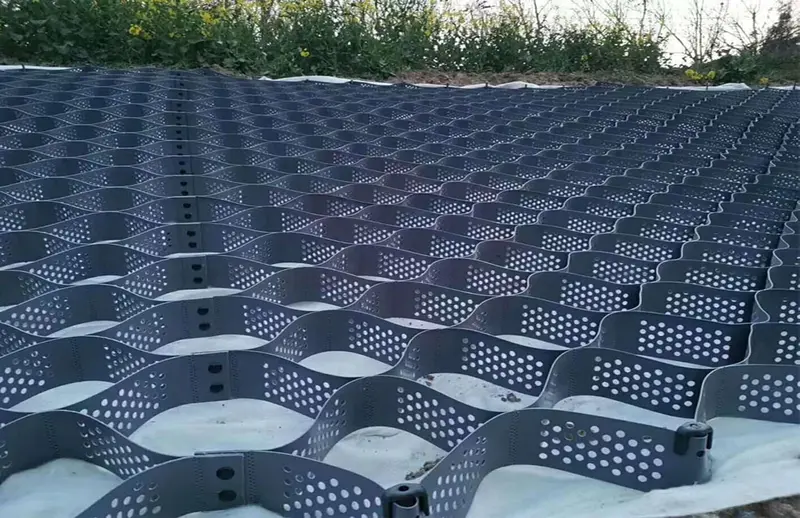

The geocell panels is a high-performance cellular confinement system made from durable, UV-stabilized polymer materials. When expanded, it forms a flexible, honeycomb-like grid that confines and reinforces infill materials like gravel, sand, or soil.
Geocell Panels
The Advantages of Geocell Panels
UV-Resistant Polymers: Withstand 1,500+ hours of accelerated weathering without significant degradation
3D Confinement Technology: Locks infill materials in place, creating a monolithic slab effect that
dramatically increases load-bearing capacity
Sustainable Construction: Reduces carbon footprint through material optimization
Permeable Design: Allows natural drainage and groundwater recharge
Geocell Panels
Geocell Panels

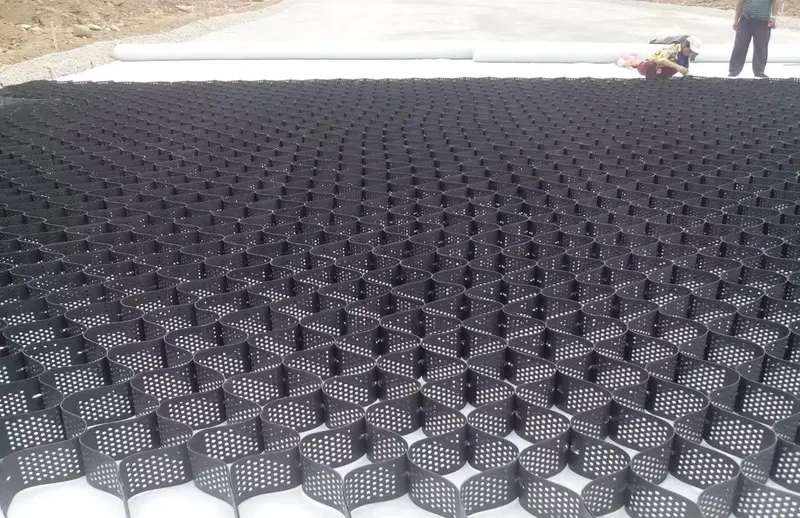

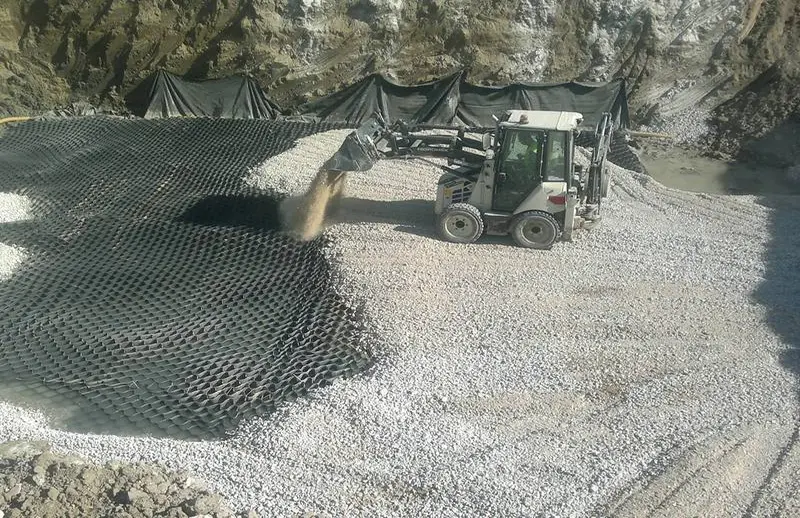

It is flexible to fold during transportation stretching out and being filled with stone or concrete during service and forming into structure with powerful
Can be used as cushion coat to strength loading capacity of weak ground.
Can be paved in slope as slope protection structure.
Can be used to build the support block structure.
The Specifications of Geocell Panels
| Index Properties | Test Method | Units | Values | ||||||||||||
| Material | 100% Virgin HDPE | ||||||||||||||
| Carbon Black Content | ASTM D 1603 | % | ≥1.5 | ||||||||||||
| Density | ASTM D 1505 | g/cm3 | 0.935-0.965 | ||||||||||||
| Sheet Thickness +5% | ASTM D 5199 | mm | 1.5 | ||||||||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | ||||||||||||
| Tensile Strength at Yield | ASTM D 638 | KN/m | ≥22 | ||||||||||||
| Environmental Stress Crack Resistance ESCR | ASTM D 1693 | hrs | ≥5000 | ||||||||||||
| Oxidation Induction Time OlT | ASTM D 3895 | min | ≥150 | ||||||||||||
| Type No. | DK330 | DK356 | DK445 | DK660 | DK712 | ||||||||||
| Welding Distance(mm)3% | 330 | 356 | 445 | 660 | 712 | ||||||||||
| Cell Depth(mm)+3% | 50,75, 100,150,200,250 | ||||||||||||||
| Dimensions | |||||||||||||||
| Expanded Cell Size (widthxlength)(mm)+3% | 250×210 | 260 x225 | 320 x 288 | 470×450 | 510×475 | ||||||||||
| Expanded Cell Numbers (widthxlength) | 10×34 | 9 x 34 | 8 x 34 | 5 x34 | 5 x 34 | ||||||||||
| Expanded Section Size (widthxlength)(m)+3% | 2.50 x7.14 | 2.34 x 7.65 | 2.56 x 9.8 | 2.35 x 15.3 | 2.55 x 16.15 | ||||||||||
| Expanded Section Area (m2)+5% | 17.85 | 17.9 | 25.1 | 36 | 41.2 | ||||||||||
The Applications of Geocell Panels
Road & Highway Construction

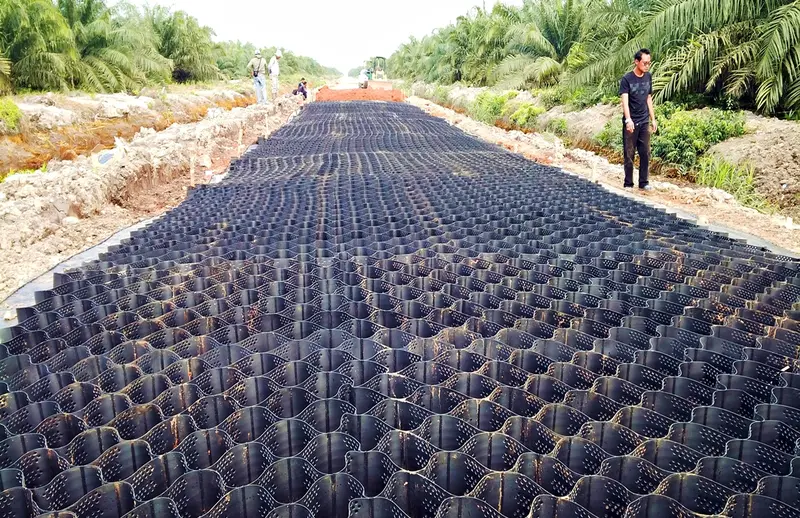

Subgrade Stabilization: Reinforcement of weak soils under paved and unpaved roads
Shoulder Reinforcement: Prevention of edge rutting and pavement deterioration
Bridge Approaches: Minimizing settlement at structure transitions

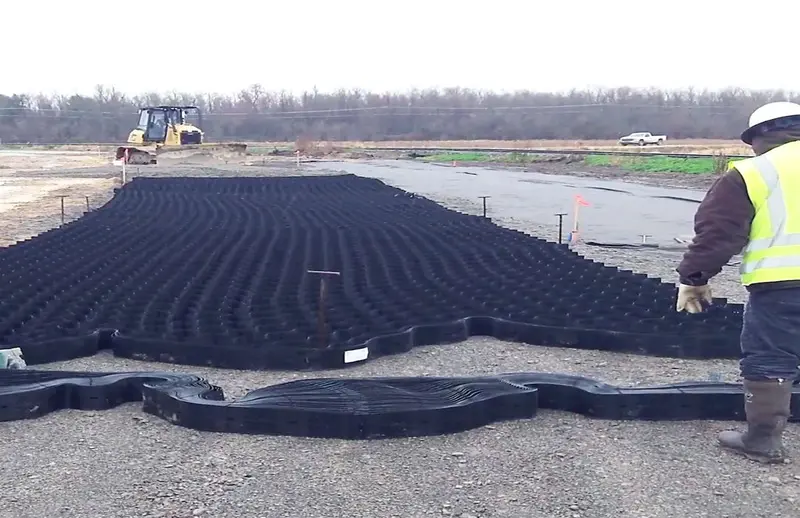

Temporary Access Roads: Rapid deployment for construction and emergency routes
Pavement Rehabilitation: Base course reinforcement for asphalt overlay projects
Railway Systems

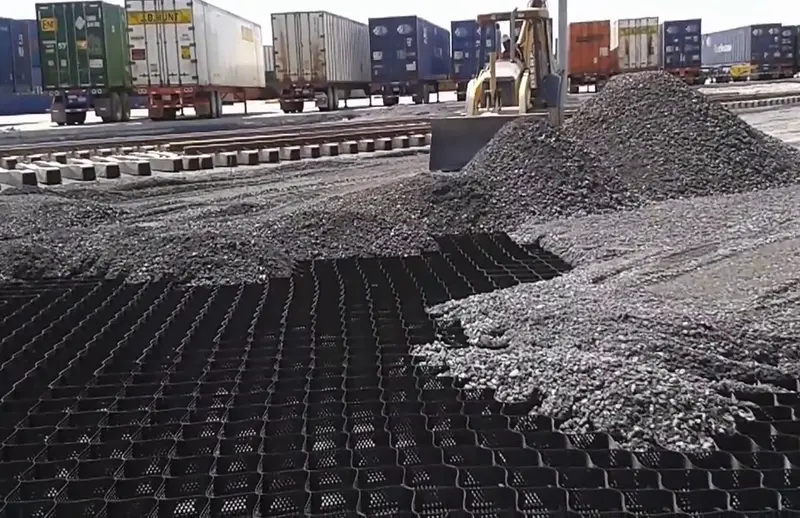

Track Bed Stabilization: Confinement of ballast to reduce maintenance frequency
Embankment Support: Stabilization of railway embankments and cuttings
Level Crossing Reinforcement: Enhanced load distribution at grade crossings
Subgrade Improvement: Treatment of soft subsoils beneath rail lines
Slope Protection

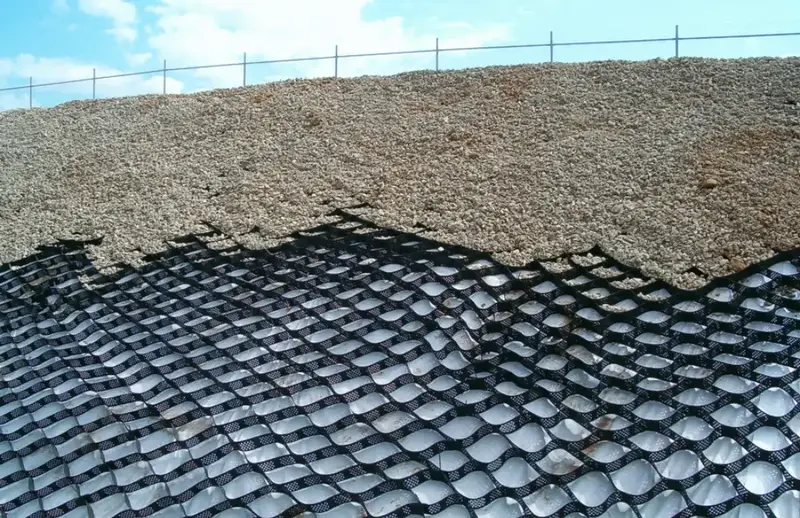

Erosion Control: Stabilization of cut and fill slopes up to 1:1 gradient
Landslide Repair: Rehabilitation of failed slopes and landslide areas
Embankment Protection: Stabilization of highway and railway embankments
Coastal & Riverbank Protection: Shoreline stabilization against wave action
Retaining Structures
Green Retaining Walls: Vegetated face structures for aesthetic and environmental benefits
Bridge Abutments: Support systems for bridge approach embankments
Tiered Walls: Multi-level retention systems for steep terrain
Geocell Panels
Geocell Panels
Geocell Panels
Geocell Panels
How It Works & Key Benefits:

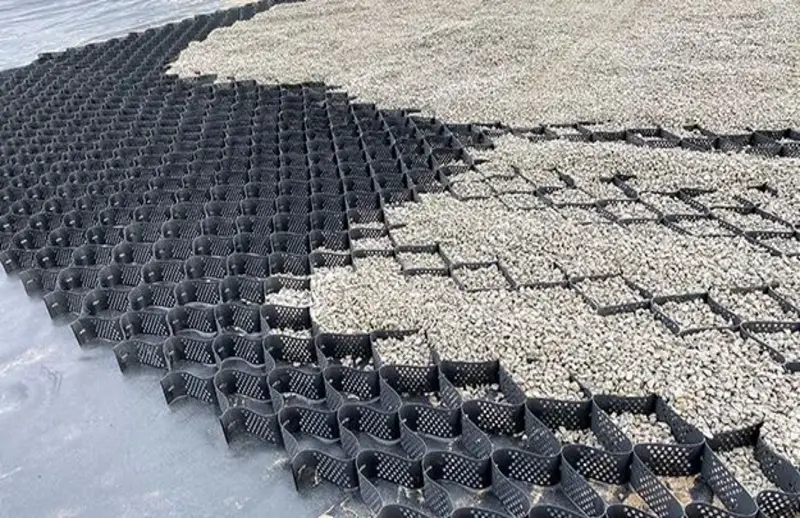

3D Confinement: Locks infill in place, creating a rigid yet permeable mat that distributes loads evenly.
Superior Load Support: Prevents rutting and subsidence, ideal for roads, parking lots, and heavy-duty platforms.
Erosion Control: Stabilizes slopes, channels, and embankments, promoting vegetation growth.
Cost & Time Efficient: Reduces aggregate usage by up to 50%, installs quickly without heavy machinery.
Versatile & Durable: Performs in extreme temperatures and harsh environments for long-term stability.
