geocell grid paver

Geocell Grid Paver

Geocell grid paver are widely used in construction work for the purpose to control erosion, stabilization of soil and steep slopes for the earth retention. Geocell grid paver are made up of high density polyethylene strips and proliferated on the sites in the shape of honeycomb structure and then filled with sand, soil and rock.

REQUEST QUOTE WHATSAPP
Description

Geocell Grid Paver

Geocell grid paver is a three-dimensional, expandable cellular confinement system constructed from high-density polymeric strips ultrasonically welded at regular intervals. When expanded on-site, it forms a flexible yet rigid honeycomb-like mattress. This structure mechanically confines and inter-locks infill materials (soil, aggregate, concrete) through lateral restraint, creating a composite layer with significantly enhanced load-bearing and erosion-resistant properties.

Geocell grid paver


Geocell Grid Paver’s Main Feature

Light material, wear resistance, stable chemical performance, light and oxygen aging resistance, acid and alkali resistance,suitable for different soil and desert and other soil conditions.

Higher lateral restraint and anti-skid, anti-deformation and effective enhancement of subgrade bearing capacity and decentralized load.

Geotechnical dimensions such as height and welding distance of geocell can be changed to meet different engineering needs.

Flexibility, small transport volume, convenient connection, make construction more convenient.

Geocell Grid Paver



Multiple Infill Options: Compatible with local soils, aggregates, or recycled materials

Flexible Geometry: Accommodates curves, corners, and complex site contours

Scalable Solutions: Available in various depths for different load requirements

Wide Application Range: Suitable for projects from landscaping to heavy industry

Specifications

The Specifications of Geocell Grid Paver

Index Properties Test Method Units Values
Material 100% Virgin HDPE
Carbon Black Content ASTM D 1603 % ≥1.5
Density ASTM D 1505 g/cm3 0.935-0.965
Sheet Thickness +5% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile Strength at Yield ASTM D 638 KN/m ≥22
Environmental Stress Crack Resistance ESCR ASTM D 1693 hrs ≥5000
Oxidation Induction Time OlT ASTM D 3895 min ≥150

Type No. DK330 DK356 DK445 DK660 DK712
Welding Distance(mm)3% 330 356 445 660 712
Cell Depth(mm)+3% 50,75, 100,150,200,250
Dimensions
Expanded Cell Size (widthxlength)(mm)+3% 250×210 260 x225 320 x 288 470×450 510×475
Expanded Cell Numbers (widthxlength) 10×34 9 x 34 8 x 34 5 x34 5 x 34
Expanded Section Size (widthxlength)(m)+3% 2.50 x7.14 2.34 x 7.65 2.56 x 9.8 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2)+5% 17.85 17.9 25.1 36 41.2
Applications

The Applications of Geocell Grid Paver

Road Construction
Applications include asphalt pavements, service roads, railway substructure, parking facilities and emergency access areas, among others.
Retaining Walls
They are also appropriate for lining channels to direct water flow or to reinforce soft soil for large footings for retaining wall strip footings.
Erosion Protection

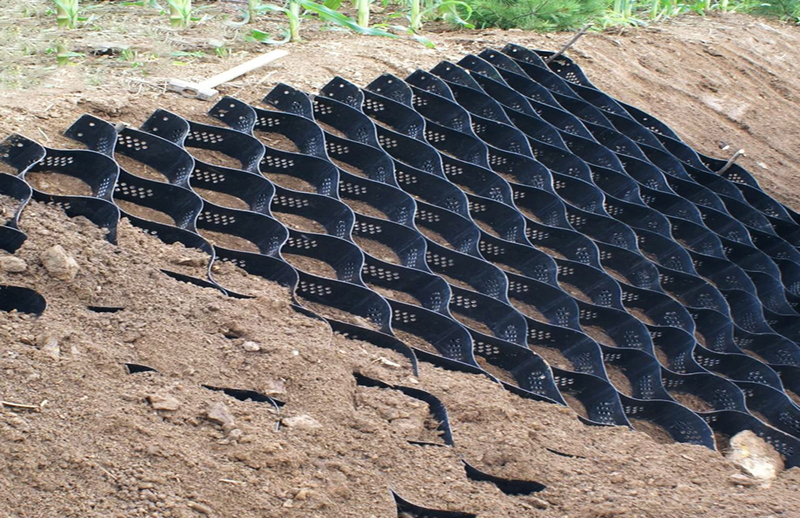

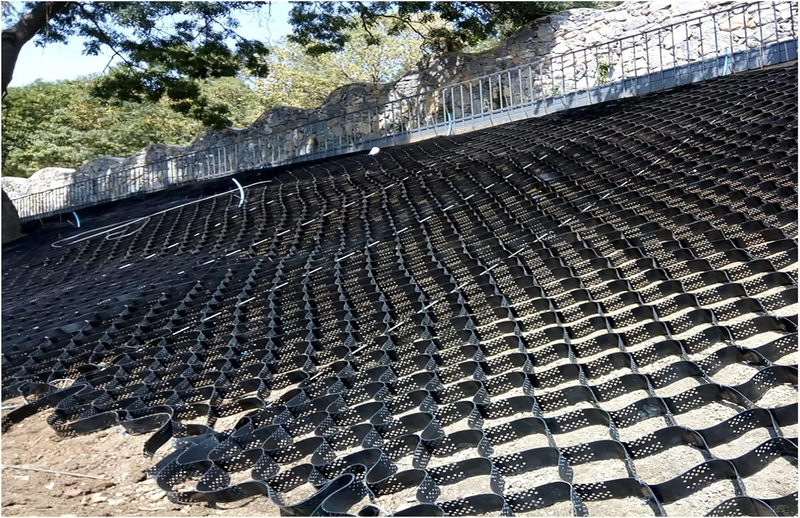

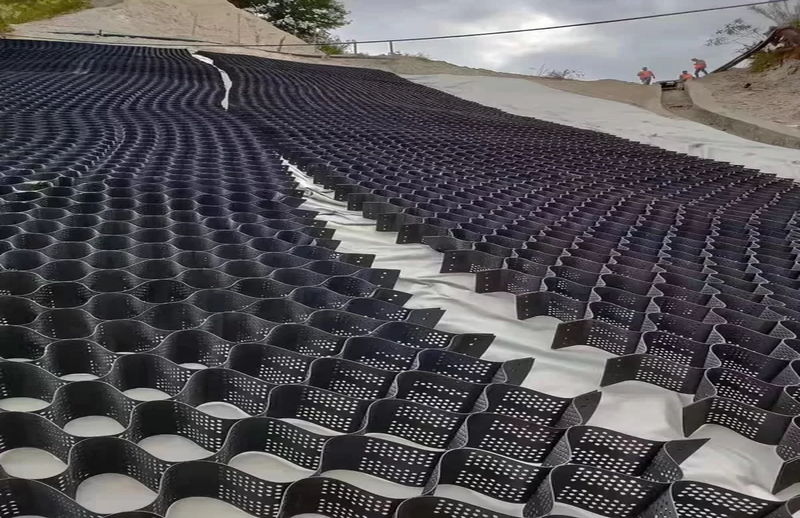

Three-dimensional interconnected geocells help prevent soil erosion and ensure the long-term stability of steep slopes and channels.
Pipeline stabilization
Enlarge road loadings; lasting the life of road; Bear the greatest loading change; Prevent the road from cracks and deformation;

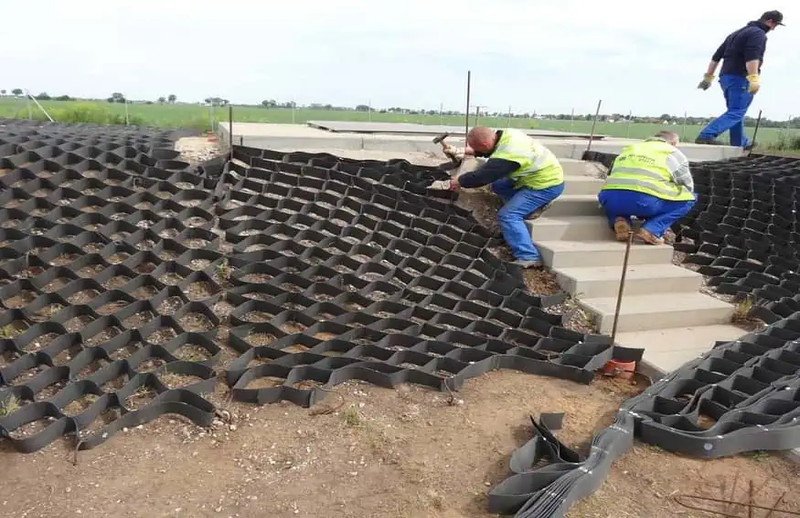

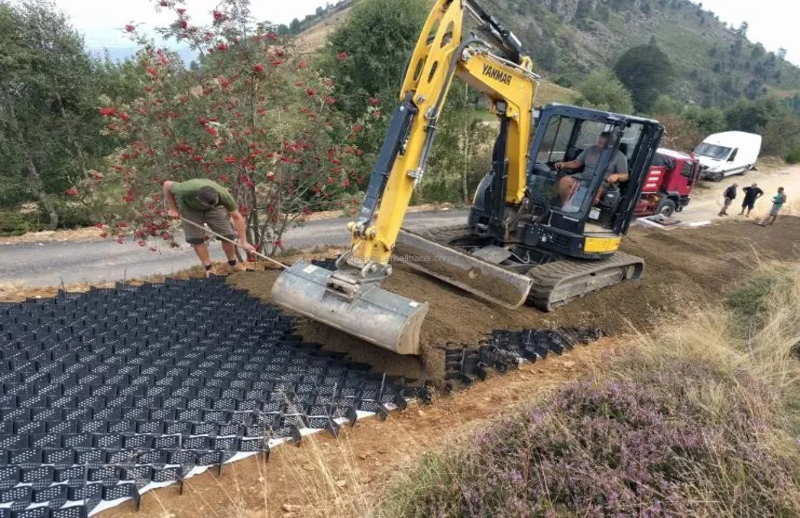

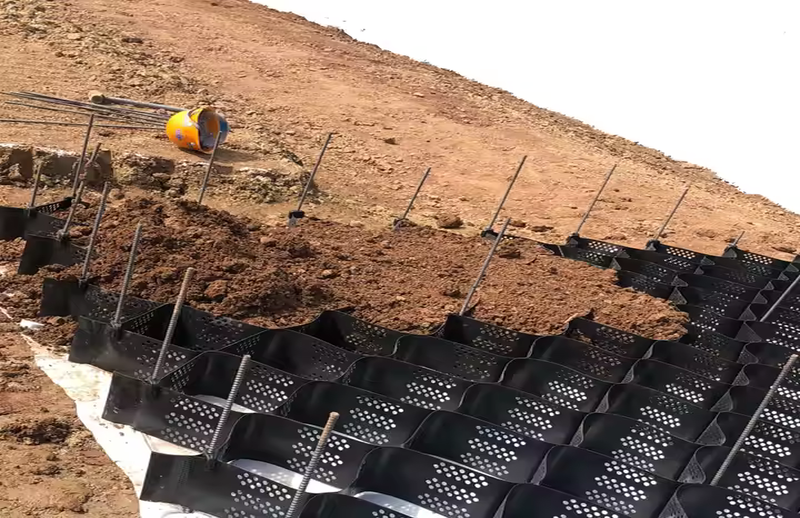

geocell grid paver

geocell grid paver

geocell grid paver

geocell grid paver

Geocell Grid Paver

3D Cellular Confinement: High-density polyethylene cells create rigid framework that prevents lateral movement of infill materials
Superior Load Distribution: Spreads vehicular loads evenly, reducing point pressure on subgrade by up to 70%
High Compressive Strength: Withstands weights up to 40 tons per square meter
Minimal Settlement: Virtually eliminates rutting and surface deformation

geocell grid paver

geocell grid paver
