Geocell Geosynthetics
HDPE Material: Provides durability and flexibility for long-term use.
High Environmental Stress Crack Resistance: Enhances stability in harsh conditions.
Lightweight Design: Easy to handle and install for efficiency.
Durable Joints: Ensures strong connections for reliable load support.
Geocell Geosynthetics

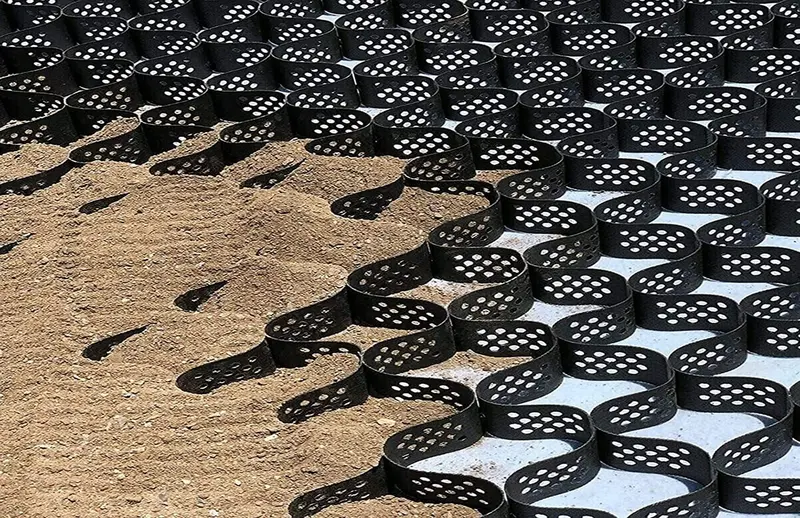

Geocell is a three-dimensional, honeycomb-like cellular confinement system manufactured from high-density polyethylene (HDPE) or other advanced polymeric alloys. Through a unique ultrasonic welding process, it forms a flexible and expandable panel of interconnected cells. When filled with compacted soil, aggregate, or concrete, it creates a rigid, monolithic composite structure with exceptional mechanical properties. Engineered for durability, resistance to UV degradation, and harsh chemical environments, Geocell provides a versatile and cost-effective solution for soil stabilization, erosion control, and load support.
Geocell are engineered to provide superior soil stabilization, erosion control, and load distribution. Their lightweight, flexible design allows for quick installation, while the durable HDPE material ensures resistance to weathering, chemicals, and UV exposure, offering years of reliable performance.
Why Choose the Geocell Geosynthetics?
Geocell Geosynthetics-Durable and Sturdy
Geocell grid made of high density PE material, it can withstand photooxidation aging, erosion from acids and alkalis in any weather. Each grid is welded with two rows of supersonic welding, which can withstand stronger tension than other’s single row welding
Geocell Geosynthetics-Widely Used Grid
Our grid system is ideal solution for flat land and slope, it can help your driveway, walkway, parking lot, garden path or horse paddock get rid of muddy, stabilize slope against slide, also can be used as landscape grid to cultivate flowers and grass
Geocell Geosynthetics-Strong Load Bearing
Based on HDPE material and double row ultrasonic welding technology. After match different paving materials, it is suitable for driveway, parking lot, horse paddock, village roadSuperior Load Support: Transforms ordinary infill into a high-performance load distribution platform, ideal for heavy traffic areas and foundations.
The Specifications of Geocell Geosynthetics
| Index Properties | Test Method | Units | Values | ||||||||||||
| Material | 100% Virgin HDPE | ||||||||||||||
| Carbon Black Content | ASTM D 1603 | % | ≥1.5 | ||||||||||||
| Density | ASTM D 1505 | g/cm3 | 0.935-0.965 | ||||||||||||
| Sheet Thickness +5% | ASTM D 5199 | mm | 1.5 | ||||||||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | ||||||||||||
| Tensile Strength at Yield | ASTM D 638 | KN/m | ≥22 | ||||||||||||
| Environmental Stress Crack Resistance ESCR | ASTM D 1693 | hrs | ≥5000 | ||||||||||||
| Oxidation Induction Time OlT | ASTM D 3895 | min | ≥150 | ||||||||||||
| Type No. | DK330 | DK356 | DK445 | DK660 | DK712 | ||||||||||
| Welding Distance(mm)3% | 330 | 356 | 445 | 660 | 712 | ||||||||||
| Cell Depth(mm)+3% | 50,75, 100,150,200,250 | ||||||||||||||
| Dimensions | |||||||||||||||
| Expanded Cell Size (widthxlength)(mm)+3% | 250×210 | 260 x225 | 320 x 288 | 470×450 | 510×475 | ||||||||||
| Expanded Cell Numbers (widthxlength) | 10×34 | 9 x 34 | 8 x 34 | 5 x34 | 5 x 34 | ||||||||||
| Expanded Section Size (widthxlength)(m)+3% | 2.50 x7.14 | 2.34 x 7.65 | 2.56 x 9.8 | 2.35 x 15.3 | 2.55 x 16.15 | ||||||||||
| Expanded Section Area (m2)+5% | 17.85 | 17.9 | 25.1 | 36 | 41.2 | ||||||||||
The Applications of Geocell Geosynthetics

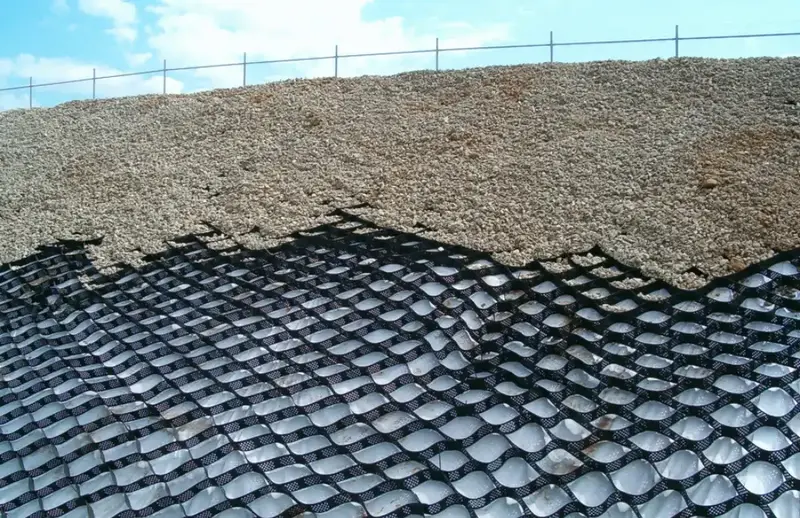

Geocell Geosynthetics-Load Support & Ground Stabilization

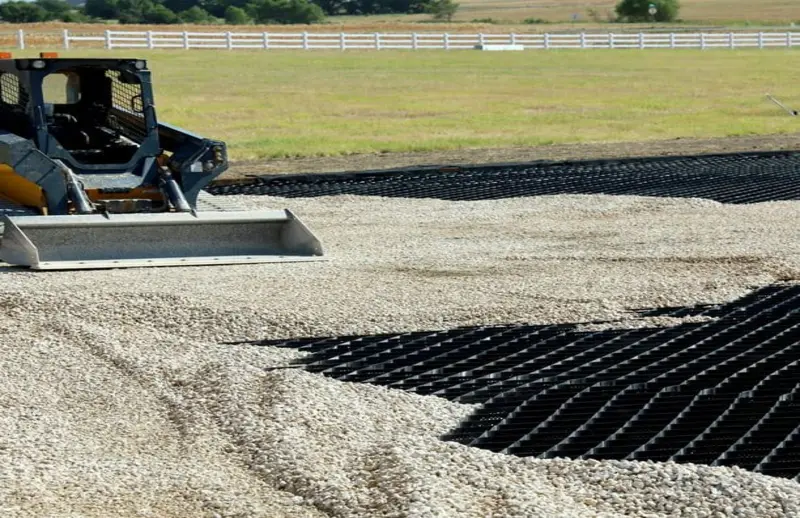

Access roads, construction platforms, and parking lots over soft subgrades.
Railway track bed stabilization and airport runway safety areas.
Foundation reinforcement for embankments and retaining structures.
Geocell Geosynthetics-Erosion & Sediment Control

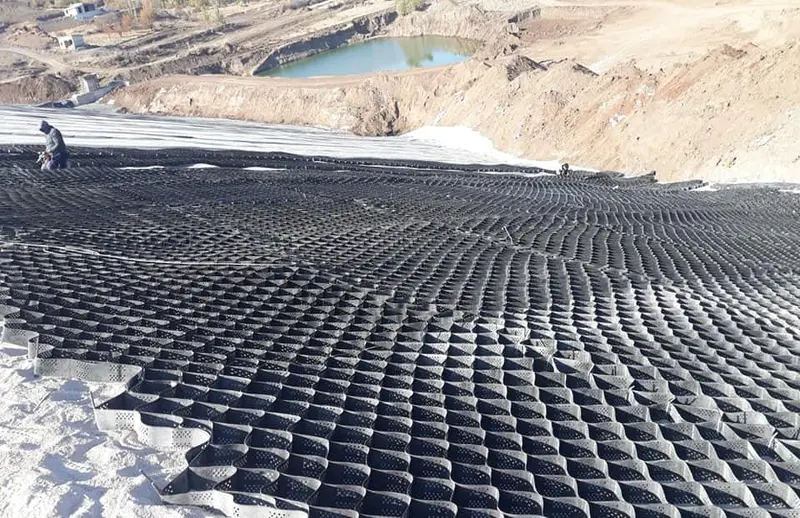

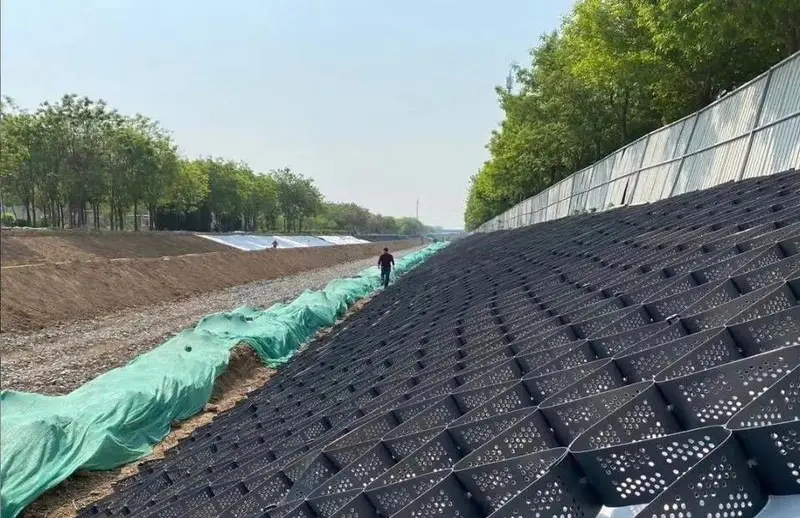

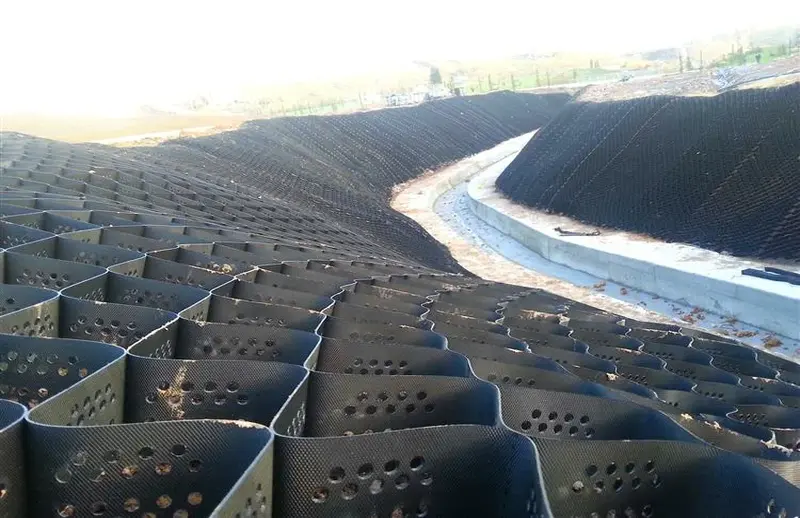

Reinforced vegetative slopes for landslide mitigation and embankment protection.
Lining for drainage channels, riverbanks, and coastal shorelines.
Earth retention systems and green walls.
Geocell Geosynthetics-Earth Retention & Structural Protection
Retaining walls and steepened slope construction.
Protection for pipelines, culverts, and other buried infrastructure.
geocell geosynthetics
geocell geosynthetics
geocell geosynthetics
geocell geosynthetics
Geocell Geosynthetics

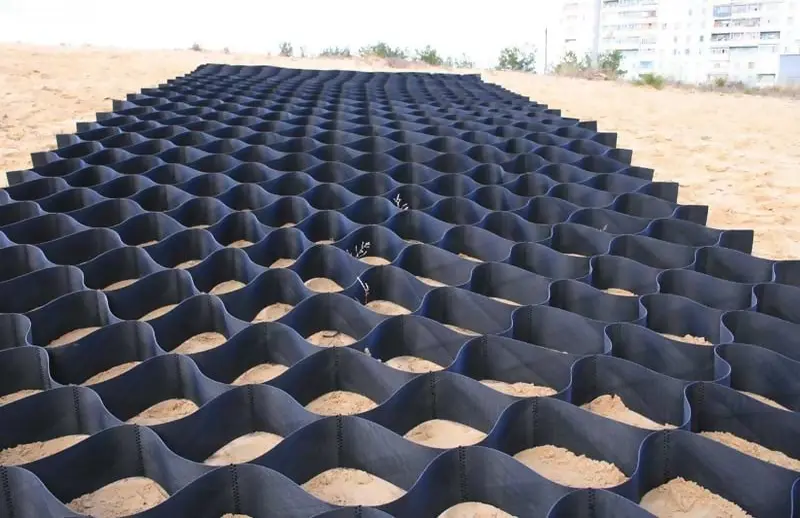

Geocell geosynthetics is an innovative, three-dimensional honeycomb structure made from high-strength polymeric materials. When expanded and filled with soil, aggregate, or concrete, it forms a rigid, permeable, and highly stable composite layer for a wide range of civil, environmental, and construction applications. By confining infill materials laterally, Geocell significantly enhances load-bearing capacity and slope stability while reducing material usage and installation time.
