As the professional HDPE Liner Geomembrane manufacturer and supplier in China, we could meet all kinds of different quality standards including GRI GM13 and GM17. According to the product appearance, the main geomembrane products including the Smooth Geomembrane HDPE liner, the Textured Geomembrane HDPE Liner, the Composite Geomembrane Liner, etc., also based upon the raw material category they could also be name as the HDPE/LDPE/LLDPE/PVC/EVA Geomembrane.It is widely used across a variety of industries including waste containment, water containment, aquaculture, energy, mining, industrial and civil engineering, etc. The functions are including: Landscape project, Sanitation project, Water conservancy project, Mining industry, Chemical industry, Construction project, Aquaculture etc.
Specifications
Item
Test
Resin series index
JS1
JS2
JS3
1
Tensile break strength (MPa)
Normal temperature
10
16
14
60°C ≥
4
6
5
2
Elongation at break (%)
Normal temperature
200
550
500
-20°C ≥
15
350
300
3
Tear strength
kN/m ≥
40
60
40
4
Impervious property, 30 min (no infiltration)
0.3 MPa
0.3 MPa
0.3 MPa
5
Bending temperature at low temperature (°C ≤)
-20
-35
-35
6
Heating telescopic volume (mm)
Extend ≤
2
2
2
Shrink ≤
6
6
6
7
Hot air aging （80°C × 168 h）
Fracture tensile strength retention rate (% ≥)
80
80
80
Elongation at break retention rate (% ≥)
70
70
70
8
Alkali resistance (saturated OH (Ca)2 solution at room temperature × 168 h)
Fracture tensile strength retention rate (% ≥)
80
80
80
Elongation at break retention rate (% ≥)
80
90
90
9
Artificial weathering
Fracture tensile strength retention rate (% ≥)
80
80
80
Elongation at break retention rate (% ≥)
70
70
70
Applications
EVA geomembrane is popular used in a variety of projects for isolation, waterproof and anti leakage. Like the following places:
Preventing leakage on rooftop.
Seawater or freshwater feed field.
Subway, water conservancy, mining, gardens, drainage.
Preventing leakage in roadbed and other groundsill.
River bank, lake dam, reservoir, tunnel and liquid storage pool.
Waterproof layer of swelling clay and wet collapsed loess.
Construction fence and waste material field.

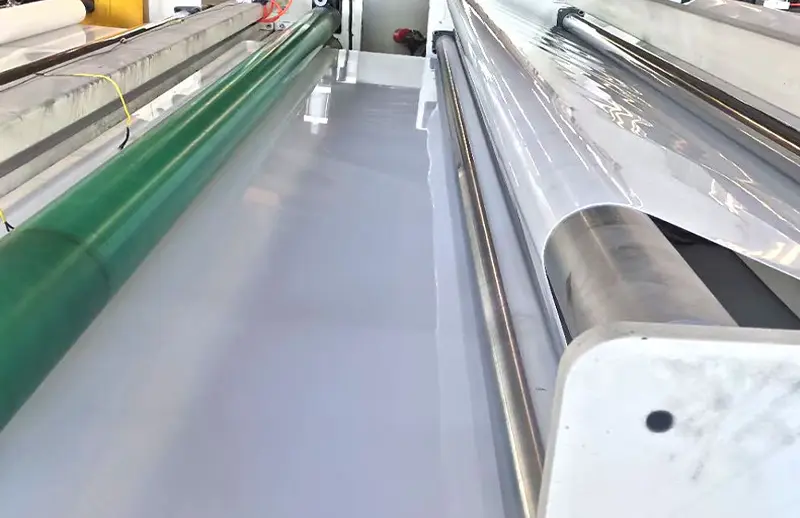

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.
Packing &Transport
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q2.How long does it take for delivery?
A2. Production lead time 5 days, and the delivery time will be discussed in detail according to the specific situation.
Q3. How will you follow my order?
A3. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the
latest news about your order.
After the goods are finish,we will take photos for the goods and packing to you before shipping.
