China Geomembrane Roll Sheet
China Geomembrane Roll Sheethave better tensile properties allowing it to accommodate stretching and creasing better than HDPE - this is a critical design factor for buried applications. Due to its flexibility, thinner LLDPE geomembranes can be prefabricated in larger panels saving installation time, cost and a better-quality install.
Description

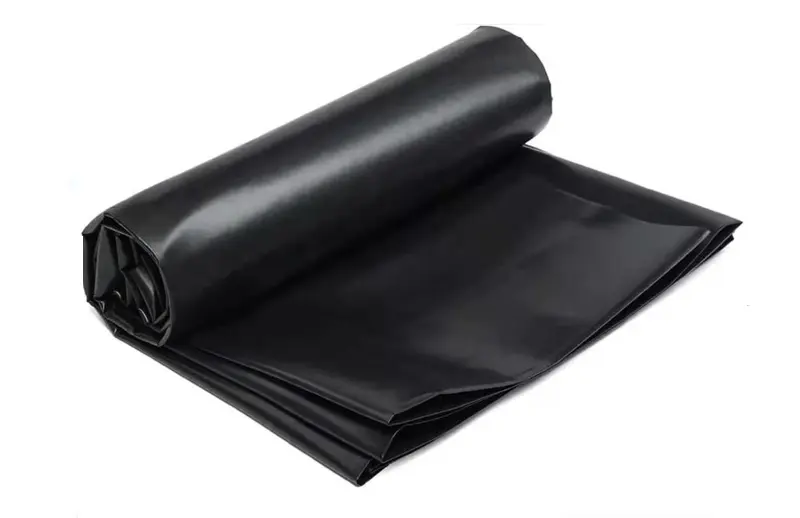

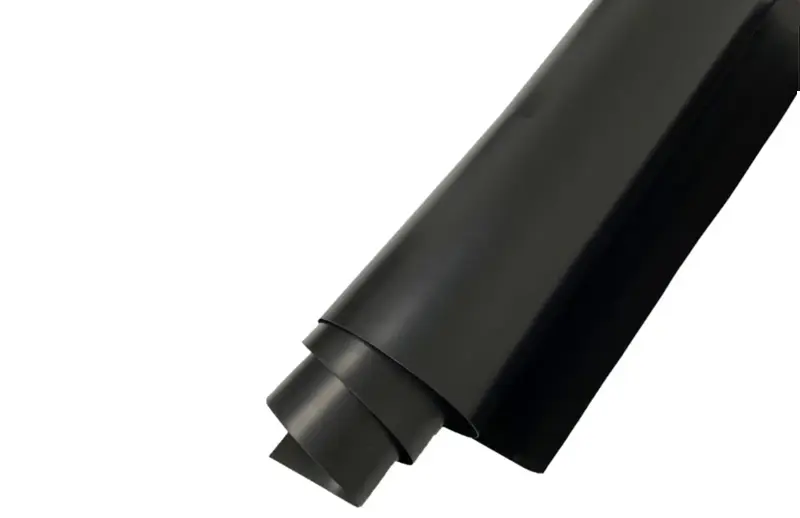

China Geomembrane Roll Sheet is very low permeability synthetic membrane liner or barrier with smooth surface. It can be used solely or with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system. The manufacturing of HDPE geomembrane smooth begins with the production of the raw materials, which mainly include the HDPE polymer resin, and various additives such as carbon black, antioxidants, anti-aging agent, UV absorber, and other adjuvant. The HDPE resin and additives ratio is 97.5:2.5.
Specifications
| Properties | Test Method | GMSH050 | GMSH075 | GMSH100 | GMSH150 | GMSH200 |
| Thickness | ASTM D5199 | 0.50 mm | 0.75 mm | 1.00 mm | 1.50 mm | 2.00 mm |
| Density | ASTM D1505 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc |
| Tensile Properties | ||||||
| Yield strength | ASTM D6693 | 7 kN/m | 11 kN/m | 15 kN/m | 22 kN/m | 29 kN/m |
| Break strength | Type IV | 13 kN/m | 20 kN/m | 27 kN/m | 40 kN/m | 53 kN/m |
| Yield elongation | 12% | 12% | 12% | 12% | 12% | |
| Break elongation | 700% | 700% | 700% | 700% | 700% | |
| Tear Resistance | ASTM D1004 | 62 N | 93 N | 125 N | 187 N | 249 N |
| Puncture Resistance | ASTM D4833 | 160 N | 240 N | 320 N | 480 N | 640 N |
| Stress Crack Resistance | ASTM D5397 | 500 hrs | 500 hrs | 500 hrs | 500 hrs | 500 hrs |
| Carbon Black Content | ASTM D1603 | 2.00% | 2.00% | 2.00% | 2.00% | 2.00% |
| Carbon Black Dispersion | ASTM D5596 | For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 | ||||
| Oxidative Induction Time (OIT) | ASTM D3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. |
| UV Resistance | ASTM D5885 | 50% | 50% | 50% | 50% | 50% |
| High Pressure OIT retained after 1600hrs | ||||||
| Roll Width (m) | 7 | 7 | 7 | 7 | 7 | |
| Roll Length (m) | 420 | 280 | 210 | 140 | 105 | |
Applications

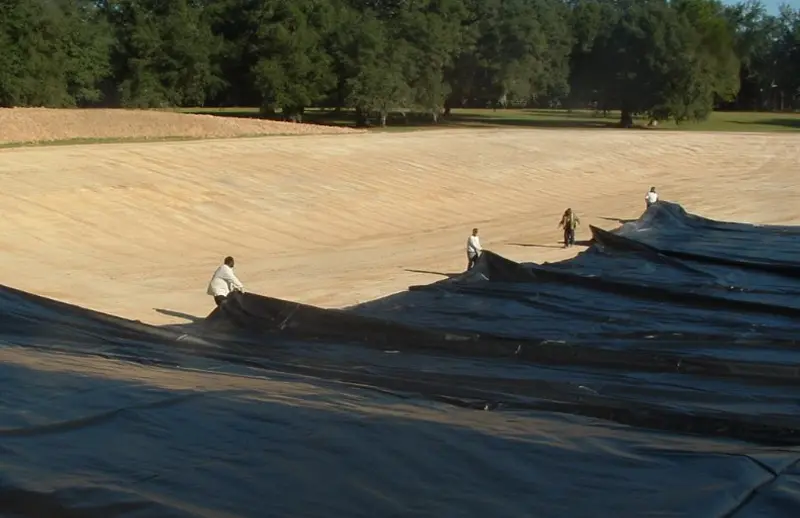

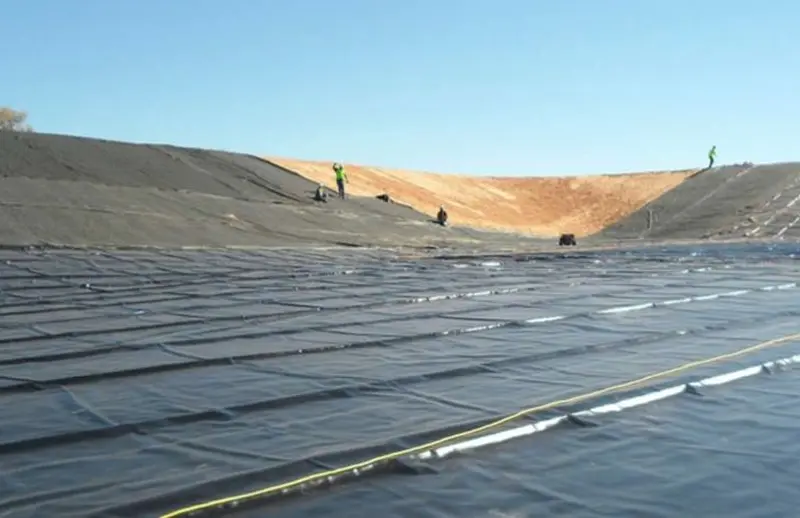

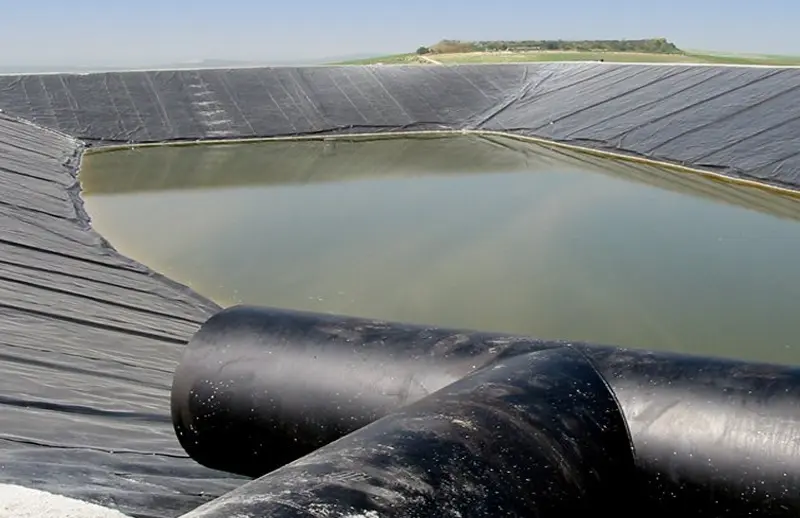

Ponds: Brine, freshwater, wastewater, produced, golf courses, etc…

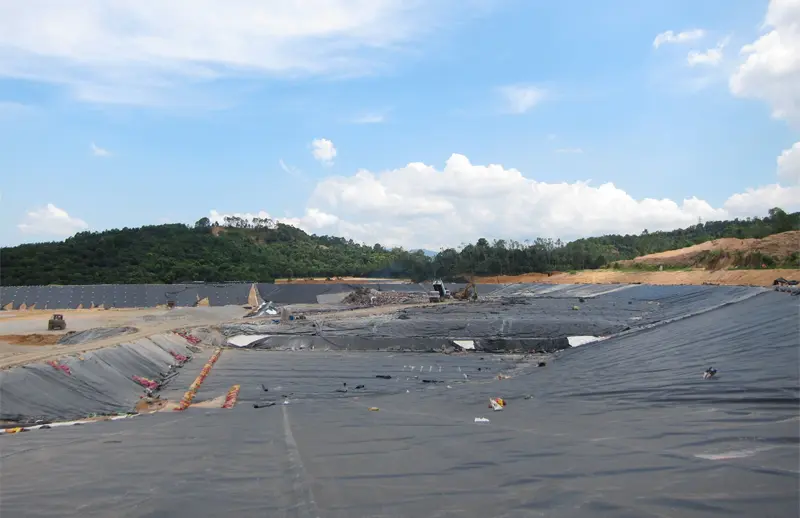

Landfills: Base cells & Caps, heap leach pads, leachate collection.
Secondary Containment applications: Tanks farms and substructure.
Waterproofing: Tunnels, pipelines, dams, reservoirs, ditches & spill ways.

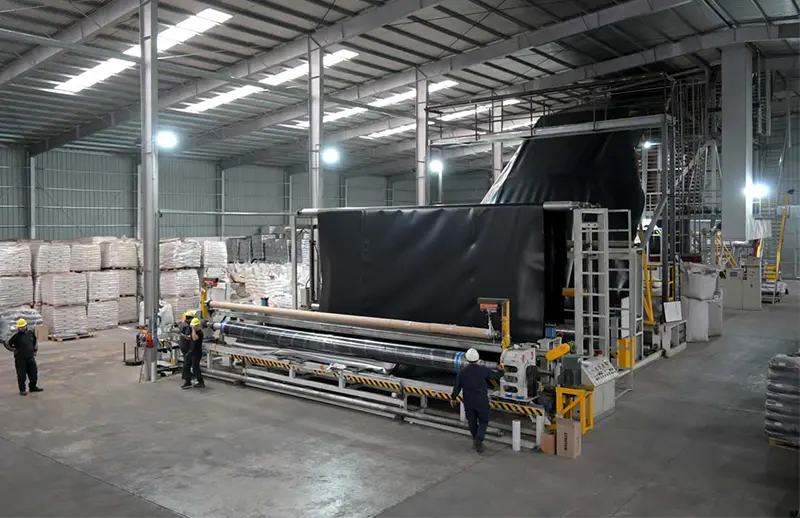

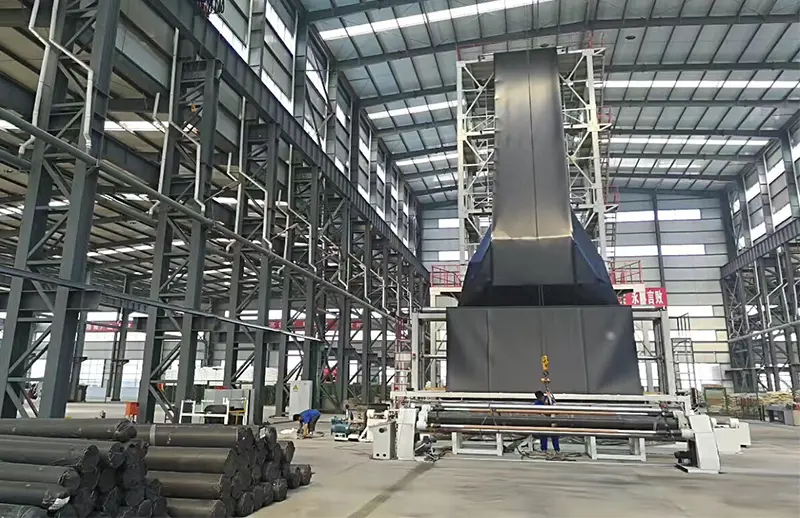

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

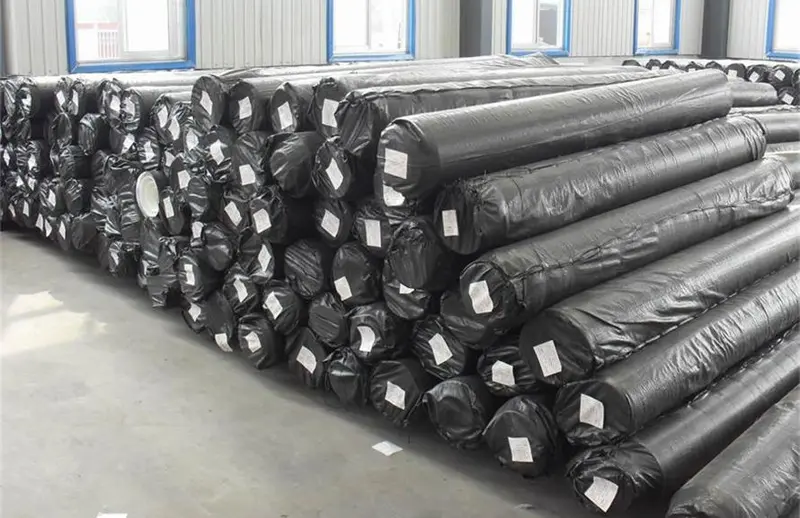

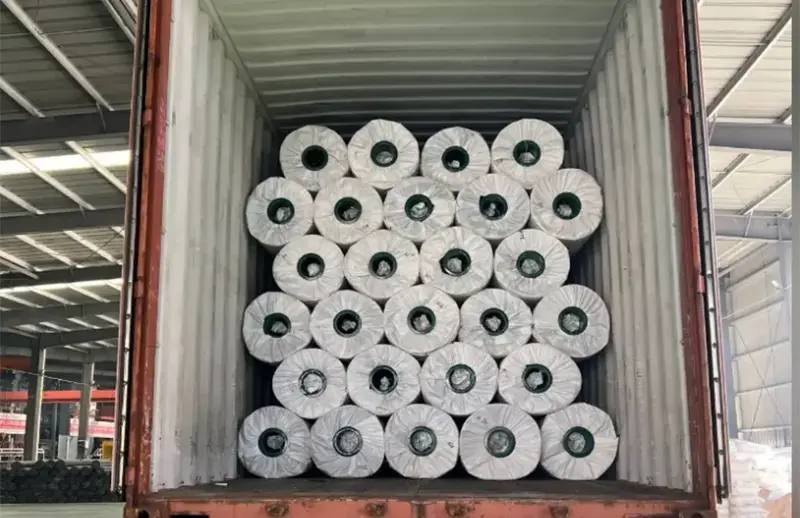

Packing &Transport
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
