Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.

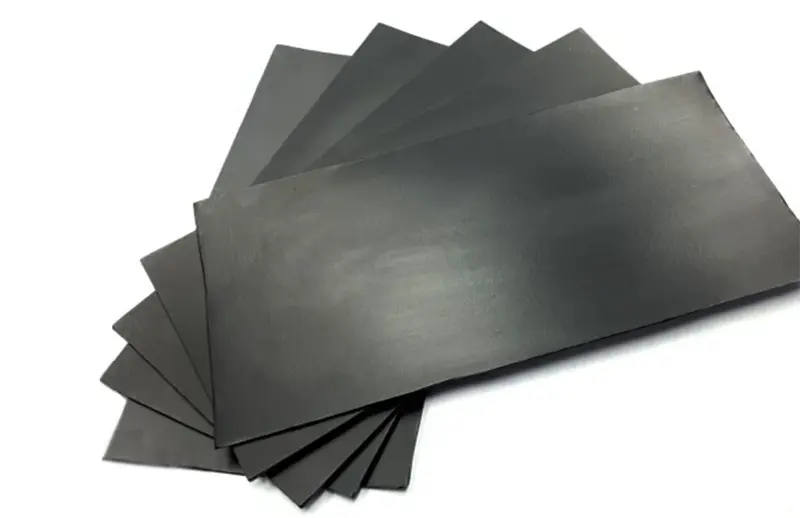

China Geomembrane
0.5 – 1.0 mm: Most used in irrigation canals, ornamental ponds, or smaller aquaculture ponds.
1.0 – 1.5 mm: Universal for mid-range landfill liners, wastewater ponds, or secondary containment.
2.0 – 3.0 mm: Applications include major landfill base liners and large mining tailings dams requiring high

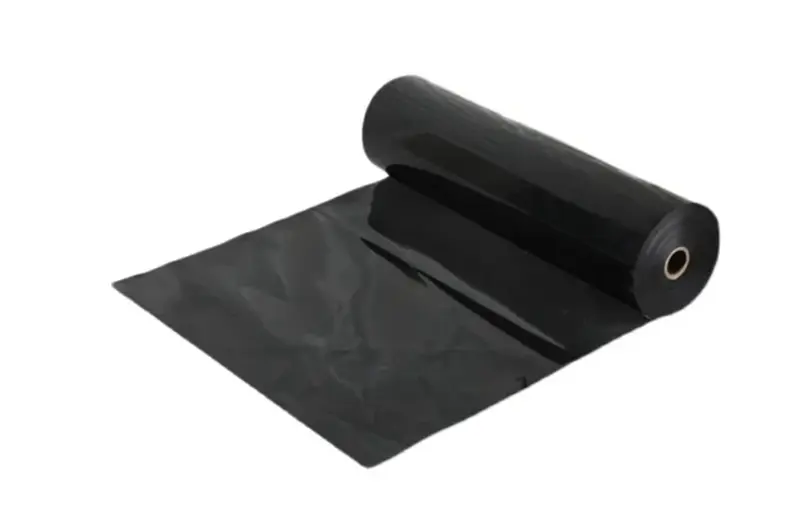

Description
HDPE geomembrane smooth is very low permeability synthetic membrane liner or barrier with smooth surface. It can be used solely or with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system. The manufacturing of HDPE geomembrane smooth begins with the production of the raw materials, which mainly include the HDPE polymer resin, and various additives such as carbon black, antioxidants, anti-aging agent, UV absorber, and other adjuvant.
Specifications
| Properties | Test Method | GMSH050 | GMSH075 | GMSH100 | GMSH150 | GMSH200 |
| Thickness | ASTM D5199 | 0.50 mm | 0.75 mm | 1.00 mm | 1.50 mm | 2.00 mm |
| Density | ASTM D1505 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc |
| Tensile Properties | ||||||
| Yield strength | ASTM D6693 | 7 kN/m | 11 kN/m | 15 kN/m | 22 kN/m | 29 kN/m |
| Break strength | Type IV | 13 kN/m | 20 kN/m | 27 kN/m | 40 kN/m | 53 kN/m |
| Yield elongation | 12% | 12% | 12% | 12% | 12% | |
| Break elongation | 700% | 700% | 700% | 700% | 700% | |
| Tear Resistance | ASTM D1004 | 62 N | 93 N | 125 N | 187 N | 249 N |
| Puncture Resistance | ASTM D4833 | 160 N | 240 N | 320 N | 480 N | 640 N |
| Stress Crack Resistance | ASTM D5397 | 500 hrs | 500 hrs | 500 hrs | 500 hrs | 500 hrs |
| Carbon Black Content | ASTM D1603 | 2.00% | 2.00% | 2.00% | 2.00% | 2.00% |
| Carbon Black Dispersion | ASTM D5596 | For 10 different views:9 in Categories 1 or 2 and 1 in Category 3 | ||||
| Oxidative Induction Time (OIT) | ASTM D3895 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. |
| UV Resistance | ASTM D5885 | 50% | 50% | 50% | 50% | 50% |
| High Pressure OIT retained after 1600hrs | ||||||
| Roll Width (m) | 7 | 7 | 7 | 7 | 7 | |
| Roll Length (m) | 420 | 280 | 210 | 140 | 105 | |
Applications
1. Landfill Liners and Caps
HDPE geomembranes constitute a critical barrier against the migration of leachate into groundwaters. Bottom liners are generally 1.5 to 2.0 mm thick, but somewhat thinner liners can be used for capping.LLDPE gemembranes can be selected in landfill capping to provide greater flexibility than in areas with sloped surfaces that may settle.
2. Mining containment – Heap Leach Pads, Tailing Ponds
The HDPE’s resistance to chemicals enables its application in gold, copper, and other mineral heap leach pads with acidic or caustic leachates.Expected subgrade movement requires using LLDPE, which has a better elongation to failure.

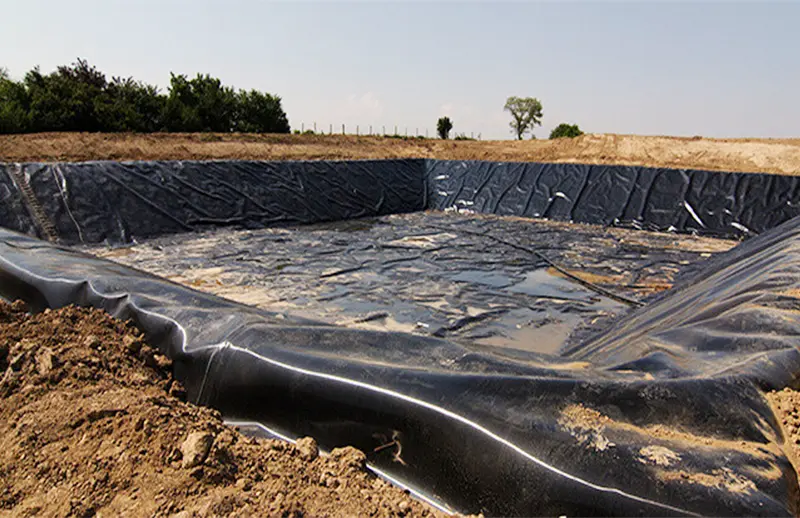

3. Wastewater Ponds and Aerated Lagoons
HDPE or PVC geomembranes can be used to contain contaminated industrial wastewater or municipal wastewater.
The thickness is subject to the site conditions, but it should be within a range of 1.0-1.5mm for robust performance.

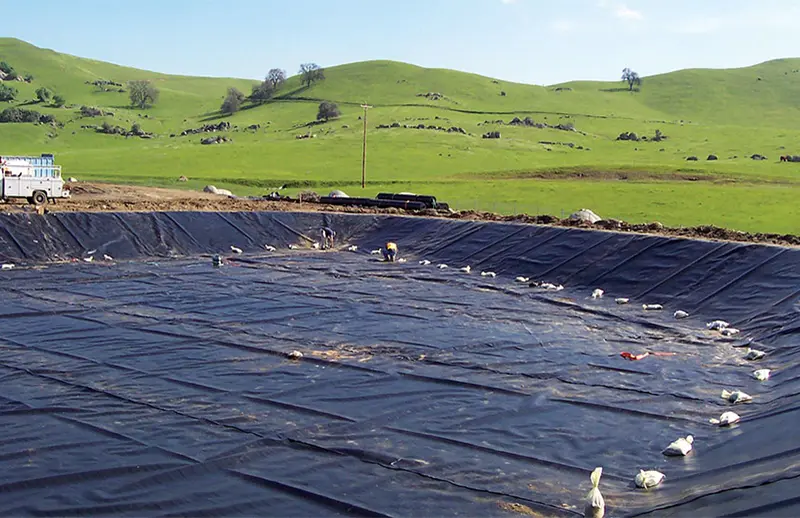

4. Aquaculture and Agriculture
Liners of 0.5 – 1.0 mm HDPE/LLDPE are ordinary in fish/ shrimp ponds. HDPE/LLDPE liners can contain cost-effectively and help maintain water quality.
LDPE or LLDPE may be preferred when irregular pond shapes require more flexibility.

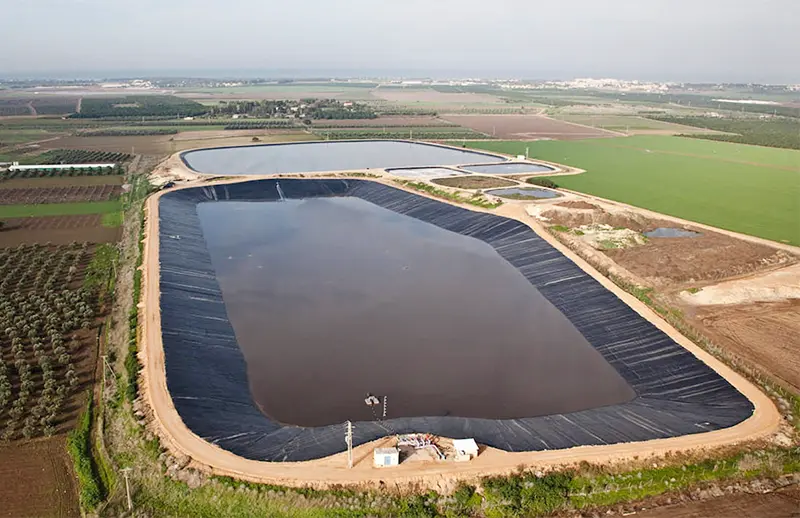

5. Reservoirs, Canals, and Water-retaining Schemes
Geomembrane liners for reservoirs ensure water is stored efficiently by minimizing seepage losses. HDPE or LLDPE liners in the thickness of 1.0 – 2.0 mm are mostly applied in these applications.
Thinner liners (0.5 – 1.0 mm range) may suffice for irrigation canals, though thicker ones provide longer life spans.
6. Secondary Containment of Petroleum and Chemicals
HDPE liners are suitable for resisting chemical spills or leakage at tank farms or chemical processing plants.
Lining in PVC or other special polymer-resistant lining for applications requiring exceptional chemical compatibility.

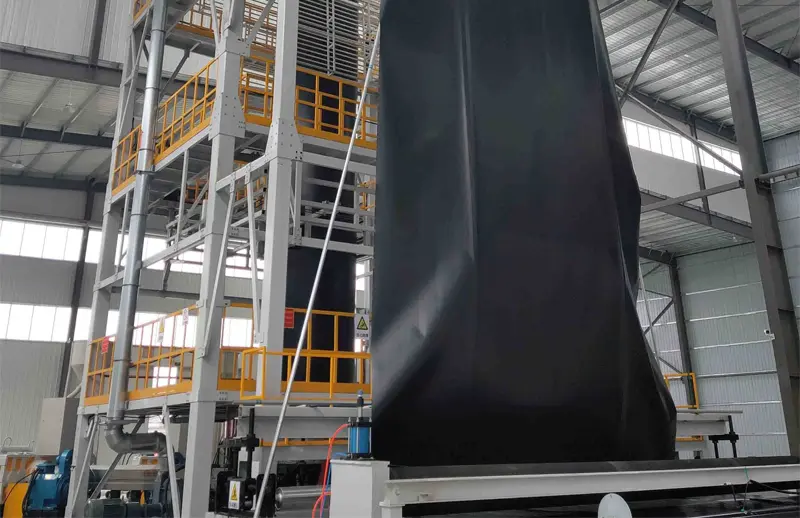

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

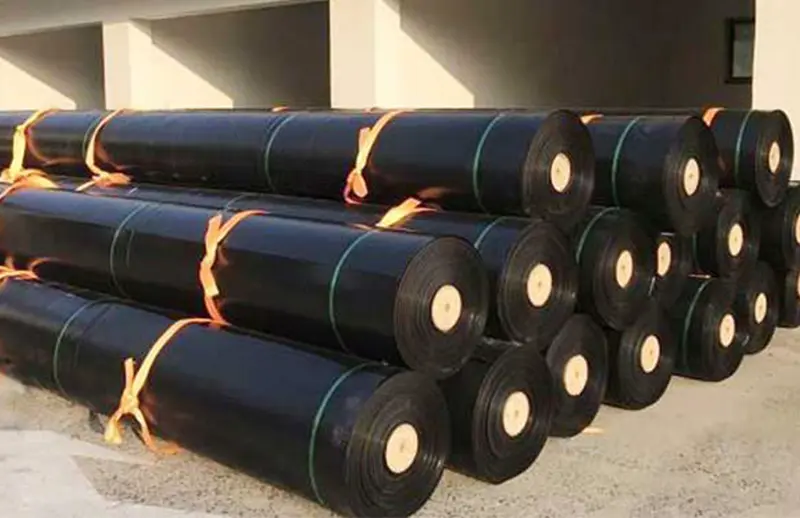

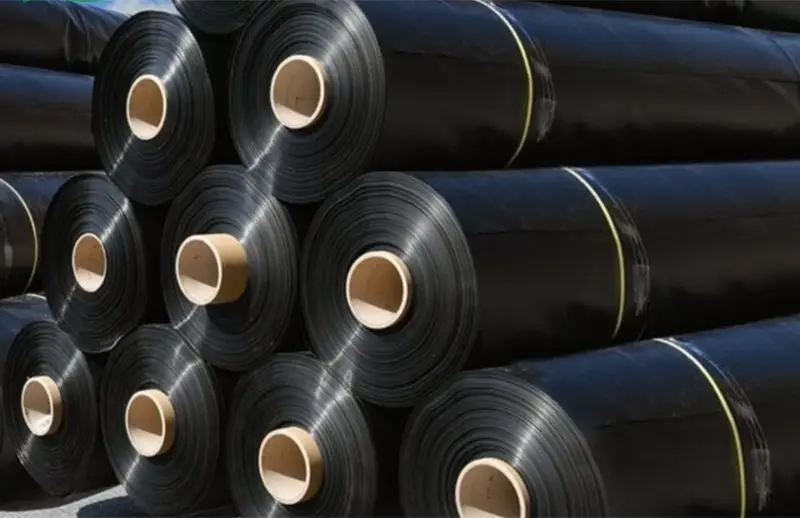

Packing & Delivery
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.

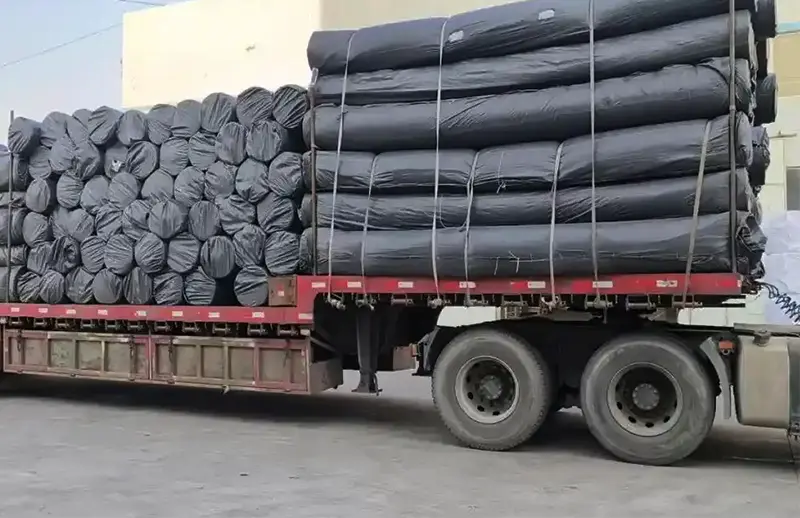

Transport
