China EPDM Geomembrane
Thickness: 0.1mm,0.2mm,0.3mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm,3.0mm
Roll Width: 1.0m,2.0m,3.0m,4.0m,5.8m,7m,8m
Roll Length: 50m,100m,150m,200m
EPDM (Ethylene Propylene Diene Monomer) Geomembrane is a high-performance, rubber-based waterproofing membrane widely used in environmental, hydraulic, and industrial applications. Known for its exceptional elasticity, UV resistance, and long-term durability, EPDM is a preferred choice for lining ponds, landfills, reservoirs, and more.
Geomembranes, also known as waterproof geomembranes, is a type of impermeable membrane, usually made of primary resins such as high density polyethylene (HDPE). They have excellent impermeability and chemical resistance, can effectively prevent water and other liquids from penetrating into the soil, and protect groundwater and surface water resources. For this reason, they are commonly used in projects such as landfills, chemical plants,
Unmatched Flexibility & Tear Resistance
Stretches up to 300% without cracking, accommodating ground movement and settling.Excellent puncture resistance, ideal for uneven substrates.
Weather & UV Resistant
Performs in extreme temperatures (-40°C to +120°C) and resists degradation from sunlight (ozone/UV stable).
Long Lifespan
Service life exceeding 30 years with minimal maintenance.
Chemically Inert
Resistant to acids, alkalis, and organic compounds, making it suitable for wastewater and industrial containment.
Environmentally Safe
Non-toxic and fish/plant-friendly, perfect for aquaculture and potable water systems.
| No. | Properties | Value | ||||||
| 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | 3.00 mm | ||
| 1 | Minimum density (g/cm²) | 0.93 | ||||||
| 2 | Yield Strength,N/ min | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
| Breaking strength,N/ min | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation ratio | 12 | |||||||
| Breaking elongation ratio | 700 | |||||||
| 3 | Right angle tear strength,N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Piercing strength,N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Resistant to environmental stress cracking,hr | 300 | ||||||
| 6 | Carbon black | |||||||
| Carbon black content,% | 2.0-3.0 | |||||||
| Carbon black dispersion | Nine of the ten observation areas should belong to Stage 1 or Stage 2, and Stage 3 should not be more than one. | |||||||
|
7 |
Oxidation induction time | |||||||
| Standard OIT, (min) | 100 | |||||||
| High pressure OIT, (min) | 400 | |||||||
| 8 |
85 baking aging (Min average) | |||||||
| After baking 90d,Standard OIT % | 55 | |||||||
| Baking 90d,High pressure OIT % | 80 | |||||||
| 9 |
UV resistance | |||||||
|
Ultraviolet radiation 1600h,Standard OIT % |
50 | |||||||
|
Ultraviolet radiation 1600h, |
50 | |||||||
| 10 | -70 Low temperature shock enchantment performance | Pass through | ||||||
| 11 | Water vapor permeability coefficient | ≤1.0*10-13 | ||||||
| 12 | Dimensional stability | ±2 | ||||||
China EPDM Geomembrane-Solid or liquid waste treatment
Mine tailing disposal is one of the most important environmental issues for any mining project. To control the
release of tailing materials, which are the waste product left over from a mineral-processing plant, a tailing
dam or pond is created to contain the waste. In this case, geomembranes are used to protect the
environment and prevent contamination of soils and groundwater tables.

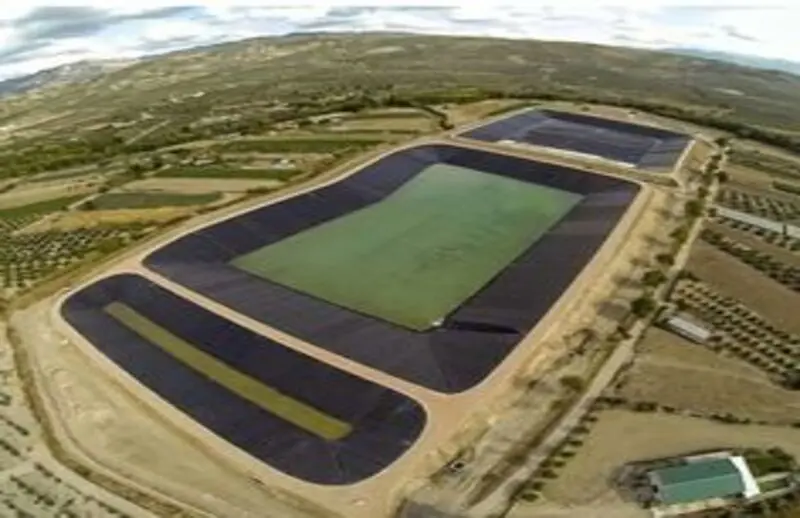

China EPDM Geomembrane-Water Storage & Irrigation
Ponds & Lakes: Lining for decorative, agricultural, or recreational water bodies.
Reservoirs & Canals: Prevents seepage in drinking water and irrigation systems.
Rainwater Harvesting: Ensures leak-proof storage for sustainable water management.

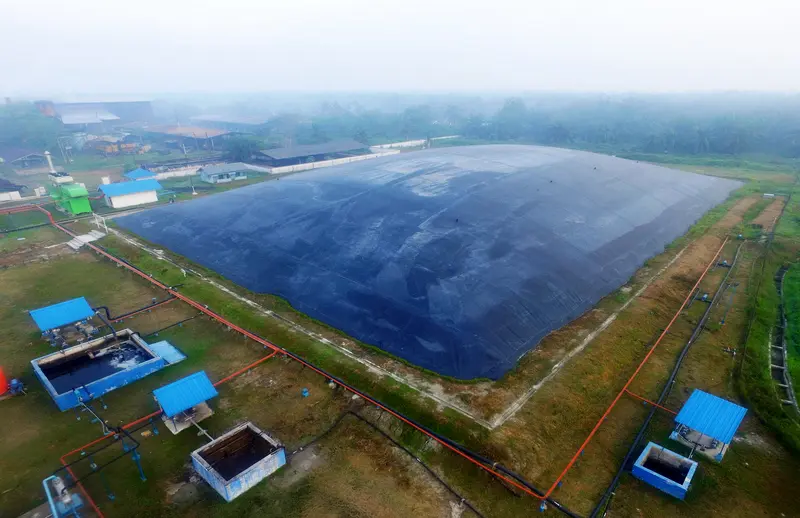

China EPDM Geomembrane-Environmental Protection
Landfills & Waste Containment: Acts as a secondary liner to prevent leachate contamination.
Mining & Oil Industry: Used in tailings ponds and hydrocarbon containment areas.
Wastewater Treatment: Lining for lagoons and anaerobic digesters.
China EPDM Geomembrane-Aquaculture & Fisheries
Fish & Shrimp Ponds: Non-toxic and safe for aquatic life.
Aquaponics & Hydroponics: Maintains water retention in farming systems.
China EPDM Geomembrane-Civil Engineering & Infrastructure
Tunnel & Underground Waterproofing: Protects against groundwater infiltration.
Stormwater Management: Lining for detention basins and drainage systems.
Bridge & Road Construction: Prevents water damage to sub-surface structures.
China EPDM Geomembrane-Landscaping & Roofing
Green Roofs: Provides waterproofing for vegetative roof systems.
Garden Ponds & Water Features: Aesthetic and durable lining solution.
Golf Courses & Artificial Lakes: Ensures long-term water retention.
Geomembrane Welding Machine
| Model | Technical parameters |
| BT-800 | Power: 800W Welding speed: 0.5-5m/min Welding width: 12.5mm×2, interior cavity 12mm Weight: 5Kg |
| BT-2400 | Power: 1600w Frequency:50/60Hz Weight: 1.05kg (Including 3m electrical wire) |
| BT-900 | Power: 1800W Welding speed: 0.5~5m/min Welding width: 15mm×2 Interior Cavity: 15mm Weight: 13kg |
| BT-100 | Power: 1200W Welding Speed: 0.5-8 m/min Welding width: 15 mm *2, interior cavity 20 mm Weight: 9 Kg Size: 350(L) X 267mm(W) X 267mm(H) |
| BT-410 | Extruding Power: Drive Motor 800W Hot air drive power:1600W Welding speed: 2kg/h Diameter of Welding Rod: φ3.0mm-3.5mm Weight:6.5kg |
China EPDM Geomembrane’s Package&Shipping

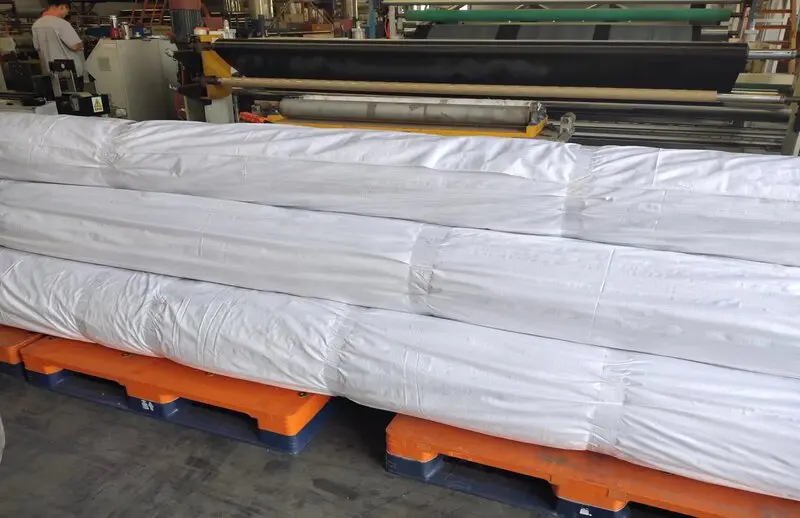

China EPDM Geomembrane-Package
Package Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package). Packaging size and container capacity vary according to product specifications.
China EPDM Geomembrane-Shipping
Transportion customers. please contact us if you need. we can package and transport the products according to the requirements of the
