PET Woven Geotextile
High Strength PET Woven Geotextile is high strength woven geotextiles manufactured by weaving high tenacity polyester filament yarns into a dimensionally stable network. The inherent characteristics of polyester – high tensile strength and modulus, low elongation, low creep and high long-term design strength - makes these products ideal for soil reinforcement applications. The fabric develops excellent frictional interaction with a wide variety of soils and granular materials.
China PP Geotextile is made of polypropylene flat yarn as raw material. It consists of two parallel yarns (the shape of which is flat yarn). One group is called warp yarn along the longitudinal direction of the loom (the direction of fabric travel). The horizontal arrangement of the group is called the weft.
The warp and weft are woven into a cloth shape with different weaving equipment and processes, which can be woven into different thicknesses and densities according to different use ranges. Generally, the thinner woven geotextile has strong tensile strength in both vertical and horizontal directions. Strength (longitude is greater than latitude), with good stability performance.
China PP Monofilament Woven Fabric Geotextiles are produced from tapes (tapes-fabrics) or yarns. The fabric consists of warp yarns and weft yarns. Woven fabrics are made of polypropylene monofilament and tape yarns which provide excellent hydraulic and physical properties.
| NO. | Item | Index | ||||||||||||
| 35 | 50 | 65 | 80 | 100 | 120 | 140 | ||||||||
| 1 | Breakage Strength KN/m≥(LD) | 35 | 50 | 65 | 80 | 100 | 120 | 140 | ||||||
| 2 | Breakage Strength KN/m≥(TD) | 25 | 35 | 46 | 56 | 70 | 84 | 98 | ||||||
| 3 | Sewing strength, KN/m | Breakage strength*50% | ||||||||||||
| 4 | Elongation Rate %≤(LD,TD) | LD35,TD30 | ||||||||||||
| 5 | Tearing Strength KN≥ (LD,TD) | 0.5 | 0.8 | 1.1 | 1.3 | 1.5 | 1.7 | 1.9 | ||||||
| 6 | (CBR) Burst Strength KN≥ | 2 | 4 | 6 | 8 | 10.5 | 13 | 15.5 | ||||||
| 7 | Vertical Permeability Coefficient cm/s | 10-1~10-3 | ||||||||||||
| 8 | Sieve Size(O95)mm | 0.07~0.5 | ||||||||||||
| 9 | Unit Weight g/m2 | 140 | 200 | 260 | 320 | 390 | 460 | 530 | ||||||
| 10 | Variation% | ±2 | ||||||||||||
PET Woven Geotextile
We provide one-stop geosynthetics products and solutions to global customers. Feicheng Lianyi Geosynthetics has supplied a wide range of effective and state-of-the-art Geomembranes, Geotextiles, Geocells, Geogrids to more than 50 countries and regions abroa.
Quality Assurance
All of our geogrid products are CE-certificate,and manufactured at ISO 9001 certified manufacturing soil reinforcement geogrids consistently meets demanding QA/QC requirements.Our Products are tested to rigorous ASTM standards both in-house.We have established a national-standard laboratory for in-house quality control. We built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Professional Service
As a leading manufacturer of geosynthetics materials, we have been exported geogrid to more than 50 countries and regions abroad. On this basis, we continue to develop and provide geosynthetics products with excellent performance and professional technical services.
Q: How long is the service life of China PP woven geotextile?
A: The service life of PP woven geotextile can reach more than 10 years. The specific service life depends on the use environment and construction quality.
Q: What are the construction methods of China PP woven geotextile?
A: The construction methods of PP woven geotextile mainly include laying, overlapping, fixing and other steps. For specific construction methods, please refer to relevant specifications or consult professionals.
Q: What is the price of China PP woven geotextile?
A: The price of PP woven geotextile is affected by factors such as specifications, quantity, and transportation distance. Please consult relevant manufacturers for specific price

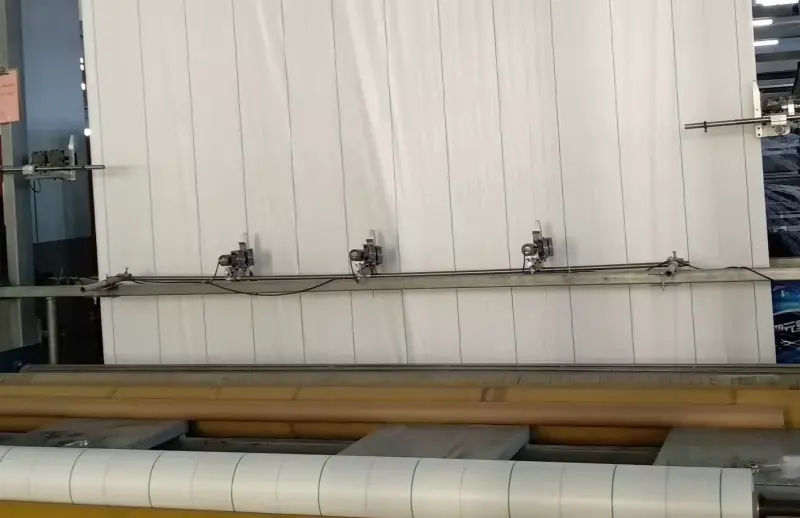

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.
Packing &Transport
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
