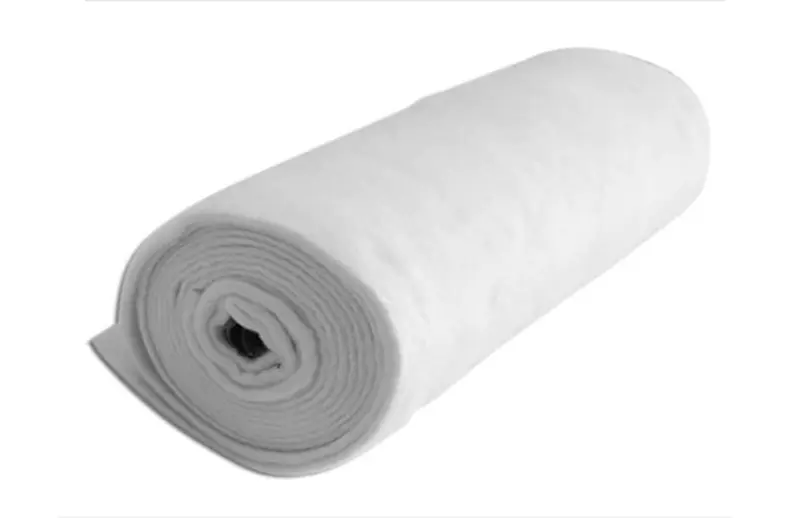

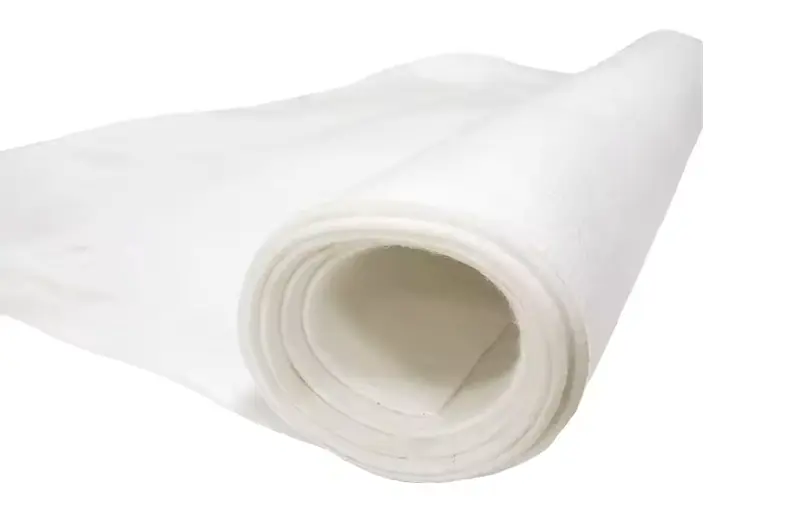

Nonwoven Geotextile Fabric
Material:Polyester
Color: White
Length: 50m-100m
Width: 1-6m
Certificate: CE /ISO9001/SGS
Type: Needle Punched
Excellent drainage performance
High strength,excellent tenacity
Anti-aging,anti-acid and alkali
Can accommodate irregular deformations
Creep, corrosion and abrasion resistance
Safe and easy for construction
Nonwoven Geotextile Fabric is made from virgin PET (polyester) chips, the continuous filament was extruded from PET chip by machine directly by spunbond process, and then punch together to get the stable 3D with higher strength fabric. So it has high strength, good creep property excellent and erosion resistance, aging-resistance and heat resistance.
| Index Properties | Test Method | Unit | Values | ||||||||
| 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | |||
| Color | – | – | White or Black | ||||||||
| Ultimate Tensile Strength, MD | ASTM D4595 | kN/m | 11 | 14 | 17 | 19 | 24 | 27 | 30 | 37 | 41 |
| Ultimate Tensile Strength, TD | ASTM D4595 | kN/m | 10 | 12 | 15 | 17 | 21 | 25 | 28 | 34 | 38 |
| Tensile Elongation | ASTM D4595 | % | 45 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |
| Grab Tensile Strength, MD | ASTM D4632 | N | 600 | 850 | 1000 | 1250 | 1450 | 1700 | 1900 | 2100 | 2500 |
| Grab Tensile Strength, TD | ASTM D4632 | N | 550 | 700 | 900 | 1100 | 1250 | 1450 | 1600 | 1800 | 2150 |
| Grab Elongation | ASTM D4632 | % | 45 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |
| Trapezoid Tear Strength, MD | ASTM D4533 | N | 300 | 350 | 430 | 490 | 540 | 630 | 710 | 770 | 920 |
| Trapezoid Tear Strength, TD | ASTM D4533 | N | 270 | 330 | 400 | 450 | 510 | 610 | 690 | 750 | 900 |
| CBR Puncture Strength | ASTM D6241 | N | 1800 | 2300 | 2700 | 3200 | 3600 | 4400 | 4800 | 5800 | 6900 |
| Apparent Opening Size O90 | ASTM D4751 | mm | 0.11 | 0.11 | 0.1 | 0.09 | 0.09 | 0.08 | 0.08 | 0.08 | 0.08 |
| Water Flow Q100 | ASTM D4491 | L/m2/s | 235 | 220 | 200 | 185 | 165 | 125 | 110 | 90 | 80 |
| U.V. Resistance | ASTM D4355 | % @ 500h | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Weight | ASTM D5261 | g/m2 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| Thickness | ASTM D5199 | mm | 1.8 | 2.3 | 2.9 | 3.2 | 3.6 | 3.9 | 4.2 | 4.4 | 4.8 |
| Roll Length | – | m | 50-200 | ||||||||

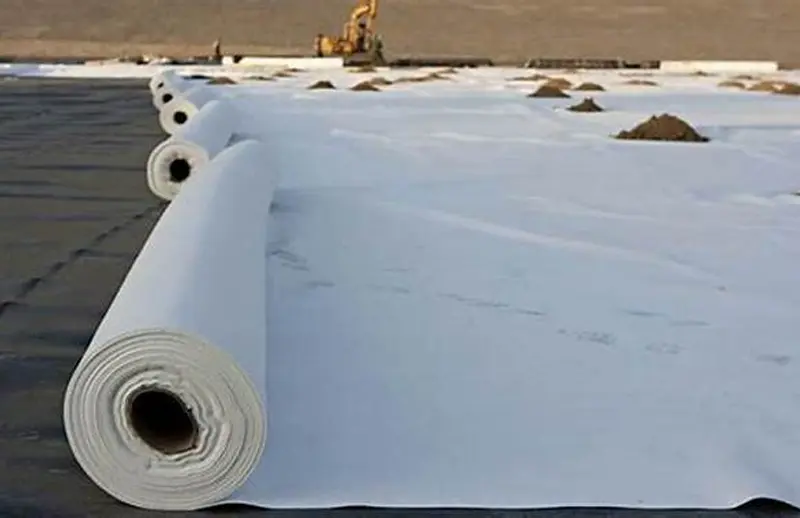

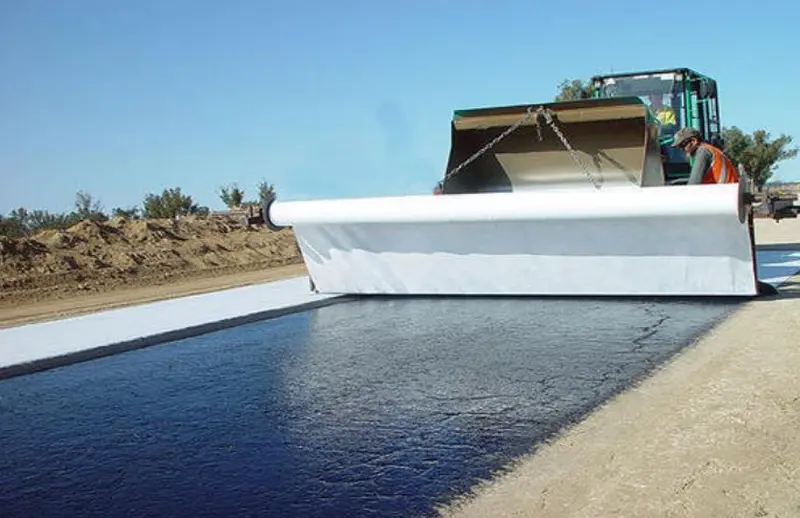

Filtration
When water passes from a fine-grained to a coarse grained layer, Non-woven Geotextiles can retain fine particles well. Such as when water flows from a sandy soil into a Geotextile wrapped gravel drain.

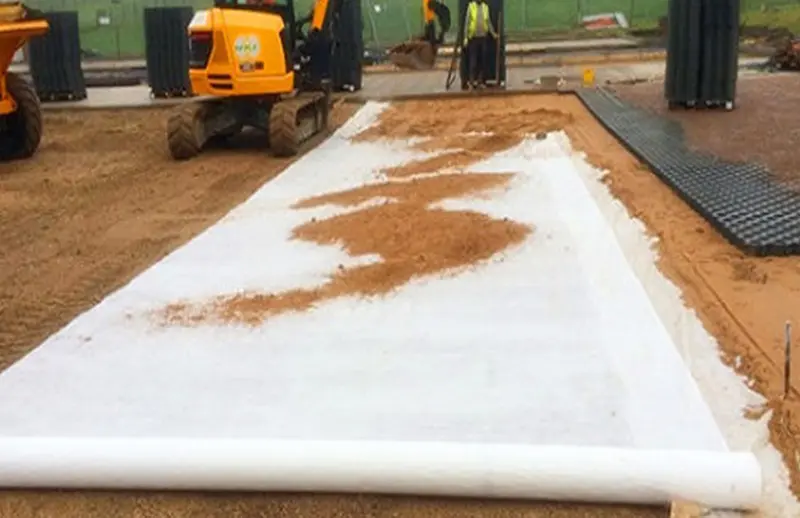

Separation
To separate two layers of soil with different physical properties, such as the separation of road gravel from soft sub-base materials.
Drainage
To drain liquid or gas from the plane of the fabric, which leads to draining or venting of the soil, such as the gas vent layer in a landfill cap.
Reinforcement
To improve the load bearing capacity of a specific soil structure, such as the reinforcement of a retaining wall.

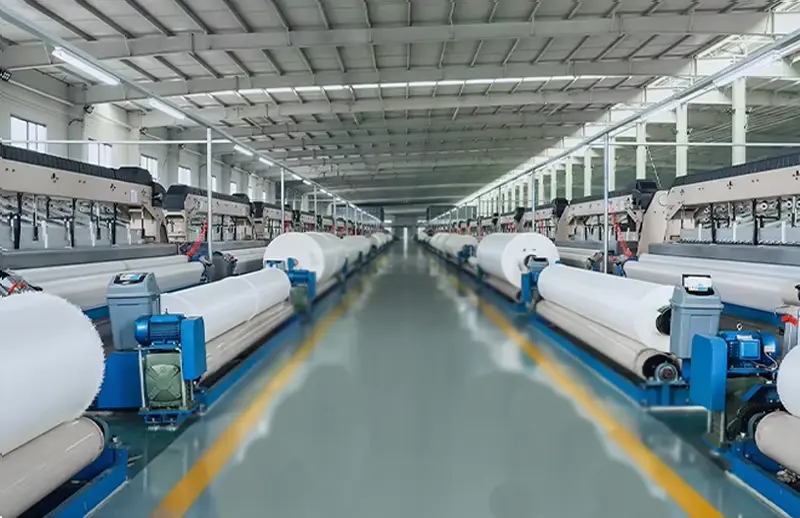

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

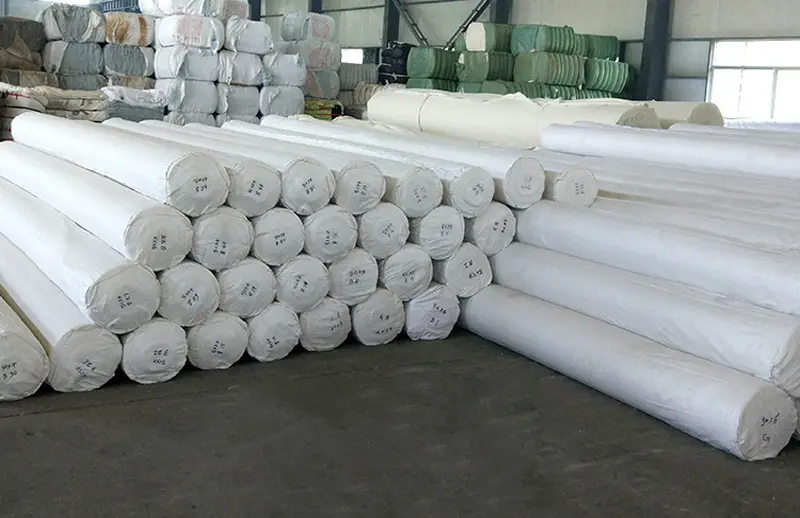

Packing &Transport
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
