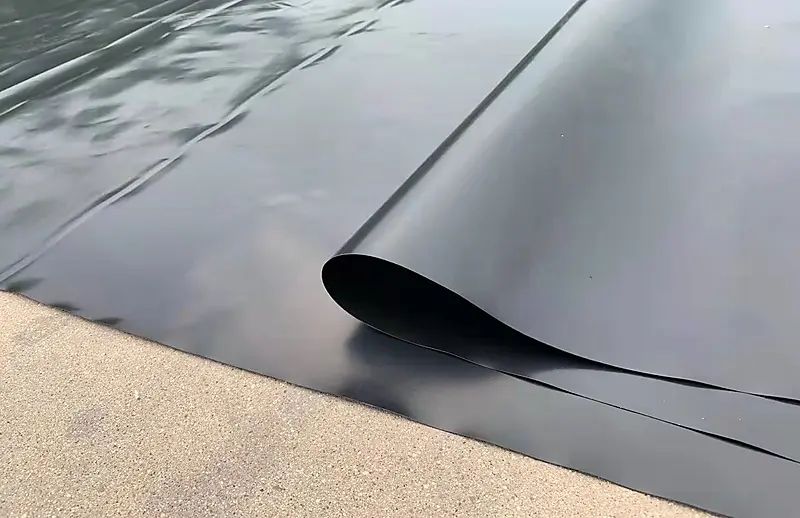

HDPE Smooth Geomembrane
Material: HDPE (High-Density Polyethylene)
Thickness: 0.5mm – 3.0mm (20 mil – 120 mil)
Surface: Smooth both sides
Color: Black (standard), white, or custom colors available
HDPE Smooth Geomembrane
HDPE geomembrane is the most widely used type of geomembrane. It is a geosynthetic material manufactured from high-density polyethylene (HDPE). Serving as a synthetic waterproof barrier, it is commonly applied in environmental protection, hydraulic, and geotechnical engineering projects.
The HDPE Smooth Geomembrane is an advanced containment solution engineered to address a broad spectrum of environmental protection and containment challenges. Manufactured from high-density polyethylene, it delivers exceptional chemical resistance, long-term durability, and superior impermeability—making it an ideal choice for waste management, water storage, landfill, and mining applications. Designed for straightforward installation and low maintenance, it is available in multiple thicknesses to offer a flexible, durable, and cost-effective solution for your containment projects.
hdpe smooth geomembrane
hdpe smooth geomembrane
HDPE Smooth Geomembrane
|
Item
|
Index
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
Elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
Elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||
HDPE Smooth Geomembrane

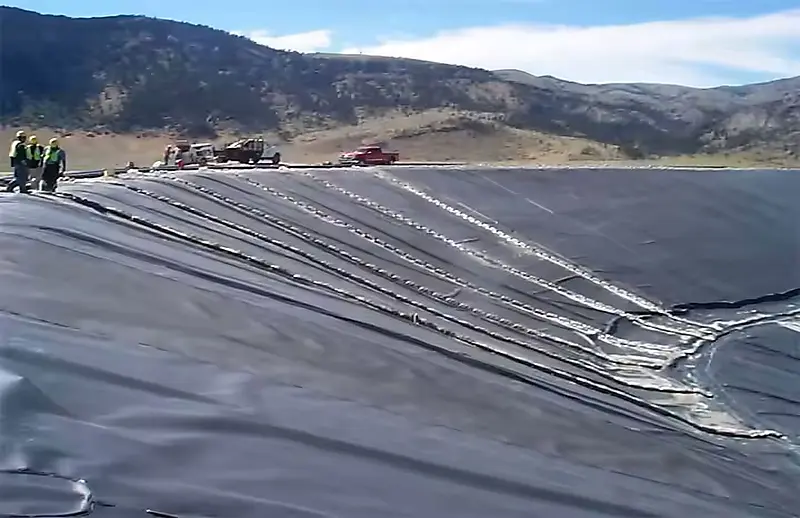

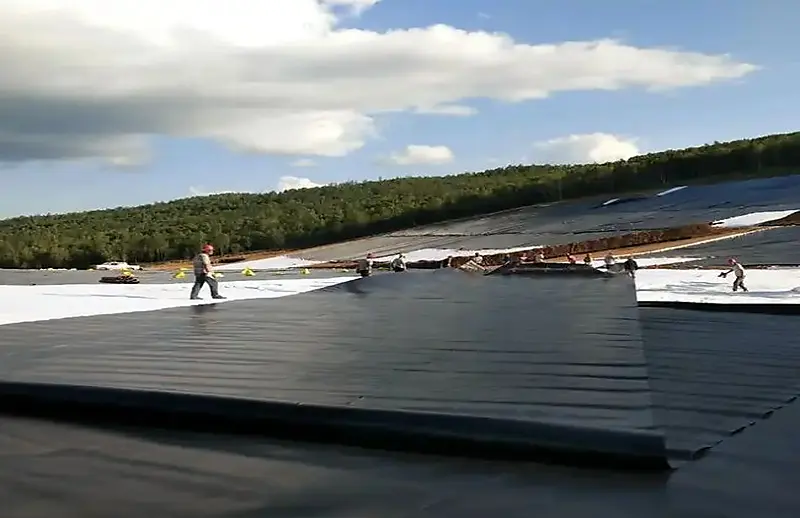

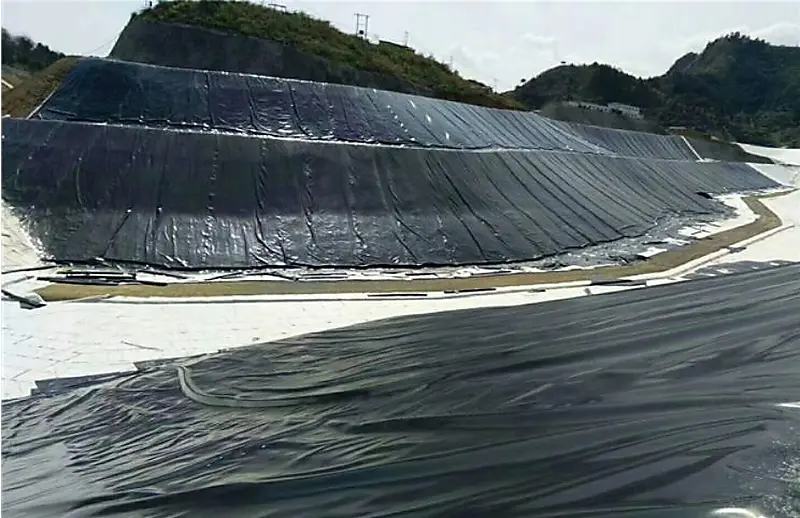

- Landfills: Base liners to prevent groundwater contamination, final caps to control gas emissions and water infiltration, and leachate collection ponds for managing liquid waste.
- Mining: Heap leach pads for precious metal recovery, tailings storage facilities to contain mining byproducts, and process solution ponds for chemical management.

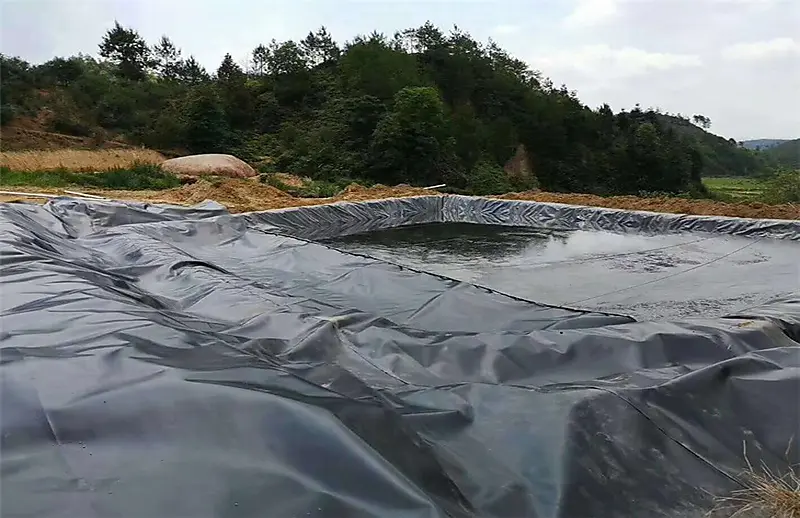

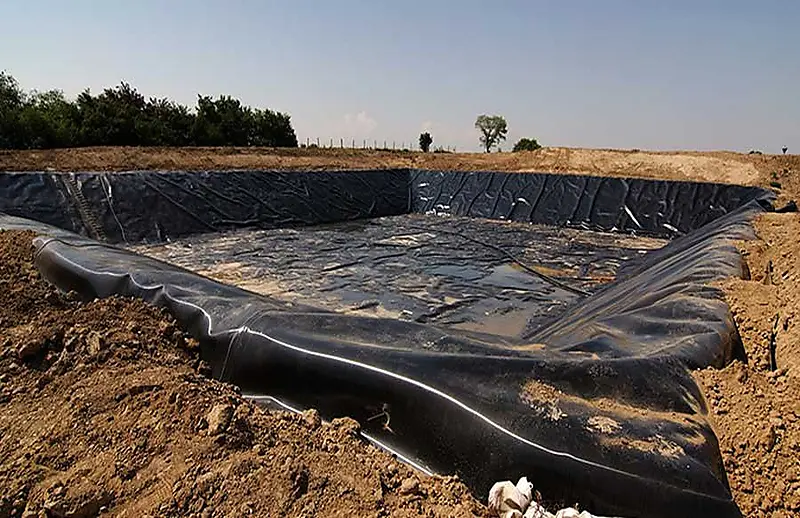

- Water Management: Reservoirs for potable and irrigation water storage, canals to minimize seepage losses, and stormwater detention basins for flood control and water quality management.

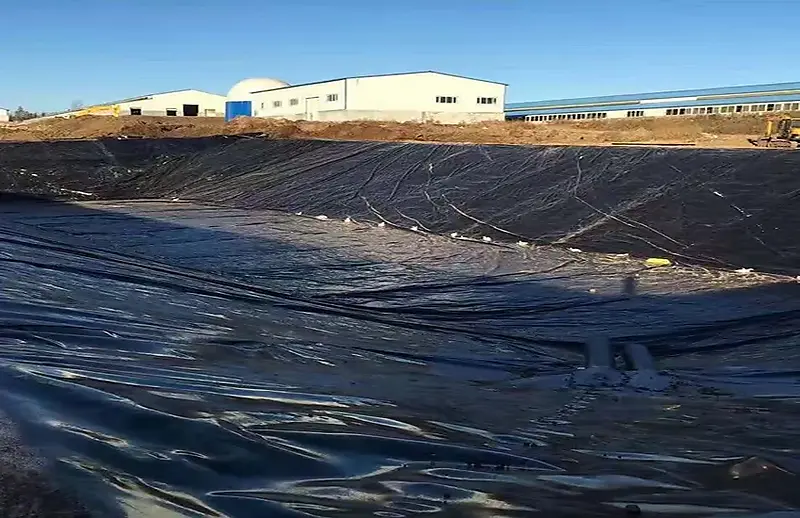

- Industrial: Secondary containment systems to prevent hazardous spills, chemical berms for tank farm protection, and tank liners for aboveground and underground storage.

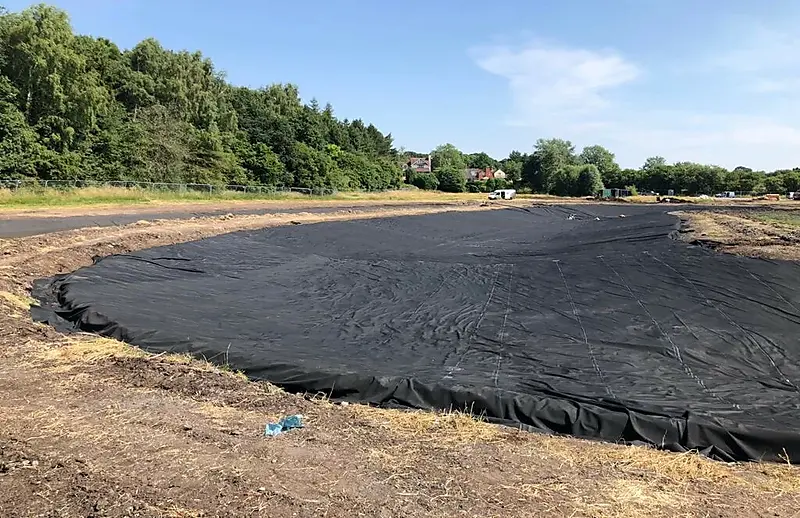

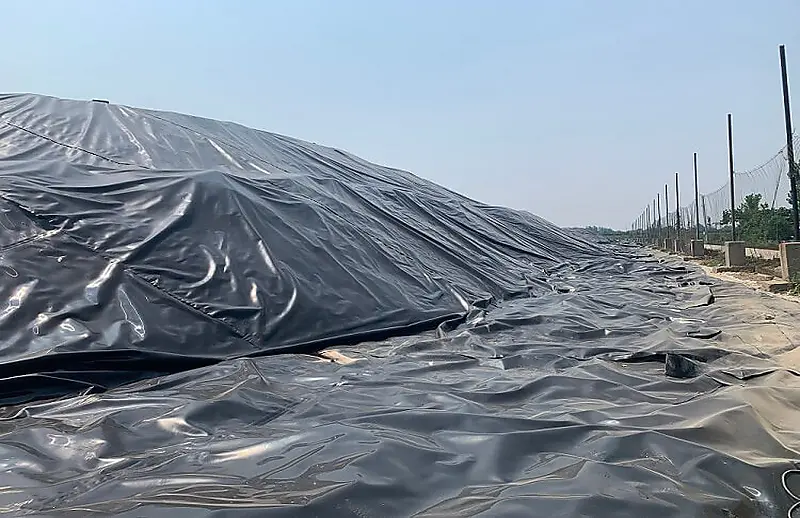

- Agriculture: Irrigation ponds for water conservation, aquaculture liners for fish and shrimp farming, and silage bunkers for livestock feed preservation.
- Civil Engineering: Tunnel waterproofing to prevent groundwater ingress, cutoff walls for seepage control, and slope protection to enhance stability in earthworks.
hdpe smooth geomembrane
hdpe smooth geomembrane
hdpe smooth geomembrane
hdpe smooth geomembrane
HDPE Smooth Geomembrane
Chemical resistance: The smooth HDPE geomembrane is highly resistant to a wide variety of chemicals, making it ideal for challenging industrial environments such as waste management and mining sites.
Weather durability: This HDPE geomembrane is highly resilient in varying weather conditions. Its excellent UV stability and low-temperature flexibility ensure that it maintains its integrity and performance regardless of the climate.
Impermeability: The HDPE smooth geomembrane offers superior impermeability, acting as a robust barrier against liquids and gases. Its leak-proof nature prevents seepage and leakage, ensuring optimal performance in containment applications.
Installation efficiency: Despite its strength and durability, the HDPE Smooth Geomembrane is lightweight, making installation easy and efficient. No specialised tools or intense labour are required, adding to user convenience.
Longevity and maintenance: The geomembrane’s high durability ensures a long-lasting containment solution. Its smooth surface and resistance to environmental degradation minimise maintenance requirements, providing an excellent return on investment throughout its lifespan.
Versatility: The HDPE Smooth Geomembrane is available in various thicknesses to cater for a wide range of project requirements. Whether used for waste management, water storage or industrial containment, it delivers consistent, reliable performance.
In summary, the HDPE Smooth Geomembrane delivers exceptional performance across all essential parameters. It is a versatile, efficient and reliable solution for a variety of containment needs.
