HDPE Geomembrane Sheet
Introducing the HDPE Geomembrane Sheet – the ultimate solution for a wide range of environmental protection and containment applications. Manufactured from high-quality high-density polyethylene (HDPE), this geomembrane delivers exceptional durability, outstanding chemical resistance, and virtually complete impermeability, making it suitable for even the most demanding project environments.
Thanks to its robust structure, the HDPE Geomembrane Sheet offers outstanding resistance to a broad spectrum of chemicals, even under prolonged or intense exposure. It also features excellent UV stability and maintains flexibility in low-temperature conditions, ensuring reliable performance across all types of weather.
At the core of its performance is superior impermeability. Acting as a dependable barrier against both liquids and gases, this geomembrane is ideally suited for critical containment uses—including waste management, water storage reservoirs, landfill liners, and mining operations.
hdpe geomembrane sheet

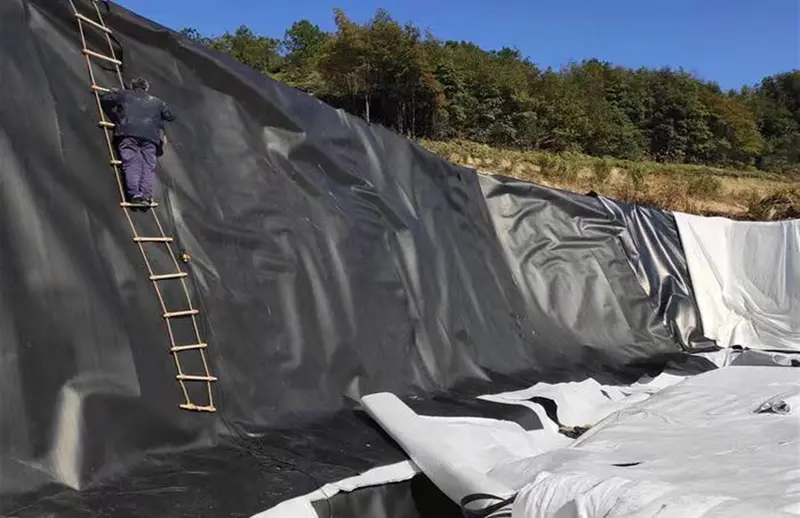

Designed with efficiency in mind, the HDPE Geomembrane Sheet enables fast and straightforward installation. Its lightweight yet durable construction supports quick deployment without sacrificing strength or long-term reliability. Available in a variety of thicknesses, it provides the versatility needed to accommodate diverse project specifications.
In addition, its smooth surface facilitates easy cleaning and maintenance, helping to extend the product’s service life and deliver strong long-term value. Choose the HDPE Geomembrane Sheet for a containment solution that is reliable, efficient, and built to last.
hdpe geomembrane sheet
HDPE Geomembrane Sheet
|
Item
|
Index
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
Elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
Elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||
HDPE geomembranes are highly versatile materials employed across a broad spectrum of industries where fluid or waste containment is critical. Below are some of their most common technical applications:
-

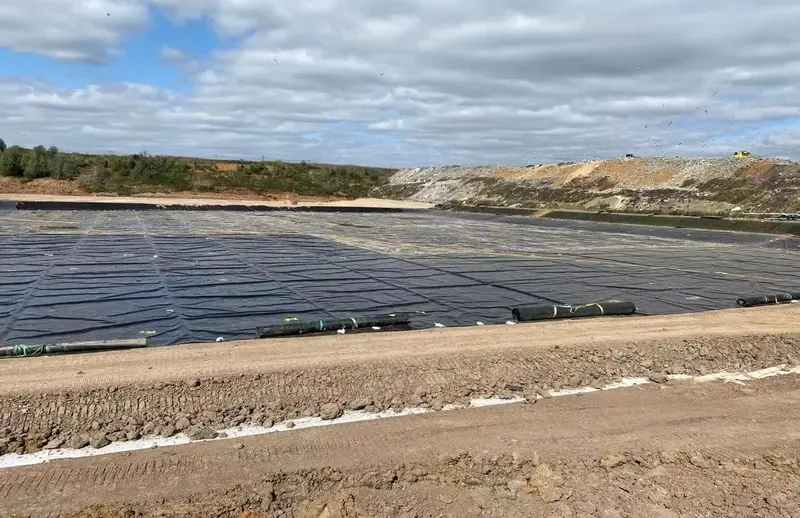

Landfills: HDPE geomembranes serve as primary and secondary liner systems in municipal solid waste and hazardous waste landfills. They function as hydraulic barriers to prevent leachate—a liquid containing potentially harmful contaminants—from migrating into the subsurface and groundwater.
-

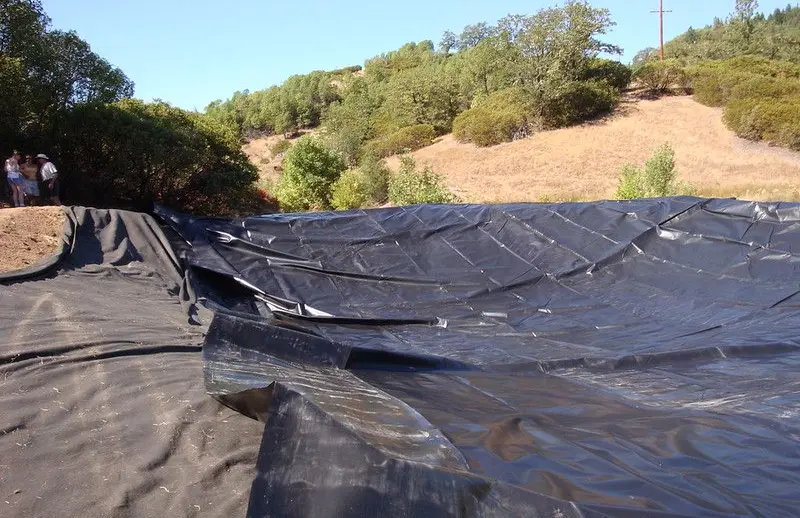

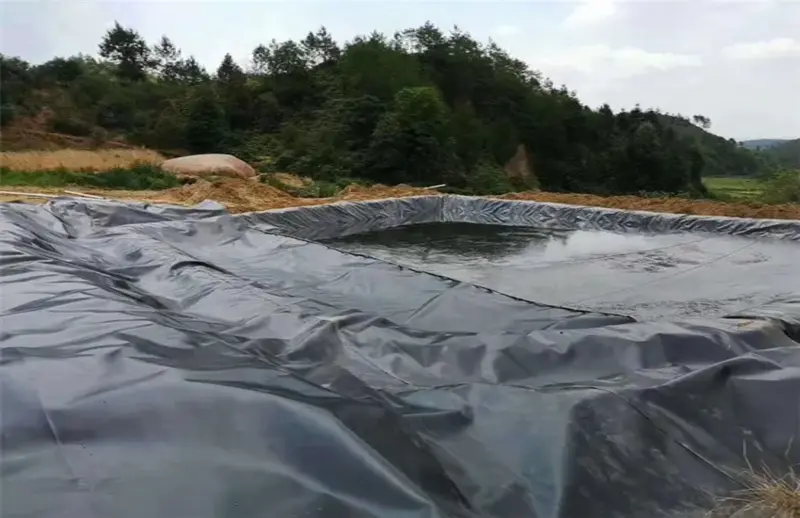

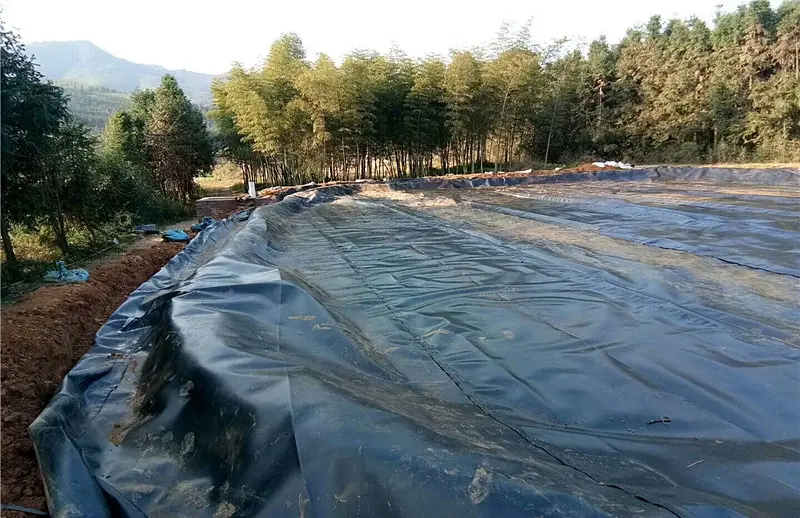

Ponds and Lagoons: These geomembranes are widely utilized as impermeable liners in decorative water features, aquaculture ponds, and industrial lagoons to eliminate seepage and ensure water conservation.
-

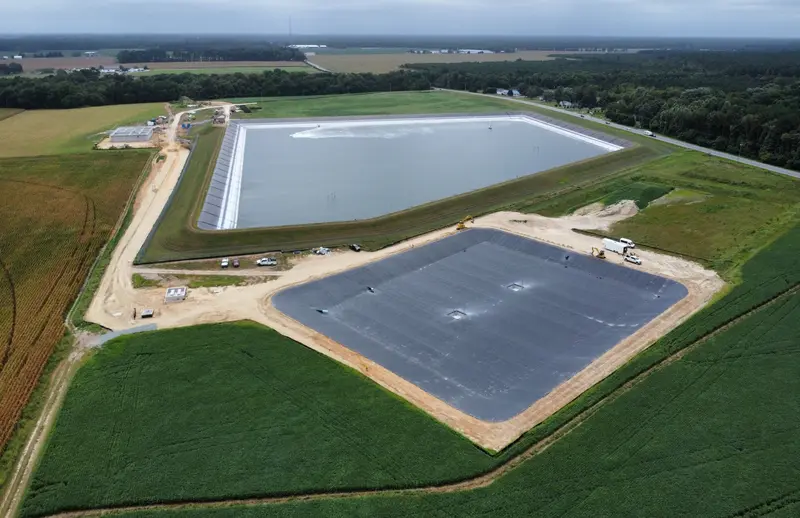

Reservoirs and Tanks: They are specified for the lining of reservoirs, storage tanks, and secondary containment facilities to securely contain water, chemicals, and other liquids or gases.
-

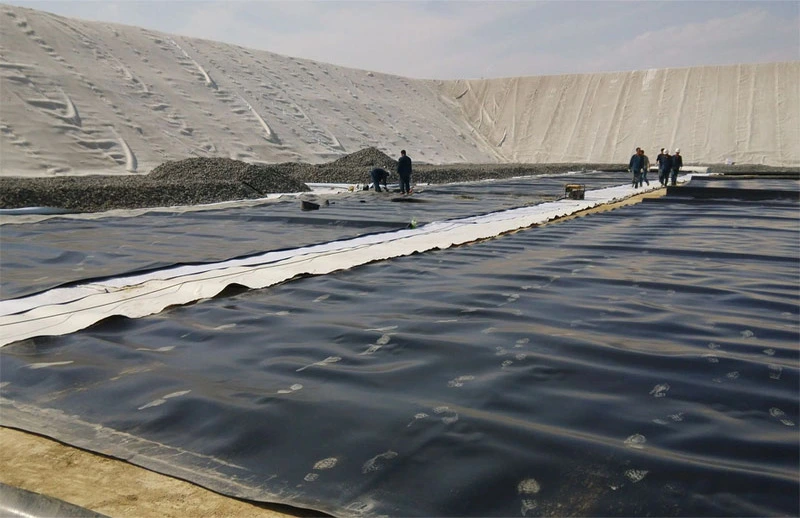

Mining: In the mining sector, HDPE geomembranes are essential for lining heap leach pads and tailings storage facilities, providing a robust barrier to isolate process solutions and prevent environmental contamination.
-

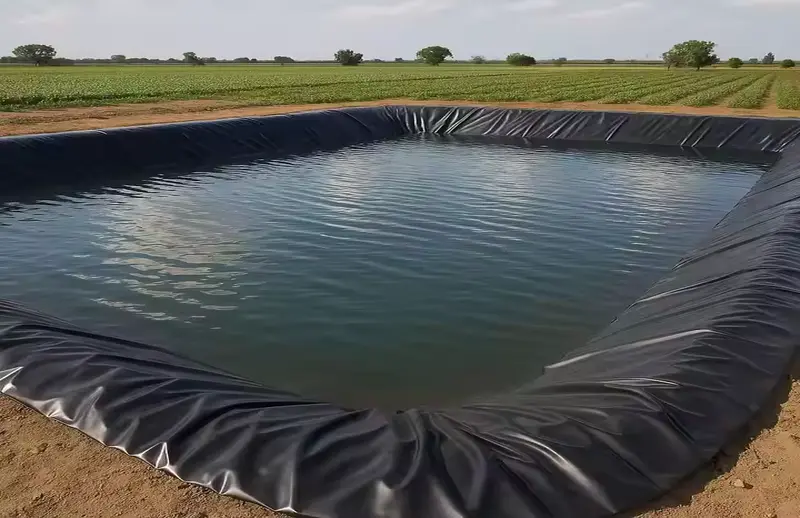

Agriculture: Agricultural applications include the lining of irrigation canals, farm reservoirs, and manure lagoons, where they facilitate water management and prevent nutrient loss or soil contamination.
-
Construction: Used as vapor barriers and moisture retarders, they are installed beneath concrete slabs and against foundation walls to protect structures from groundwater intrusion and soil gas ingress.
-

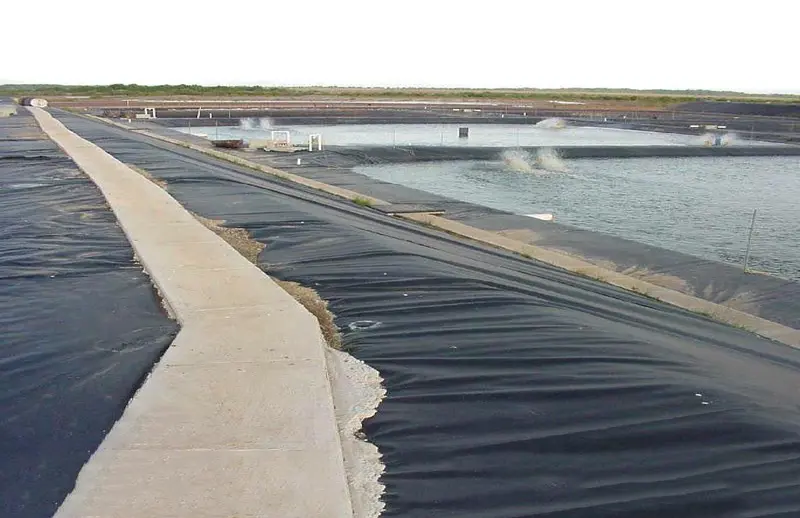

Aquaculture: In aquaculture operations, HDPE liners are deployed in fish and shrimp ponds to maintain stable water quality, optimize hygiene, and reduce the risk of disease outbreaks.
hdpe geomembrane sheet
hdpe geomembrane sheet
hdpe geomembrane sheet
hdpe geomembrane sheet
Chemical Resistance: The HDPE geomembrane exhibits exceptional resistance to a broad spectrum of chemicals. This chemical inertness makes it particularly suitable for harsh industrial environments, such as waste containment facilities, mining operations, and industrial process water management.
Weather Durability: Engineered to withstand diverse climatic conditions, the material demonstrates outstanding resistance to ultraviolet (UV) radiation and retains its flexibility even at low temperatures. This ensures long-term structural integrity and reliable performance under continuous environmental exposure.
Impermeability: With an extremely low permeability rate, the HDPE geomembrane functions as an effective hydraulic barrier to both liquids and gases.
Longevity and Maintenance: The product’s robust formulation provides exceptional service life, even under mechanical or chemical stress. The smooth surface finish facilitates straightforward inspection and cleaning, while the material’s inherent resistance to aging and environmental stress cracking minimizes lifecycle maintenance costs, offering significant long-term value.
Versatility: Available in a range of thicknesses and surface finishes, the HDPE geomembrane can be tailored to meet specific project requirements. This adaptability ensures consistent, reliable performance across diverse sectors, including landfill engineering, water conservation, aquaculture, and industrial containment.
