Geotextile Slop Protection
Geotextiles are the unsung heroes of construction, providing separation, filtration, drainage, and reinforcement. Whether you're stabilizing a driveway or protecting a coastline.
Geotextile Slop Protection are permeable synthetic fabrics, categorized mainly into woven and non-woven types, each designed for specific functions that solve common ground instability problems
Geotextile Slop Protection
Separation
Prevent mixing of soil layers. Placed between subsoil and aggregate, our geotextiles keep your gravel from sinking into soft ground, extending the life of roads, paths, and foundations.
Drainage & Filtration
Allow water to flow through while retaining soil particles. Perfect for French drains, retaining walls, and erosion control, they prevent clogging and manage water pressure effectively.
Reinforcement
Add tensile strength to weak soils. By distributing loads over a wider area, our high-strength geotextiles enable you to build on challenging ground with increased stability.
Erosion Control
Protect vulnerable slopes from water and wind erosion. Our fabrics stabilize the soil surface, promoting vegetation growth for permanent, natural protection.
Geotextile Slop Protection
Uncompromising Quality
Manufactured to international standards from premium polypropylene resins, ensuring consistent performance and longevity.
Technical Excellence
Our fabrics offer optimal puncture resistance, permeability, and UV stability for both temporary and permanent applications.
Cost-Efficient Solution
Reduce aggregate requirements, minimize maintenance, and extend project lifespan – delivering significant savings over time.
Geotextile Slop Protection’s Specifications
|
Ltem
|
Value
|
|||||||
|
Specification
|
100
|
150
|
200
|
300
|
400
|
500
|
600
|
800
|
|
Thickness mm
|
0.8
|
1.2
|
1.6
|
2.2
|
2.8
|
3.4
|
4.2
|
5.5
|
|
Longitudinal and transverse rupture strength kN/m
|
4.5
|
7.5
|
10.0
|
15.0
|
20.0
|
25.0
|
30.0
|
40.0
|
|
Intensity corresponding to the standard vertical and horizontal elongation %
|
40~80
|
|||||||
|
kN CBR bursting strength
|
0.8
|
1.6
|
1.9
|
2.9
|
3.9
|
5.3
|
6.4
|
7.9
|
|
kN Vertical and horizontal tear
|
0.14
|
0.21
|
0.28
|
0.42
|
0.56
|
0.70
|
0.82
|
1.10
|
|
mm Sieve size O
|
0.05~0.20
|
|||||||
|
Vertical Permeability Coefficient K=1.0~9.9 cm/s
|
Kx(10-1 ~10-3)
|
|||||||
|
Width Variation %
|
-0.5
|
|||||||
|
Deviation of mass per unit area %
|
-5
|
|||||||
Geotextile Slop Protection‘s Applications
Geotextile Slop Protection
Retaining Structures & Reinforcement
Soil Reinforcement: Provides tensile strength to soil masses
Load Distribution: Enhances stability of earth structures
Applications: Reinforced soil walls, steep slopes, embankments
Landscaping & Environmental Projects
Separation & Stabilization: Creates stable bases for various surfaces
Weed Barrier: Suppresses weed growth in agricultural applications
Applications: Driveways, garden paths, golf courses, pond linings
Infrastructure & Special Applications
Railway Construction: Separates subsoil from ballast
Landfill Engineering: Protects geomembranes and facilitates drainage
Applications: Railroads, landfills, sports fields, foundation protection
Geotextile Slop Protection
Road & Pavement Construction
Separation: Prevents subsoil from mixing with aggregate base
Reinforcement: Distributes loads to reduce rutting and extend service life
Applications: Highways, access roads, parking lots, airport runways
Drainage & Filtration Systems
Filtration: Allows water passage while retaining soil particles
Drainage: Facilitates efficient water flow in various systems
Applications: French drains, retaining wall drainage, edge drains
Erosion Control & Slope Protection
Surface Stabilization: Protects slopes from water and wind erosion
Vegetation Support: Works with erosion control mats for establishing vegetation
Applications: Riverbanks, coastal protection, embankments, hillsides

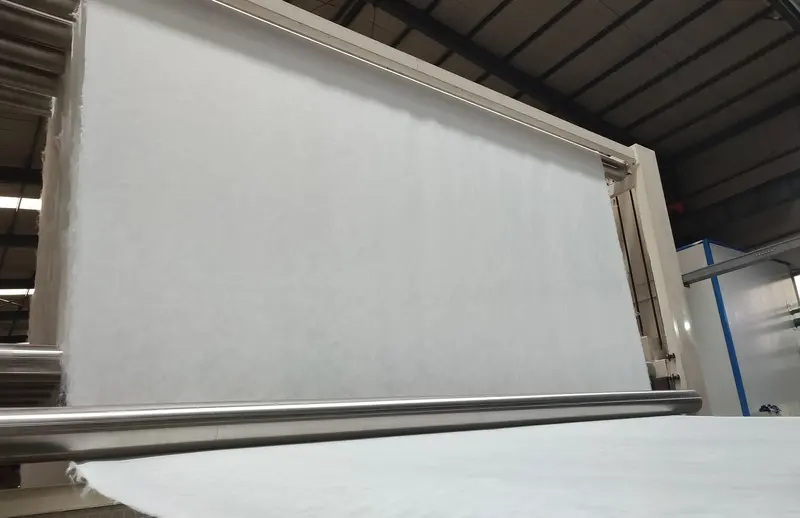

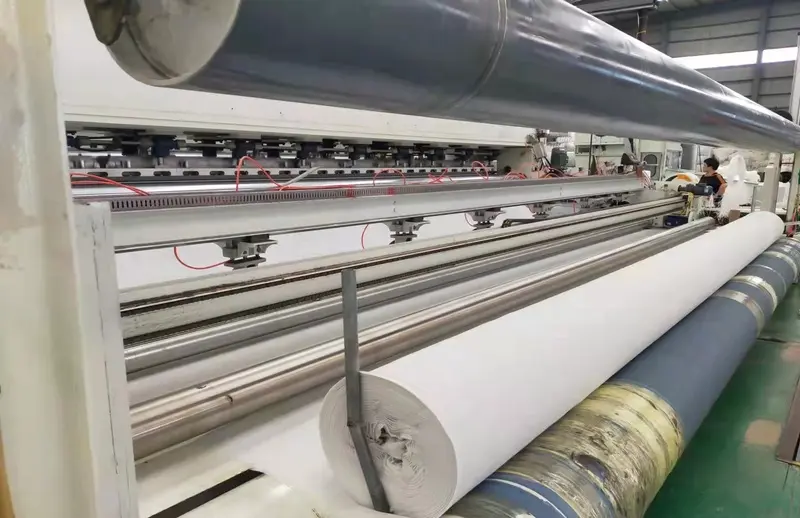

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

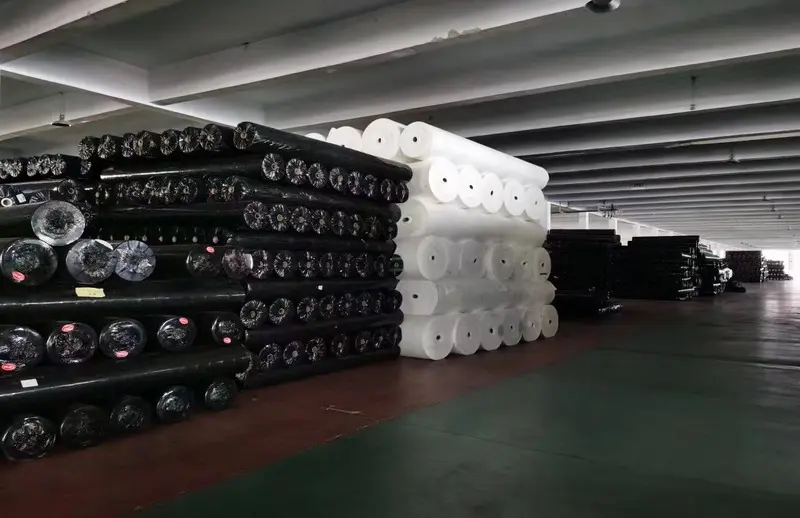

Packing &Transport
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
