Geotextile Sheet
100g/㎡~800g/㎡
1m~8m in roll width
Color: white,black,green
the length and color as client's request.
Geotextile sheets are permeable, synthetic fabric rolls engineered to solve multiple geotechnical challenges in a single layer. These versatile materials serve as the essential interface between soil layers, providing separation, filtration, drainage, and protection functions simultaneously. Manufactured from durable polypropylene or polyester fibers, our geotextile sheets are the go-to solution for construction, landscaping, and environmental projects requiring reliable ground stabilization.

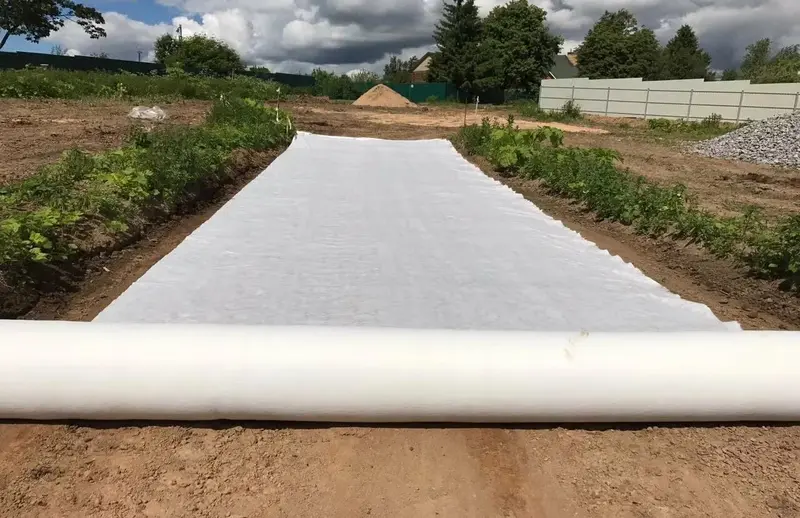

geotextile sheet
The Advantage of Geotextile Sheet:
1)anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
2) High temperature resistance to up to 230℃ maintaining structure stability and original physical properties.
3) High flat drainage and vertical permeability.
4) High creep resistance.
5) Resistance of erosion of chemicals in soil with the corrosion of gasoline and diesel etc.
6) High elongation under certain stress, thus able to adapt to uneven and irregular bases.

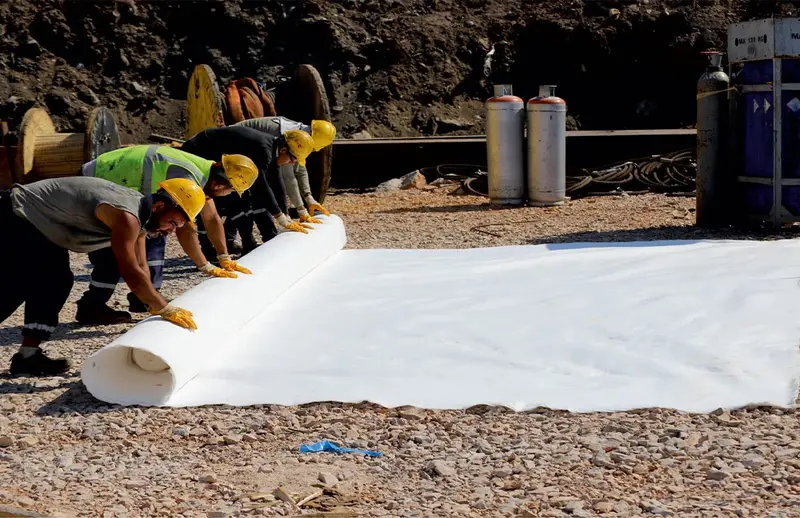

geotextile sheet
Geotextile sheets to separate,filter,reinforce, protect or drain. Geotextile sheets are commenly used to separate layers like clay and drainage and to protect liner from damage. Geotextile sheets was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spun bond process. Pet long fiber nonwoven geotextile sheets punch together to get the stable 3D with highter strength fabric . So nonwoven geotextile fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Geotextile Sheet’s Specifications
| Properties | Test Method | Unit | GXSF150 | GXSF200 | GXSF300 | GXSF400 | GXSF500 | GXSF600 | GXSF800 | GXSF1000 |
| Tensile Strength(MD/TD) | ASTM D4595 | kN/m | 8 | 11 | 20 | 24 | 28 | 34 | 48 | 50 |
| Tensile Elongation(MD/TD) | ASTM D4595 | % | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Grab Tensile Strength(MD/TD) | ASTM D4632 | N | 520 | 700 | 1100 | 1500 | 1800 | 2200 | 2800 | 3000 |
| Grab Elongation(MD/TD) | ASTM D4632 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 |
| Trapezoidal TearStrength(MD/TD) | ASTM D4533 | N | 220 | 330 | 400 | 480 | 560 | 620 | 860 | 880 |
| CBR Burst Strength | ASTM D6241 | N | 1700 | 2400 | 3200 | 4300 | 5300 | 6000 | 6800 | 7000 |
| Pore Size O90 | ASTM D4751 | m | 90 | 85 | 80 | 75 | 70 | 60 | 55 | 50 |
| Water Flow Q100 | ASTM D4491 | L/m2/s | 160 | 145 | 140 | 120 | 105 | 95 | 90 | 80 |
| Weight | ASTM D5261 | g/m2 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Geotextile Sheet’s Applications
Transportation Infrastructure
Road and railway stabilization
Airport runways and taxiways
Subgrade improvement
Environmental Protection

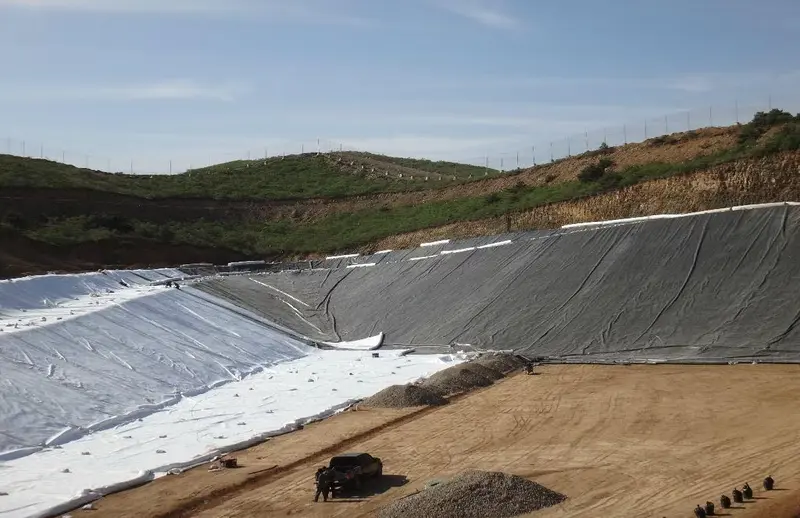

Landfill liners and caps
Erosion control on slopes and shorelines
Sediment control on construction sites
Water Management
Drainage systems and channels
Dam and levee protection
River and canal banks
Construction & Development
Building foundations
Parking lots and driveways
Retaining wall backfill
Landscape and sports field construction

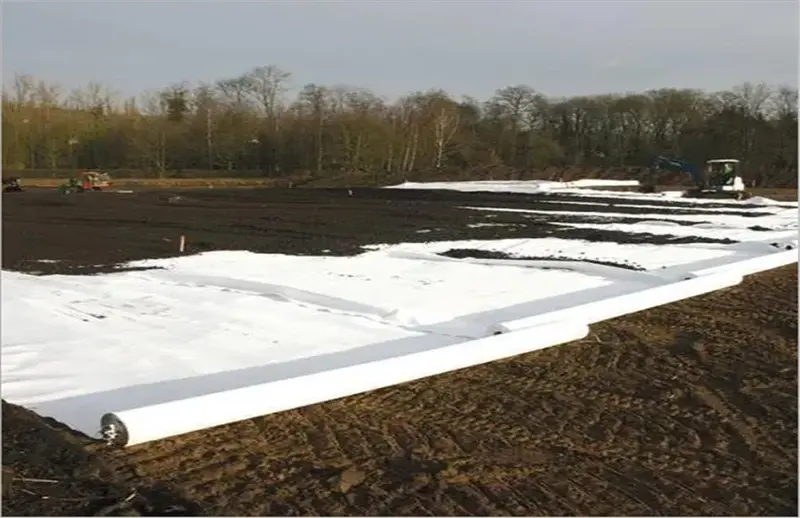

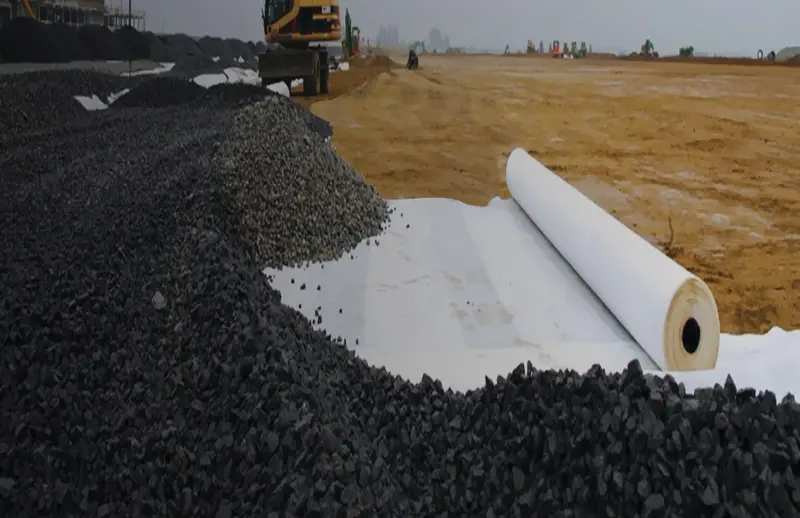

geotextile sheet
geotextile sheet
geotextile sheet
geotextile sheet
Installation Advantages
Easy Handling – Lightweight rolls are easily transported and deployed
Rapid Installation – Reduces construction time significantly
Minimal Equipment – Requires only basic tools and minimal labor
Versatility – Can be customized on-site with simple cutting tools
All-Weather Application – Can be installed in most weather conditions

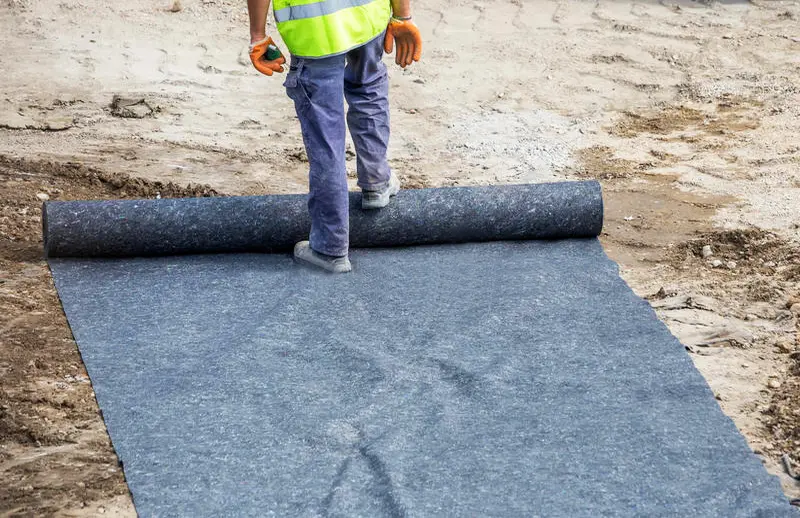

geotextile sheet
geotextile sheet
