Geotextile Prix
Width: 1M - 8M
Length: 50M - 200M (or as request)
Color: Black, White, Blue, Green, Grey , etc
MOQ: 1000sqm per GSM
Certificate: CE / ISO 9001
Non-woven geotextiles are divided into staple fiber needle punched non-woven geotextiles and filament spunbonded needle punched non-woven geotextiles.
The main raw materials are PE, PP, etc. Nonwoven geotextiles are widely used in geotechnical engineering.—Geotextile Prix
Geotextile sed to separate,filter,reinforce, protect or drain.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.
Geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Nonwoven Geotextile punch together to get the stable 3D with highter strength fabric . so Nonwoven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.—Geotextile Prix
The Difference between PP and PET:
In general, PP density is 0.90 , PET is 1.33-1.34.
PP price is cheaper than PET, PP is harder than PET, which means PET has a good sensory feel. PP is much better at chemical resistance than PET, but PP does not perform well when temperature matters, so PP will not work perfectly at very high or low temperature. PP cannot be exposed to sunlight, because PP is not resistant to ultraviolet rays.—Geotextile Prix
Geotextile Prix
|
Unit weight(g/sqm)
|
Thickness(mm)
|
Breaking strength(kn/m)
|
CBR burst strength(KN)
|
Elongation at break(%)
|
Tear Strength(KN)
|
|
100
|
0.9
|
2.5
|
0.3
|
25-100
|
0.08
|
|
150
|
1.3
|
4.5
|
0.6
|
25-100
|
0.12
|
|
200
|
1.7
|
6.5
|
0.9
|
25-100
|
0.16
|
|
250
|
2.1
|
8.0
|
1.2
|
25-100
|
0.20
|
|
300
|
2.4
|
9.5
|
1.5
|
25-100
|
0.24
|
|
350
|
2.7
|
11.0
|
1.8
|
25-100
|
0.28
|
|
400
|
3.0
|
12.5
|
2.1
|
25-100
|
0.33
|
|
450
|
3.3
|
14.0
|
2.4
|
25-100
|
0.38
|
|
500
|
3.6
|
16.0
|
2.7
|
25-100
|
0.42
|
|
600
|
4.1
|
19.0
|
3.2
|
25-100
|
0.46
|
|
800
|
5.0
|
25.0
|
4.0
|
25-100
|
0.60
|

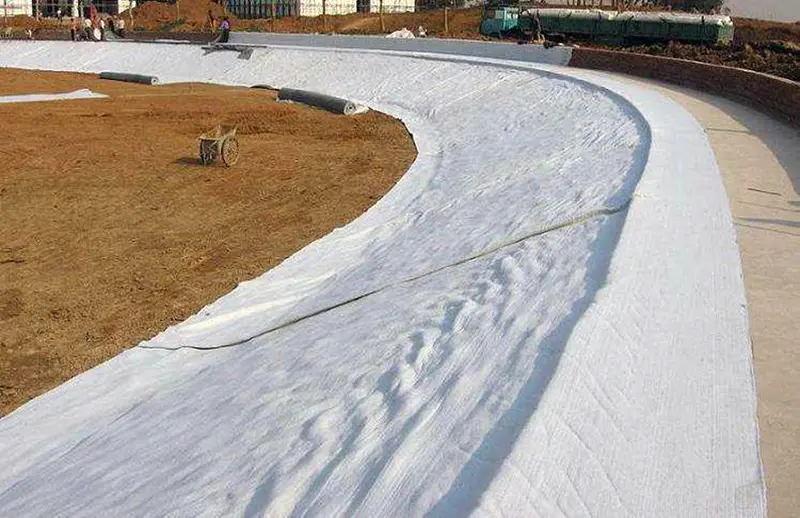

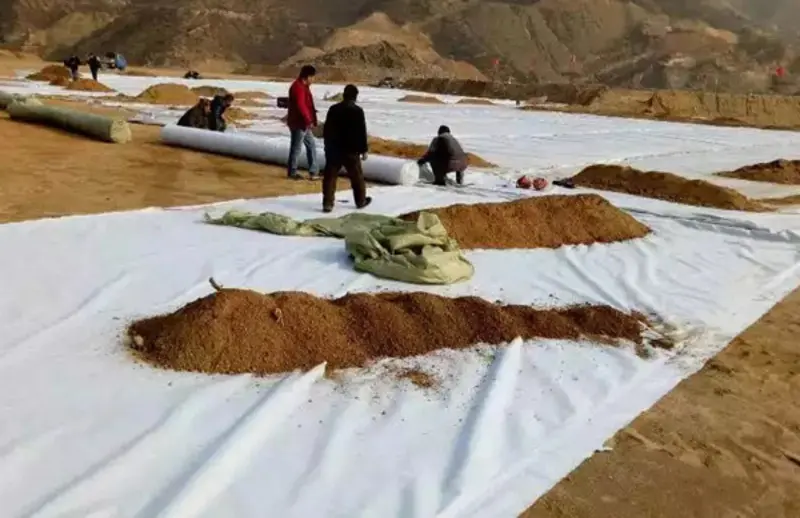

Nonwoven geotextiles have a wide range of applications in civil environmental engineering and construction projects:
Filtration
When water passes from a fine-grained to a coarse grained layer, Non-woven Geotextiles can retain fine particles well. Such as when water flows from a sandy soil into a Geotextile wrapped gravel drain.

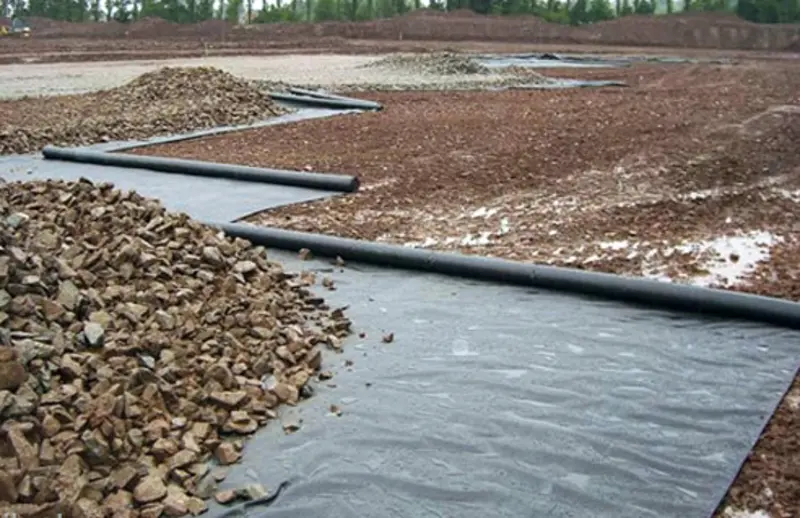

Separation
To separate two layers of soil with different physical properties, such as the separation of road gravel from soft sub-base materials.
Drainage
To drain liquid or gas from the plane of the fabric, which leads to draining or venting of the soil, such as the gas vent layer in a landfill cap.
Reinforcement
To improve the load bearing capacity of a specific soil structure, such as the reinforcement of a retaining wall.

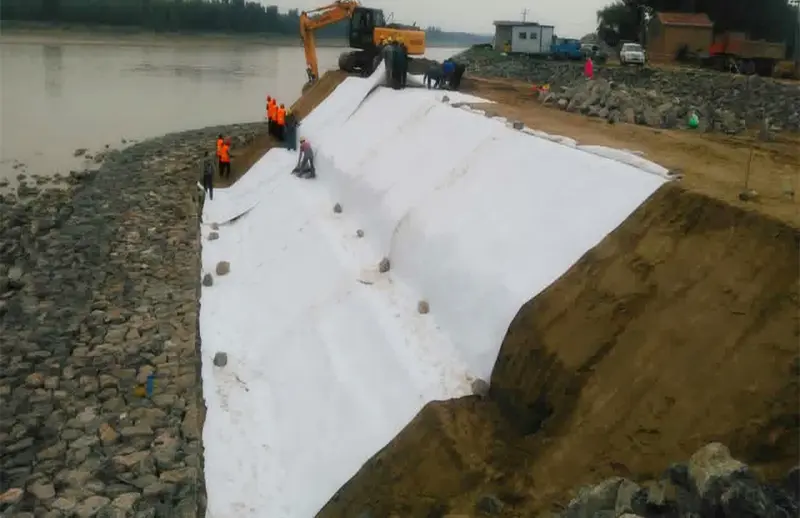

Erosion Control
Protects slopes, riverbanks, and coastlines from water or wind erosion.

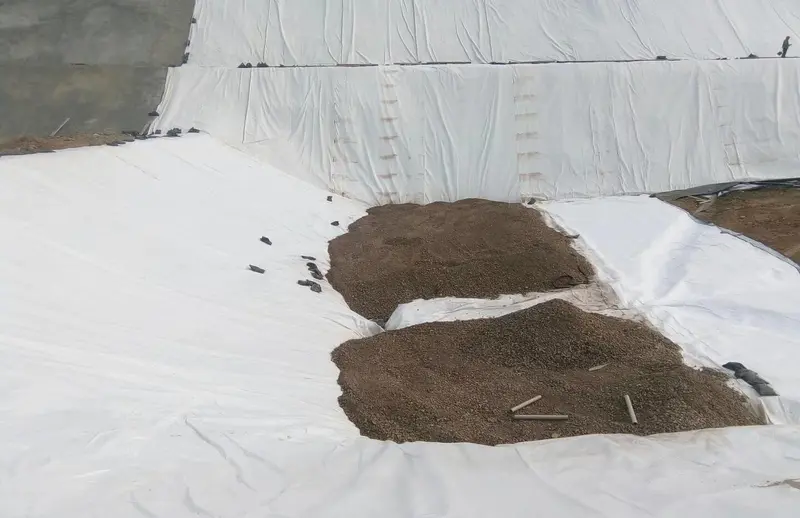

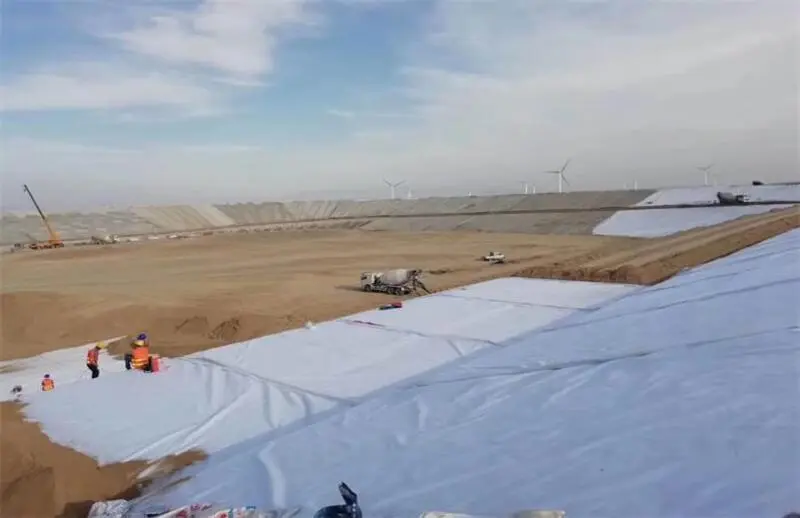

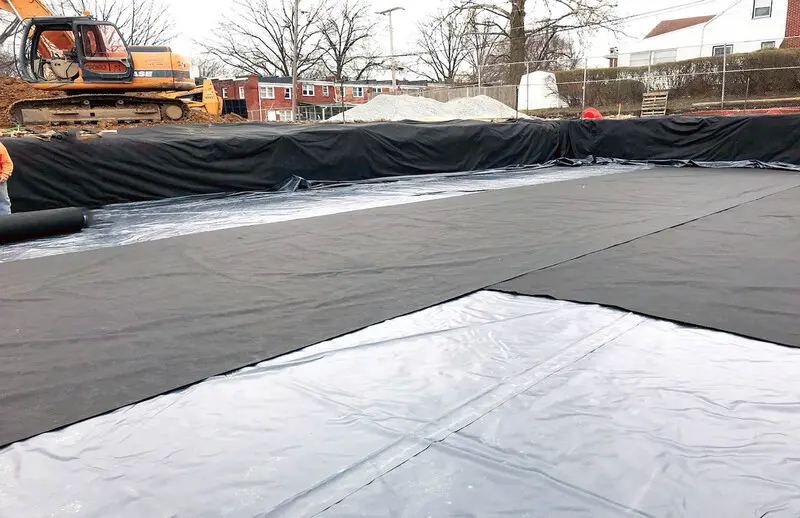

Protection
Acts as a cushion layer to safeguard geomembranes in ponds, canals, and landfill liners.
Geotextile Advantage——Geotextile Prix
High strength, due to the use of plastic fiber,can maintain sufficient strength and elongation under dry and wet conditions.
Corrosion resistance, it can resist corrosion fora long time in soil and water with different pH values.
Good water permeability, with gaps between fibers, so it has good water permeability.
The construction is convenient. Because the material is light and soft, it is convenient to transport, lay and construct.

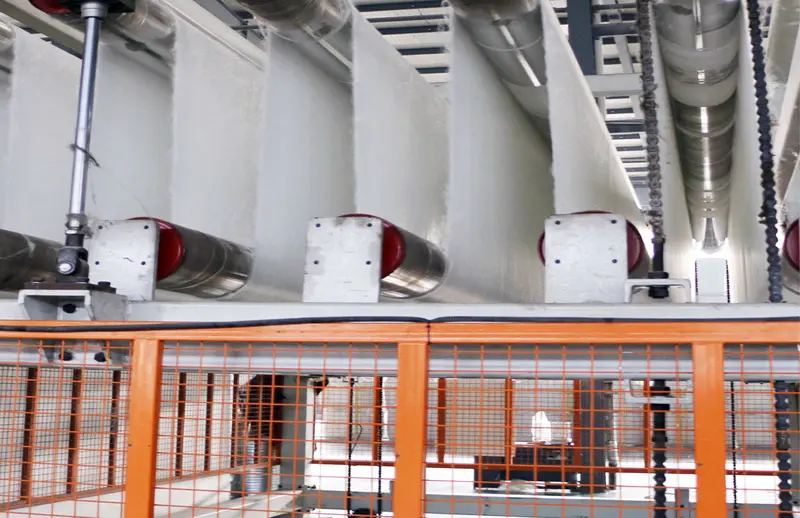

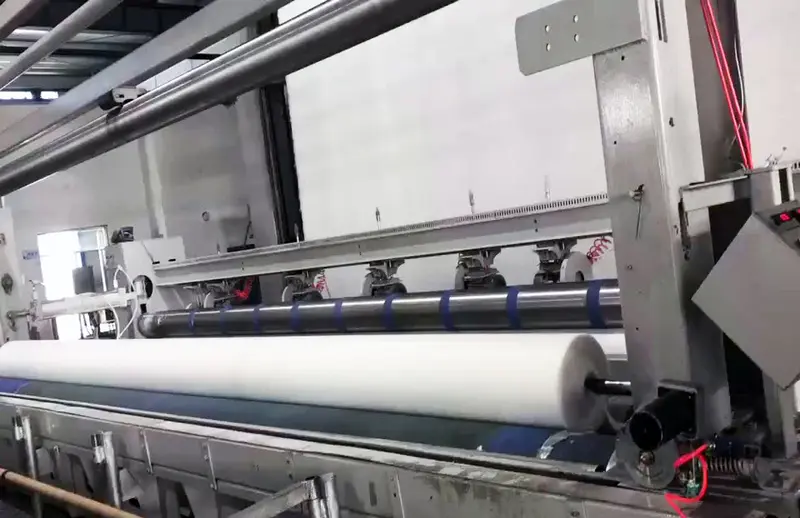

Our Factory——Geotextile Prix
Taian Dingkun is located at Taian county, a historical and cultural city in northwest of China,The Five Sacred Respects – Mount Tai is located here. Here is a place of outstanding people, abundance of goodswhere is also the professional producing base of geosynthetics.
We have 20 most advanced production lines controlled by digital computer in the world and 200,000 sqm of factory space.We can produce a variety kinds of geo products such as exhibition carpet, PE, PVA geomembrane, HDPE LDPE waterproofing membrane, composite geomembrane, single direction and biaxial plastic geogrid, warp-knitted geogrid, steel plastic geogrid, geocell, tri-dimension geomat fixing soil, composite waterproofing sheet, geocomposite drain. And all our products adopted national standards, checked and accepted by National and Provincial Technology Supervision Bureau by testing samples.
