Geotextile China
Material:PET/PP
Surface:Filament/Short Fiber
Width:1-6m
Length:50/100/150/200/Customized
Weight:100-1200gsm
Geotextile China are permeable synthetic fabrics, engineered to interact with soil and provide critical functions like separation, filtration, drainage, and reinforcement. When used in civil and environmental projects, they significantly improve performance, longevity, and cost-effectiveness.
geotextile china
PET filament geotextile China features:
1) Anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
2) High temperature resistance to up to 230℃ maintaining structure stability and original physical properties.
3) High flat drainage and vertical permeability.
4) High creep resistance.
5) Resistance of erosion of chemicals in soil with the corrosion of gasoline and diesel etc.
6) High elongation under certain stress, thus able to adapt to uneven and irregular bases.
geotextile china

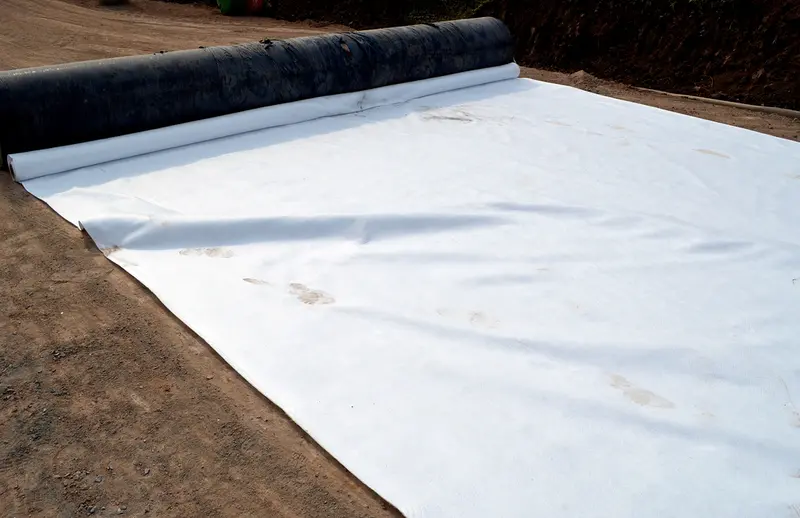

Short fiber knitted non-woven geotextile China is made of high-quality polyester or polypropylene short fiber
through carding, mesh laying and needling.
Good flexibility, acid and alkali resistance, corrosion resistance, aging resistance, high strength, stable
size, good water permeability, filtration and isolation performance, convenient construction, etc.
Woven geotextile China are made of polypropylene(PP) materials which offer optimum performance when used in
stabilization applications. Made from top quality raw materials, they provide the perfect balance of strength and separation style, capable of performing well in a wide range of performance requirements.
| Properties | Test Method | Unit | GXSF150 | GXSF200 | GXSF300 | GXSF400 | GXSF500 | GXSF600 | GXSF800 | GXSF1000 |
| Tensile Strength(MD/TD) | ASTM D4595 | kN/m | 8 | 11 | 20 | 24 | 28 | 34 | 48 | 50 |
| Tensile Elongation(MD/TD) | ASTM D4595 | % | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Grab Tensile Strength(MD/TD) | ASTM D4632 | N | 520 | 700 | 1100 | 1500 | 1800 | 2200 | 2800 | 3000 |
| Grab Elongation(MD/TD) | ASTM D4632 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 |
| Trapezoidal TearStrength(MD/TD) | ASTM D4533 | N | 220 | 330 | 400 | 480 | 560 | 620 | 860 | 880 |
| CBR Burst Strength | ASTM D6241 | N | 1700 | 2400 | 3200 | 4300 | 5300 | 6000 | 6800 | 7000 |
| Pore Size O90 | ASTM D4751 | m | 90 | 85 | 80 | 75 | 70 | 60 | 55 | 50 |
| Water Flow Q100 | ASTM D4491 | L/m2/s | 160 | 145 | 140 | 120 | 105 | 95 | 90 | 80 |
| Weight | ASTM D5261 | g/m2 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
geotextile china

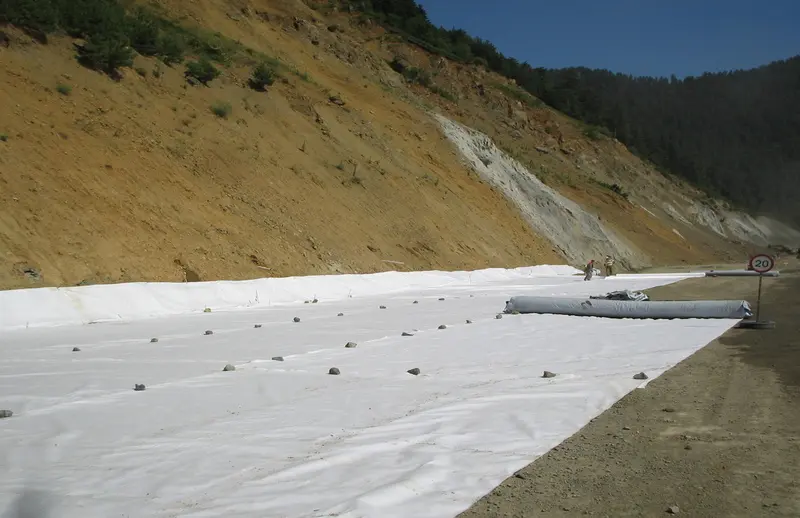

Road Base Stabilization
Prevent soil mixing and extend pavement life!
Geotextiles China separate subsoil from aggregate base, maintaining drainage and structural integrity. Perfect for highways, access roads, and parking lots.
Retaining Wall Drainage
Protect walls from water pressure!
Installed behind retaining structures, our geotextiles China filter water while preventing soil erosion – the ideal solution for landscape walls and MSE barriers.
geotextile china
French Drain Systems
Create efficient subsurface drainage!
Wrapped around drainage aggregate, geotextiles prevent clogging while allowing water flow. Essential for basement waterproofing and yard drainage.
Shoreline Protection
Combat erosion effectively!
Used beneath riprap and revetments, geotextiles stabilize shorelines while permitting natural water flow. Perfect for riverbanks and coastal areas.
Pond Liner Protection
Safeguard your containment systems!
As a protective cushion, geotextiles prevent puncture damage to geomembranes in ponds, landfills, and reservoirs.
Our Product Types
We offer two main types of geotextiles to suit specific project needs:
Nonwoven Geotextiles
Description: Made from randomly oriented synthetic fibers bonded together mechanically, thermally, or chemically. Felt-like appearance.
Ideal For: Separation, filtration, drainage, and protection.
Common Applications: Under roads, behind retaining walls, in drainage systems, beneath pond liners.
Woven Geotextiles
Description: Made by weaving monofilament or multifilament yarns together in a regular pattern. Fabric-like appearance.
Ideal For: High-strength reinforcement and stabilization.
Common Applications: Road base reinforcement, steep slope stabilization, embankment support, heavy-load platforms.
