Material: HDPE/LDPE/PVC/EPDM/TPO
Thickness Range: 0.5 mm to 3.0 mm (20 mil to 120 mil)
Width: Up to 8 meters (Customizable rolls to reduce on-site welding)
Standard Colors: Black (Standard), Custom colors available upon request
In the context of water conservation, geomembrane containment liners play an essential role in the sustainable management and protection of water resources, particularly within ponds and reservoirs. Functioning as impermeable barriers, these liners effectively curtail water seepage and significantly reduce water loss caused by infiltration or evaporation.
Geomembrane Pond Liner is a very low permeability synthetic membrane liner or barrier used with any geotechnical related material to control the migration of fluids (liquids or gases) in man-made items, structures or systems. Geomembrane containment liners consist of synthetic materials engineered to form impervious layers in ponds or reservoirs, thereby preventing water from escaping through seepage. Typically manufactured from robust materials such as high-density polyethylene (HDPE), polyvinyl chloride (PVC), or ethylene propylene diene terpolymer (EPDM), these liners offer both high durability and exceptional impermeability.

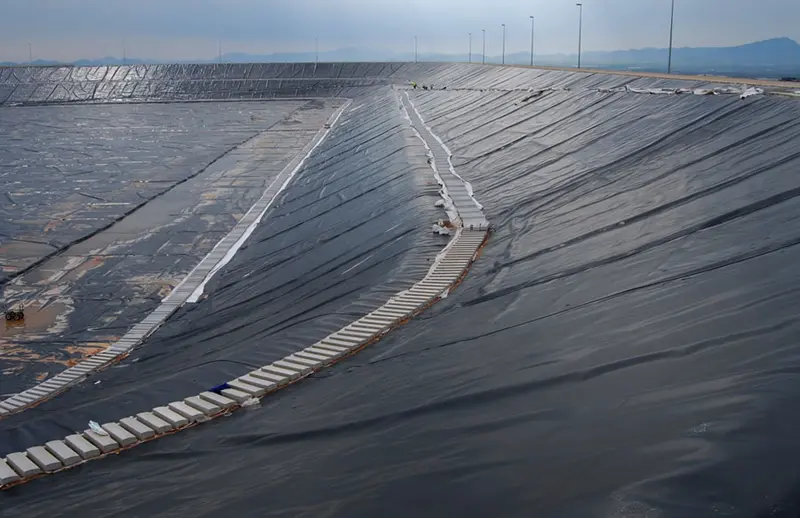

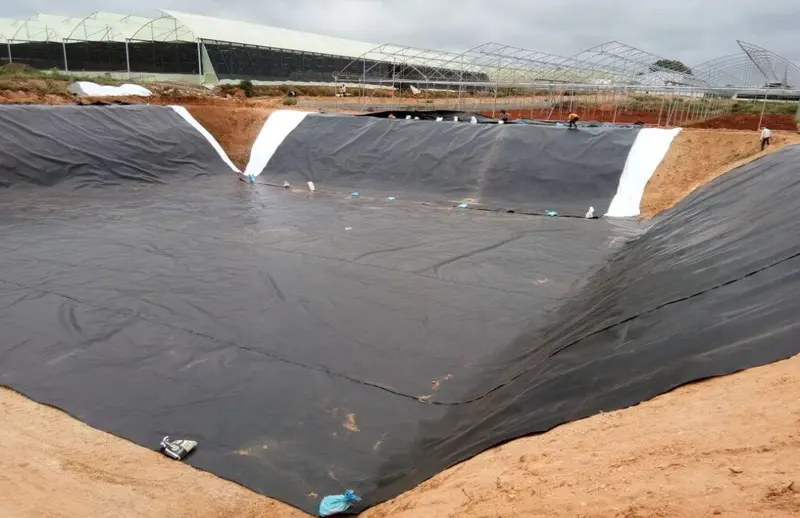

Geomembrane Pond Liner
Our high-density polyethylene (HDPE) geomembrane pond liner is widely utilized in projects involving solid waste containment, mining operations, and water management. When compared to conventional materials such as concrete, asphalt, and compacted clay, the HDPE liner demonstrates significant advantages in cost efficiency, chemical resistance, ease of transportation, rapid installation, and performance under exposed conditions. These attributes render it an ideal geosynthetic solution for fish pond applications, where its extremely low permeability, high tensile strength, robust chemical resistance, excellent resistance to stress cracking, and safety for aquatic life are particularly valued.
In summary, our high-density geomembrane pond liner delivers a cost-effective and high-performance solution across a range of project types. Its outstanding characteristics—including minimal permeability, strong tensile strength, superior chemical resistance, resistance to stress cracking, and compatibility with fish—establish it as a premier choice for water containment in fish farming environments.

Geomembrane Pond Liner
|
Item
|
Index
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
Elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
Elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||
Geomembrane is widely used: landfill liners, fish ponds in aquaculture, lining of shrimp ponds, agricultural reservoirs, artificial lakes, reservoirs, seepage prevention in chemical plants, tailings, construction projects, etc. Geomembrane is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties.
Agricultural: Fish farms, shrimp ponds, irrigation reservoirs, and silage pits.
Water Management: Potable water reservoirs, canals, and rainwater harvesting systems.
Industrial: Wastewater treatment plants, mining leach pads, and chemical containment basins.
Environmental: Landfill liners and caps, secondary containment for oil and gas.
Commercial: Decorative ponds, golf course water features, and fountain basins.

Geomembrane Pond Liner

Geomembrane Pond Liner

Geomembrane Pond Liner

Geomembrane Pond Liner
Superior Durability: High tensile strength and puncture resistance allow the liner to withstand rough subgrades, pressure from water weight, and wildlife or root penetration.
Excellent Chemical Resistance: Resists a broad spectrum of chemicals, including acids, alkalis, and salts, making it ideal for both potable water and industrial effluent containment.
UV & Ozone Resistance: Formulated with carbon black stabilizers, the liner is resistant to ultraviolet (UV) radiation and ozone, ensuring a long service life even in direct sunlight exposure.
Low Permeability: With an extremely low permeability rate, it acts as an almost impermeable barrier, preventing water loss and protecting the surrounding soil from contamination.
Flexibility: Remains flexible across a wide range of temperatures, conforming easily to the contours of your pond or excavation site.
