A geomembrane is an impermeable synthetic liner or barrier used to control fluid migration in various engineering and environmental applications. Typically made from durable polymers such as HDPE, LLDPE, PVC, or EPDM, geomembranes are designed for long-term performance under demanding conditions.
Smooth geomembranes manufactured from quality high densitypolyethylene resins(HDPE) that comply with the most rigorousrequirements established for their use. The 0.5mm hdpegeomembrane is popular thickness,its widely used in aquacultureproject,fish pond,shrimp pond and irrigation pond.smoothGeomembrane, is a geosynthetic material with a flat and smoothappearance.
Specifications
Geomembrane Liner Companies
Item
HDPE Geomembrane Technical Data
Thickness (mm)
0.30
0.50
0.75
1.00
1.25
1.50
2.00
2.50
3.00
Density ( g/cm3)
≧0.940
Tensile yield strength (N/mm)
≧4
≧7
≧10
≧13
≧16
≧20
≧26
≧33
≧40
Tensile fracture strength (N/mm)
≧6
≧10
≧15
≧20
≧25
≧30
≧40
≧50
≧60
elongation at yield (%)
_
_
_
≧11
elongation at break (%)
≧600
Right-angle tear load (N)
≧34
≧56
≧84
≧115
≧140
≧170
≧225
≧280
≧340
Puncture strength (N)
≧72
≧120
≧180
≧240
≧300
≧360
≧480
≧600
≧720
Carbon black content (%)
2.0~3.0
Applications

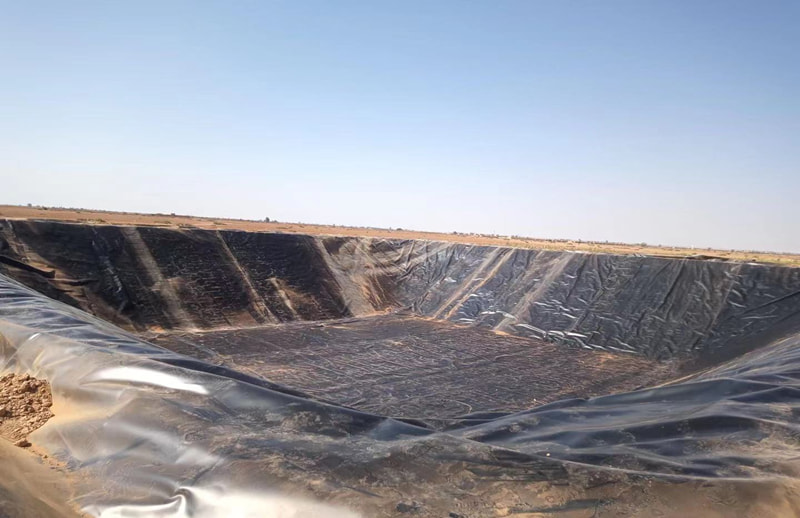

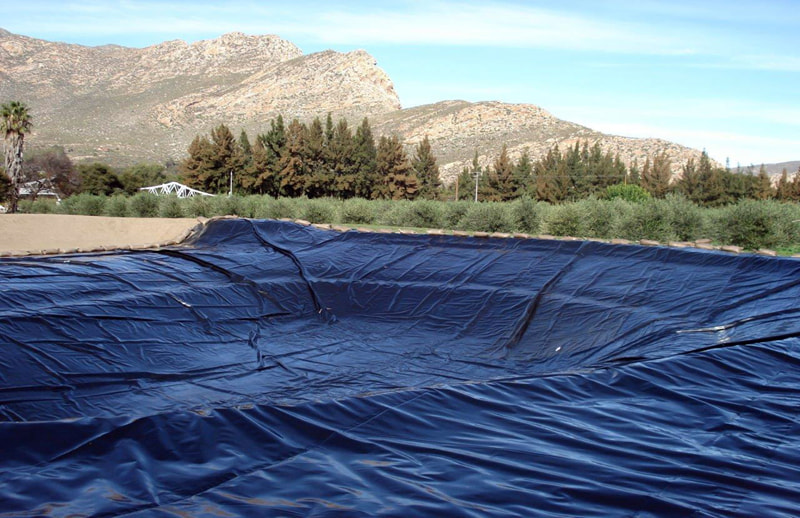

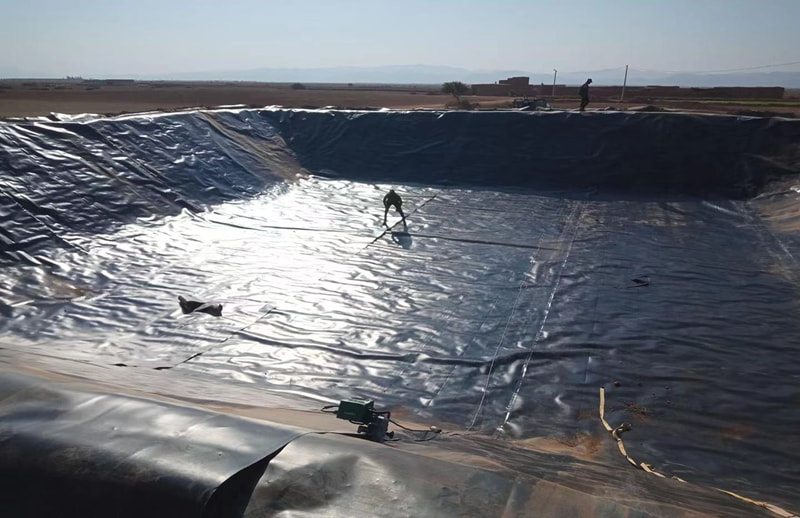

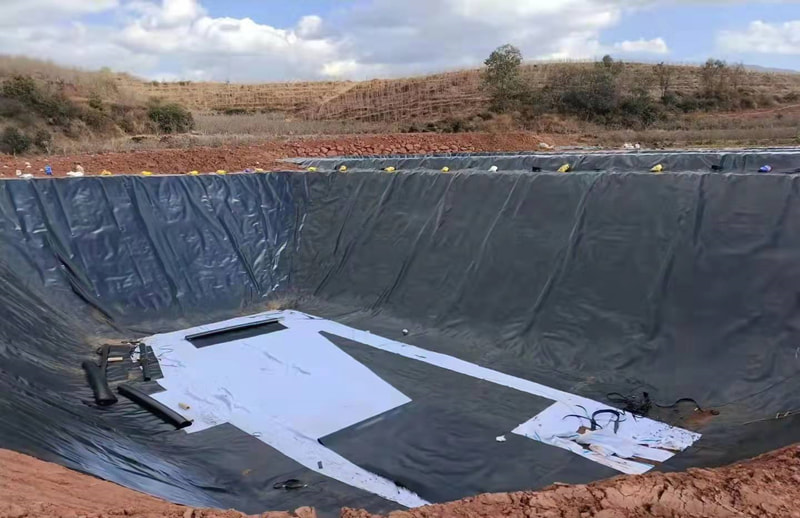

Aquaculture Application： Geomembranes are widely used in fish/shrimp ponds, hatcheries, and aquaculture tanks to create a controlled, leak-proof environment. Key benefits include: Water Retention & Sealing Prevents water seepage into the soil, maintaining optimal water levels. Reduces water loss, saving costs on refilling and treatment. Contamination Prevention Blocks pollutants, heavy metals, and harmful bacteria from entering the pond. Separates cultured species from groundwater contaminants. Improved Water Quality & Hygiene Smooth surface prevents sludge buildup, simplifying cleaning. Non-toxic materials ensure safe contact with aquatic life.

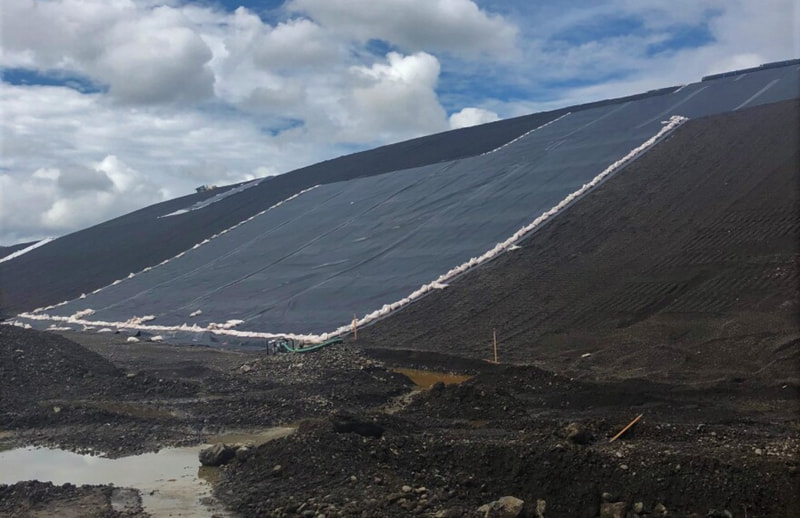

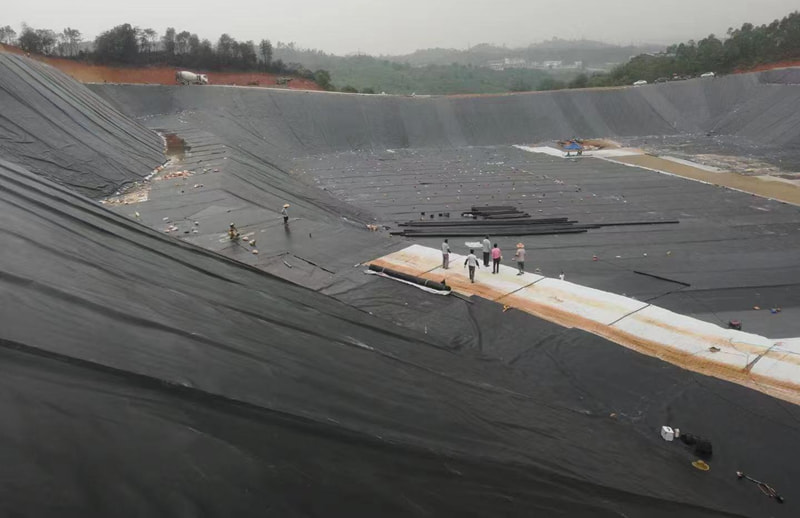

Mining Applications: In mining, geomembranes serve asliners for heap leach pads, tailings storage, and acid drainage containment, ensuring environmental protection and operational efficiency. Heap Leach Pads Used in gold, copper, and uranium extraction. Prevents leaching solutions from contaminating groundwater. Tailings Storage Facilities (TSF) Lines ponds holding mining waste (tailings), preventing toxic seepage. Reduces risk of dam failures and environmental disasters. Acid Mine Drainage (AMD) Control Blocks sulfide minerals from reacting with water, reducing acidic runoff. Often paired with geotextiles for added protection.
Landscaping Applications: Geomembranes play a crucial role in modern landscaping projects, offering waterproofing, erosion control, and aesthetic enhancement. Artificial Lakes & Decorative Ponds Ornamental ponds in parks, resorts, and residential gardens. Reflecting pools in urban plazas or architectural designs. Koi ponds and water features requiring clean, algae-free water. Rooftop Gardens & Green Roofs Urban rooftop gardens (commercial/residential). Green roofs with vegetation for stormwater management. Balcony gardens and planter boxes. Erosion Control & Retaining Walls Hillside stabilization in parks and highways. Retaining wall backfill protection. Golf course water hazards and sand traps.
Related Videos
Product Feature:
Waterproof & Chemical Resistance: Prevents leakage and protects against corrosive substances.
High Tensile Strength: Resists punctures, tears, and UV degradation.
Flexibility: Adapts to uneven surfaces and ground movements.
Customizable: Available in varying thicknesses and textures.
Geomembrane Liner Companies
Product Advantages:
Cost-effective compared to traditional materials like concrete.
Easy installation via welding or seaming.
Eco-friendly solutions for contamination prevention.
