Geomembrane Containment Liner
Material:HDPE/LDPE/PVC/EPDM/TPO/LLDPE
Thickness: 0.3mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm,3.0mm
Roll Width: 1m,2m,3m,4m,5.8m,6m,7m,8m
Roll Length: 50m,100m,150m,200m
Surface: Smooth,Textured
Colors: Black,Blue,Green,White
Geomembrane Containment Liner
Smooth geomembranes manufactured from quality high density polyethylene resins(HDPE) that comply with the most rigorous requirements established for their use. The 0.5mm hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond.Smooth Geomembrane, is a geosynthetic material with a flat and smooth appearance.
geomembrane containment liner
Geomembrane Containment Liner’s Features
Exceptional Impermeability: Provides an impenetrable barrier against liquids, vapors, and gases, ensuring zero leakage and maximum environmental protection.
Superior Durability & Longevity: Resistant to ultraviolet (UV) radiation, chemical degradation, extreme temperatures, and puncture, guaranteeing a service life that can extend for decades.
Excellent Flexibility & Strength: High tensile strength combined with flexibility allows it to conform to subgrade contours and withstand significant stress and settlement without tearing.
geomembrane containment liner
Flexibility & Easy to Use: This large water garden liner underlayment is flexible and soft,enabling effortless customization to fit various shapes and sizes of ponds or water features,allowing for precise trimming without the risk of tearing or damage, ensuring convenient installation and seamless integration into landscaping projects.
Waterproofing & Tear Resistance: The geomembrane offer excellent waterproofing, effectively preventing water leakage,ensures the preservation of water resources;also boast outstanding tear resistance,capable of withstanding mechanical stress and ground movements. This reduces the frequency of repairs and replacements, enhancing system reliability and cost-effectiveness.
The Specifications of Geomembrane Containment Liner
|
Item
|
Index
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
Elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
Elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||
The Applications of Geomembrane Containment Liner

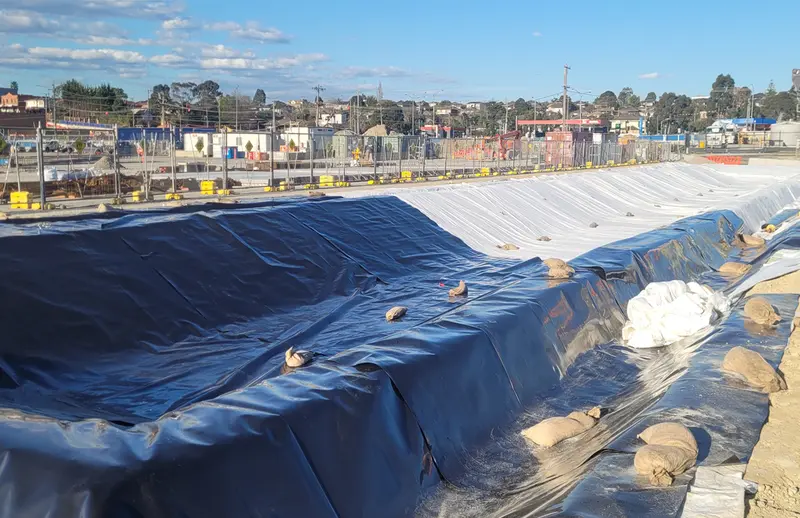

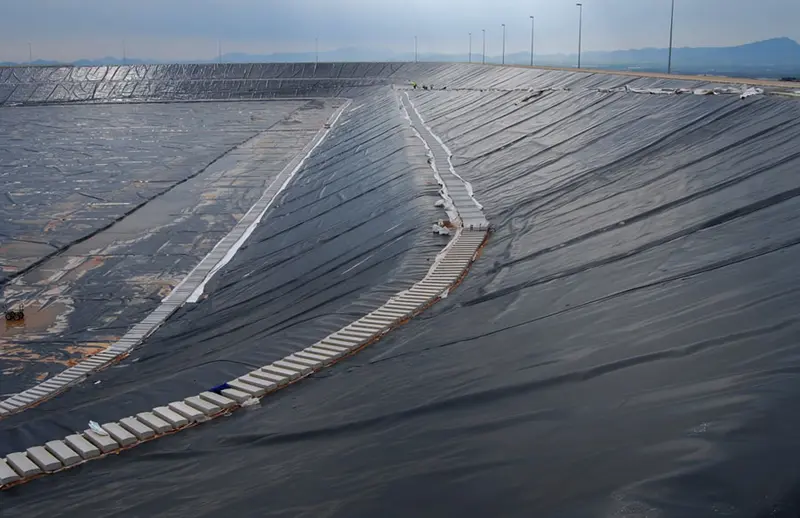

Environmental Containment: Landfill base liners and final caps, leachate ponds, wastewater treatment basins, emergency spillways.

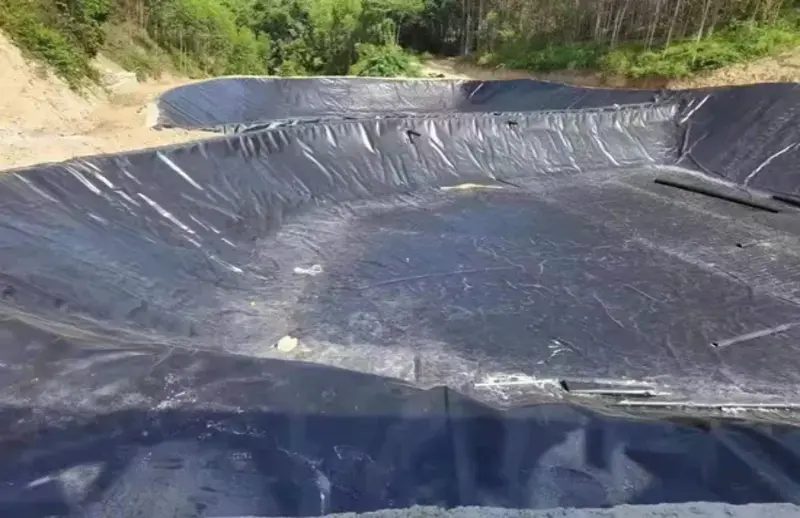

Water Management: Potable water reservoirs, irrigation and decorative ponds, aquaculture liners, canal and ditch linings, dam sealing.
Mining & Industrial: Heap leach pads, tailings impoundments, secondary containment for fuel and chemicals, process water storage.
Civil Engineering: Tunnel and basement waterproofing, vapor barriers beneath structures, foundation protection.
