Geomembrana Manufacturer
Thickness: 0.1mm,0.2mm,0.3mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm,3.0mm
Roll Width: 1.0m,2.0m,3.0m,4.0m,5.8m,7m,8m
Roll Length:50m,100m,150m,200m
Geomembrana Manufacturer
Engineered for performance and durability, our geomebranes are the trusted choice for critical environmental protection, water management, and industrial containment projects worldwide. They serve as a reliable, impermeable shield, safeguarding soil and water resources from contamination.
geomembrana manufacturer
Exceptional Impermeability: Our geomebranes provide an outstanding hydraulic barrier, significantly reducing the seepage of liquids and gases. This ensures maximum containment efficiency and environmental protection.
Superior Durability & Longevity: Manufactured from high-quality, virgin resins with advanced additives (including anti-oxidants and UV stabilizers), our products are designed to resist chemical degradation, environmental stress cracking, and prolonged exposure to harsh weather conditions, ensuring a long service life.
geomembrana manufacturer
High Puncture and Tear Resistance: The robust physical properties of our geomebranes provide excellent resistance to puncture and tearing during and after installation, even under heavy loads and in challenging subgrades.
Cost-Effectiveness: By providing a highly effective and long-lasting barrier, geomebranes offer a more economical and reliable solution compared to traditional methods like compacted clay. They reduce long-term maintenance costs and liability.

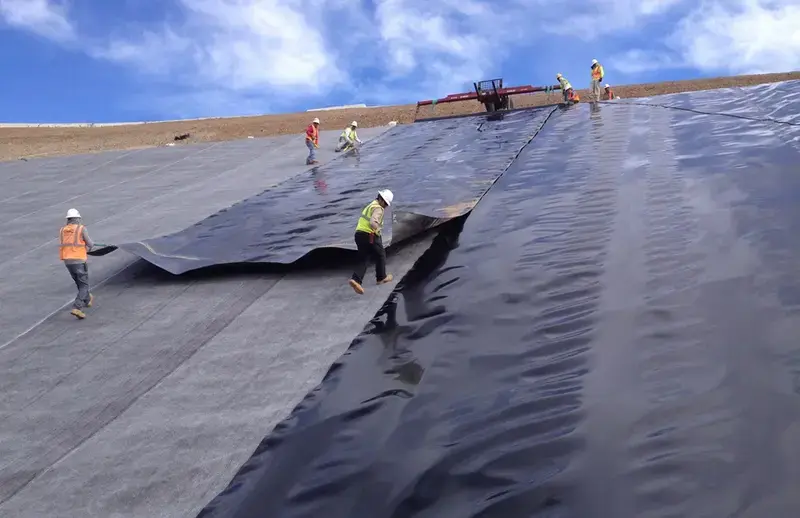

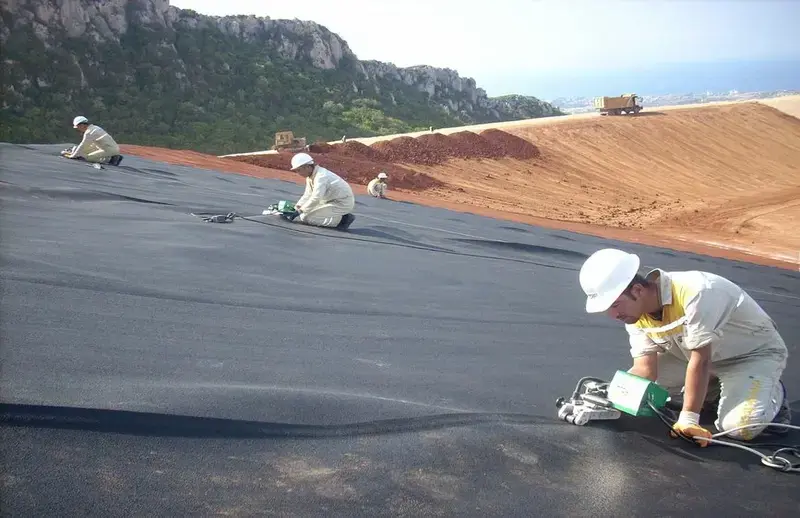

Easy Installation: Available in large sheets and custom-fabricated panels, our geomebranes minimize on-site seams, speeding up installation time, reducing labor costs, and enhancing overall project efficiency.
Geomembrana Manufacturer
|
Item
|
Index
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
Elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
Elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||
Our geomebranes are versatile and essential for a wide range of applications:

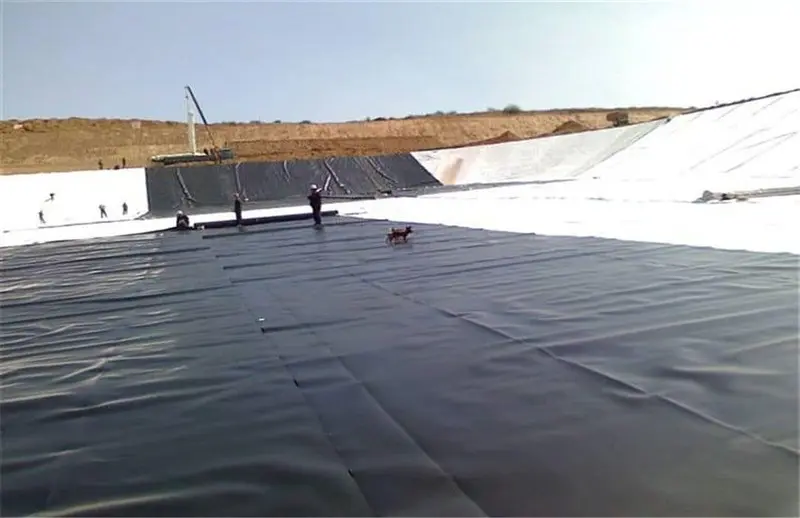

Landfills: Used as base and cap liners to prevent leachate from contaminating groundwater and to control landfill gas.

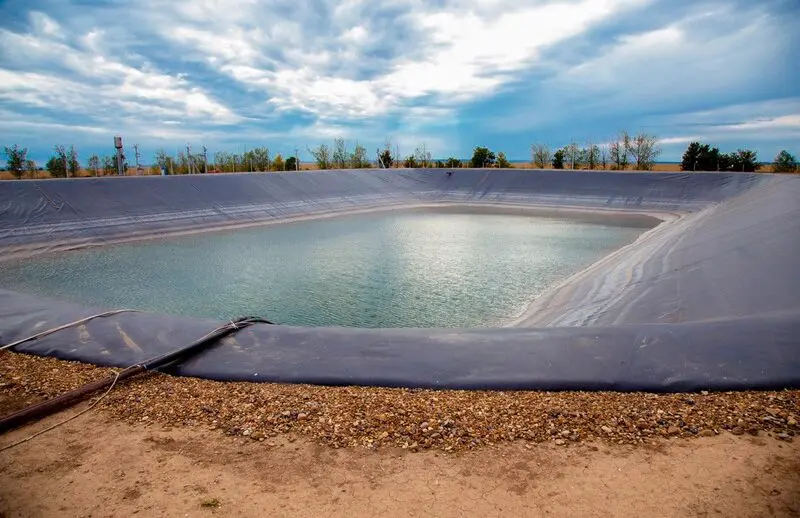

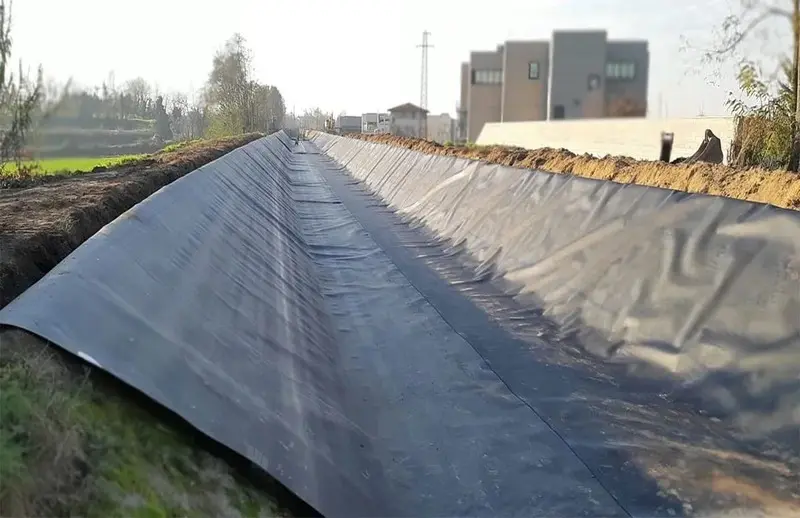

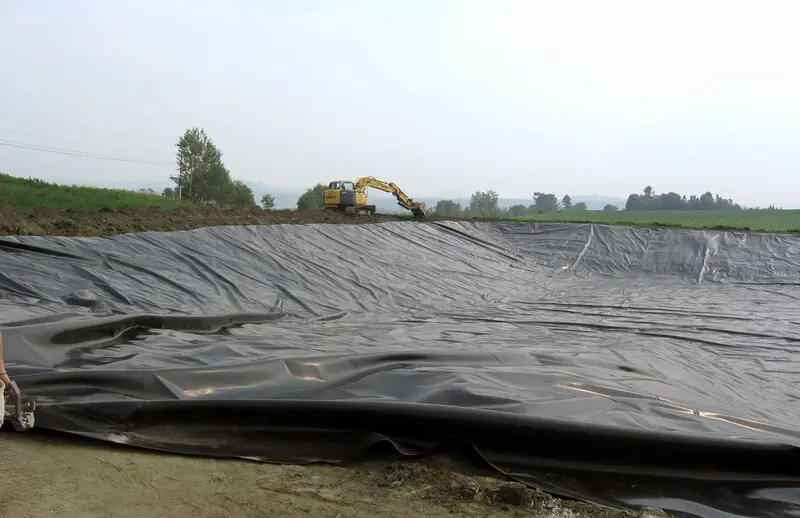

Water & Fluid Containment: Reservoirs, canals, potable water storage, aquaculture ponds, and firewater retention ponds.
Mining & Industrial: Tailings dams, heap leach pads, and secondary containment for industrial liquids.

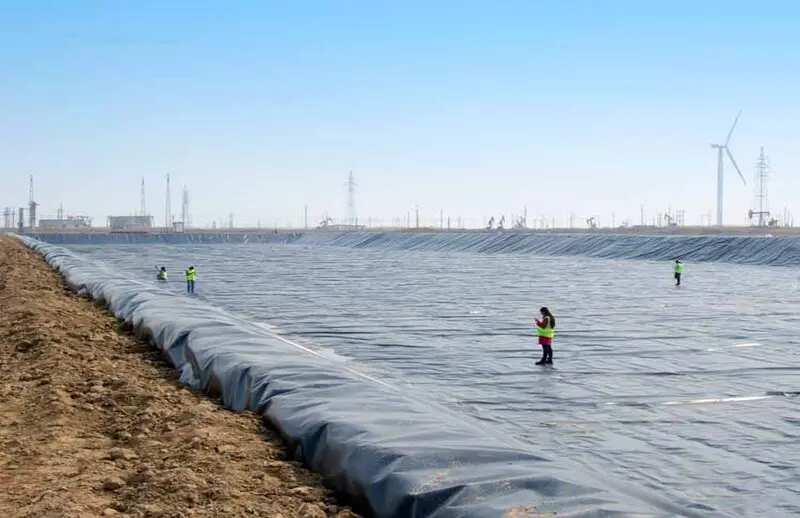

Environmental Remediation: Lining for evaporation ponds and capping of contaminated soil to prevent pollutant migration.
Civil Engineering: Tunnel and infrastructure waterproofing.
As a waterproofing liner, HDPE membrane is favored over other materials for its modest economic and operational advantage. Economically, HDPE membrane is superior thanks to its relatively straight forward manufacturing process, which has driven up supply and kept prices low in contrast to other kinds of geomembranes. Furthermore, hdpe geomembrane is a very stable polyolefin that is chemically inert and able to maintain long-term integrity and durability. These properties make the HDPE membrane a popular choice to waterproof and mining, landfill and other containment applications.
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.
