Geocell Slope Protection
Its main function is to form a reinforced structure in the soil to enhance the bearing capacity and stability of the foundation, thereby improving the engineering properties of weak soil. Geocells can also be used for protection, isolation, filtration and deposition, and have been widely used in engineering.
Geocell Slope Protection
The geocell slope protection is a advanced, three-dimensional cellular confinement solution designed to provide superior erosion control, slope stabilization, and vegetative reinforcement. When filled with soil, aggregate, or concrete, it creates a rigid, durable mat that locks infill in place, transforming unstable slopes into permanently reinforced structures.
Our geocell slope protection is a high-strength, expandable panel made from novel polymer alloys or geotextile strips. When expanded on-site, it forms a flexible, honeycomb-like network of cells. This 3D structure confines and reinforces the infill material, creating a composite mass that is far stronger than the infill alone.

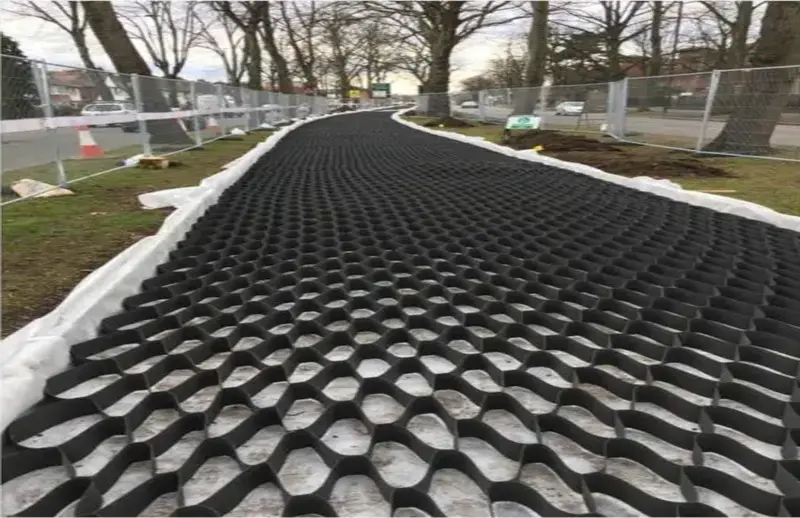

geocell slope protection
Geocell Slope Protection’s Main Feature
1.Light material, wear resistance, stable chemical performance, light and oxygen aging resistance, acid and alkali resistance, suitable for different soil and desert and other soil conditions.
2.Higher lateral restraint and anti-skid, anti-deformation and effective enhancement of subgrade bearing capacity and decentralized load.
3.Geotechnical dimensions such as height and welding distance of geocell can be changed to meet different engineering needs.
4. Flexibility, small transport volume, convenient connection, make construction more convenient.
Geocell Slope Protection
The Geocell Slope Protection Solution
Confinement: The 3D cell walls provide all-around confinement to the infill material, drastically increasing its shear strength and load-bearing capacity.
Reinforcement: The interconnected cells distribute loads evenly across the slope, creating a coherent, mechanically stabilized layer.
Drainage: The permeable structure allows for natural water drainage, eliminating hydrostatic pressure that causes instability.
Erosion Control: The system armorizes the slope surface, preventing water and wind from detaching and transporting soil particles.
Geocell Slope Protection’ Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | – | – | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
Geocell Slope Protection’s Applications
Geocell Slope Protection are the ideal choice for a wide range of challenging slope and channel scenarios:
Steep Earth Slopes: Stabilization of cut and fill slopes for highways, railways, and construction sites.
Channel & Waterway Linings: Protection for drainage ditches, stormwater channels, riverbanks, and shorelines against scour and erosion.
Embankment & Levee Protection: Armoring for earthen structures to prevent breaching during flood events.
Retaining Walls & Cliffs: A cost-effective alternative to complex retaining structures for moderate heights.
Landfill & Mining Slopes: Stabilization of waste piles, tailings dams, and mine reclamation projects.

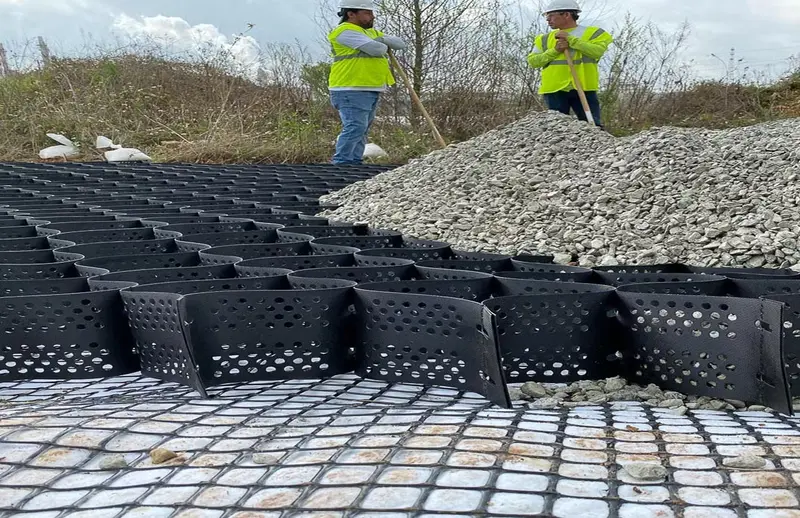

geocell slope protection

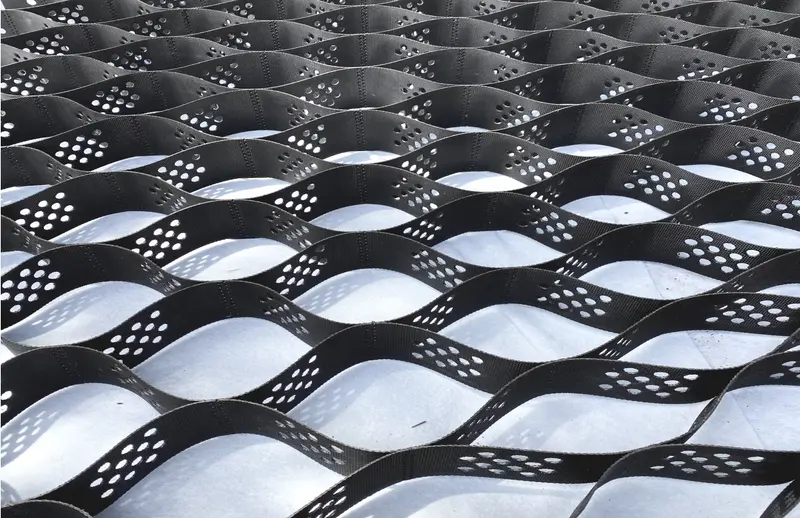

geocell slope protection

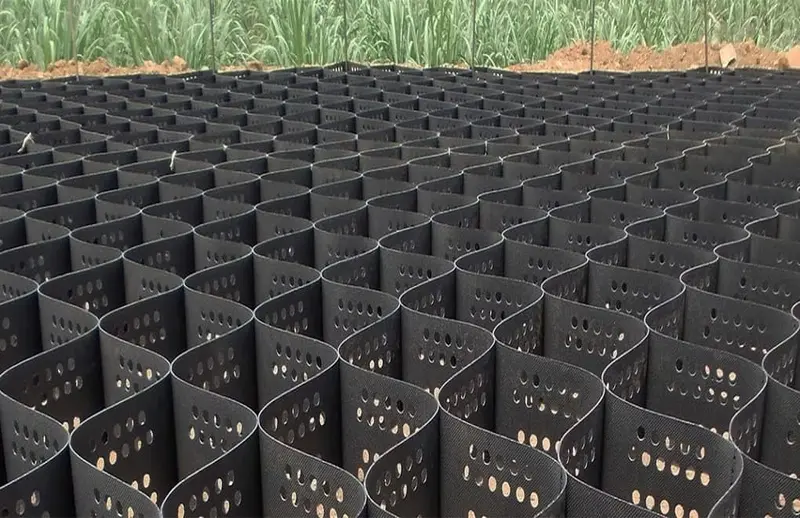

geocell slope protection

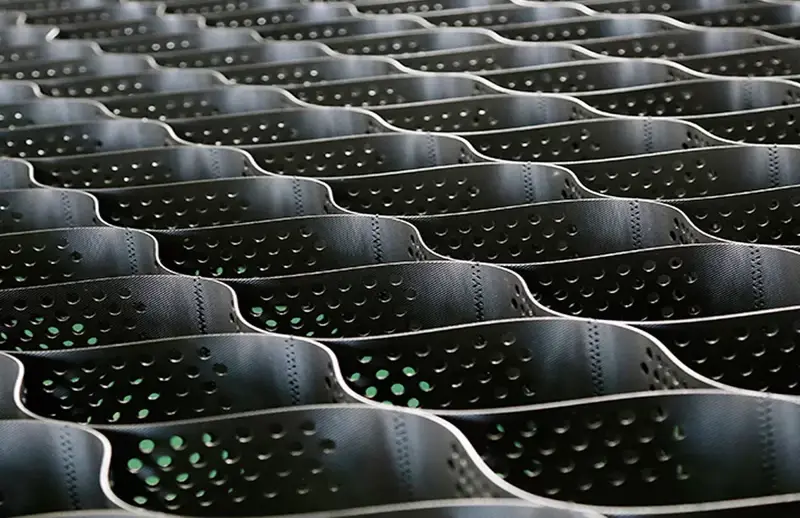

geocell slope protection
Geocell Slope Protection’s Key Features & Benefits:
3D Confinement Technology: The unique cellular structure provides all-around confinement to the infill material, preventing lateral movement and spreading of the load. This results in a significant increase in load-bearing capacity.
Superior Load Distribution: Geocells efficiently distribute vertical loads over a wider area, reducing vertical stress on the subgrade. This prevents rutting and settlement, leading to long-lasting stability for roads, railways, and foundations.
Flexible yet Rigid: Our Geocells are designed to be flexible during installation to conform to uneven terrain, yet become remarkably rigid under load, offering exceptional structural integrity.
Exceptional Durability: Manufactured from advanced, UV-stabilized polymers, our Geocells are resistant to creep, chemical and biological degradation, ensuring a long service life even in harsh environments.
Cost-Effective: By reducing the required depth of expensive, imported aggregate and minimizing long-term maintenance, Geocells offer a superior return on investment compared to traditional methods.
Sustainable & Permeable: The system allows for natural vegetation growth and promotes drainage, making it an environmentally friendly choice for slope protection and erosion control.

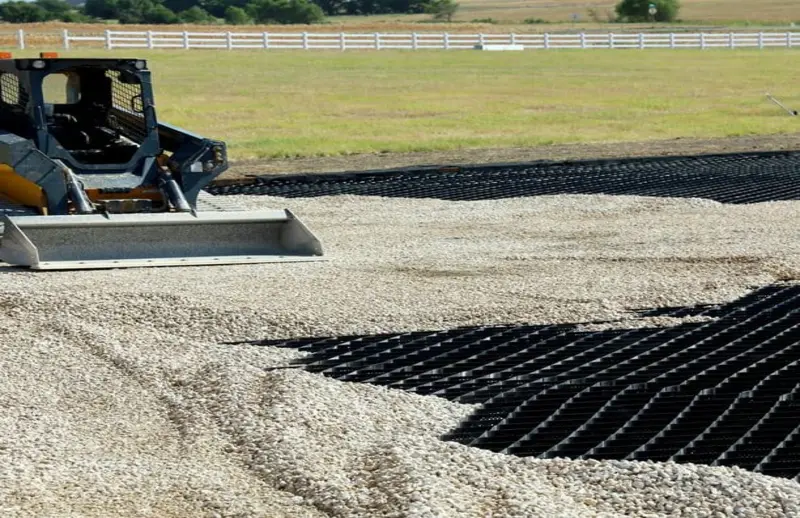

geocell slope protection
geocell slope protection
