Geocell Pavers
Geocell is widely used in construction work for the purpose of erosion control, soil stabilization and earth retention. Geocell is made of HDPE strips and often filled with sand, soil and rock.
Geocell Pavers

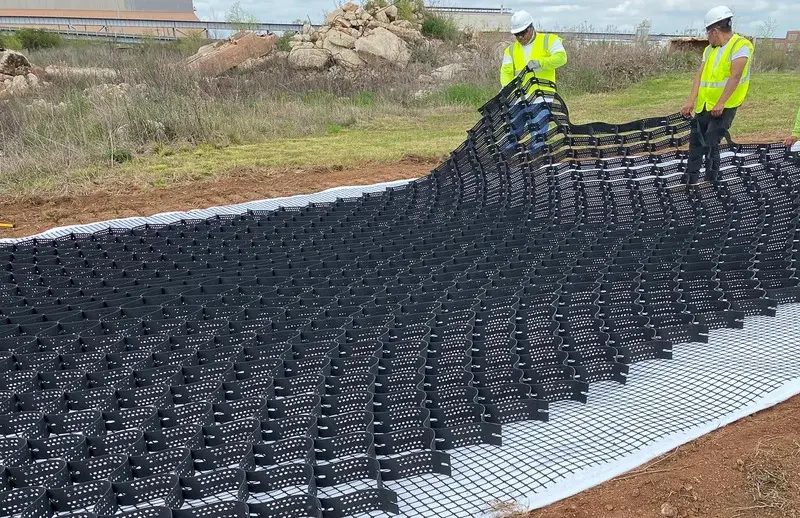

Geocell pavers is a net-shaped cell structure made from high density polyethylene by welding high intensity thermoplastic sheet, it is flesible to fold during transportation, stretching out and being filled with stone or concrete during service, and fourming into structure with powerful lateral confinement and rigidity.
geocell pavers
Geocell Pavers’ Main Feature
1.Light material, wear resistance, stable chemical performance, light and oxygen aging resistance, acid and alkali resistance,suitable for different soil and desert and other soil conditions.
2.Higher lateral restraint and anti-skid, anti-deformation and effective enhancement of subgrade bearing capacity and decentralized load.
3.Geotechnical dimensions such as height and welding distance of geocell can be changed to meet different engineering needs.
4. Flexibility, small transport volume, convenient connection, make construction more convenient.
geocell pavers
Geocell Pavers
Superior Load Distribution: Transfers vertical loads horizontally, reducing settlement and increasing bearing capacity.
Flexible yet Durable: Resists creep, UV degradation, and chemical exposure while adapting to terrain movements.
Easy Installation: Lightweight, modular design allows for quick deployment with minimal labor and equipment.
Cost-Effective: Reduces the need for expensive base materials and long-term maintenance.
Eco-Friendly: Promotes vegetative growth when filled with soil, supporting sustainable development.
Geocell Pavers’ Specifications
| Index Properties | Test Method | Units | Values | |||||||
| Material | – | – | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
Geocell Pavers’ Applications

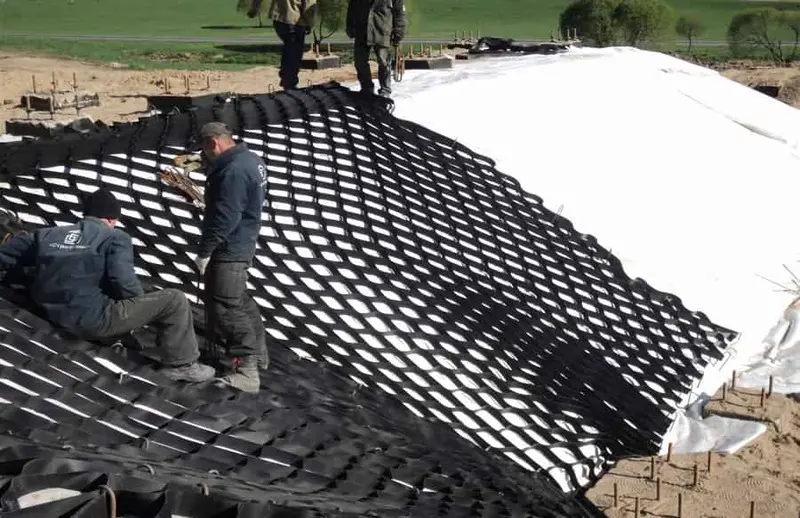

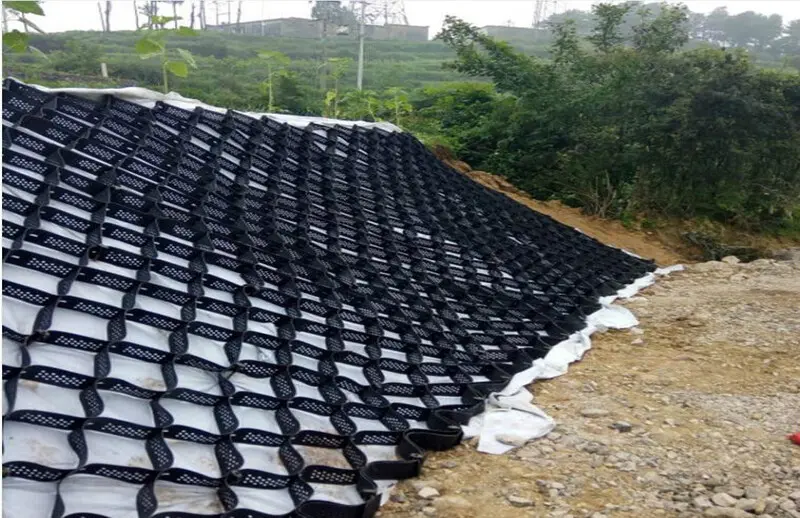

Slope & Channel Protection: Prevents soil erosion on embankments and riverbanks.

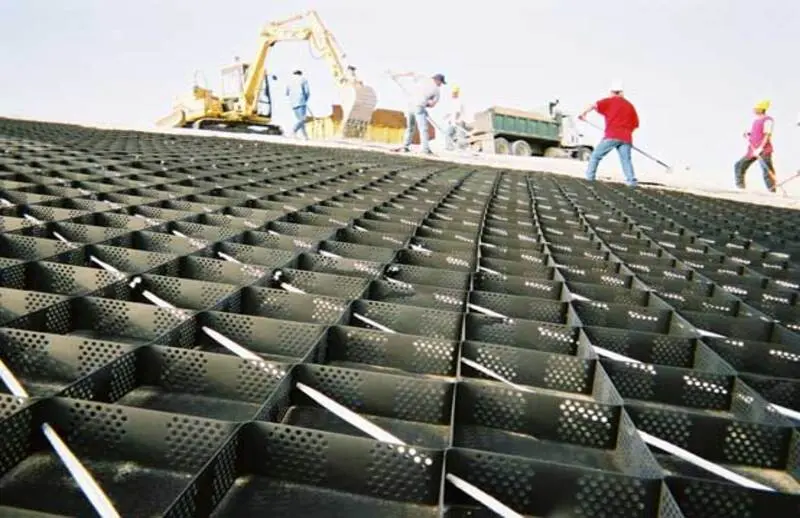

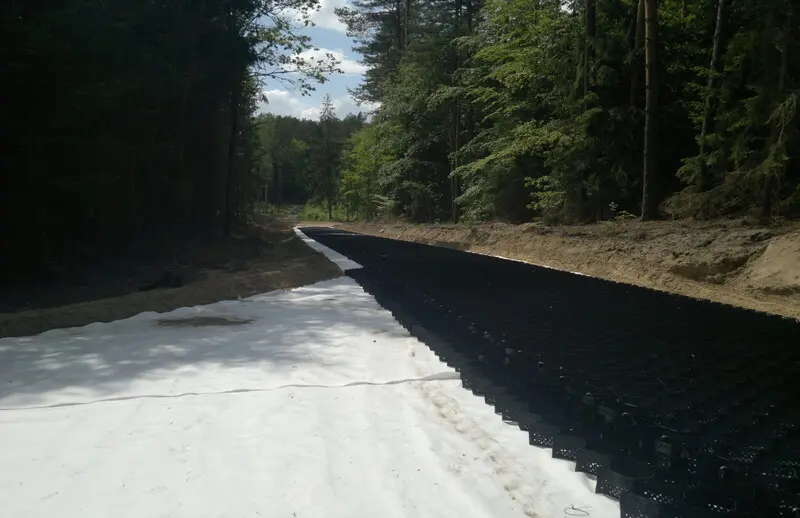

Load Support: Stabilizes soft subgrades for roads, parking lots, and construction access routes.
Retaining Walls: Provides gravity-based structural support for earth retention.

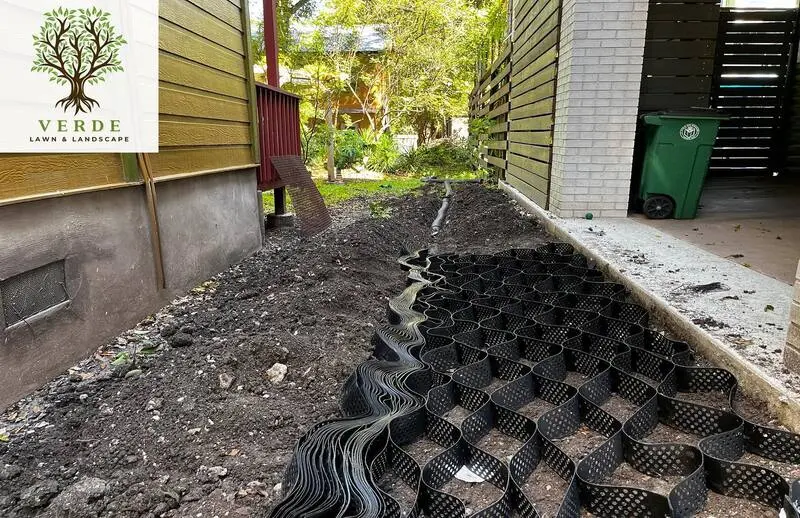

Landscaping: Creates green retaining structures and tree root protection zones.
Shoreline & Coastal Defense: Dissipates wave energy and stabilizes beachfronts.
Geocell Pavers

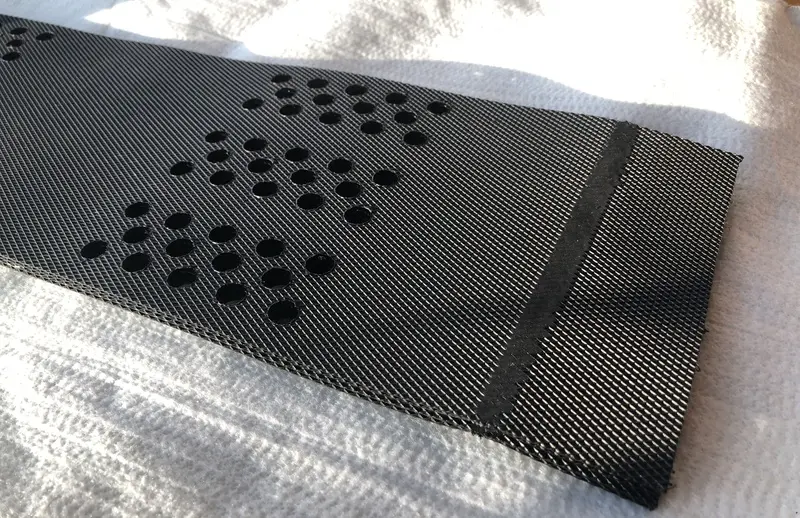

Geocell Pavers is a mesh cell structure formed by high-strength HDPE wide bands through strong welding or riveting. It is flexible and can be folded up during transportation. It can be opened and filled with soil, stone or concrete when in use, forming a structure with strong lateral restrictions and high rigidity. It can be used as a cushion layer to treat weak foundations and increase the bearing capacity of the foundation. It can also be laid on the slope to form a slope protection structure, and can also be used to build retaining structures, etc.
Geocell Pavers
All products are inspected by professional technicians so the highest standards can be met. Quality control is always our top priority to keep our customers satisfied.
