Weight per Unit size:
285g/m2 , 385g/m2 , 340g/m2 , 420g/m2 , 450g/m2
Regular size:
GT70x95cm, GT120X120cm, GT200X200cm, or as customers’ request
Geobags made from durable geotextile materials, they efficiently separate solids from liquids while providing structural stability. Their applications include coastal engineering, land reclamation, and environmental projects like wastewater treatment. Cost-effective and eco-friendly, geobags offer a versatile solution for soil reinforcement and hydraulic management.

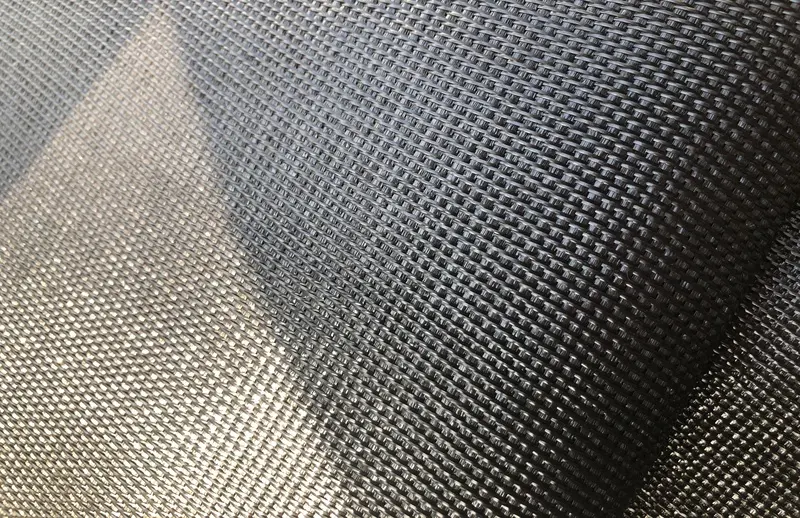

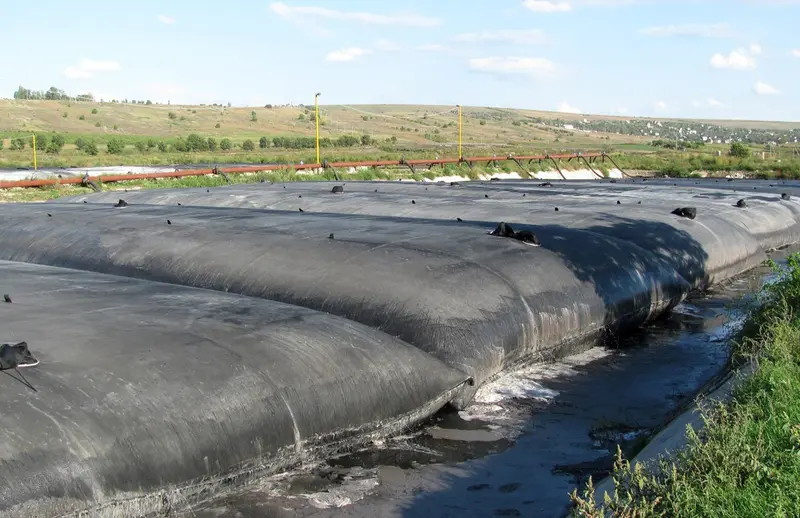

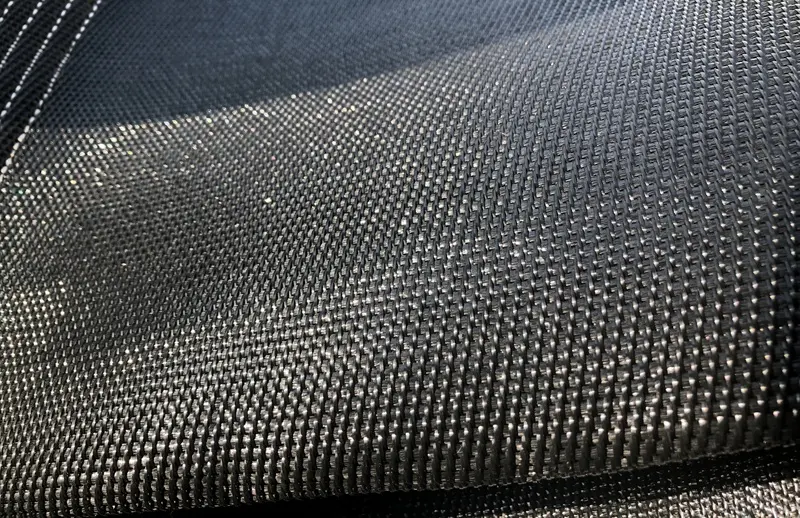

Geobags is one kind of bag with pipe shape , woven with polypropylene yarn with filter structure , the principle of action is in the process of underwater dredging will be polymer flocculant a certain proportion of the solution into the mud, fully mixed into the geobags , after pressure filtration dehydration and consolidation , so as to reduce the volume of sludge and solidifying effect.
Geobags is one kind of bag with pipe shape woven with polypropylene yarn with filter structure ,the principle of action is in the process of under water dredging will be polymer flocculant a certain proportion of the solution into the mud, fully mixed into the geobags,after pressure filtration dehydration and consolidation so as to reduce the volume of sludge and solidifying effect.
Geobags Test Report
Number |
Experimental Project |
Unit |
Standard |
Standard Value |
Detection Value |
|
1 |
Raw Materials |
High Toughness Polypropylene |
||||
2 |
Weight |
g/m2 |
GB/T13672 |
≥850 |
857 |
|
3 |
Tensile Strength |
Vertical |
kN/m |
SL235-2012 |
≥200 |
223 |
|
|
Horizontal |
kN/m |
SL235-2012 |
≥200 |
217 |
4 |
Elongation at break |
Vertical |
% |
SL235-2012 |
≤15 |
9.3 |
|
|
Horizontal |
% |
SL235-2012 |
≤10 |
7.6 |
5 |
Permeability(Q50) |
l/㎡/s |
ISO 11058 |
≥15 |
18 |
|
6 |
Equivalent Aperture(O90) |
mm |
GB/T14799-2005 |
0.2-0.6 |
0.45 |
|
7 |
Anti-ultraviolet Strength Retention Rate For 500 Hours |
% |
ASTM D4355 |
≥90 |
95 |
|
8 |

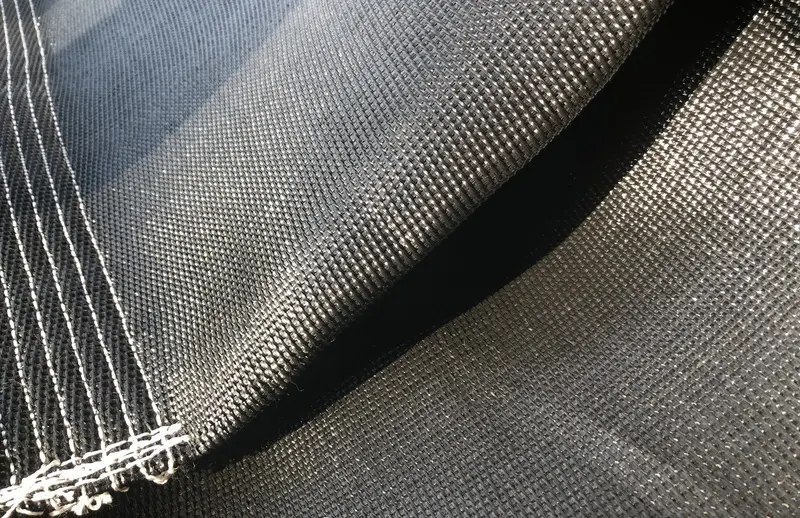

Factory Stitching Strength |
kN/m |
ISO 10321 |
≥160 |
172 |
|
9 |
CBR Puncture Strength(CBR) |
kN |
ISO 12236 |
≥20 |
20.3 |
Breakwaters are marine structures that have the primary function of dissipating wave energy. Breakwaters are marine structures that have the primary function of dissipating wave energy. They reduce the wave energy by partial reflection as well as by energy breaking on the structure.
Revetments are used in coastal and marine environments.Revetments are used in coastal and marine environments to protect the toes of coastal cliffs, bluffs and dunes, and to protect exposed land areas.
Protection dykes (levees) are used to control the movement of water in confined areas. Protection dykes (levees) are used to control the movement of water in confined areas to prevent flooding and other water damage. Protection dykes are used to continually control and constrict the flow of water.

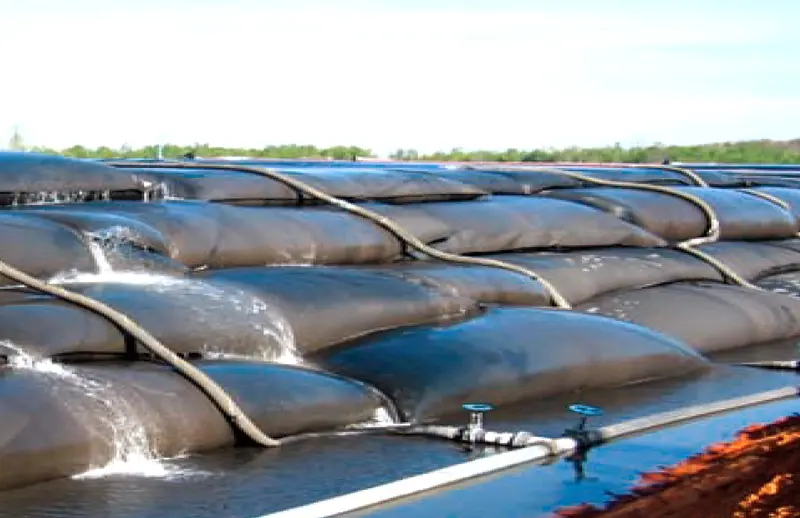

Palm oil filtration—The geobags dewatering operation is simple and does not require special equipment that the POME treatment facility is not already using.

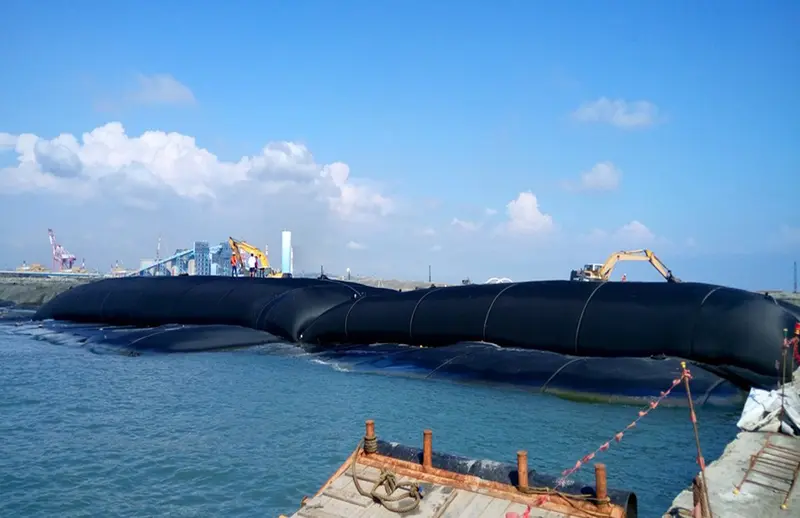

Coastal Protection—Development activities in the shoreline, alongside erosion, marine storms may lead to destructive effects on objects.
Mining, Mineral Processing

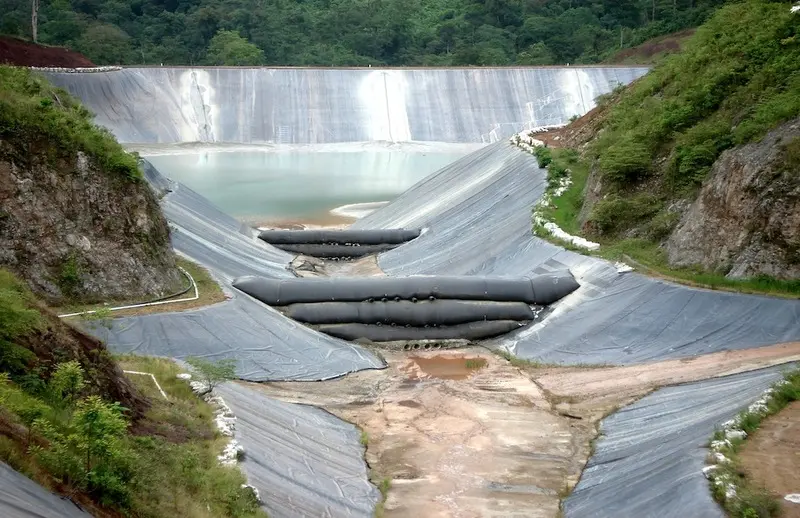

Mine tailings,coal sludge can be managed, handled cost effectively with geobags dewatering technology.
Environmental Remediation

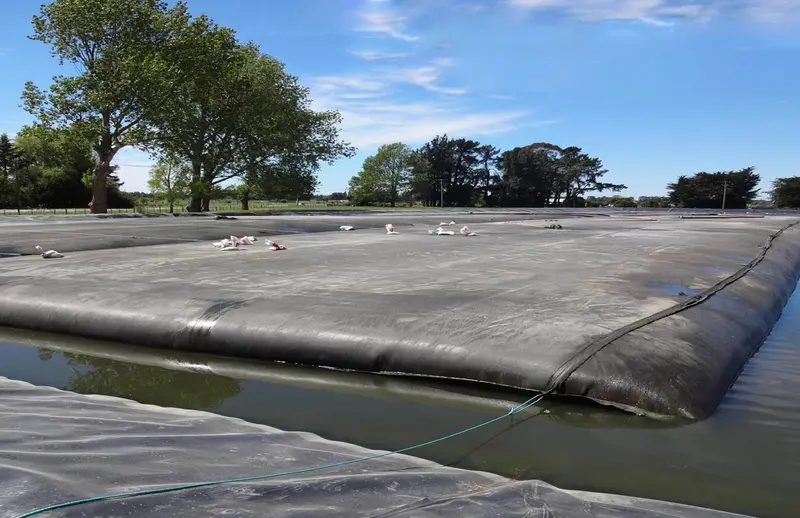

In many cases, sediments pose significant environmental hazards, and remediation is a difficult expensive task.
Agriculture

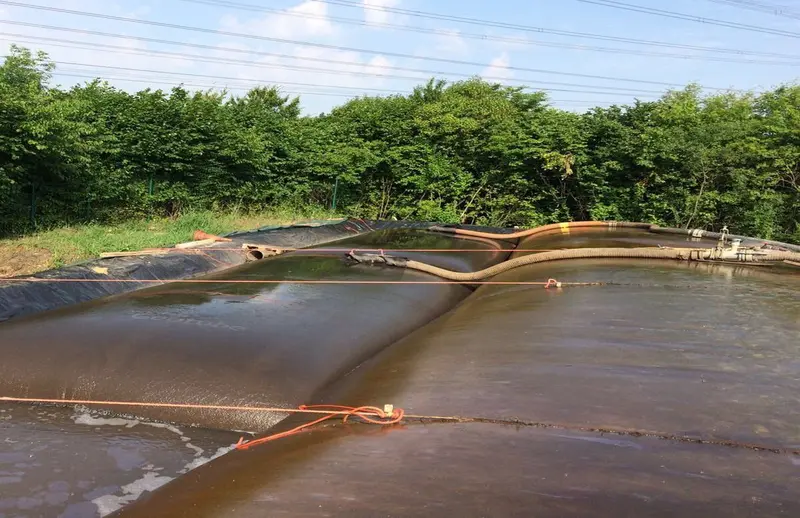

With geobags dewatering technology, you can effectively manage waste from animal feeding operations while also controlling odor.
High volume containment
Unlimited storage capacity
Spread project costs over several years
Rapid flow through rate
Drastic reduction in disposal cost
Minimal capital cost
Simplicity

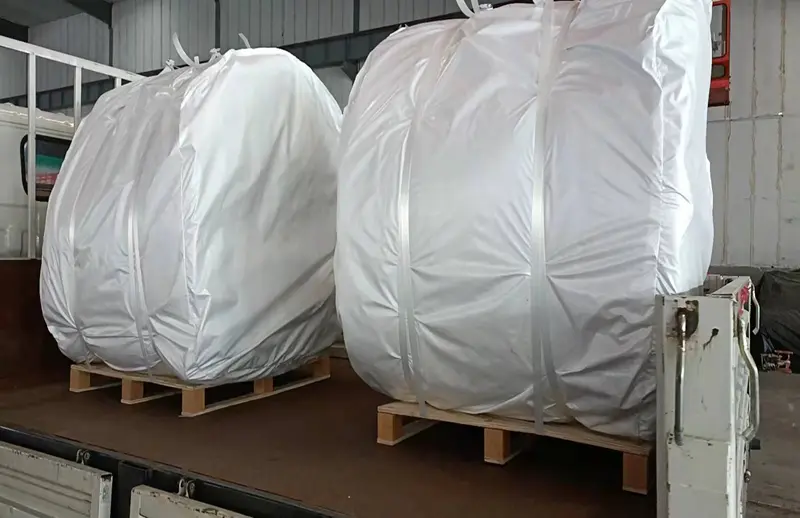

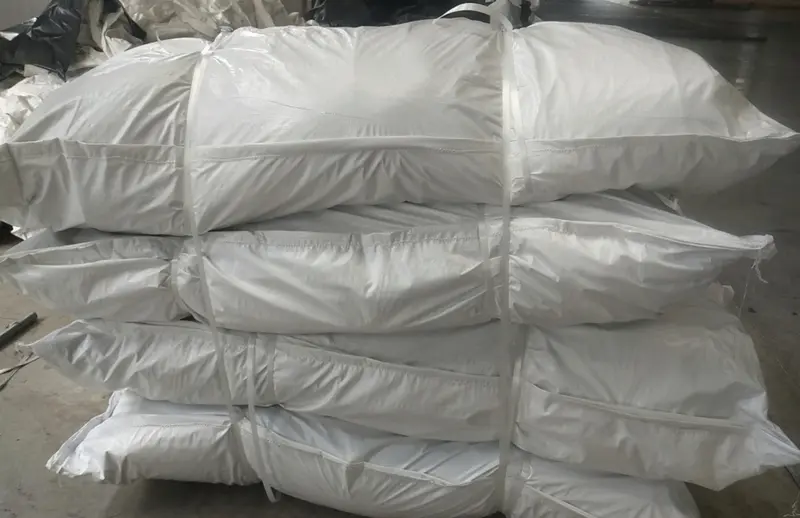

Packed in woven geotextile and strength belt or PE film or packed according to customers’ requirements, such as mark the company Logo (Export standard package)Packaging size and container capacity vary according to product specifications.
