Home/ Geomembrane/ ​Durability of HDPE Geomembranes
​durability of hdpe geomembranes

​Durability of HDPE Geomembranes

Thickness: 0.3mm, 0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm

Roll Width: 1m, 2m, 3m, 4m, 5.8m, 6m, 7m, 8m

Roll Length: 50m, 100m, 150m, 200m

Description

Geomembranes, also known as waterproof geomembranes, is a type of impermeable membrane, usually made of primary resins such as high density polyethylene (HDPE). They have excellent impermeability and chemical resistance, can effectively prevent water and other liquids from penetrating into the soil, and protect groundwater and surface water resources. For this reason, they are commonly used in projects such as landfills, chemical plants, mines and reservoirs as seepage barriers.




​Durability of HDPE Geomembranes:

Chemical Resistance
HDPE is highly resistant to acids, alkalis, and most industrial chemicals, reducing degradation risks in harsh environments.
UV and Oxidation Stability
Carbon black additives (typically 2–3% content) provide UV resistance, while antioxidants mitigate oxidative degradation over time.
Mechanical Strength
High tensile strength, puncture resistance, and flexibility ensure structural integrity under stress (e.g., settling substrates or heavy loads).






As a waterproofing liner, HDPE membrane is favored over other materials for its modest economic and operational advantage. Economically, HDPE membrane is superior thanks to its relatively straight forward manufacturing process, which has driven up supply and kept prices low in contrast to other kinds of geomembranes. Furthermore, hdpe geomembrane is a very stable polyolefin that is chemically inert and able to maintain long-term integrity and durability.

Specifications

​Durability of HDPE Geomembranes

Item
HDPE Geomembrane Technical Data
Thickness (mm)
0.30
0.50
0.75
1.00
1.25
1.50
2.00
2.50
3.00
Density ( g/cm3)
≧0.940
Tensile yield strength (N/mm)
≧4
≧7
≧10
≧13
≧16
≧20
≧26
≧33
≧40
Tensile fracture strength (N/mm)
≧6
≧10
≧15
≧20
≧25
≧30
≧40
≧50
≧60
elongation at yield (%)
_
_
_
≧11
elongation at break (%)
≧600
Right-angle tear load (N)
≧34
≧56
≧84
≧115
≧140
≧170
≧225
≧280
≧340
Puncture strength (N)
≧72
≧120
≧180
≧240
≧300
≧360
≧480
≧600
≧720
Carbon black content (%)
2.0~3.0
Applications

​Durability of HDPE Geomembranes—-Applications

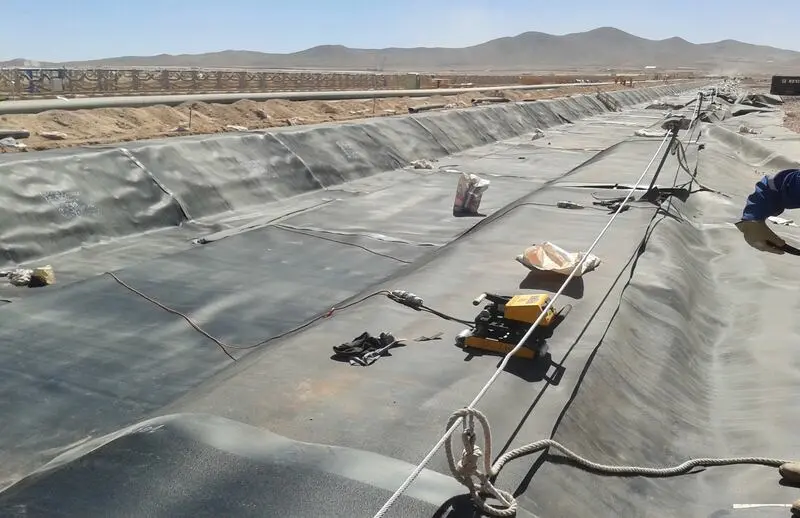

Mine tailing disposal is one of the most important environmental issues for any mining project. To control the release of tailing materials, which are the waste product left over from a mineral-processing plant, a tailing dam or pond is created to contain the waste. In this case, geomembranes are used to protect the environment and prevent contamination of soils and groundwater tables.As a waterproofing liner, HDPE membrane is favored over other materials for its modest economic and operational advantage. Economically, HDPE membrane is superior thanks to its relatively straight forward manufacturing process, which has driven up supply and kept prices low in contrast to other kinds of geomembranes.

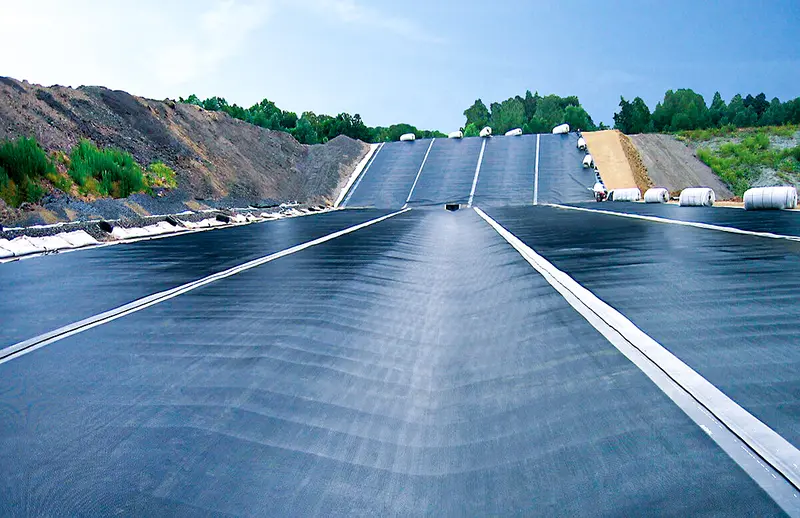

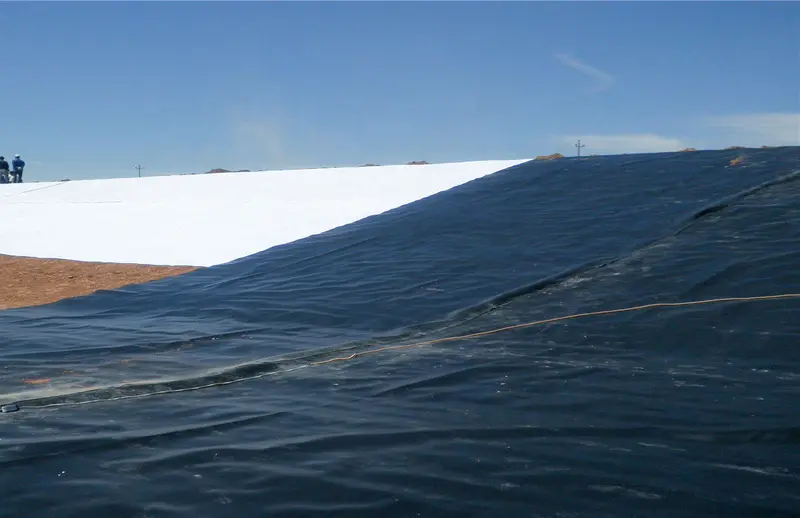

HDPE landfill liner is the essential lining materials used for waste containment which can provide maximum and reliable leakage protection for environment. High density polyethylene (HDPE) landfill liner has excellent impermeability, elongation, conformity and weld abilities which can offer stable steep slope lining and strong protection to avoid leakage, stress cracking for waste contamination.

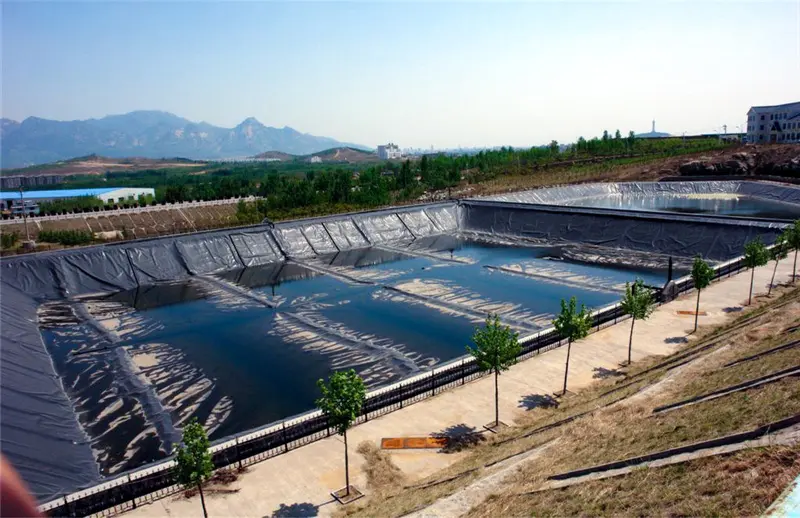

Water Containment & Hydraulic Structures
Reservoirs & Canals: Geomembranes act as liners to prevent water seepage, ensuring efficient storage and transportation.
Dams & Levees: They provide erosion control and seepage prevention, enhancing structural stability.
Decorative Ponds & Lakes: Used as waterproofing barriers in artificial water bodies.



​Durability of HDPE Geomembranes

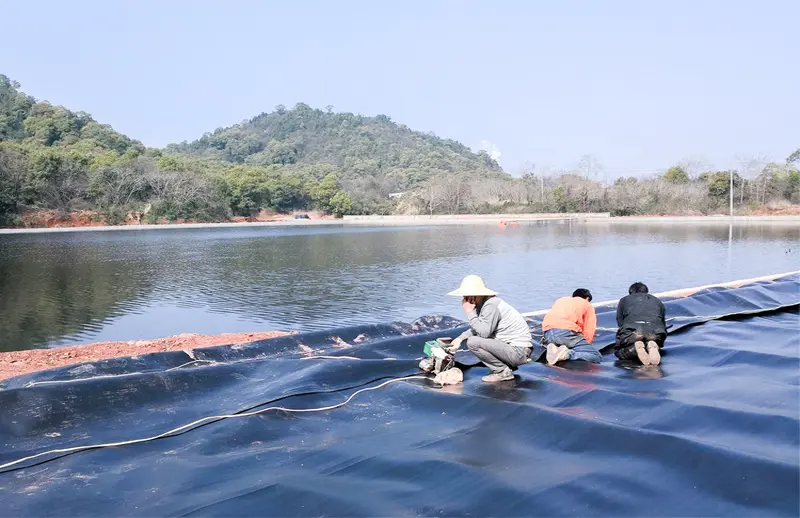

Aquaculture
Sea water or fresh water shrimp or fish farming pond.
Mining
Washing Pond, heap leaching pond, ash field, dissolving and sedimentation Pond, tailing bottom lining etc.
Landscaping
River, Reservoir, artificial lake, golf course pond waterproofing, artificial grass waterproof and moisture-proof.
Oil and Gas
Chemical plant, refinery, oil storage tank etc.
Solid or liquid waste treatment
Landfill, waste water plant, industrial or hospital waste treatment site anti-seepage.
Water conservancy Project: River
Embankment, lake Dam, tailing dam, sewage dam and reservoir channel, Vertical wall, slope protection seepage contra.
