Dewatering Containers
Geotextile tubes (also called dewatering containers, geobags, dewatering tubes) are large, high-strength containers made from permeable geotextile fabrics.
Description
Dewatering Containers
dewatering containers
Dewatering Containers
Geobags(dewatering containers) are made of high-performance, special polypropylene monofilament, flat or split filament for geobag cloth processing, and are specially sewn into shape. Geotextile bag cloth has different grades of strength and permeability, and has high UV resistance and durability such as resistance to seawater and microbial erosion.
Pump slurry or wastewater into the container.
Separate solids from liquids through our high-performance filter media.
Store & Transport the dewatered solids conveniently in the same container.
Dispose or reuse the clean effluent
dewatering containers
Dewatering Containers’s Features
Robust Construction: Built with heavy-duty, corrosion-resistant materials for long-lasting performance in tough environments.
High-Capacity Filtration: Efficiently handles large volumes with multiple filter media options to match your specific sludge type.
Mobility & Flexibility: Easy to transport and deploy on-site, ready to use anywhere, anytime.
Cost-Effective: Slash transportation and disposal costs by significantly reducing sludge volume.
Environmentally Compliant: Meet regulatory standards for water discharge and waste handling with ease.
Specifications
| Dewatering Containers | ||||||||||||
| UNIT | TEST STANDARD | UNIT TEST STANDARD | ||||||||||
| DK70×95B | DK70×95 | DK120×120 | DK200×200 | DK200×200B | DK380 | DK580 | DK380PPi | DK580PPi | ||||
| Breaking strength | vertical | KN/m | ISO 10319-2015 |
85 | 85 | 130 | 220 | 220 | 70 | 85 | 70 | 85 |
| weft | KN/m | 105 | 115 | 120 | 200 | 210 | 60 | 80 | 80 | 105 | ||
| Elongation at break | vertical | % | 13 | 13 | 12 | 13 | 13 | 12 | 12 | 13 | 13 | |
| weft | % | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 9 | 9 | ||
| Breaking strength at 2% elongation | vertical | KN/m | 14 | 14 | 20 | 12 | 10 | 14 | 15 | 9 | 8 | |
| Breaking strength at 5% elongation | weft | KN/m | 38 | 38 | 80 | 95 | 88 | 38 | 42 | 26.5 | 21 | |
| Weight | g/m2 | 430 | 450 | 540 | 850 | 870 | 285 | 385 | 340 | 420 | ||
| Joint tensile strength | KN/m | ISO 10321-2008 | 70 | 90 | 100 | 170 | 180 | |||||
| CBR Puncture Strength（CBR） | KN |
ASTM D6241 |
8 | 9 | 15 | 20 | 23 | 7 | 10 | 8.5 | 10 | |
| Dynamic perforation | mm | 10 | 8 | 10 | 8 | 8 | ||||||
| Equivalent aperture（O90） | mm |
ISO 12956 |
0.5 | 0.45 | 0.45 | 0.45 | 0.35 | 0.48 | 0.45 | 0.48 | 0.47 | |
| Permeability（Q50） | L/m2/s |
ISO 12956 |
50 | 35 | 14 | 18 | 15 | 35 | 42 | 58 | 58 | |
| UV Resistance（500 hours strong preservation rate） | % | ASTM D4355-2014 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Applications
Sand filled geotechnical tube bag:
Main functions: drainage, reinforcement, filtration, isolation;Main application areas: beach protection, breakwaters, breakwaters, land reclamation, wetland reconstruction.artificial islands, construction platforms.
Dewatering Geotechnical Tube Bag:
Main functions: filtration, isolation, dehydration;Main application areas: Ecological restoration, pulp and paper industry, sludge dewatering, sewage treatment plant sludge treatment, agricultural animal husbandry sludge treatment.
dewatering containers

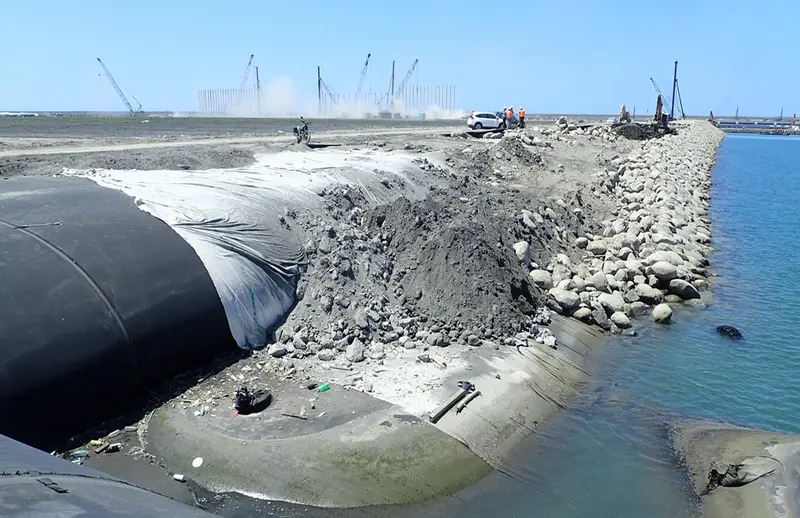

Revetment, Breakwater
The embankment core filling dewatering containers breakwater is a breakwater made of new materials. It forms a kind of breakwater by filling the dewatering containers with sea sand. Not only saves the construction cost of the breakwater, but also makes better use of environmental resources, and can well meet the construction and functional requirements of the breakwater. Acts as submerged barriers.
Erosion Control
Protects shorelines, riverbanks, and slopes.
dewatering containers
Coastal Protection
Geotexile tube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process,and intercepts more than 90% of the suspended soild particles. It is an ideal choice for cleaning sludge storage tanks,clarification tanks and filtering waster projects.
Land reclamation
Geotextile tube bag dewatering technology can dehydrate the bottom mud gathered in river, bays seaports, wharves, ports and docks to project the environment. Creates barriers for sediment control.
