china hdpe geomembrana

China HDPE Geomembrana

Thickness: 0.3mm, 0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm

Roll Width: 1m, 2m, 3m, 4m, 5.8m, 6m, 7m, 8m

Roll Length: 50m, 100m, 150m, 200m

REQUEST QUOTE WHATSAPP
Description

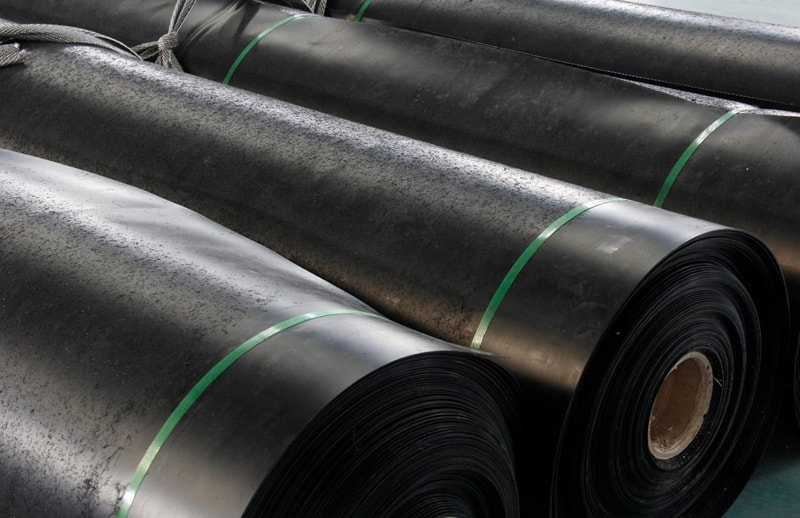

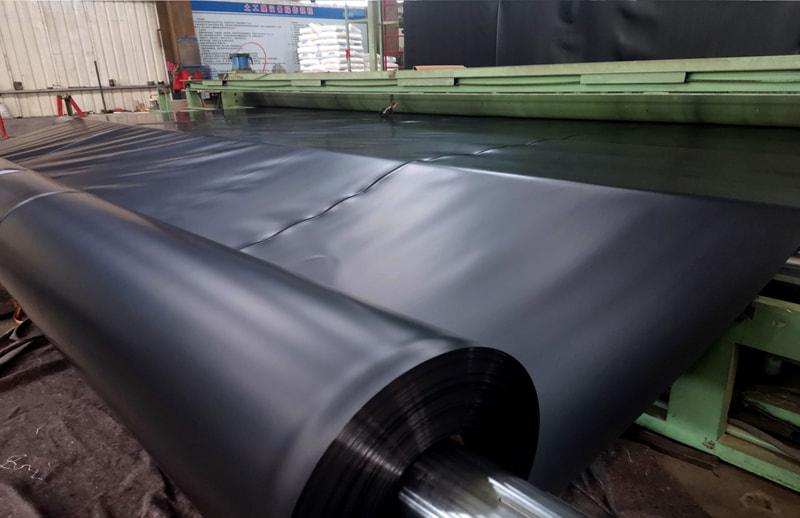

China HDPE geomembrane is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containent applications.

We supply HDPE smooth geomemrbane 0.5mm 1.0mm 1.5mm 2.0mm with good quality and factory price.



 Made from durable, impermeable materials such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), polyvinyl chloride (PVC), and ethylene propylene diene monomer (EPDM), geomembranes provide excellent resistance to chemicals, UV radiation, and mechanical stress. HDPE smooth geomembrane is produced from high density polyethylene, anti-aging and UV-resistance. Mainly applied in planted roof, reservoir, subway, artificial lake, waste treatment and some industrial waterproofing projects.





Specifications

China HDPE Geomembrana

Item
HDPE Geomembrane Technical Data
Thickness (mm)
0.30
0.50
0.75
1.00
1.25
1.50
2.00
2.50
3.00
Density ( g/cm3)
≧0.940
Tensile yield strength (N/mm)
≧4
≧7
≧10
≧13
≧16
≧20
≧26
≧33
≧40
Tensile fracture strength (N/mm)
≧6
≧10
≧15
≧20
≧25
≧30
≧40
≧50
≧60
elongation at yield (%)
_
_
_
≧11
elongation at break (%)
≧600
Right-angle tear load (N)
≧34
≧56
≧84
≧115
≧140
≧170
≧225
≧280
≧340
Puncture strength (N)
≧72
≧120
≧180
≧240
≧300
≧360
≧480
≧600
≧720
Carbon black content (%)
2.0~3.0
Applications



Water Containment:

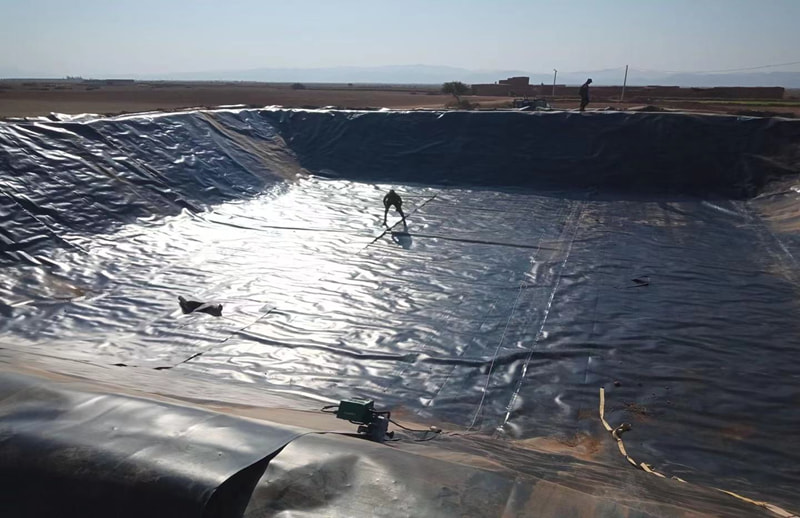

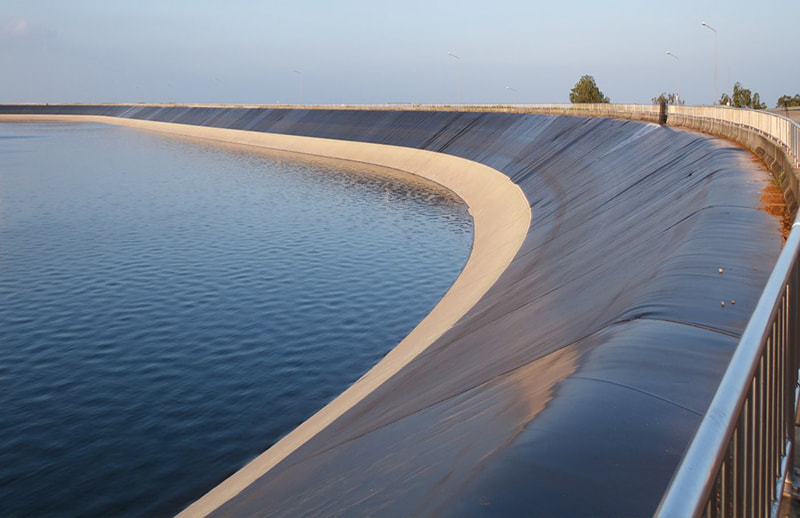

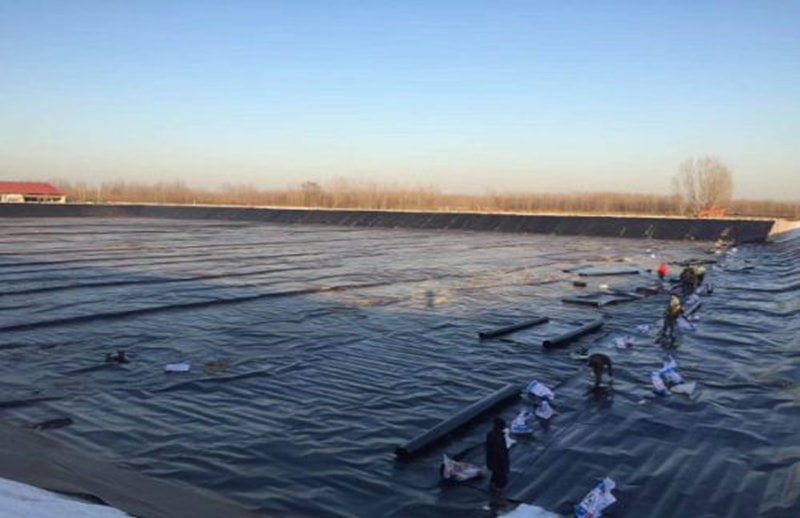

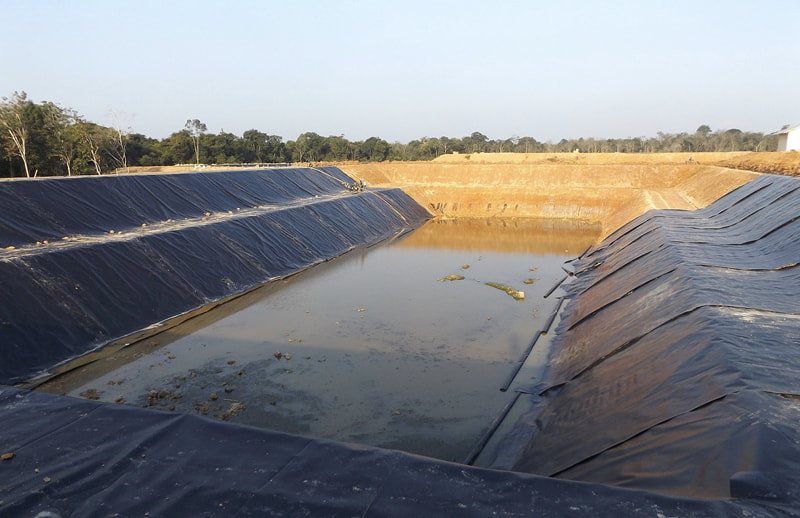

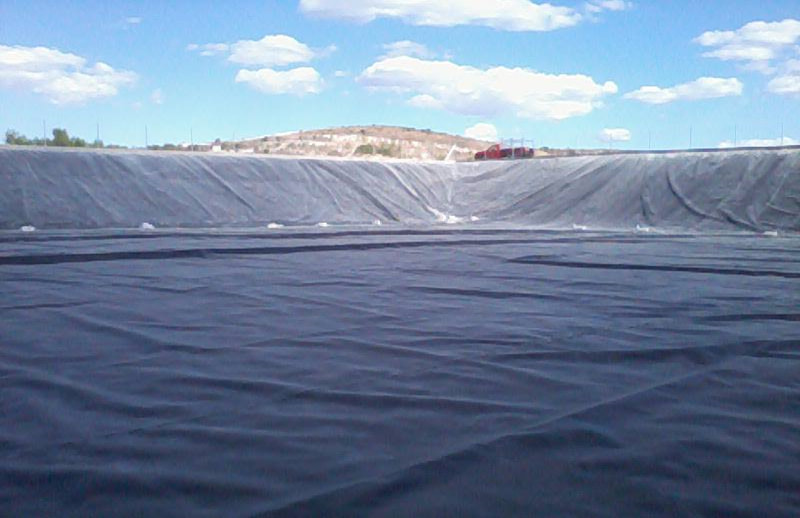

Reservoirs & Ponds: Used to line irrigation ponds, fish farms, and decorative water features to prevent seepage.
Canals & Ditches: Help reduce water loss in agricultural and industrial water channels.

Waste Management:
Landfill Liners: Prevent leachate (contaminated liquid) from polluting groundwater.
Sewage & Wastewater Treatment: Used in lagoons and tanks to contain harmful liquids.




Mining Industry:
Heap Leach Pads: Contain toxic chemicals used in metal extraction.
Tailings Storage: Prevent contamination from mining waste.

Environmental Protection:
Contaminated Site Capping: Isolate polluted soil to prevent rainwater infiltration.
Secondary Containment: Used in fuel storage areas to prevent spills from seeping into the ground.





Civil Engineering & Construction:
Tunnel & Roof: Waterproofing: Protect structures from moisture damage.
Road & Railway Construction: Act as moisture barriers to enhance soil stability.

Agriculture:
Silage Covers: Preserve animal feed by blocking air and moisture.
Hydroponics & Irrigation Systems: Ensure efficient water use.

Related Videos

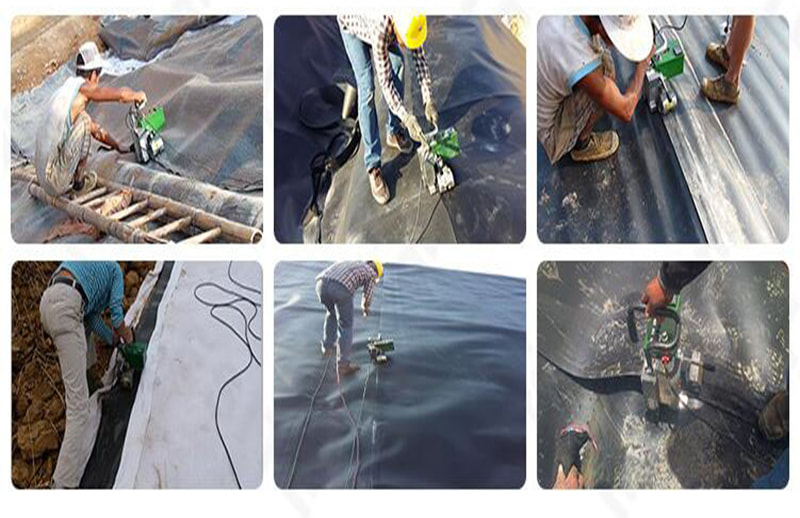

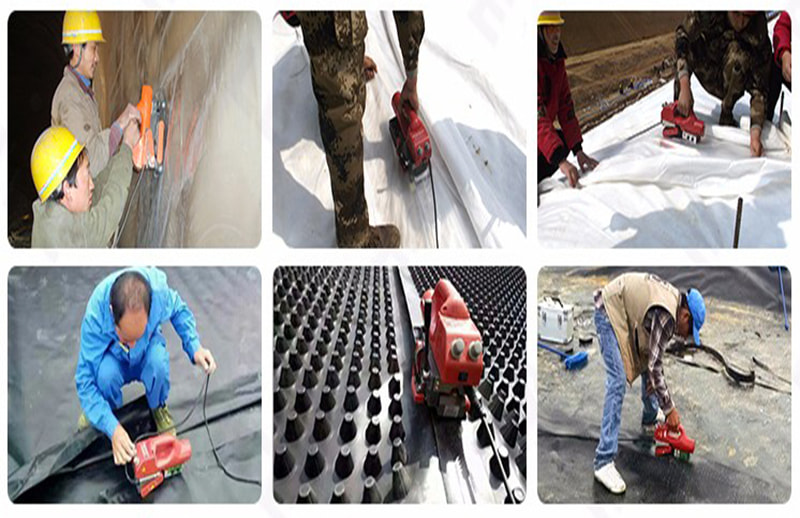

Welding Techniques Used in Geomembrane Installation

Welding is necessary during Installation of geomembrane lining systems, which needs to be conducted by a professional welder. The two common welding techniques applied during geomembrane installation are:

  •  Double hot metal wedge welding
  • Extrusion welding The most reliable and suitable method is double hot metal wedge welding.

Our Company

A Professional geomembrane manufacturer in China

Owning the first 8-meter width geomembrane production line in China

Annual output ≥20,000 tons

Over 15 years production experience
