China Geomembrane Roll Sheet
100% HDPE virgin material
UV-resitance Extended service life
High anti-seepage ratio
Geomembrane rolls are high-performance synthetic liners widely used for fluid containment and barrier applications in civil, environmental, and industrial projects. Made from durable materials such as HDPE (High-Density Polyethylene), LDPE (Low-Density Polyethylene), PVC (Polyvinyl Chloride), or EPDM (Ethylene Propylene Diene Monomer), these impermeable sheets provide excellent resistance to chemicals, UV radiation, and punctures.
China geomembrane roll sheet are designed and made of high quality polyethylene resin with proportional carbon black antioxidant,anti-aging and UV-resistance materials which exhibit impermeable and ultraviolet resistance properties. They are widely used for solid waste landfills, reservoir,waste containment, aquaculture and water treatment system, etc.
Available in varying thicknesses and roll sizes, geomembranes offer a cost-effective and eco-friendly solution for engineering challenges.
china geomembrane roll sheet
china geomembrane roll sheet
China Geomembrane Roll Sheet
|
Item
|
HDPE Geomembrane Technical Data
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||

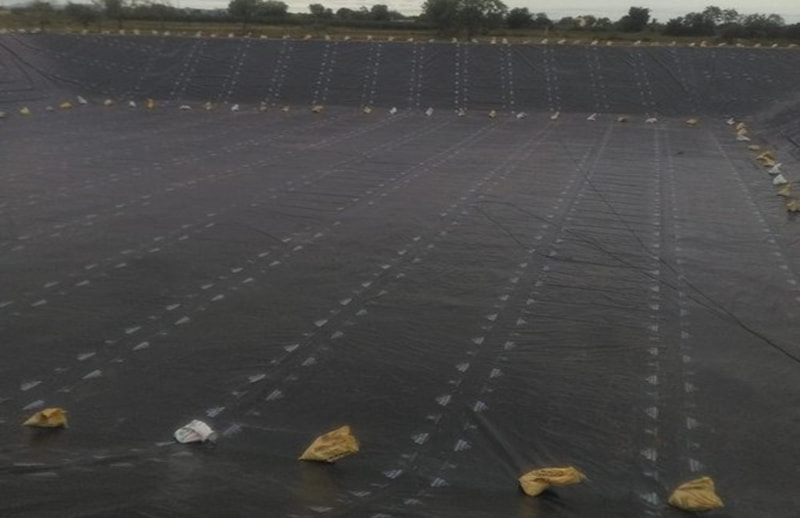

Environmental Protection – Used as landfill liners and caps to prevent leachate contamination of soil and groundwater, ensuring safe waste containment.
Water Management – Installed in reservoirs, ponds, canals, and irrigation systems to prevent seepage and enhance water retention.
Oil & Gas Sector – Provides secondary containment for fuel storage tanks and oilfield pits, reducing spill risks.
Mining & Industrial – Applied in tailings storage facilities, heap leach pads, and secondary containment to safely manage hazardous liquids and prevent pollution.

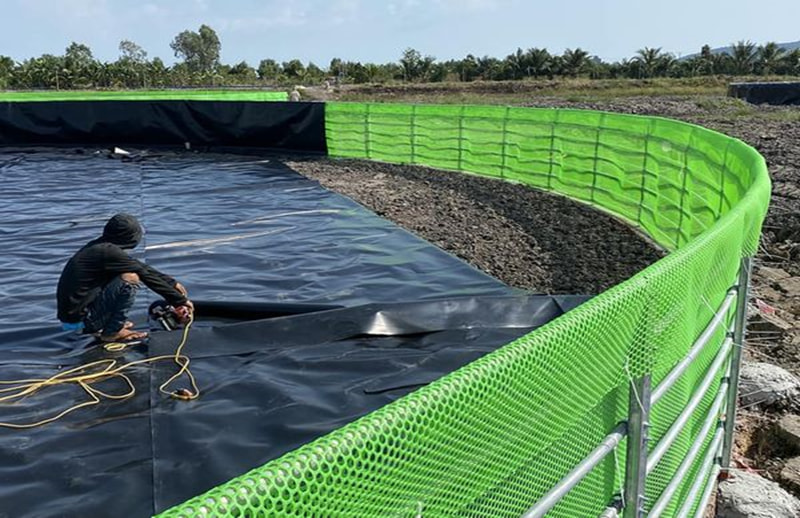

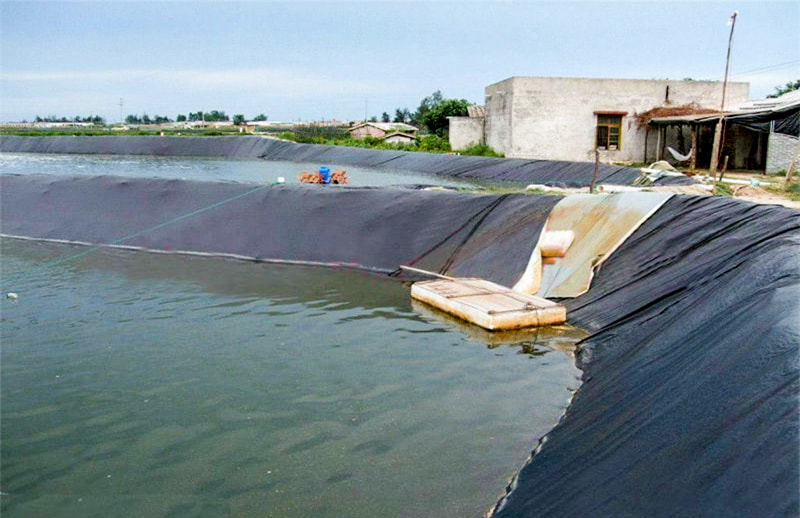

Aquaculture & Agriculture – Lining fish ponds, shrimp farms, and irrigation channels to maintain water levels and improve efficiency.
Civil Engineering – Used for tunnel waterproofing, roadbed stabilization, and underground structure protection to enhance longevity and prevent water damage.
Why Choose China Geomembrane Roll Sheet?
-
Cost-effective compared to traditional concrete or clay barriers.
-
Long service life (up to 30+ years with proper installation).
-
Environmentally friendly – Reduces contamination risks.
china geomembrane roll sheet
Package
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package). Packaging size and container capacity vary according to product specifications.
china geomembrane roll sheet
About Us
- A Professional geomembrane manufacturer in China
- Owning the first 8-meter width geomembrane production line in China
- Annual output ≥20,000 tons
- Over 15 years production experience
- Professional Geomembrane Testing Equipments & Strict quality control.
- Has undertaken domestic and overseas projects for more than15 years.
- Good quality geomembrane approved by many Third-party testing organizations, such as SGS, BV.
- Products distributed to more than 120 countries around the world
