China Geocell Grid
Material: Primarily HDPE, providing durability and chemical resistance.
Structure: A honeycomb-like structure of interconnected cells.
Surface: Smooth cell walls.
Description
Specifications
| Properties | TestMethod | Unit | Value | |||||
| Polymer | – | HDPE | ||||||
| Density | ASTM D1505 | g/cm3 | 0.94 | |||||
| Carbon black content | ASTM D1603 | % | 1.5 | |||||
| Sheet thickness (Smooth) | ASTM D5199 | mm | 1.1or1.2 | |||||
| Sheet thickness (Textured) | ASTM D5199 | mm | 1.5 | |||||
| Seam peel strength | Celldepth | |||||||
| N | 75mm | 1060 | ||||||
| N | 100mm | 1420 | ||||||
| N | 150mm | 2130 | ||||||
| N | 200mm | 2840 | ||||||
| Weld spacing | mm | 330 | 356 | 400 | 445 | 660 | 712 | |
| Expanded cell size (WxL) | mm | 244X203 | 259X224 | 295X250 | 320X287 | 488X408 | 508X475 | |
| Expanded panel size (WxL) | m | 2.44X6.15 | 2.56X6.52 | 4X5 | 2.56X8.35 | 2.44X12.29 | 2.56X13.72 | |
| Expanded panel area | m2 | 15 | 16.7 | 20 | 21.4 | 30 | 35.12 | |
Applications

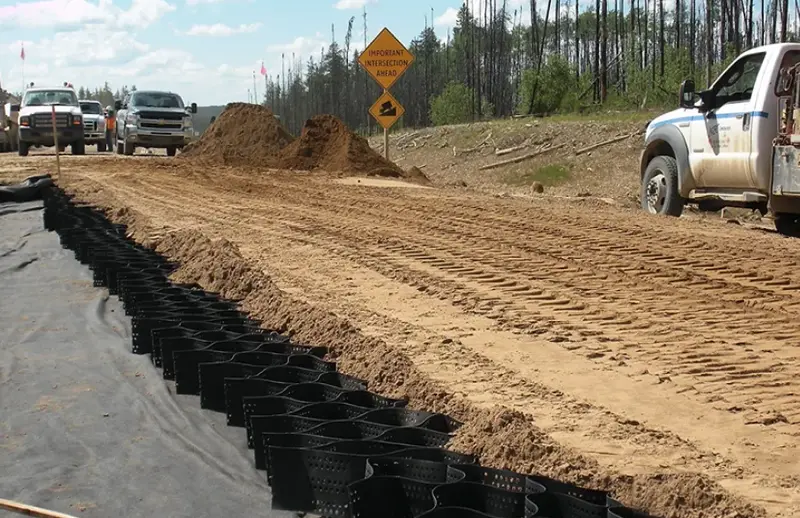

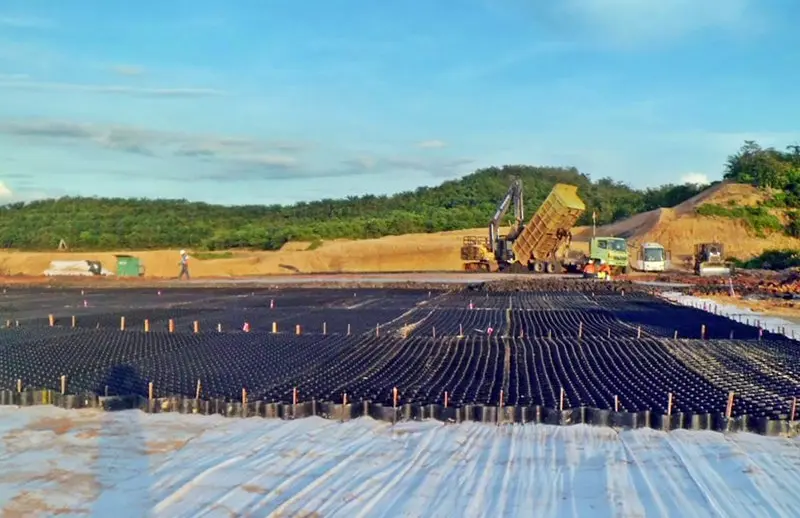

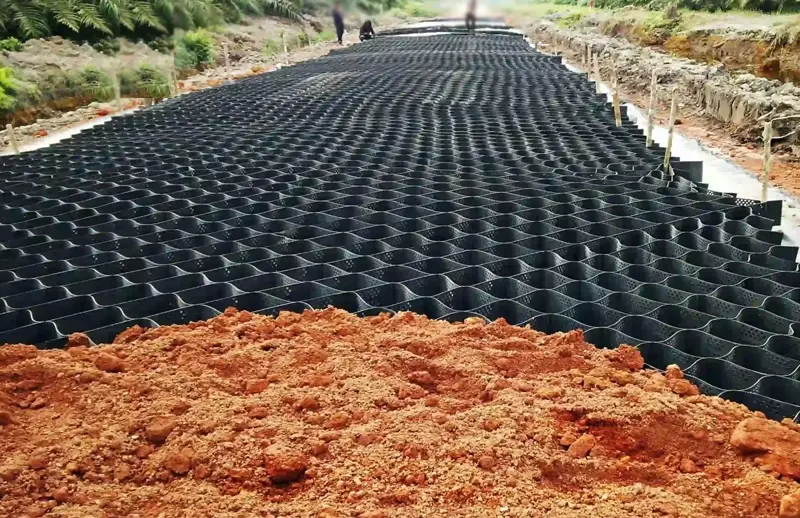

SOIL REINFORCEMETN
Hdpe geocell manufacturers is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.
♦50% reduction in roadbed thickness
♦70+ years service life
♦10 times the bearing capacity

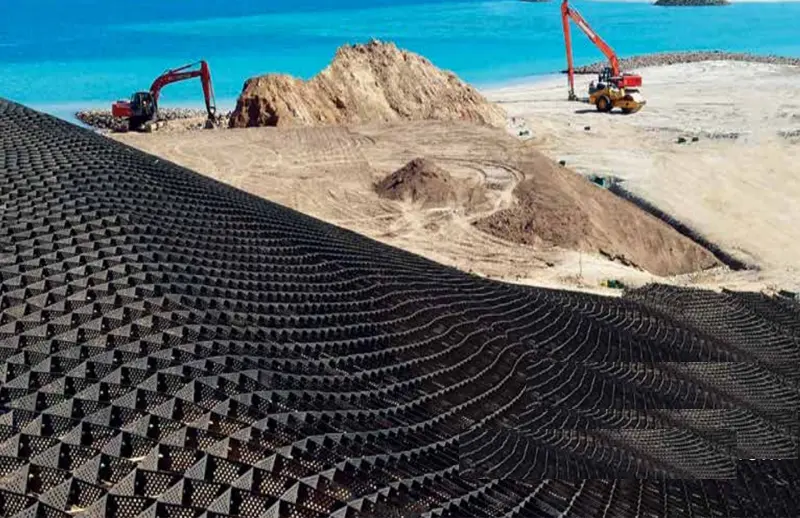

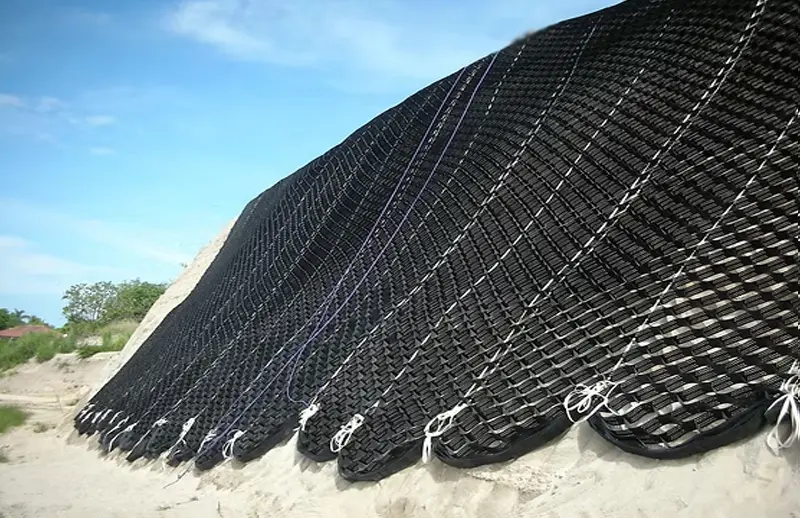

SLOPE PROTECTION
Hdpe geocell manufacturers is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.
♦Environmentally friendly
♦Green vegetation planted on it
♦Excellent drainage with a perforated surface
CHANNEL PROTECTION
Hdpe geocell manufacturers delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.
♦Prevent seepage and reduce water loss
♦Resistance to higher velocity and continuous flows.
♦Less costly, smaller aggregate (up to 10 times) for the same protection.
RETAINING WALLS
Hdpe geocell manufacturers offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.
♦Naturally-Vegetated, Green Retaining Wall Systems
♦25-30% installation faster than MSE block walls.
♦No heavy equipment required.
Related Videos
Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.
