China Filament Geotextile
Made from virgin PET (polyester) chips, the continuous filament was extruded by machine directly through spunbond process. Then punch the continuous filament together to get the stable 3D fabric with higher strength. So it has high strength, good creep property, excellent erosion resistance, aging-resistance and heat resistance.

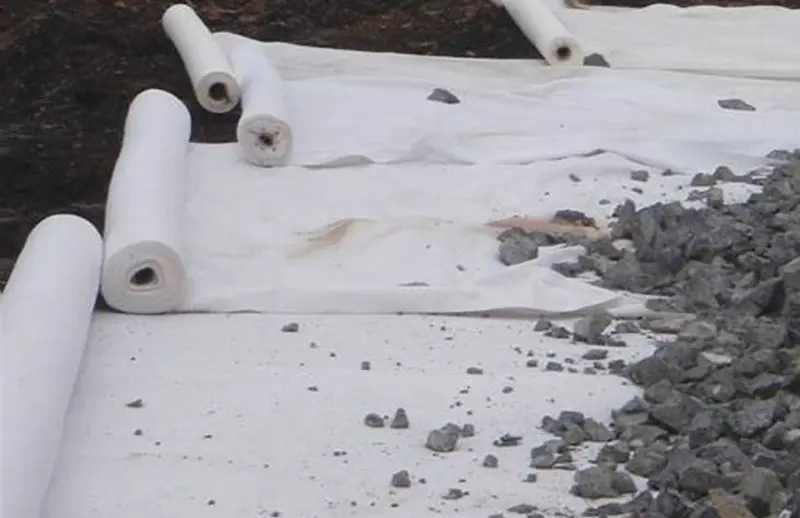

Roadbed reinforcement: used for the isolation and reinforcement of roadbeds such as highways, railways, and airport runways to prevent soil mixing and improve bearing capacity.
Isolation layer: separates different materials (such as crushed stone and soft soil) in soft soil foundations to prevent mutual penetration.
Drainage system: as a drainage layer, guides groundwater or rainwater to prevent water accumulation from causing structural damage.
Anti-seepage protection: used for anti-seepage layers or anti-filtration layers of reservoirs, channels, and dams to prevent water erosion.

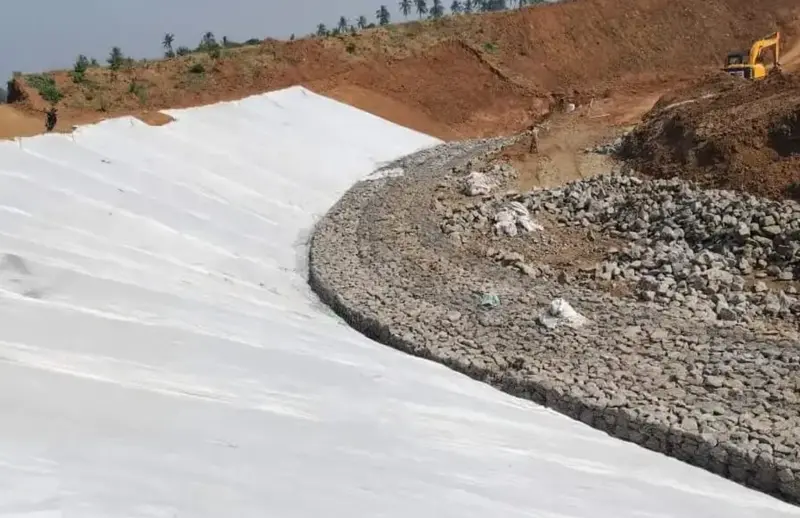

Riverbank slope protection: combined with other materials (such as gabions, vegetation) to protect riverbanks and reduce soil erosion.
Artificial lakes/wetlands: as a basic isolation layer to prevent water leakage and filter impurities.
| Properties | Test Method | Unit | GXSF150 | GXSF200 | GXSF300 | GXSF400 | GXSF500 | GXSF600 | GXSF800 | GXSF1000 |
| Tensile Strength(MD/TD) | ASTM D4595 | kN/m | 8 | 11 | 20 | 24 | 28 | 34 | 48 | 50 |
| Tensile Elongation(MD/TD) | ASTM D4595 | % | 50 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Grab Tensile Strength(MD/TD) | ASTM D4632 | N | 520 | 700 | 1100 | 1500 | 1800 | 2200 | 2800 | 3000 |
| Grab Elongation(MD/TD) | ASTM D4632 | % | 50 | 50 | 60 | 60 | 60 | 60 | 60 | 60 |
| Trapezoidal TearStrength(MD/TD) | ASTM D4533 | N | 220 | 330 | 400 | 480 | 560 | 620 | 860 | 880 |
| CBR Burst Strength | ASTM D6241 | N | 1700 | 2400 | 3200 | 4300 | 5300 | 6000 | 6800 | 7000 |
| Pore Size O90 | ASTM D4751 | m | 90 | 85 | 80 | 75 | 70 | 60 | 55 | 50 |
| Water Flow Q100 | ASTM D4491 | L/m2/s | 160 | 145 | 140 | 120 | 105 | 95 | 90 | 80 |
| Weight | ASTM D5261 | g/m2 | 150 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
China Filament Geotextile
We provide China Filament Geotextile products and solutions to global customers. Feicheng Lianyi Geosynthetics has supplied a wide range of effective and state-of-the-art Geomembranes, Geotextiles, Geocells, Geogrids to more than 50 countries and regions abroa.
Quality Assurance
All of our geogrid products are CE-certificate,and manufactured at ISO 9001 certified manufacturing soil reinforcement geogrids consistently meets demanding QA/QC requirements.Our Products are tested to rigorous ASTM standards both in-house.We have established a national-standard laboratory for in-house quality control. We built a strict quality control system in all aspects from raw materials testing and production processes to final product quality testing.
Professional Service
As a leading manufacturer of geosynthetics materials, we have been exported geogrid to more than 50 countries and regions abroad. On this basis, we continue to develop and provide geosynthetics products with excellent performance and professional technical services.
Q: How long is the service life of China PP woven geotextile?
A: The service life of PP woven geotextile can reach more than 10 years. The specific service life depends on the use environment and construction quality.
Q: What are the construction methods of China PP woven geotextile?
A: The construction methods of PP woven geotextile mainly include laying, overlapping, fixing and other steps. For specific construction methods, please refer to relevant specifications or consult professionals.
Q: What is the price of China PP woven geotextile?
A: The price of PP woven geotextile is affected by factors such as specifications, quantity, and transportation distance. Please consult relevant manufacturers for specific price

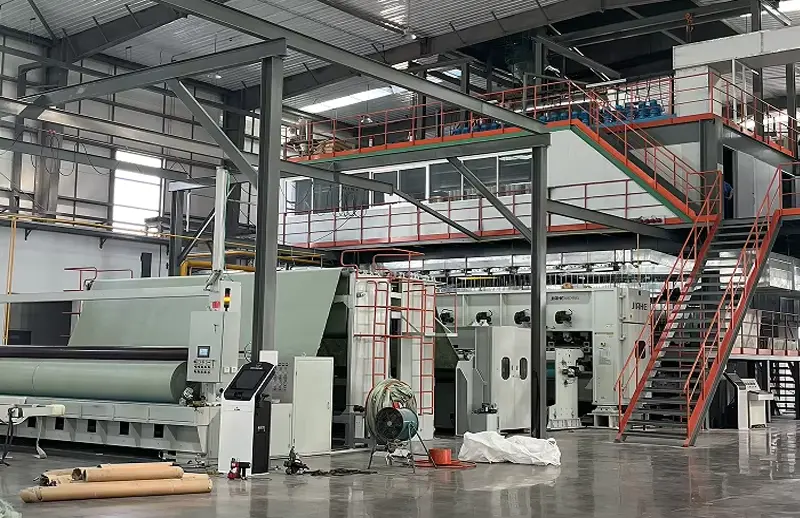

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

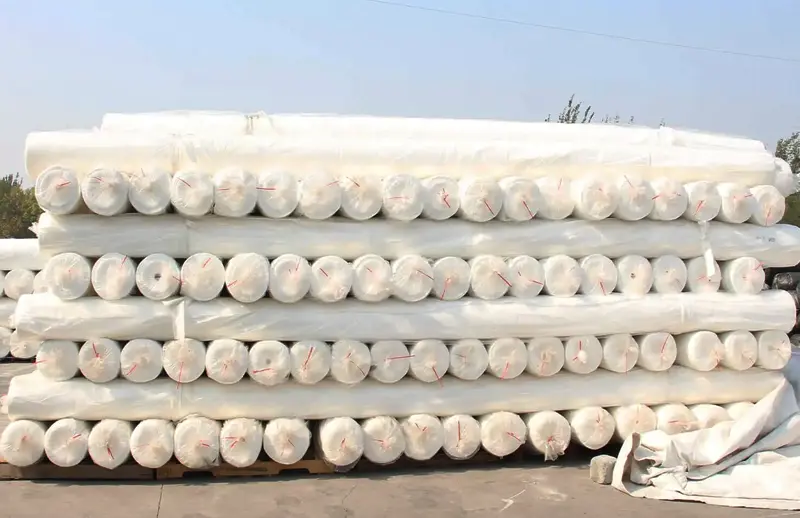

Packing &Transport
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
