Agru Geomembrane
Material:HDPE/LDPE/PVC/EPDM/TPO/LLDPE
Thickness: 0.3mm,0.5mm,0.75mm,1.0mm,1.5mm,2.0mm,3.0mm
Roll Width: 1m,2m,3m,4m,5.8m,6m,7m,8m
Roll Length: 50m,100m,150m,200m
Surface: Smooth,Textured
Colors: Black,Blue,Green,White
Agru Geomembrane
Smooth geomembranes manufactured from quality high density polyethylene resins(HDPE) that comply with the most rigorous requirements established for their use. The 0.5mm hdpe geomembrane is popular thickness,its widely used in aquaculture project,fish pond,shrimp pond and irrigation pond.Smooth Geomembrane, is a geosynthetic material with a flat and smooth appearance.
Agru Geomembrane’s Advantages
Unparalleled Impermeability: Engineered with high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), or reinforced polypropylene (RPP), our geomembranes offer an extremely low hydraulic conductivity, effectively isolating contaminants and preventing fluid migration.
Exceptional Durability & Chemical Resistance: Formulated to withstand harsh environmental conditions, UV radiation, and a wide spectrum of chemicals, acids, bases, and hydrocarbons, ensuring structural integrity and performance over decades.
High Mechanical Strength: Excellent tensile, tear, and puncture resistance allows for installation over challenging subgrades and provides stability under significant loads and stress.
agru geomembrane
Flexible & Conformable: Available in various thicknesses and grades, our geomembranes adapt seamlessly to complex terrain and irregular surfaces, ensuring a complete and secure barrier.
Weldability & Seam Integrity: Designed for reliable thermal fusion welding, creating continuous, strong, and leak-proof seams that are as robust as the sheet itself.
Environmental Sustainability: By preventing soil and water contamination, our products are essential for protecting ecosystems. Many are also manufactured using sustainable practices and can be produced with recycled materials.
The Specifications of Agru Geomembrane
|
Item
|
Index
|
||||||||
|
Thickness (mm)
|
0.30
|
0.50
|
0.75
|
1.00
|
1.25
|
1.50
|
2.00
|
2.50
|
3.00
|
|
Density ( g/cm3)
|
≧0.940
|
||||||||
|
Tensile yield strength (N/mm)
|
≧4
|
≧7
|
≧10
|
≧13
|
≧16
|
≧20
|
≧26
|
≧33
|
≧40
|
|
Tensile fracture strength (N/mm)
|
≧6
|
≧10
|
≧15
|
≧20
|
≧25
|
≧30
|
≧40
|
≧50
|
≧60
|
|
Elongation at yield (%)
|
_
|
_
|
_
|
≧11
|
|||||
|
Elongation at break (%)
|
≧600
|
||||||||
|
Right-angle tear load (N)
|
≧34
|
≧56
|
≧84
|
≧115
|
≧140
|
≧170
|
≧225
|
≧280
|
≧340
|
|
Puncture strength (N)
|
≧72
|
≧120
|
≧180
|
≧240
|
≧300
|
≧360
|
≧480
|
≧600
|
≧720
|
|
Carbon black content (%)
|
2.0~3.0
|
||||||||
The Applications of Agru Geomembrane

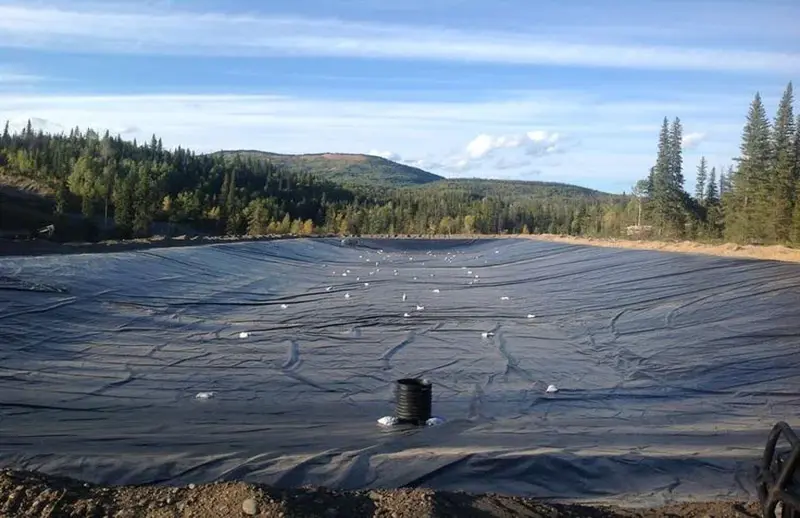

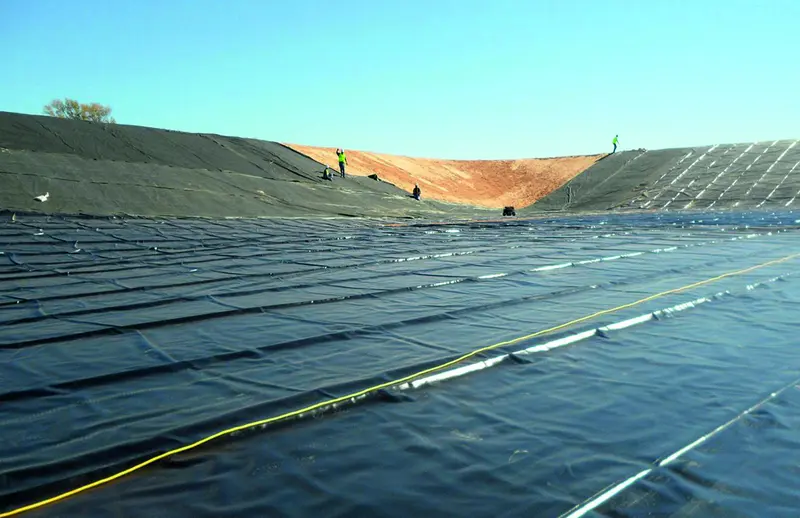

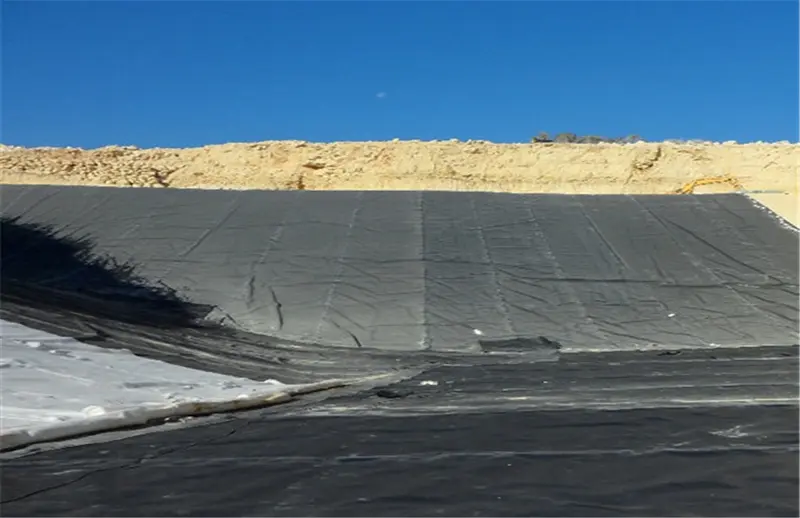

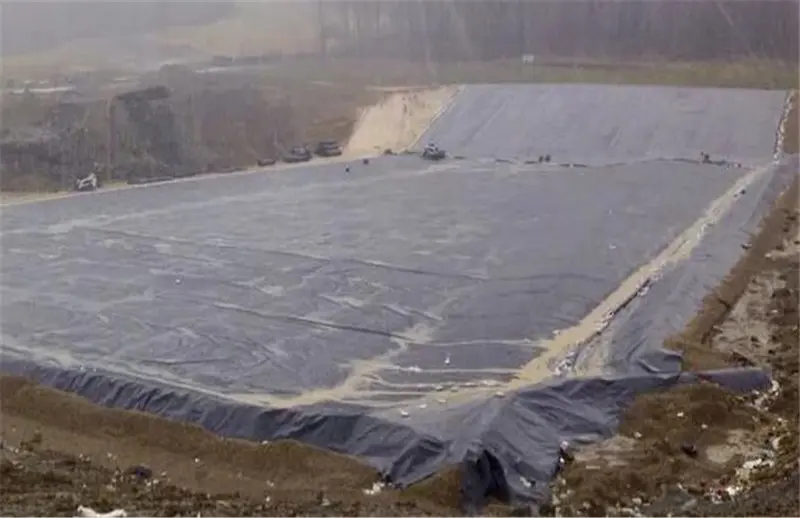

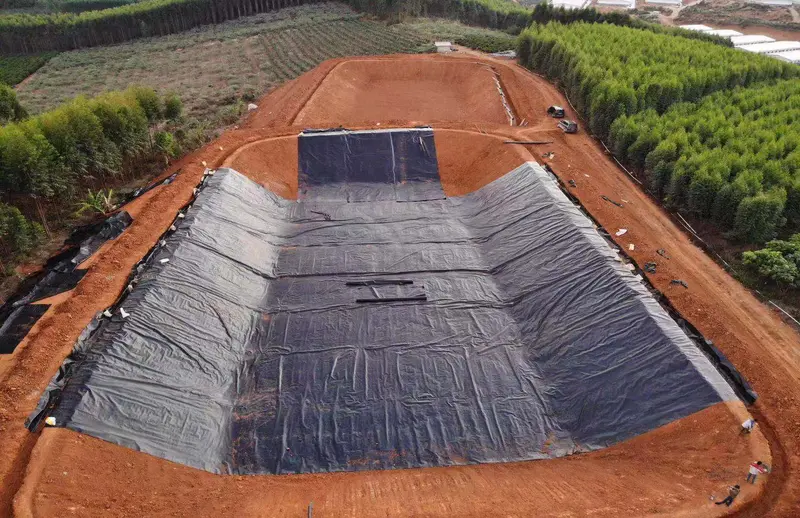

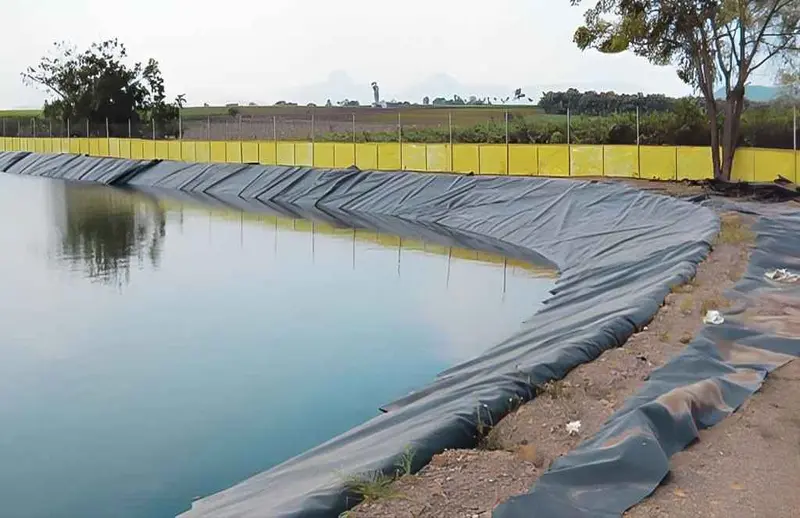

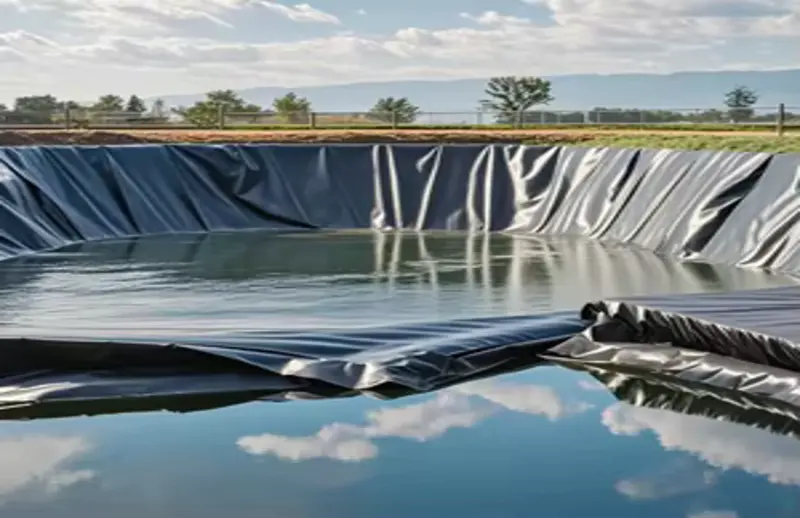

Geomembrane is widely used: landfill liners, fish ponds in aquaculture, lining of shrimp ponds, agricultural reservoirs, artificial lakes, reservoirs, seepage prevention in chemical plants, tailings, construction projects, etc. Geomembrane is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties. Geomembrane is widely used: landfill liners, fish ponds in aquaculture, lining of shrimp ponds, agricultural reservoirs, artificial lakes, reservoirs, seepage prevention in chemical plants, tailings, construction projects, etc. Geomembrane is a continuous flexible film made of polymer synthetic materials with excellent waterproof and isolation properties.
Environmental Protection:
Landfill base and cap liners (MSW, hazardous waste, industrial waste)
Leachate and evaporation ponds
Wastewater treatment lagoons and tanks
Water & Fluid Management:
Potable water reservoirs and canal linings
Agricultural irrigation ponds and water conservation
Aquaculture and decorative pond liners
Tailings storage facilities for mining
Civil & Geotechnical Engineering:
Tunnel and underground structure waterproofing
Secondary containment for tanks and industrial facilities
Stormwater management and flood control systems
