Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
Uniaxial Geogrid

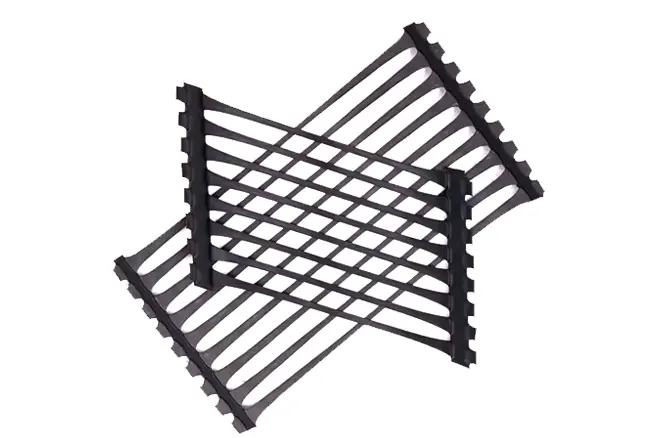

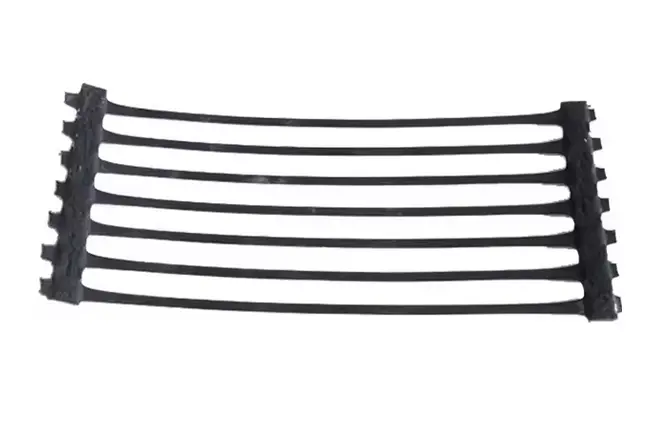

Uniaxial geogrid, made of high molecular polymer, is extruded into sheet and then punched into regular mesh pattern, and finally stretched in the longitudinal direction.
Description
Uniaxial Geogrid are manufactured from select grades of high-density polyethylene (HDPE) resins. The resins are highly oriented and resist elongation (creep) when subjected to heavy loads for long periods. In order to achieve superior strength and uniformity, manufacturers punch and draw a homogenous polymer sheet. As a result of this unique process, engineers and contractors benefit from superior junction strength and high-strength connections to other rolls of geogrid or facing components.
Furthermore, Uniaxial Geogridin soils with pH levels measuring as high as 12 show no degradation. Not to mention, they are suitable for both dry and wet environments. Their open aperture structure interlocks with fill material, providing superior load transfer from soil to geogrid. Benefit from high tensile loads applied in one direction (along the roll length) with Uniaxial Geogrid.
One-way Stretch Uniaxial Geogrid for Pavement

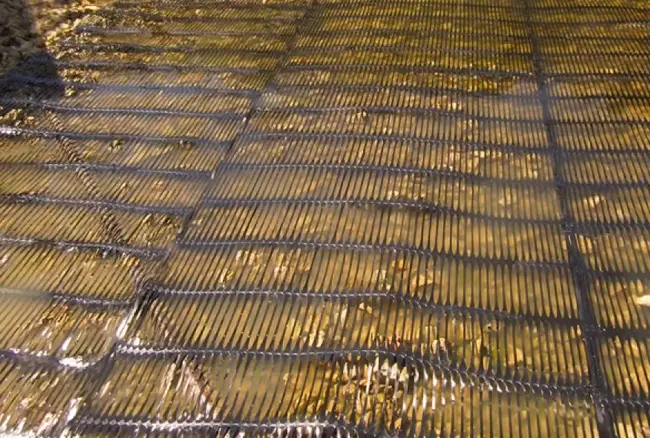

Uniaxial geogrid is a kind of geosynthetics. This product is designed for roadbed and pavement improvement. It is characterized by a one-way stretch structure. This unidirectional structure forms a compact interlock system. Uniaxial geogrid has good flexural stiffness and high strength. It can effectively reinforce soil structure and prevent soil from displacement. Uniaxial geogrid largely increases the durability of subgrade structure and prolongs the road life. Uniaxial geogrid can greatly reduces aggregate fill thickness. It provides a cost-effective solution for civil engineering and geotechnical projects.

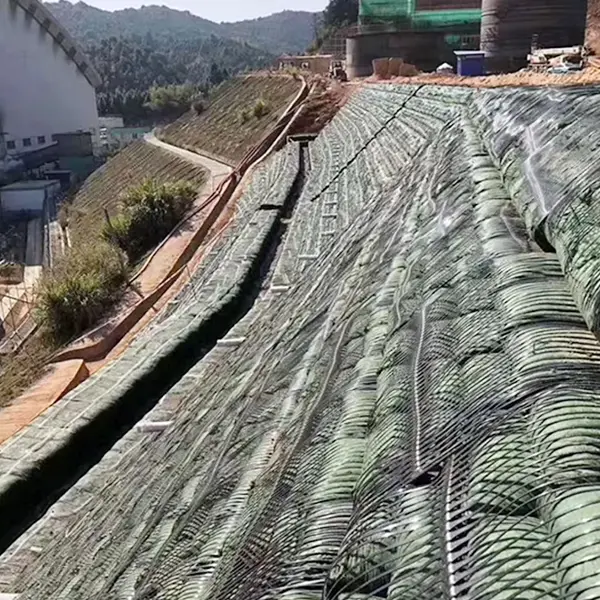

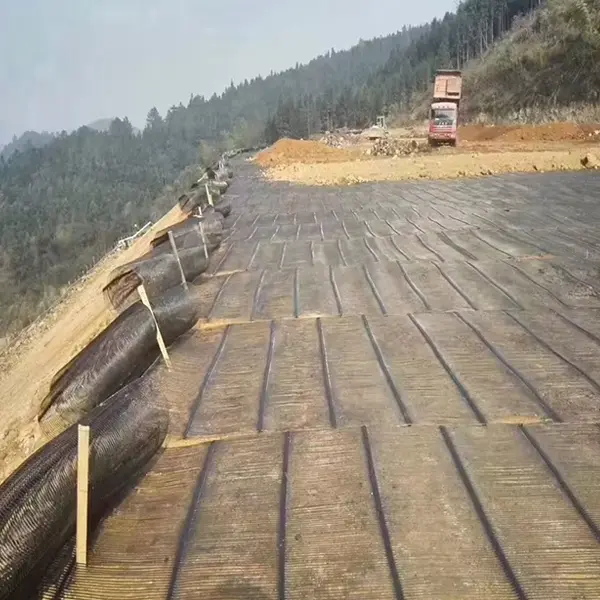

Uniaxial geogrid is suitable for various soil types and climate conditions. It performs well in preventing slope and road from landslide and subsidence. Uniaxial geogrid is widely applied roadbed stabilization, pavement improvement, retaining wall and bridge abutment reinforcement.
Specifications
| Index Properties | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Properties | Units | UX1100 | UX1400 | UX1500 | UX1600 | UX1700 | UX1800 | |||||||
| Tensile Strength at 5% Strain | kN/m (lb/ft.) | 27 (1,850) | 31 (2,130) | 52 (3,560) | 58 (3,980) | 75 (5,140) | 95 (6,510) | |||||||
| Ultimate Tensile Strength | kN/m (lb/ft.) | 58 (3,970) | 70 (4,800) | 114 (7,810) | 144 (9,870) | 175 (11,990) | 210 (14,390) | |||||||
| Junction Strength | kN/m (lb/ft.) | 54 (3,690) | 66 (4,520) | 105 (7,200) | 135 (9,250) | 160 (10,970) | 180 (12,340) | |||||||
| Flexural Stiffness | (mg-cm) | 500,000 | 730,000 | 5,100,000 | 6,000,000 | 9,075,000 | 9,500,000 | |||||||
| Load Capacity | ||||||||||||||
| Properties | Units | UX1100 | UX1400 | UX1500 | UX1600 | UX1700 | UX1800 | |||||||
| Maximum Allowable (Design) Strength | kN/m (lb/ft.) | 21.2 (1,450) | 25.6 (1,760) | 41.8 (2,860) | 52.7 (3,620) | 64.1 (4,390) | 74.1 (5,080) | |||||||
Applications

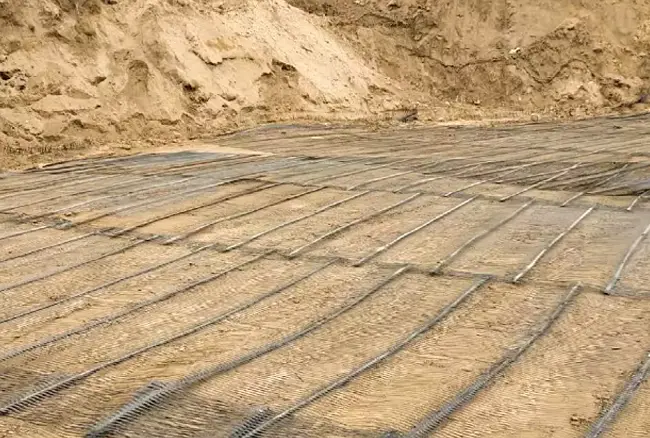

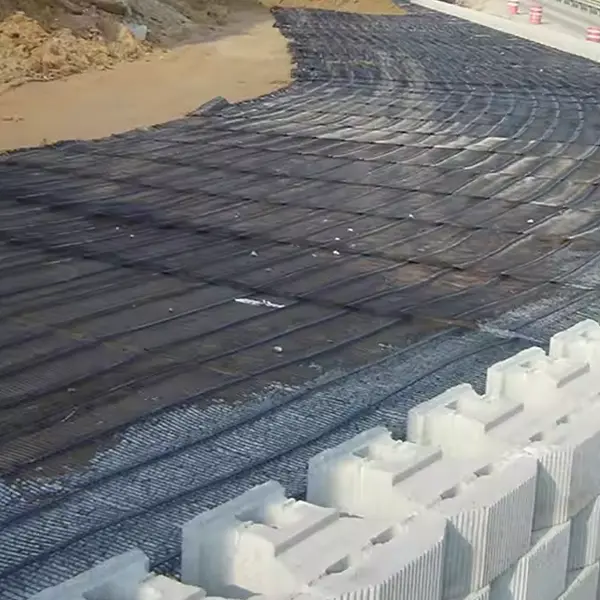

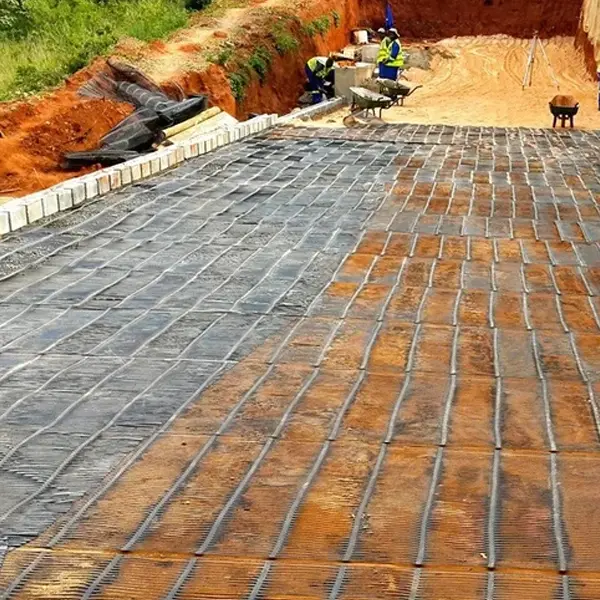

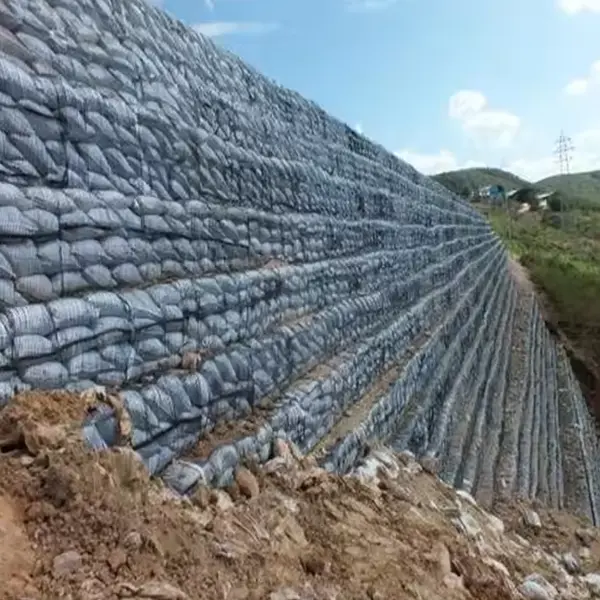

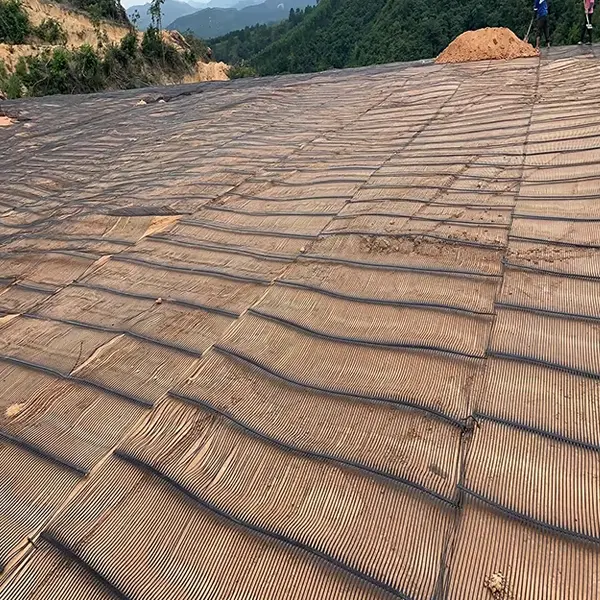

Used in the reinforcement of soft soil, roadbed, pavement, retaining wall, slope, working platforms, parking lots, bridge abutments, embankment, and so on.
Used in the paving of roads, railway, highway.

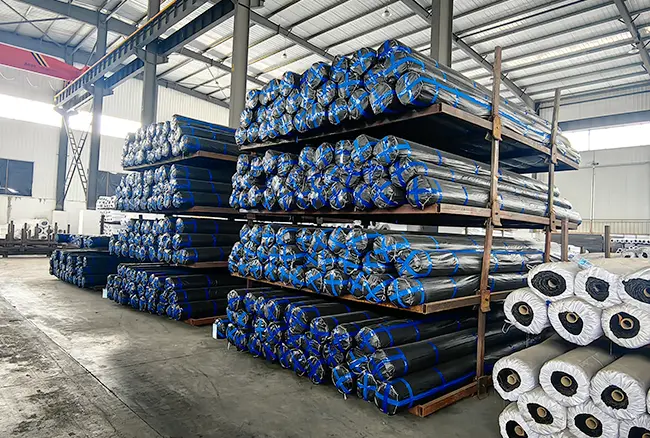

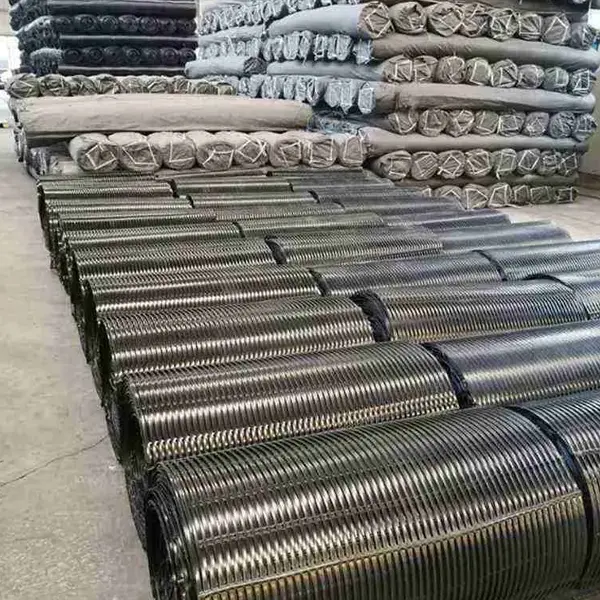

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

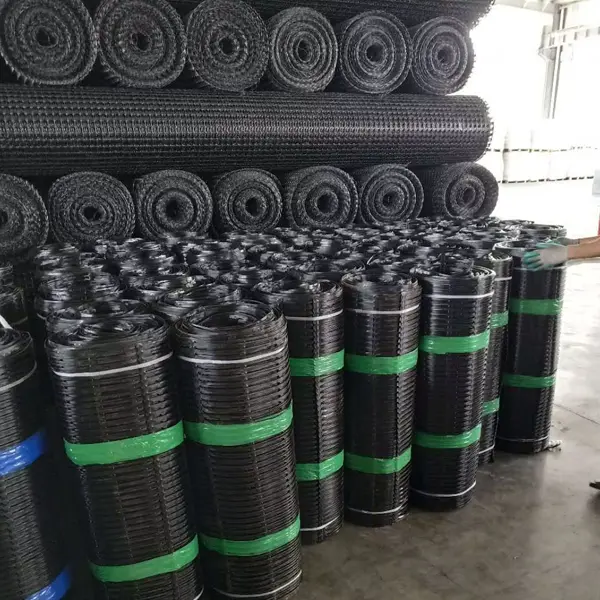

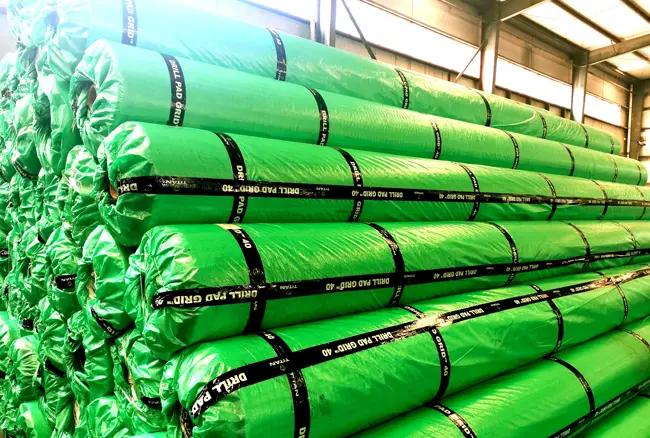

Packing & Delivery
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.

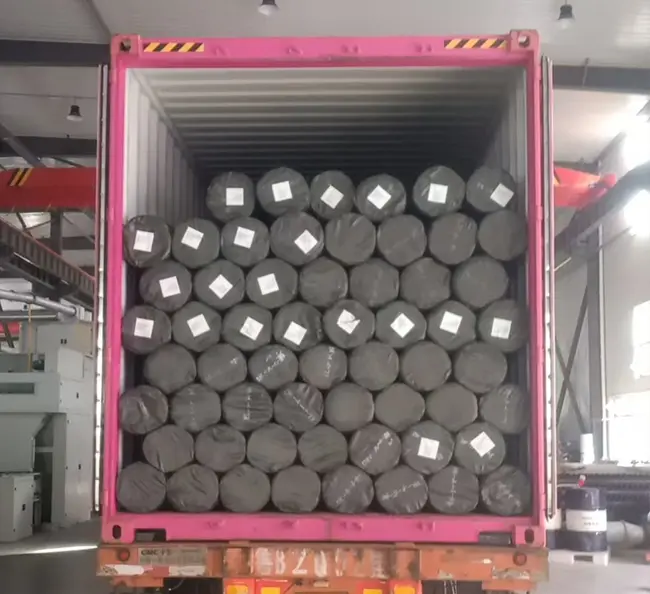

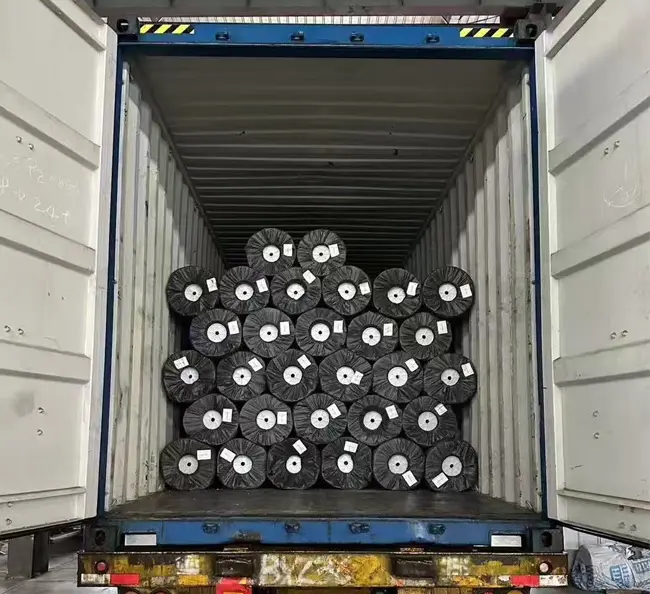

Transport
