Steel Plastic Geogrid
Material: PET,PP,Fiberglass,Steel plastic,Fiber plastic Geogrid
Tensile Strength: 20,30,50,80,100,150,200,400,500,600,800,1200kN/m
Roll Width: 1m,2m,3m,4m,5m,6m
Roll Length: 50m,100m,200m
Colors:Black
Steel Plastic Geogrid
The steel plastic geogrid is a high-performance, composite geosynthetic material engineered to deliver exceptional tensile strength and long-term stability in soil reinforcement and slope stabilization projects. By integrating high-tensile steel wires within a protective polyethylene or polypropylene coating, we have created a geogrid that offers the best of both worlds: the supreme strength of steel and the superior corrosion resistance of plastic.
steel plastic geogrid
The Key Features of Steel Plastic Geogrid
Exceptional Tensile Strength & High Modulus
The core high-carbon steel wires provide extremely high tensile strength and a high modulus, meaning minimal stretching under load. This ensures superior resistance to deformation and exceptional long-term performance under heavy and sustained loads.
Outstanding Durability & Corrosion Resistance
Each steel wire is fully encapsulated by a thick, protective polymer coating. This creates an effective barrier against chemical corrosion, electrochemical attack, and mechanical damage, ensuring a long design life even in aggressive soil conditions and harsh environments.
steel plastic geogrid
Optimal Soil Interlock
The unique, rigid polymer grid structure provides excellent interaction with a wide range of fill materials (soil, aggregate, etc.). This creates a stable, composite mass that effectively distributes loads and reduces differential settlement.
Ease of Installation

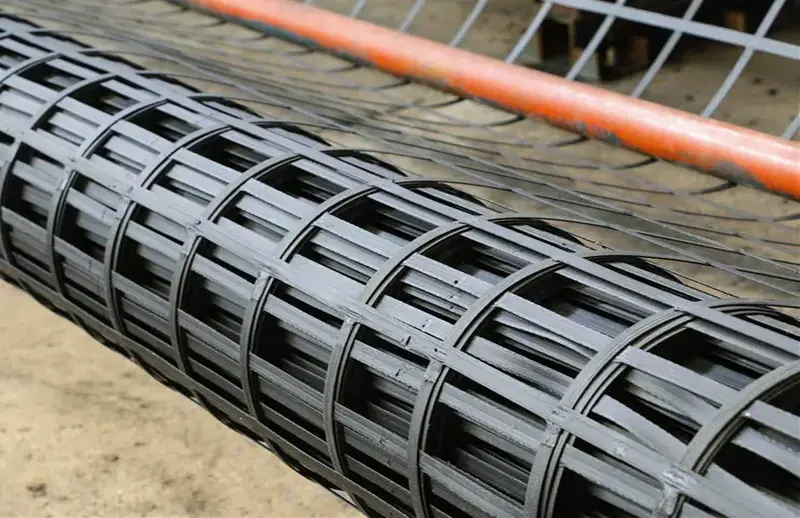

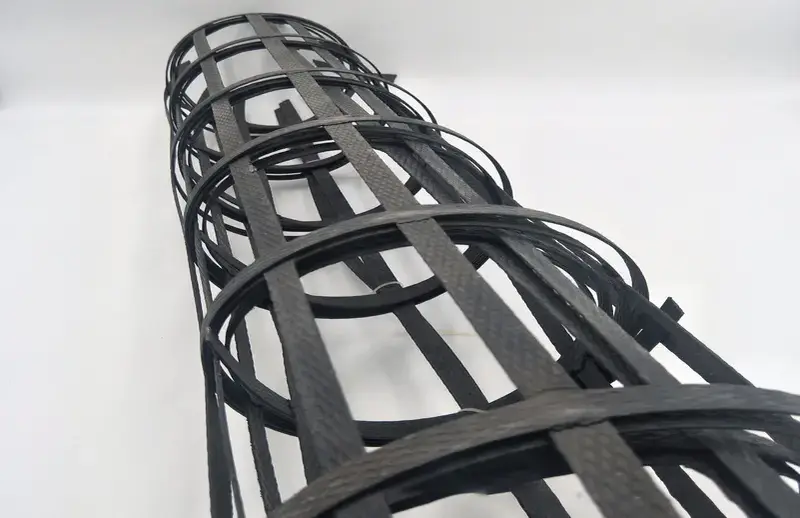

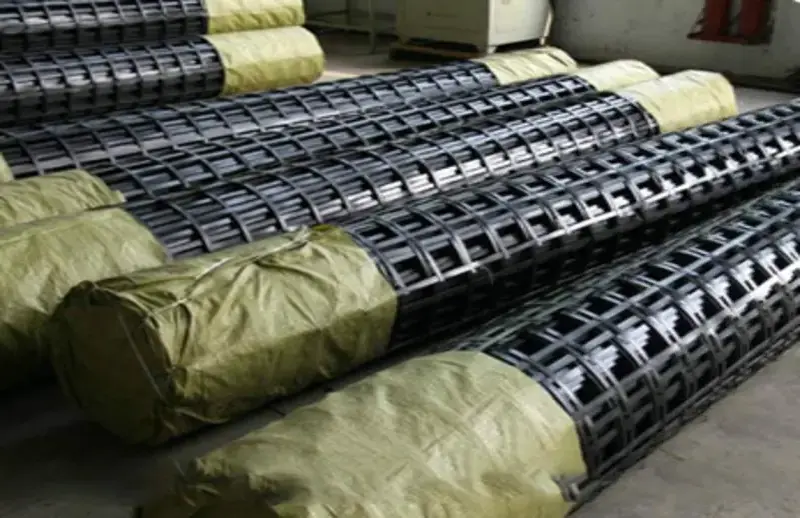

Unlike traditional bare steel reinforcements, the steel plastic geogrid is supplied in flexible, manageable rolls. It is lightweight compared to its strength and can be easily unrolled and positioned on-site, significantly reducing labor time and installation costs.
Cost-Effective Solution
By enabling the use of locally available fill materials and simplifying construction, the steel plastic geogrid offers a more economical and efficient alternative to conventional concrete retaining structures or expensive imported fills.
Steel Plastic Geogrid’s Specifications
|
Steel Plastic Geogrid Specification
|
|||||||
|
Performance/Specification
|
TGDC30
|
TGDC50
|
TGDC80
|
TGDC100
|
TGDC120
|
TGDC150
|
|
|
Vertically Limited Rally (KN/m)>=
|
30
|
50
|
80
|
100
|
120
|
150
|
|
|
Vertically Limited elongation ratio(%)<=
|
3
|
3
|
3
|
3
|
3
|
3
|
|
|
Elongation at a% of the rally (KN/m)>=
|
23
|
38
|
63
|
81
|
98
|
125
|
|
|
Width(m)
|
6m
|
||||||
Steel Plastic Geogrid’s Applications
It can be used in civil engineering such as highway, railroad, embankment, bridge platform, construction road, wharf, shore protection, flood control dike, dam, beach management, cargo yard, slag field, airport, sports field, environmental protection building, soft ground reinforcement, retaining wall, slope protection and pavement anti-deterioration.
Reinforced Soil Retaining Walls: For highway abutments, bridge approaches, and commercial landscaping.

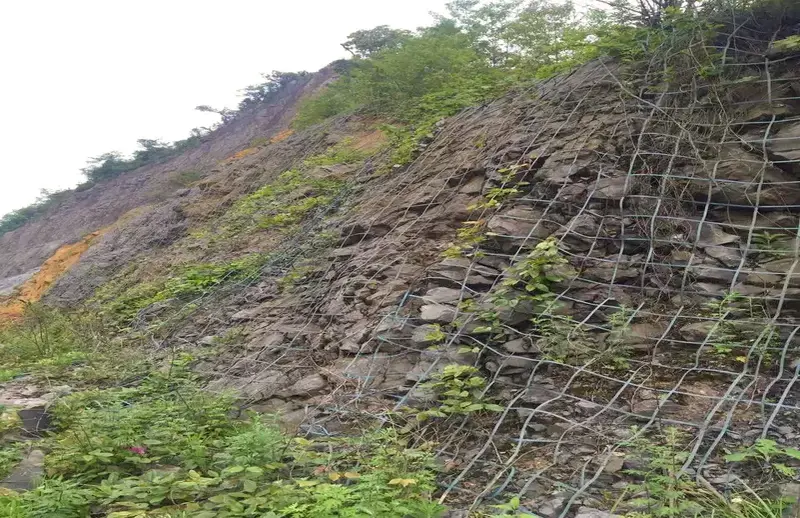

Steep Slope Stabilization: Prevents erosion and landslides in hilly terrain and along transportation corridors.
Embankment Foundations over Soft Soil: Provides a stable base for roads and railways built on weak subsoils.
Landfill and Containment Facility Liners: Offers reinforcement for liner systems and final cover systems.

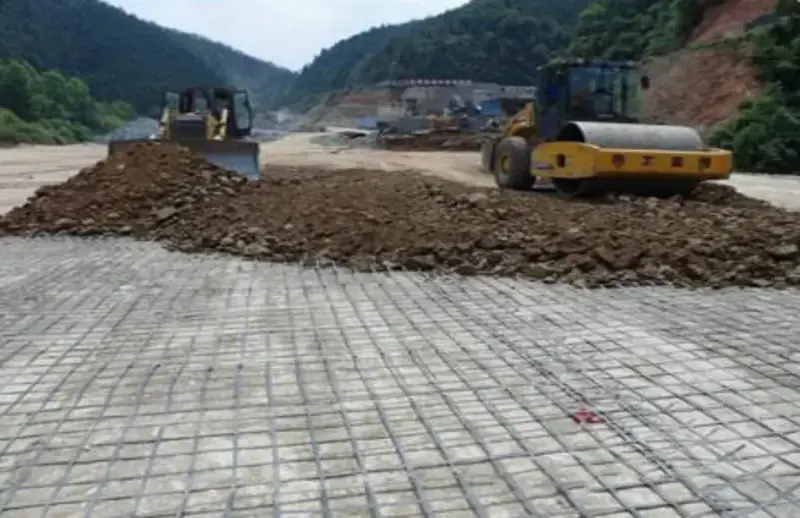

Heavy-Duty Pavement Base Reinforcement: Extends the service life of roads, ports, and industrial yards.
steel plastic geogrid
steel plastic geogrid
steel plastic geogrid
steel plastic geogrid
The Advantages of Steel Plastic Geogrid
It can effectively improve the interlocking and occluding effect of the reinforced bearing surface, greatly enhance the bearing capacity of the foundation, effectively restrain the lateral displacement of the soil, and enhance the stability of the foundation.
High strength, small creep, suitable for all kinds of environmental soil, can fully meet the use of high-grade highway retaining wall.
It is more suitable for deep sea operation and bank reinforcement, and fundamentally solves the technical problems such as low strength, poor corrosion resistance and short service life caused by long-term seawater erosion of other materials.
It is more suitable for deep sea operation and bank reinforcement, and fundamentally solves the technical problems such as low strength, poor corrosion resistance and short service life caused by long-term seawater erosion of other materials.
High In-soil Service Life: The robust plastic coating ensures performance integrity for decades.
Uniform Load Distribution: Reduces stress concentrations and minimizes the risk of structural failure.
Enhanced Bearing Capacity: Ideal for constructing steep, stable slopes and walls on soft subgrades.
