Permeable Geotextile Fabric
Material:PET/PP
Surface:Filament/Short Fiber
Width:1-6m
Length:50/100/150/200/Customized
Weight:100-1200gsm
Permeable Geotextile Fabric
It is a durable, synthetic textile membrane engineered to be water-permeable. Available in both woven and non-woven styles, it is placed between dissimilar materials (like soil and gravel) to perform essential geotechnical functions without impeding water flow. Think of it as a high-tech, durable filter and stabilizer.
permeable geotextile fabric
The Advantages of Permeable Geotextile Fabric
Separation: Prevents the intermixing of subgrade soil and aggregate layers (e.g., road base). This maintains the structural integrity and load-bearing capacity of the overlying material, preventing rutting and premature failure.
Filtration: Allows water to pass freely through its plane while retaining fine soil particles. This prevents soil migration and piping, which can lead to voids and sinkholes, while ensuring proper drainage.
permeable geotextile fabric
Drainage: (Primarily Non-Woven) Acts as a conduit for in-plane water flow, relieving hydrostatic pressure behind retaining walls or in drainage applications.
Reinforcement: Provides tensile strength to improve the load distribution of soft subgrades, offering supplemental stabilization.
Protection: Cushions and protects delicate geomembranes (like pond liners) from puncture by underlying sharp objects.
Permeable Geotextile Fabric’s Specifications
|
Product Name
|
Permeable Geotextile Fabric
|
|
Material
|
polyester or pp or mixed or recycled
|
|
Surface
|
both sides smooth / both sides textured / one side smooth, the other side textured / as your request
|
|
Thickness
|
1mm – 5.0mm
|
|
Size
|
Width: 4M – 10M
Length: 50M – 200M (or as request)
|
|
Color
|
Black, White, Blue, Green, Grey , etc
|
|
MOQ
|
1000sqm per thickness
|
|
Certificate
|
CE / ISO 9001
|
|
Packing
|
In PP woven bag or as request
|
|
Samples
|
Free samples available
|
|
Delivery Time
|
about 15 days after received the 30% deposit
|
Permeable Geotextile Fabric’s Specifications

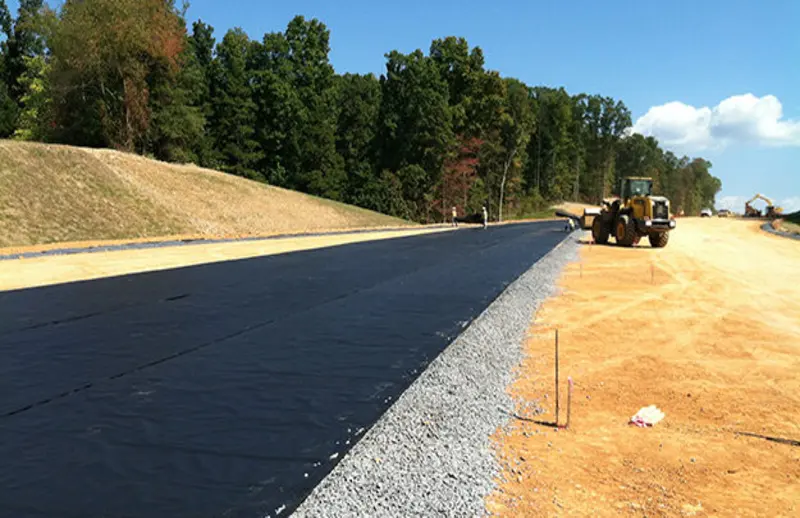

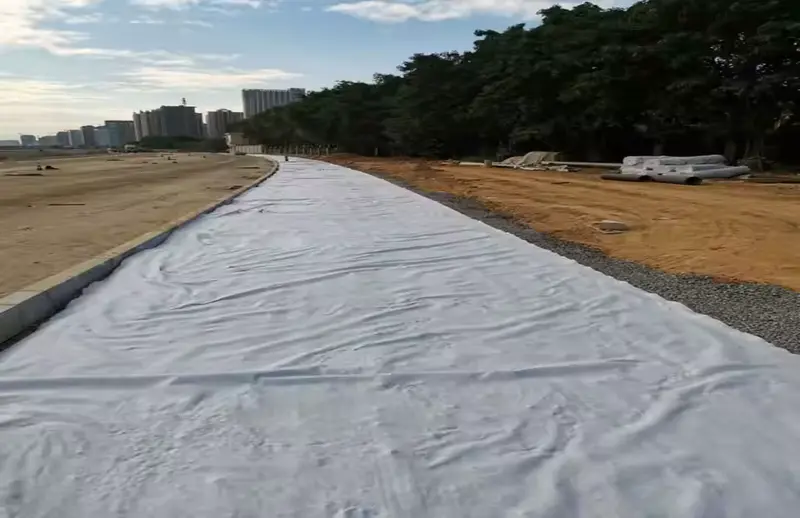

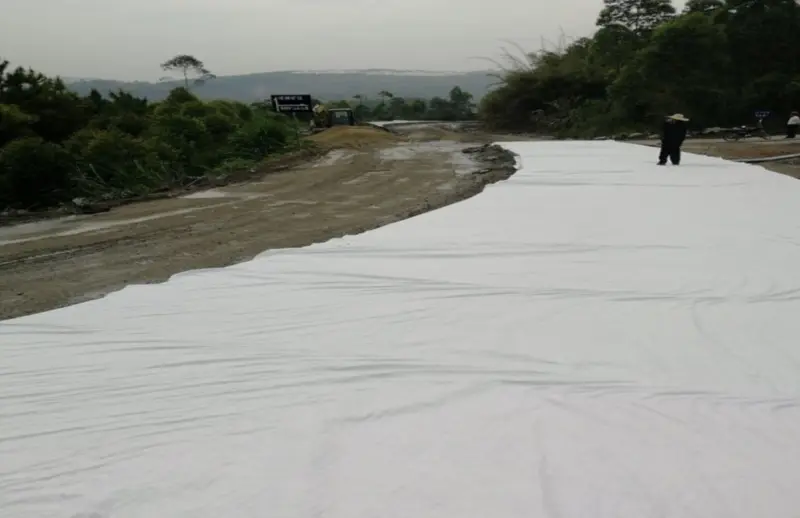

Road & Railway Construction: Base separation under unpaved and paved roads, parking lots, and rail ballast.

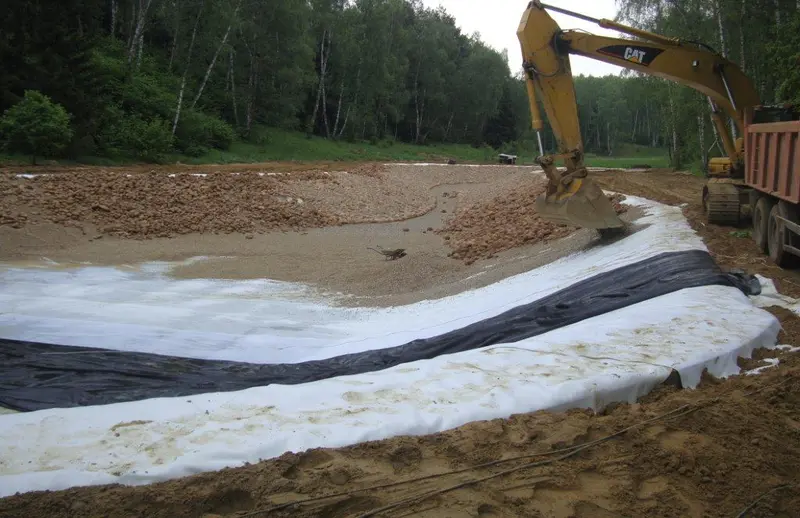

Drainage Systems: Wrapping around aggregate in French drains, trench drains, and erosion control structures.
Retaining Walls & Steep Slopes: As a filter layer behind walls to prevent soil loss while allowing drainage.
Erosion Control: Under riprap, revetments, and gabion baskets to prevent soil scour.

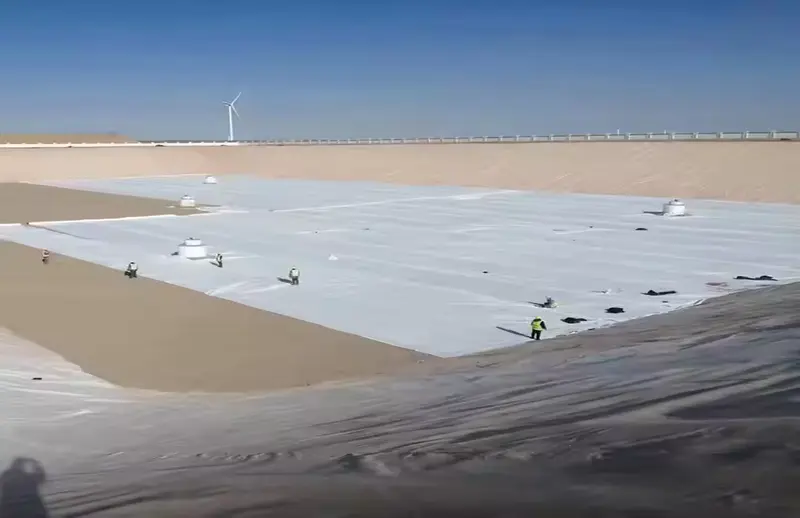

Landfills & Containment: As a protective cushion and filter layer in landfill liners and caps.
Landscaping & Agriculture: Under decorative stone, in green roofs, and for weed barrier in certain applications.
permeable geotextile fabric
permeable geotextile fabric
permeable geotextile fabric
permeable geotextile fabric
Permeable Geotextile Fabric
Optimal Permeability & Filtration: Precisely engineered pore sizes ensure excellent water flow (high permittivity) while effectively retaining soil, balancing performance for your specific application.
High Strength & Durability: Excellent tensile, tear, and puncture resistance to withstand harsh installation conditions and long-term stresses. UV-stabilized for extended exposure.
Chemical & Biological Resistance: Inert to most soil chemicals, microorganisms, and rot, ensuring consistent performance for decades.
Cost-Effective: Dramatically reduces aggregate loss and subgrade contamination, lowering material requirements and long-term maintenance expenses.
