filament as main material.
Mining Geogrid Features
Compared with metal mesh, it has the characteristics of light weight, high strength, flame retardant, antistatic, corrosion
resistance, etc. It is easy to install and use.

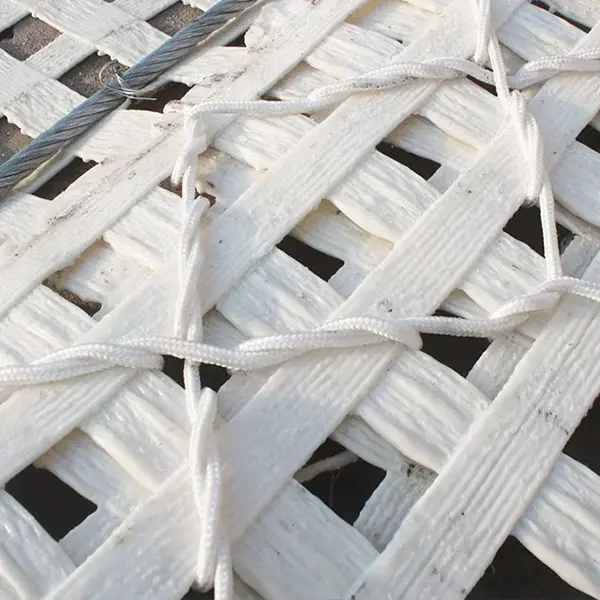

Mining Geogrid
High-Strength Polyester Geogrid for Mining is made of reinforced polyester yarns, coated with a layer of conducting electrostatic, with the high fire retardant acid and alkali resistance, it can be widely used in the intermediate ceiling and side protection net in mining projects.
Description

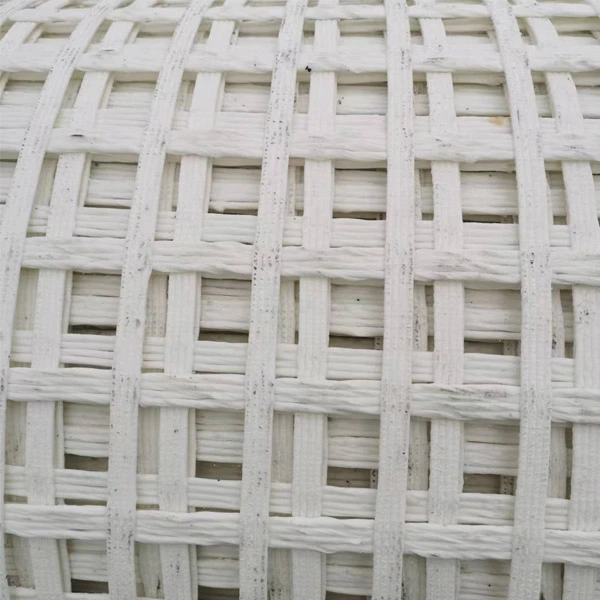

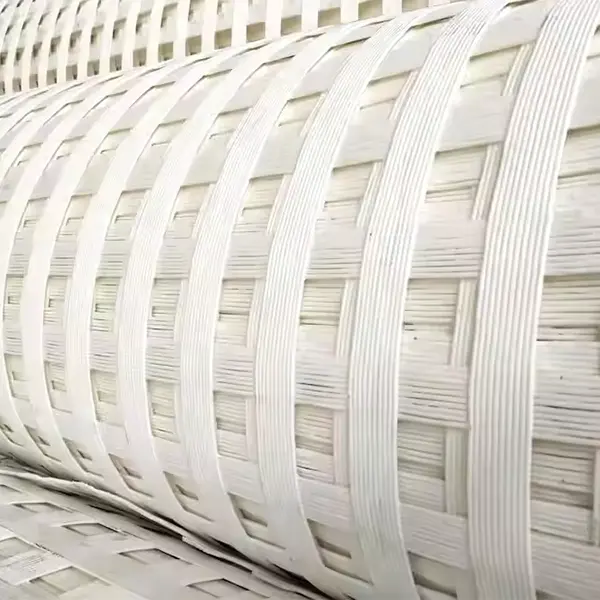

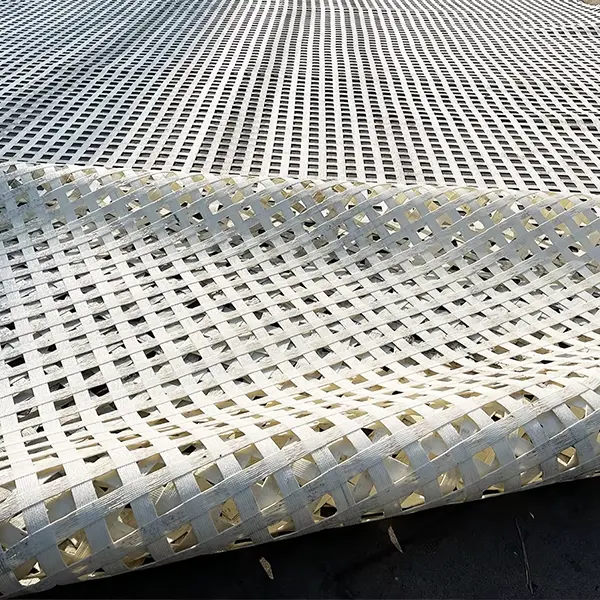

The polyester fiber reinforced plastic mesh false roof for underground coal mines is made of high-modulus, high-strength industrial polyester filaments bundled and woven into a matrix, and a flame-retardant and antistatic coating is applied on the surface of the matrix. It is a new type of mining support material, and also a special material for open-pit coal mine slope protection and roadbed reinforcement. It can replace traditional metal mesh, plastic mesh, and steel-plastic mesh, etc.
It is an ideal underground support net and special net for open-pit mine slope protection. The product specifications range from 40KN to 1000KN, and there are many specifications. It is used as a false roof protection for coal mines and lower mining working faces, temporary and permanent support for coal mine bolting tunnels and tunnels, and can also be used for other mine tunnel projects and underground civil engineering projects.
High strength flame retardant polyester grid for mining;
High strength flame retardant polyester grid for mining is made by weaving and coating with high-strength polyester industrial
filament as main material.
resistance, etc. It is easy to install and use.
filament as main material.
resistance, etc. It is easy to install and use.
Specifications
| Technical Parameters of Minging Geogrid | ||||||||||||||||||||
| Specifiication | PET 40-40 | PET 50-50 | PET 60-60 | PET 70-70 | PET 80-80 | PET 100-100 | PET 120-120 | PET 160-160 | PET 200-200 | PET 240-240 | PET 300-200 | PET 300-300 | PET 400-400 | PET 600-400 | PET 600-600 | PET 700-700 | PET 800-800 | PET 1000-600 | PET 1200-600 | |
| Tensilestrength (KN/m) | MD | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 160 | 200 | 240 | 300 | 300 | 400 | 600 | 600 | 700 | 800 | 1000 | 1200 |
| CD | 40 | 50 | 60 | 70 | 80 | 100 | 120 | 160 | 200 | 240 | 200 | 300 | 400 | 400 | 600 | 700 | 800 | 600 | 600 | |
| Tensile Elongation (%) | <25% | |||||||||||||||||||
| Grid Size(mm) | 25.4×25.4 50.8×50.8 76.2×76.2 | |||||||||||||||||||
| Mesh Size(mm) | 20×20 40×40 50×50 | |||||||||||||||||||
| Width(m) | 1 .6 m could be connecting by rope to 10 -40m | |||||||||||||||||||
| Length(m) | 50-500 m | |||||||||||||||||||
| Flame Resistant(s) | Flame:<3 Non-Flame:< 10 | |||||||||||||||||||
| Static Conduction(Ω) | <1.0×10³ | |||||||||||||||||||
Applications

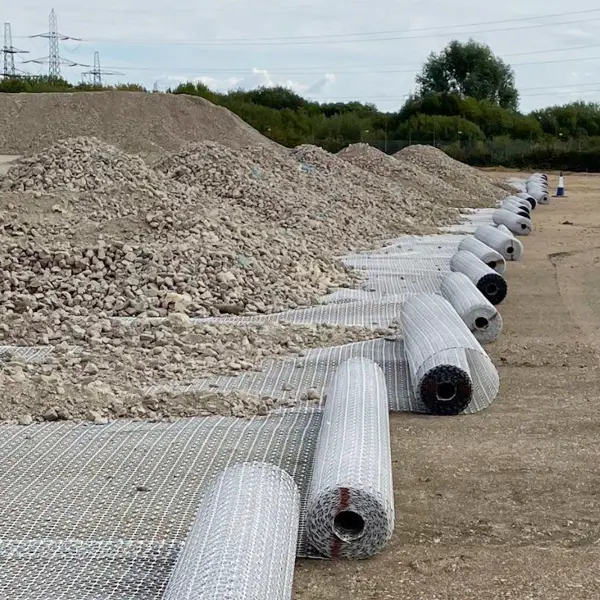

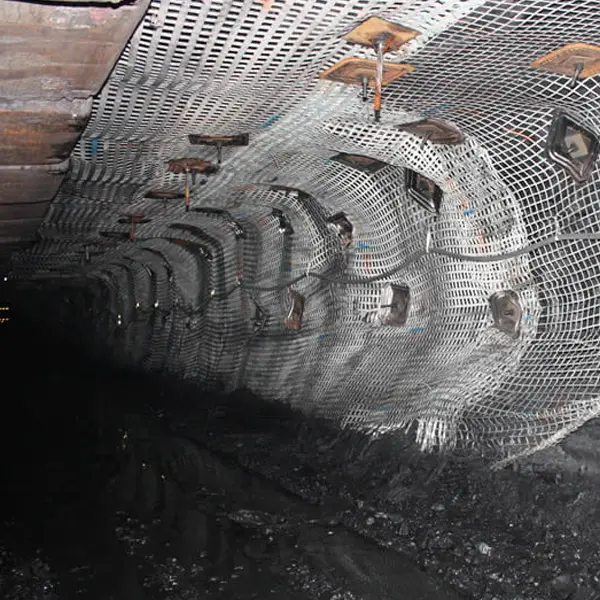

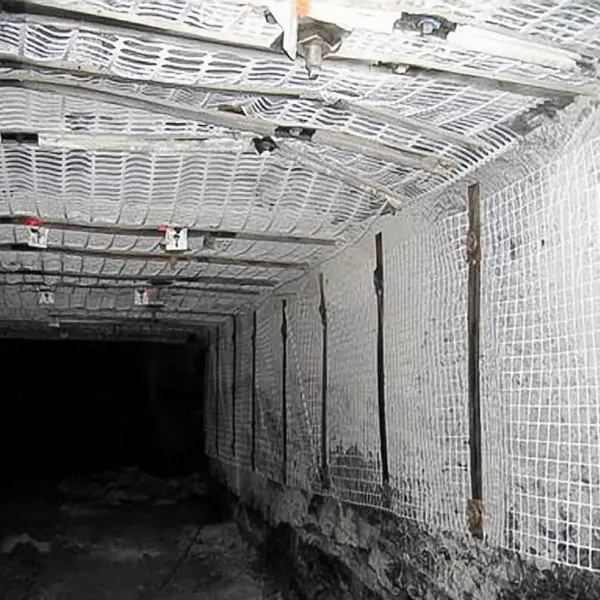

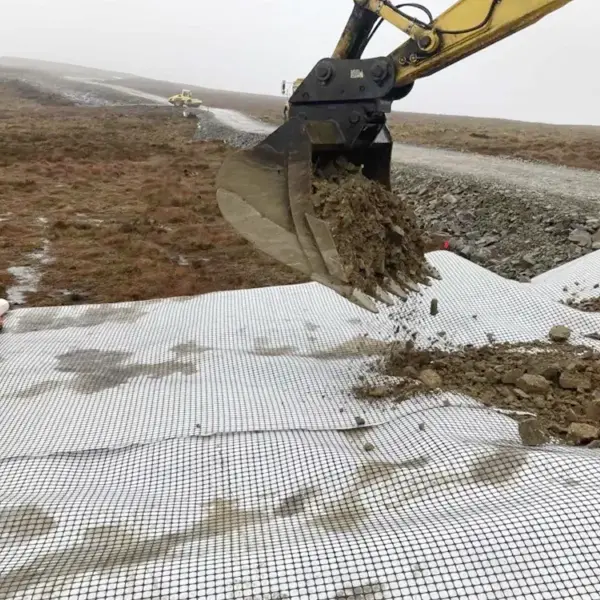

Mining Geogrid is widely used in coal mine working face retreat roof protection, tunnel excavation roof protection, artificial false roof, slope protection, tunnel support, etc. It also has good applications in road reinforcement, reinforced soil structure, earthquake protection and other fields.
The application prospects of mining geogrid are bright, driven by the growth of the mining industry, the need for sustainable development, infrastructure construction, technological progress, and international market expansion. As the industry continues to evolve, mining geogrid will play an increasingly important role in ensuring the safety, efficiency, and sustainability of mining operations and related infrastructure projects. Mining geogrid, especially types like polyester mining geogrid, holds great promise in the mining industry and related fields, with its application prospects showing continuous expansion and growth.
Fire Retardant Polyester Mesh Coal Mining Geogrid for safety supporting underground
Mining Geogrid is a kind of fake ceiling mesh mainly used for coal mine as well as other mines and underground civil engineering. It adopts high-modulus and high strength long polyester fiber warp knitted and bundled together as its body and then is coated with fire retarding and static conducting material. It is a good substitute for metal mesh, plastic mesh, steel-plastic composite mesh, packing belt mesh and etc.

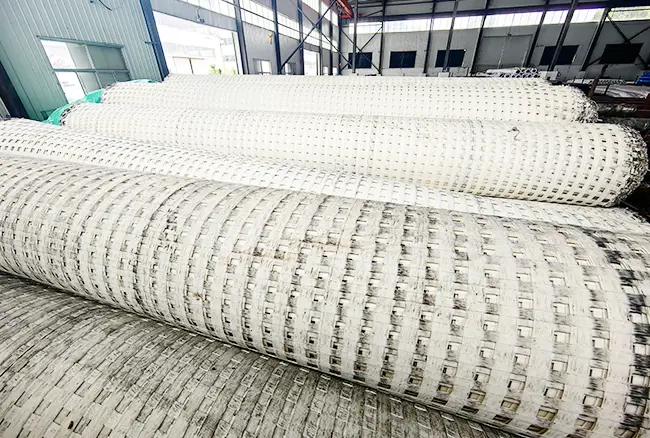

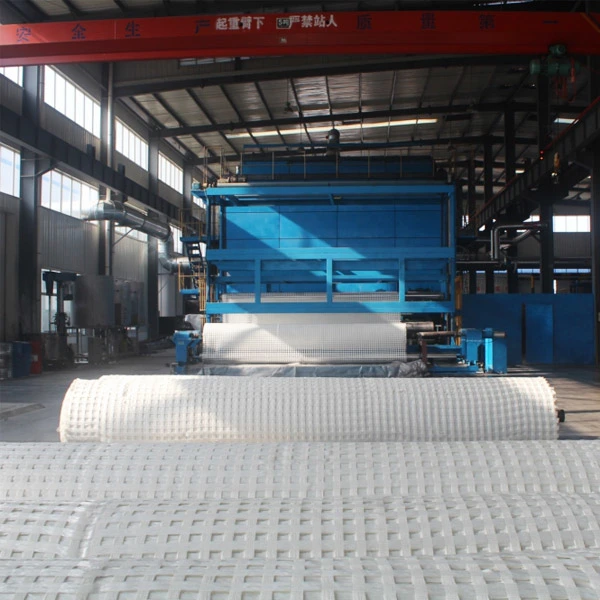

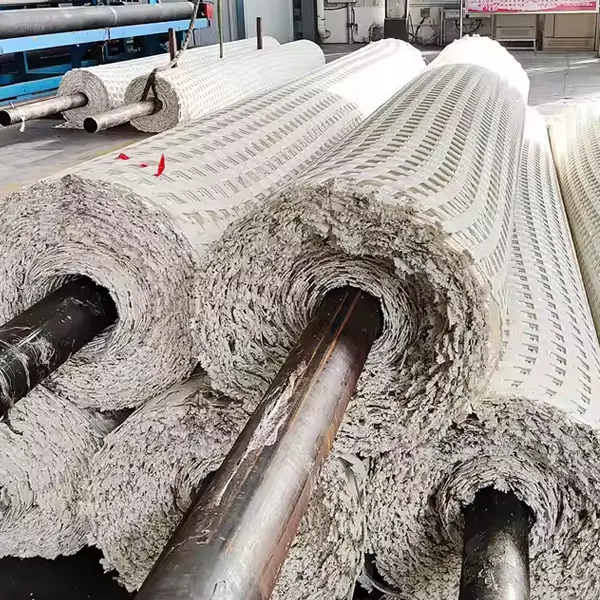

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

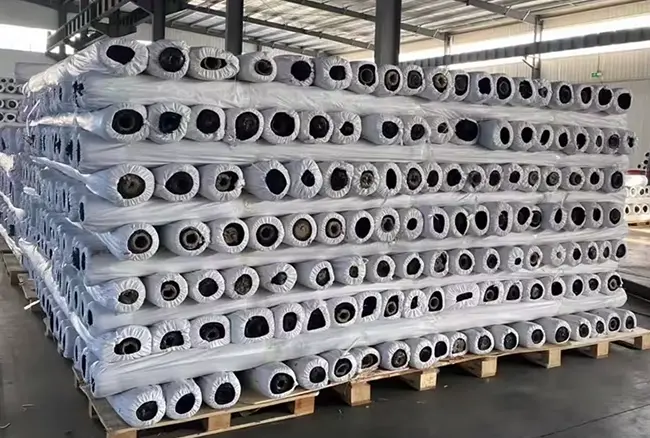

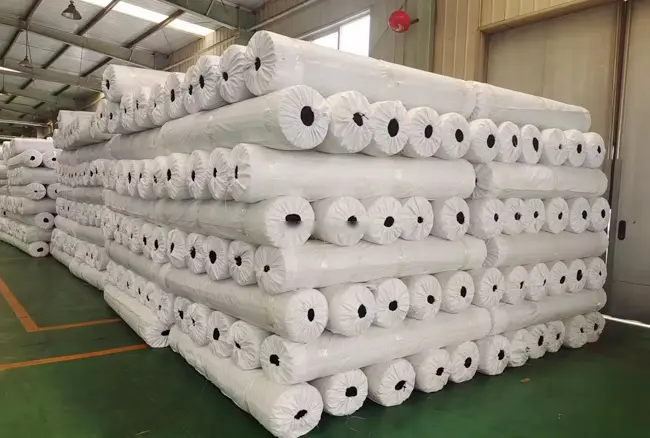

Packing & Delivery
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.
Transport
Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.
