The volume of sludge can be reduced by more than 90%, and it contains a higher proportion of solid content, making it easier to remove and process. Separates solids from sludge or dredged material.
Geotextile Tube
Material: High Strength PP Woven Geotextile
Mass per Unit:
285,340,385,420,430,450,540,850gsm
Geotextile Tube Width: 1m-40m
Geotextile Tube Length: 1m-60m
Colors: Black, Sand Color
Description
Geotextile Tube
Geotextile Tubes are high-strength, permeable containers engineered for the efficient dewatering of sludge, slurry, and sediments, as well as for permanent coastal and hydraulic structures. Manufactured from custom-designed geotextiles using advanced production techniques, our tubes offer a cost-effective, durable, and environmentally sound solution for industrial, environmental, and marine applications.

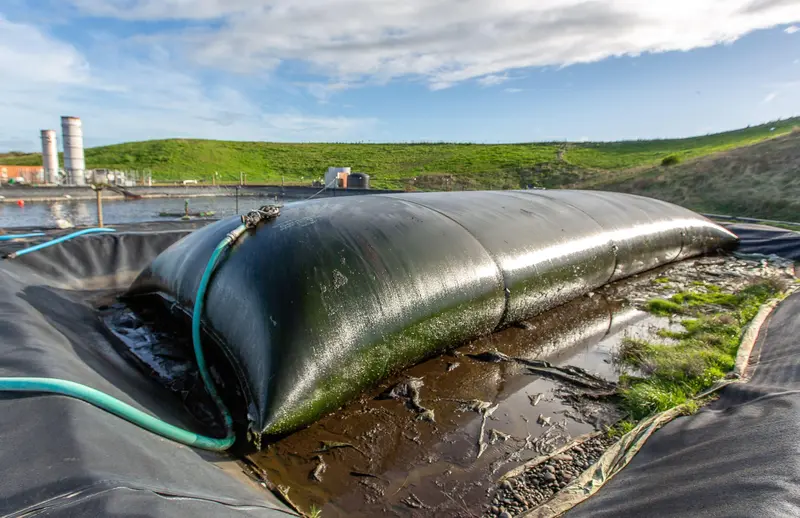

geotextile tube
Geotextile Tube’s Feature
Material & Durability
* Made from UV-resistant, woven or non-woven geotextile fabric.
* High tensile strength to withstand filling, placement, and hydraulic forces.
* Resistant to punctures, abrasion, and chemical degradation.
Permeability
* Allows water to drain out while retaining fine soil particles.
* Reduces hydrostatic pressure, improving stability.
Flexibility & Adaptability
* Can be custom-sized (length, width/Cir.) for different projects.
* Conforms to uneven surfaces, making them ideal for erosion control.
geotextile tube
Superior Strength & Durability:
Made from high-tenacity polypropylene or polyester yarns, our geotextile tubes exhibit exceptional tensile strength, puncture resistance, and UV stability. They are engineered to withstand high hydraulic pressures and harsh environmental conditions.
Optimal Filtration & Drainage:
The precisely calibrated pore structure of the fabric allows for rapid dewatering while retaining fine particles. This ensures clear effluent discharge and efficient solid retention.
Customizable Design:
We offer tailored solutions based on project-specific requirements, including tube dimensions (diameter, length), fabric properties (weight, permeability, strength), and filling port configurations.
Specifications
The Specifications of Geotextile Tube
|
Item
|
Technical Data
|
||||||||
|
Nominal strength KN/m
|
50
|
65
|
80
|
100
|
120
|
140
|
160
|
180
|
200
|
|
≥Breaking strength in CD KN/m
|
50
|
65
|
80
|
100
|
120
|
140
|
160
|
180
|
200
|
|
≥Breaking strength in MD KN/m
|
0.7 times of breaking strength in MD
|
||||||||
|
≤Nominal elongation %
|
35in MD, 30in CD
|
||||||||
|
≥Tear strength in MD and CD KN
|
0.8
|
1.1
|
1.3
|
1.5
|
1.7
|
1.9
|
2.1
|
2.3
|
2.5
|
|
≥CBR mullen burst strength KN
|
4.0
|
6.0
|
8.0
|
10.5
|
13.0
|
15.5
|
18.0
|
20.5
|
23.0
|
|
vertical permeability cm/s
|
Kx(10-2—10-5） K=1.0-9.9
|
||||||||
|
Sieve size O90(o95) mm
|
0.05-0.5
|
||||||||
|
Width variation %
|
-1
|
||||||||
|
Woven bag thickness variation under irrigate %
|
±8
|
||||||||
|
Woven bag variation in length and width %
|
±2
|
||||||||
|
Sewing Strength KN/m
|
80% of nominal strength
|
||||||||
|
Unit weight variation %
|
-5
|
||||||||
|
Mass per unit g/㎡
|
200
|
260
|
320
|
390
|
460
|
530
|
600
|
680
|
760
|
Applications
The Applications of Geotextile Tube
Sludge Dewatering Treatment
Revetment, Breakwater
The embankment core filling geobag breakwater is a breakwater made of new materials. It forms a kind of breakwater by filling the geobag with sea sand. Not only saves the construction cost of the breakwater, but also makes better use of environmental resources, and can well meet the construction and functional requiremenrs of the breakwater. Acts as submerged barriers.
Land reclamation
Geotextile tube bag dewatering technology can dehydrate the bottom mud gathered in river, bays seaports, wharves, ports and docks to project the environment. Creates barriers for sediment control.
Coastal Protection
Geotexile tube bag dehydration technology reduces the water content in the filtration process, simplifies the water recycling process,and intercepts more than 90% of the suspended soild particles. It is an ideal choice for cleaning sludge storage tanks, clarification tanks and filtering waster projects.
Erosion Control
Protects shorelines, riverbanks, and slopes.
geotextile tube
geotextile tube
geotextile tube
geotextile tube
Geotextile Tube
Efficient Mechanical Dewatering: Provides a contained, geotextile-filtered process for separating solids from liquid slurry. Water drains under hydraulic pressure, while solids are retained, significantly reducing volume for disposal or beneficial reuse.
Contained Storage & Consolidation: Acts as a robust container for contaminated sediments, industrial by-products, or dredged materials, isolating them from the environment during treatment and consolidation.
Marine & Hydraulic Structures: Used as permanent, sand-filled units for coastal protection (revetments, breakwaters), erosion control (dune/core restoration), and hydraulic engineering (groynes, artificial islands).
geotextile tube
geotextile tube
