Geogrid China

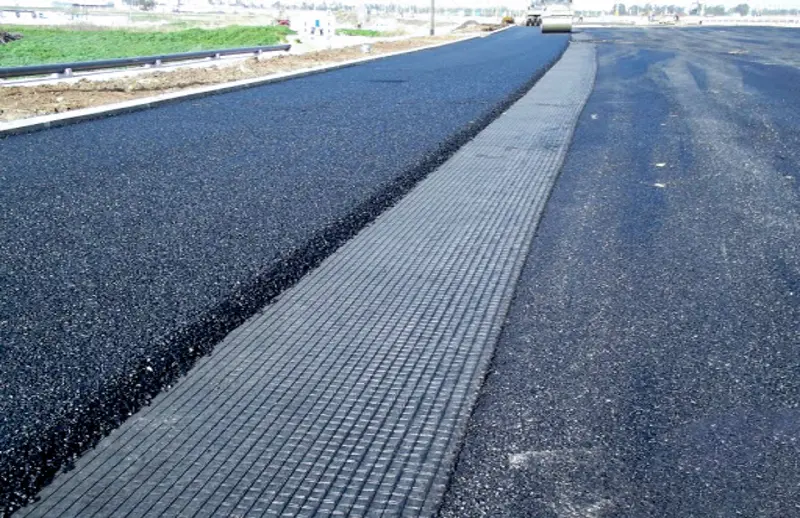

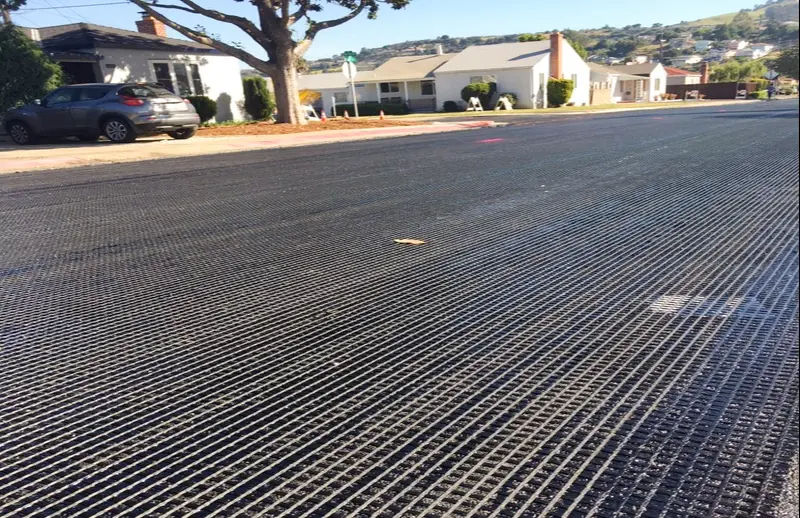

Good physical and chemical stability, no long-term creep, and good compatibility with asphalt.
It can disperse the road surface stress, making construction simple and low-cost, saving construction costs.
Geogrid China is an excellent geosynthetic material made of high modulus polyester yarn.Polyester geogrid has excellent heat resistance and good long-term degradation resistance. Good rutting resistance at high temperatures. Polyester geogrid has a dense woven fabric structure.The structure forms a grid reinforcement system that exerts strong adhesion to the roadbed. Polyester geogrid effectively enhance the bearing capacity of the ground.
Uniaxial Geogrids: Designed with high strength in one primary direction, ideal for wall and slope reinforcement.
Biaxial Geogrids: Provide balanced strength in both longitudinal and transverse directions, perfect for base stabilization and foundation support.
Triaxial Geogrids: Feature a multi-axial, triangular structure that provides in-plane stiffness and superior confinement for base course applications.
geogrid china
Geogrid China are engineered for exceptional performance in the most demanding conditions:
Superior Tensile Strength: Provides high tensile modulus at low strain to effectively distribute loads and reduce differential settlement.
Excellent Soil Interlock: The rigid apertures ensure optimal interaction with a wide range of fill materials, maximizing reinforcement efficiency.
geogrid china
Outstanding Durability: Manufactured from high-quality polymers, our geogrids offer superior resistance to creep, chemical degradation, and long-term UV exposure.
Proven Cost-Effectiveness: By allowing the use of on-site or lower-quality fill materials and reducing the required depth of aggregate, our geogrids significantly cut project costs and timelines.

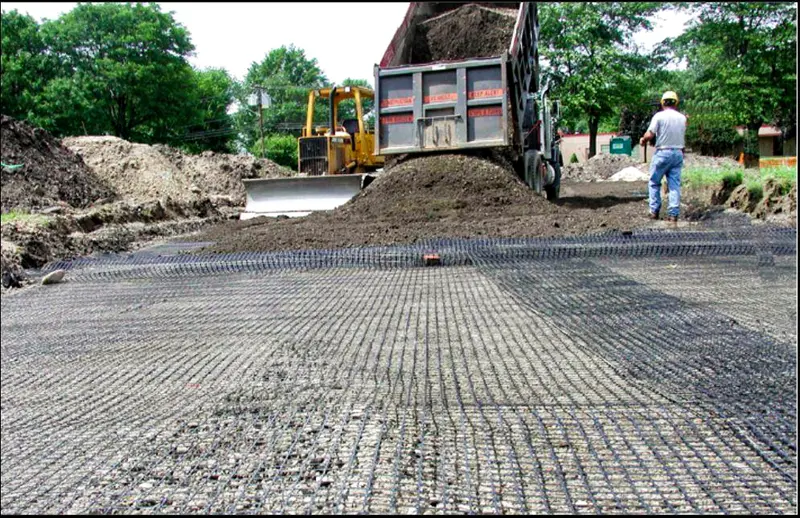

Easy Installation: Lightweight and available in rolls, they are quick to deploy, reducing labor and equipment time.
Geogrid China’s Specifications
|
Specification
|
30-30
|
50-50
|
80-80
|
100-100
|
120-120
|
150-150
|
200-200
|
|
|
Ultimate Strength(KN/M) |
MD
|
30
|
50
|
80
|
100
|
120
|
150
|
200
|
|
CD
|
30
|
50
|
80
|
100
|
120
|
150
|
200
|
|
|
Elongation(%)
|
<=4
|
|||||||
|
Grid Size, mm
|
12.5*12.5,25.4*25.4,40*40
|
|||||||
|
Roll Width
|
1-6m
|
|||||||
|
Roll Length
|
50-200m
|
|||||||
Geogrid China’s Applications

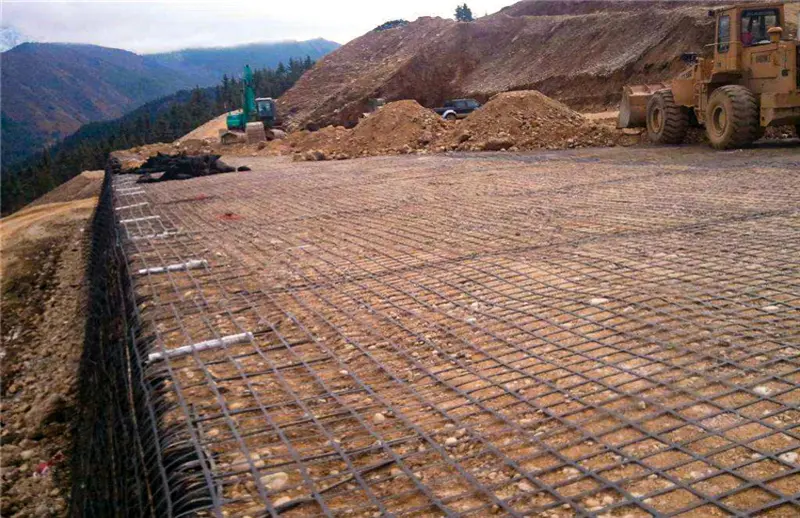

Soil slope protection, rocky slope netting to stabilize soil and greening.
Sand fixation management in deserts and beaches.

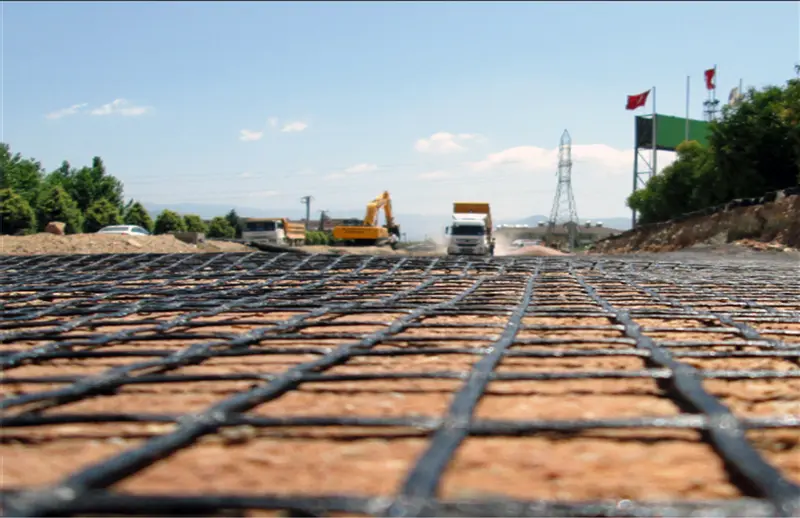

Reinforcement and reinforcement of weak foundations, such as soft foundation treatment for roads and railways.
Management of embankments, beaches, shallow water channel revetments, river beds, and river banks.
How It Works: Geogrid China

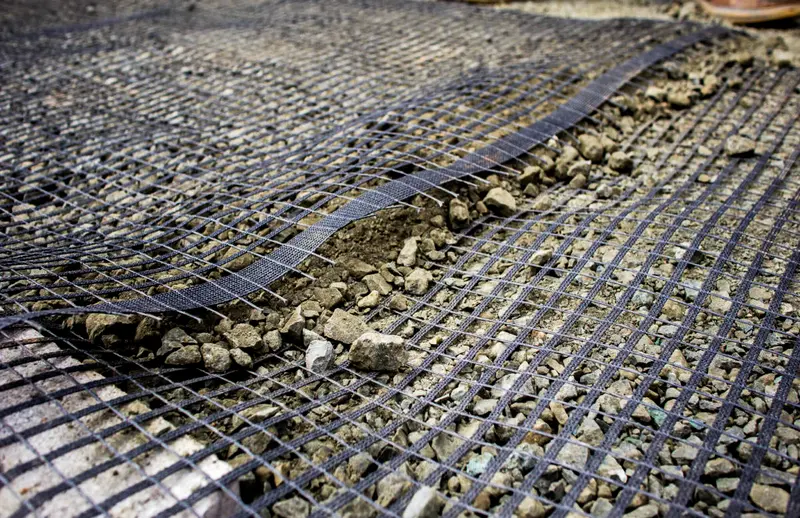

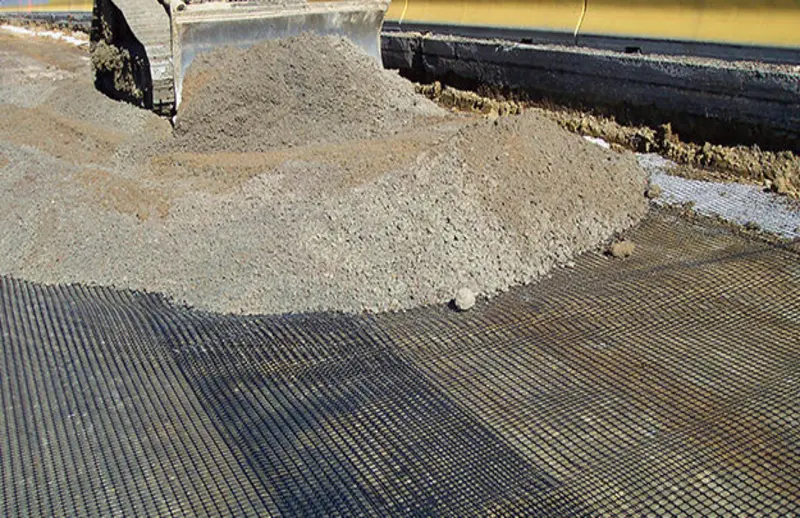

Confinement: The geogrid confines the aggregate particles within its apertures, preventing lateral spreading under load.
Tensile Member: It acts as a tensile element, absorbing the tensile forces that develop within the soil mass.
Load Distribution: The geogrid distributes vertical loads over a broader area of the weak subgrade, reducing settlement.
This mechanism transforms weak, unstable soil into a strong, coherent “composite” material.

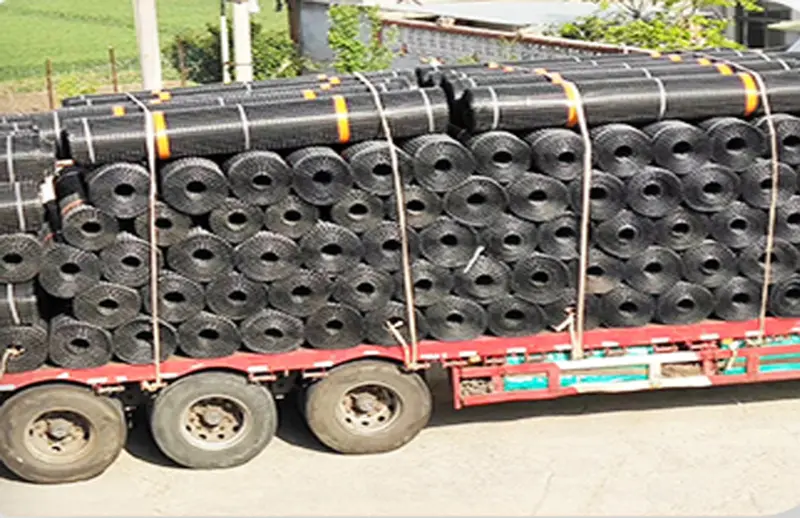

Geogrid China’s Packing and Delivery
Package
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).Packaging size and container capacity vary according to product specifications.

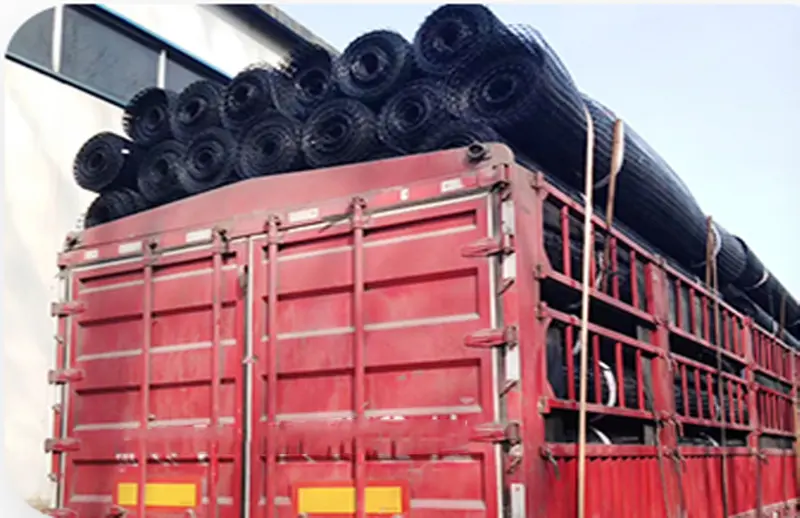

Transport
We can package and transport the products according to the requirements of the customers. please contact us if you need.
