Geobags for Dewatering
Material: PP Woven Geotextile
Geobags for Dewatering Weight: 1m-40m
Geobags for Dewatering Length: 1m-60m
Colors: Black, Sand Color
Description
Geobags for Dewatering
Geobags for dewatering is a high-strength, permeable container made from engineered geotextile fabrics. Designed to be filled with locally available sand or soil, it acts as a durable, flexible building block for a wide range of civil and environmental engineering projects. As a modern, cost-effective, and environmentally friendly alternative to traditional rock or concrete structures, geobags for dewatering provide superior performance in erosion control, slope stabilization, and marine applications.
Geobags for dewatering
Geobags for Dewatering’s Key Features & Advantages
Exceptional Durability: Manufactured from UV-stabilized woven polypropylene, our geobags for dewatering offer high tensile strength, excellent puncture and abrasion resistance, ensuring long-term performance in the most demanding conditions.
Superior Drainage: The permeable fabric allows for rapid water drainage, reducing hydrostatic pressure within the structure. This enhances stability by promoting soil consolidation and preventing internal erosion.
Unmatched Flexibility: Unlike rigid concrete structures, geobags for dewatering conform to uneven ground and settle without cracking. This makes them ideal for use on soft, unstable subsoils where traditional methods are prone to failure.
Geobags for dewatering
Cost and Time Efficiency: Drastically reduce project costs by using on-site or locally sourced fill material, eliminating the need for expensive quarried rock. Their lightweight nature simplifies logistics, transportation, and installation.
Eco-Friendly Design: geobags for dewatering are a sustainable choice. They facilitate natural vegetation growth and seamlessly integrate into the environment, minimizing the ecological footprint of your project.
Versatility & Adaptability: Available in various sizes and fabric strengths, geobags for dewatering can be customized to meet the specific technical requirements of any project, from small landscaping tasks to large-scale marine defenses.
Specifications
Geobags for Dewatering’s Specifications
| UNIT | TEST STANDARD | UNIT TEST STANDARD | ||||||||||
| DK70×95B | DK70×95 | DK120×120 | DK200×200 | DK200×200B | DK380 | DK580 | DK380PPi | DK580PPi | ||||
| Breaking strength | vertical | KN/m | ISO 10319-2015 |
85 | 85 | 130 | 220 | 220 | 70 | 85 | 70 | 85 |
| weft | KN/m | 105 | 115 | 120 | 200 | 210 | 60 | 80 | 80 | 105 | ||
| Elongation at break | vertical | % | 13 | 13 | 12 | 13 | 13 | 12 | 12 | 13 | 13 | |
| weft | % | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 9 | 9 | ||
| Breaking strength at 2% elongation | vertical | KN/m | 14 | 14 | 20 | 12 | 10 | 14 | 15 | 9 | 8 | |
| Breaking strength at 5% elongation | weft | KN/m | 38 | 38 | 80 | 95 | 88 | 38 | 42 | 26.5 | 21 | |
| Weight | g/m2 | 430 | 450 | 540 | 850 | 870 | 285 | 385 | 340 | 420 | ||
| Joint tensile strength | KN/m | ISO 10321-2008 | 70 | 90 | 100 | 170 | 180 | |||||
| CBR Puncture Strength（CBR） | KN |
ASTM D6241 |
8 | 9 | 15 | 20 | 23 | 7 | 10 | 8.5 | 10 | |
| Dynamic perforation | mm | 10 | 8 | 10 | 8 | 8 | ||||||
| Equivalent aperture（O90） | mm |
ISO 12956 |
0.5 | 0.45 | 0.45 | 0.45 | 0.35 | 0.48 | 0.45 | 0.48 | 0.47 | |
| Permeability（Q50） | L/m2/s |
ISO 12956 |
50 | 35 | 14 | 18 | 15 | 35 | 42 | 58 | 58 | |
| UV Resistance（500 hours strong preservation rate） | % | ASTM D4355-2014 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Applications
Geobags for Dewatering’s Applications

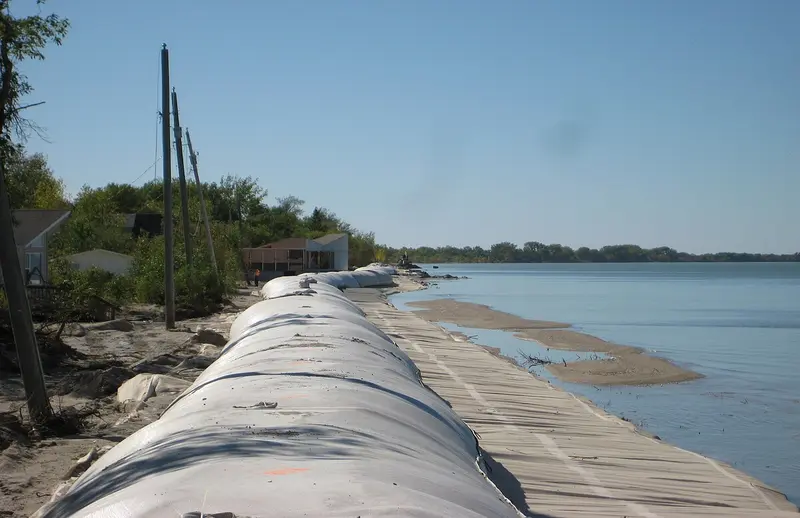

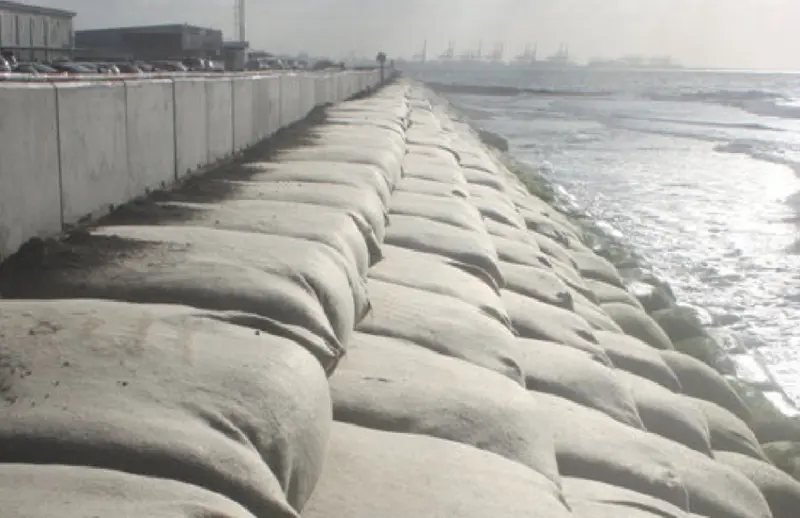

Shoreline and Riverbank Protection: Armor coastlines, riverbanks, and canals against erosion from waves, currents, and tidal action.
Slope Revetment and Stabilization: Secure and protect embankments along highways, railways, and waterways.

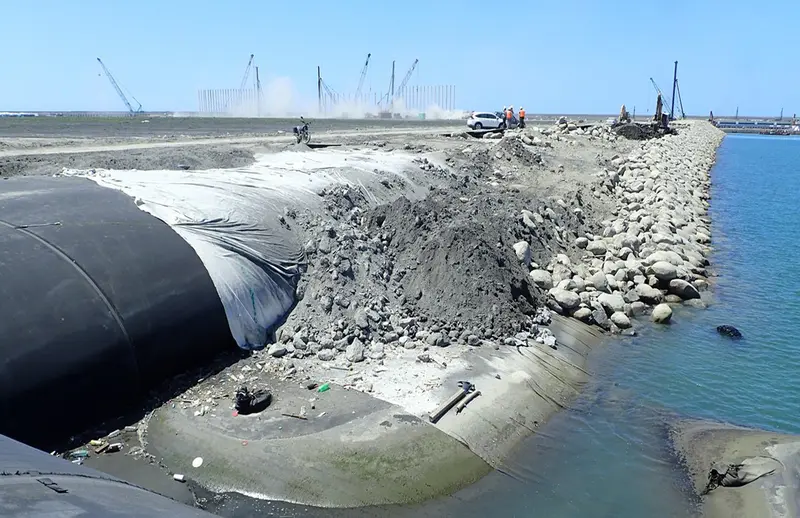

Marine Structures: Used in the construction of groynes, breakwaters, submerged sills, and artificial reefs.
Temporary Flood Control: Rapidly deployable as emergency barriers for flood defense and levee reinforcement.
Infrastructure Protection: Safeguard bridge abutments, pipelines, and other critical infrastructure from scour and erosion.
Geobags for Dewatering
Geobags for Dewatering
Geobags for Dewatering
Geobags for Dewatering
