Geobag Factory
Material: High strength PP Woven Geotextile Bag
Mass per Unit: 285,340,385,420,430,450,540,850gsm
Geobag width: 1m-40m
Geobag Length: 1m-60m
Colors: Black, Sand Color
Description
Geobag Factory
geobag factory
Key Features
Superior Erosion Resistance: Effectively protects shorelines, riverbanks, and slopes from water-induced erosion caused by waves, currents, and storm surges.
Permeable Design: Our advanced woven or non-woven geotextile fabric allows water to drain freely while securely retaining the fill material inside. This reduces hydrostatic pressure and increases stability.
High Strength & Durability: Manufactured from UV-stabilized polypropylene or polyester, our geobags offer exceptional tensile strength, puncture resistance, and long-term durability against environmental degradation.
geobag factory
Flexibility & Adaptability: Geobags easily conform to uneven subgrades and settle into place, creating a stable, monolithic structure that can withstand ground movement without cracking.
Cost-Effective Installation: Utilizing locally available fill materials (sand, soil) significantly reduces transportation and material costs. Installation is straightforward, requiring minimal heavy machinery.
Environmentally Friendly: Geobags are an eco-conscious choice. They are non-toxic, allow for vegetation to grow through them over time, and can be used to create new habitats.
Specifications
Geobag Factory
| UNIT | TEST STANDARD | UNIT TEST STANDARD | ||||||||||
| DK70×95B | DK70×95 | DK120×120 | DK200×200 | DK200×200B | DK380 | DK580 | DK380PPi | DK580PPi | ||||
| Breaking strength | vertical | KN/m | ISO 10319-2015 |
85 | 85 | 130 | 220 | 220 | 70 | 85 | 70 | 85 |
| weft | KN/m | 105 | 115 | 120 | 200 | 210 | 60 | 80 | 80 | 105 | ||
| Elongation at break | vertical | % | 13 | 13 | 12 | 13 | 13 | 12 | 12 | 13 | 13 | |
| weft | % | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 9 | 9 | ||
| Breaking strength at 2% elongation | vertical | KN/m | 14 | 14 | 20 | 12 | 10 | 14 | 15 | 9 | 8 | |
| Breaking strength at 5% elongation | weft | KN/m | 38 | 38 | 80 | 95 | 88 | 38 | 42 | 26.5 | 21 | |
| Weight | g/m2 | 430 | 450 | 540 | 850 | 870 | 285 | 385 | 340 | 420 | ||
| Joint tensile strength | KN/m | ISO 10321-2008 | 70 | 90 | 100 | 170 | 180 | |||||
| CBR Puncture Strength（CBR） | KN |
ASTM D6241 |
8 | 9 | 15 | 20 | 23 | 7 | 10 | 8.5 | 10 | |
| Dynamic perforation | mm | 10 | 8 | 10 | 8 | 8 | ||||||
| Equivalent aperture（O90） | mm |
ISO 12956 |
0.5 | 0.45 | 0.45 | 0.45 | 0.35 | 0.48 | 0.45 | 0.48 | 0.47 | |
| Permeability（Q50） | L/m2/s |
ISO 12956 |
50 | 35 | 14 | 18 | 15 | 35 | 42 | 58 | 58 | |
| UV Resistance（500 hours strong preservation rate） | % | ASTM D4355-2014 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Applications
Geobag Factory
The Applications of Geobag

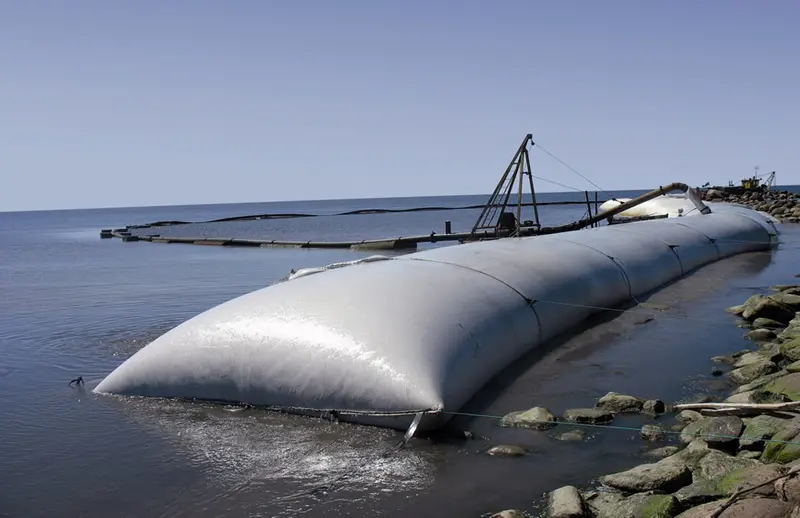

Coastal & Riverbank Protection: Building revetments, groynes, and seawalls to defend against tidal and fluvial erosion.
Slope Stabilization: Reinforcing embankments and cut slopes to prevent landslides and soil loss.
Marine & Hydraulic Structures: Constructing breakwaters, artificial reefs, and dune core stabilization.
Foundation Support: Providing a stable base for roads, pipelines, and other structures on soft, compressible soils.

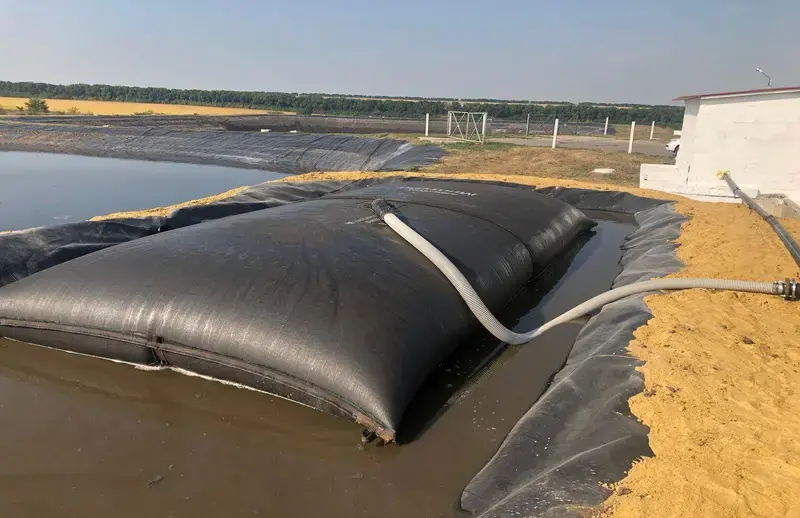

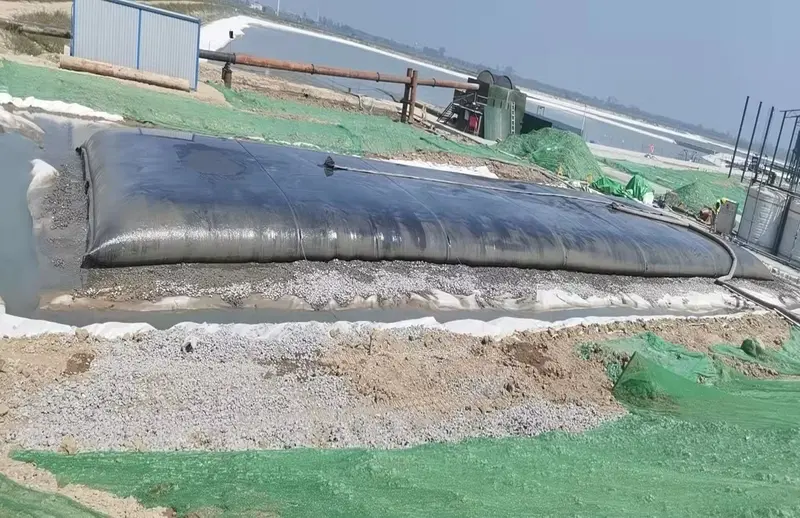

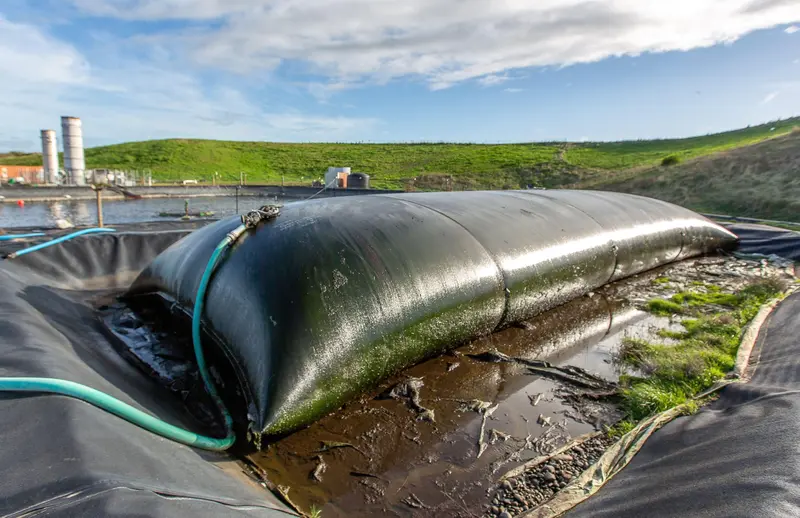

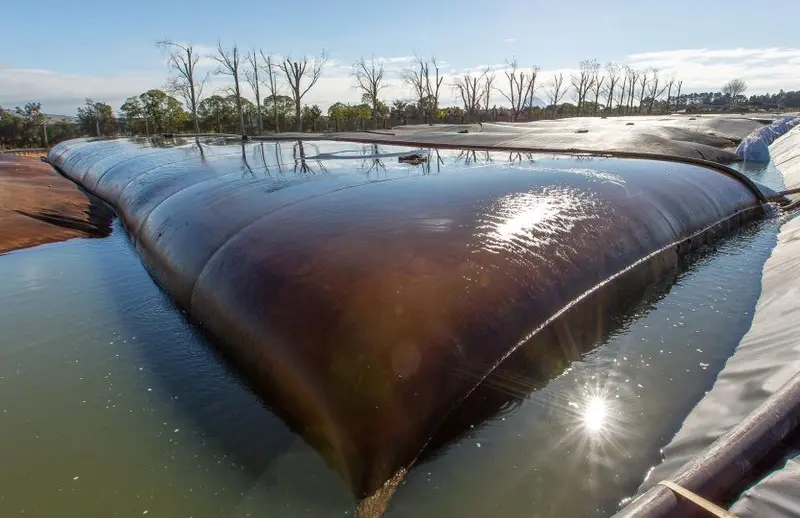

Dewatering & Containment: Used as dwatering tubes for sludge and sediment management in environmental cleanup projects.
geobag factory
geobag factory
geobag factory
geobag factory
Related Videos
How It Works?
The principle is simple yet highly effective:
Placement: Empty geobags are positioned in the desired location.
Filling: They are filled in-situ with a sand/water slurry or moist soil using a standard dredge pump or sand filler.
Drainage & Consolidation: Water drains through the permeable fabric, leaving the solid particles trapped inside. The bags consolidate to form a dense, stable mass.
Structure Building: Individual geobags are stacked and interlocked to create larger, integrated structures tailored to the project’s needs.
geobag factory
geobag factory
