Geobag Dewatering Bags
Material: High Strength PP Woven Geotextile
Geobags Weight: 1m-40m
Geobags Length: 1m-60m
Colors: Black, Sand Color
Description
Geobag Dewatering Bags

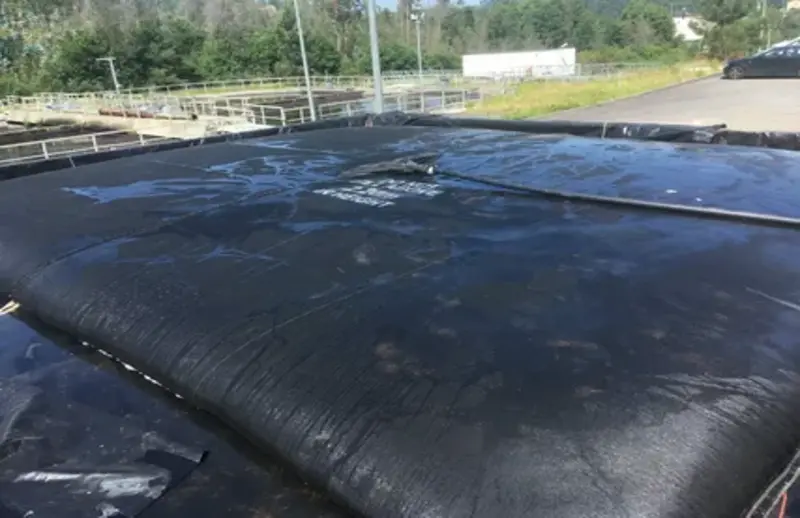

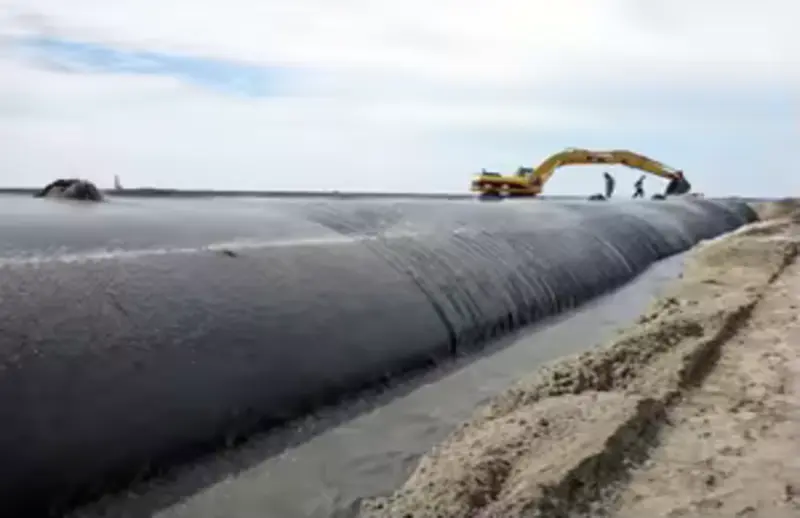

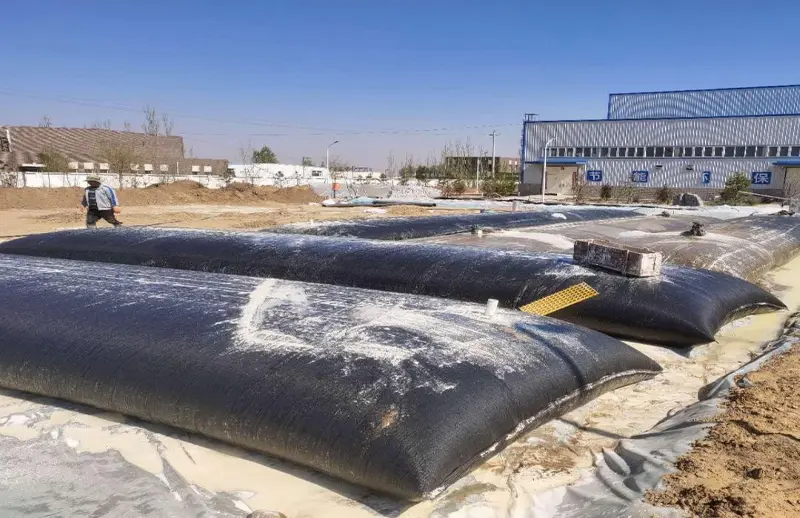

Geobag dewatering bags (also called geobags, dewatering tubes) are large, high-strength containers made from permeable geotextile fabrics. They are filled with slurry (e.g., sediment, sludge, or contaminated dredged materials) to separate solids from water through filtration and consolidation. Or filled with sand for coastal protection projects.
Geobag Dewatering Bags
Geobag Dewatering Bags
PP Woven Geotextile is interwoven by high tenacity PP filament yarn into a dimensionally stable network. The inherent characteristics of Polyesterhigh tensile strength and modulus,low elongation, low creep and high longterm design strength makes the good ideal for soil reinforcement application. The fabric develops excellent frictional interaction with a wide variety of soil and granular materials.
The relatively low openings of these fabrics enable them to act as efficient separators preventing the mixing of costly granular materials with finegrained soils. It has reasonably high permeability to prevent excessive buildup of porepressures due to applied loadings.
Geobag Dewatering Bags
Geobag Dewatering Bags’ Advantages
Material & Durability
Made from UV-resistant, woven or non-woven geotextile fabric.
High tensile strength to withstand filling, placement, and hydraulic forces.
Resistant to punctures, abrasion, and chemical degradation.
Permeability

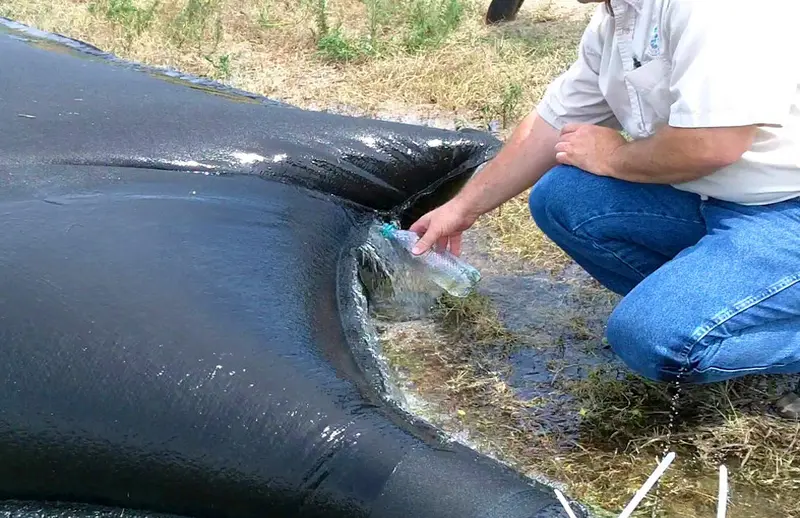

Allows water to drain out while retaining fine soil particles.
Reduces hydrostatic pressure, improving stability.
Flexibility & Adaptability
Can be custom-sized for different projects.
Conforms to uneven surfaces, making them ideal for erosion control.
Specifications
Geobag Dewatering Bags’ Specifications
| UNIT | TEST STANDARD | UNIT TEST STANDARD | ||||||||||
| DK70×95B | DK70×95 | DK120×120 | DK200×200 | DK200×200B | DK380 | DK580 | DK380PPi | DK580PPi | ||||
| Breaking strength | vertical | KN/m | ISO 10319-2015 |
85 | 85 | 130 | 220 | 220 | 70 | 85 | 70 | 85 |
| weft | KN/m | 105 | 115 | 120 | 200 | 210 | 60 | 80 | 80 | 105 | ||
| Elongation at break | vertical | % | 13 | 13 | 12 | 13 | 13 | 12 | 12 | 13 | 13 | |
| weft | % | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 9 | 9 | ||
| Breaking strength at 2% elongation | vertical | KN/m | 14 | 14 | 20 | 12 | 10 | 14 | 15 | 9 | 8 | |
| Breaking strength at 5% elongation | weft | KN/m | 38 | 38 | 80 | 95 | 88 | 38 | 42 | 26.5 | 21 | |
| Weight | g/m2 | 430 | 450 | 540 | 850 | 870 | 285 | 385 | 340 | 420 | ||
| Joint tensile strength | KN/m | ISO 10321-2008 | 70 | 90 | 100 | 170 | 180 | |||||
| CBR Puncture Strength（CBR） | KN |
ASTM D6241 |
8 | 9 | 15 | 20 | 23 | 7 | 10 | 8.5 | 10 | |
| Dynamic perforation | mm | 10 | 8 | 10 | 8 | 8 | ||||||
| Equivalent aperture（O90） | mm |
ISO 12956 |
0.5 | 0.45 | 0.45 | 0.45 | 0.35 | 0.48 | 0.45 | 0.48 | 0.47 | |
| Permeability（Q50） | L/m2/s |
ISO 12956 |
50 | 35 | 14 | 18 | 15 | 35 | 42 | 58 | 58 | |
| UV Resistance（500 hours strong preservation rate） | % | ASTM D4355-2014 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Applications
Geobag Dewatering Bags’ Applications
Erosion & Slope Protection

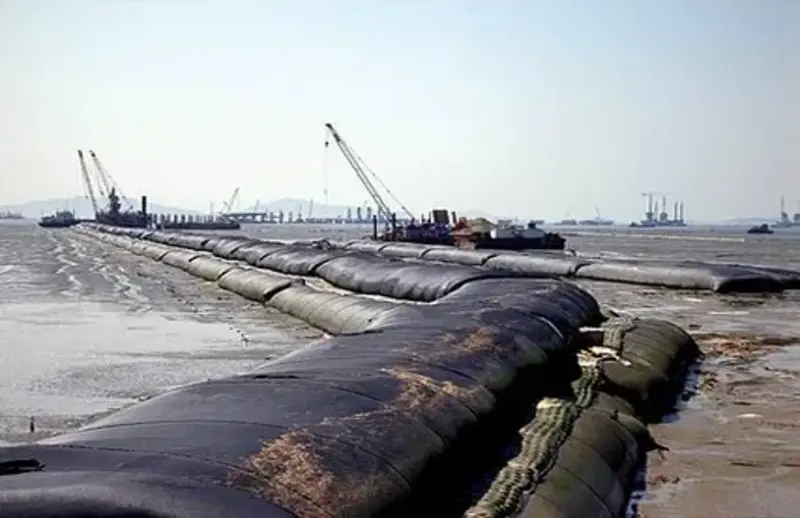

Coastal & Riverbank Revetments: Protects shorelines from wave and current erosion.
Channel & Ditch Lining: Stabilizes waterways and prevents scour.
Slope Toe Protection: Secures the base of embankments and dunes.
Hydraulic & Marine Structures
Submerged Breakwaters & Sills: Creates offshore barriers for wave energy dissipation.
Groynes & Jetties: Controls sediment transport and directs currents.

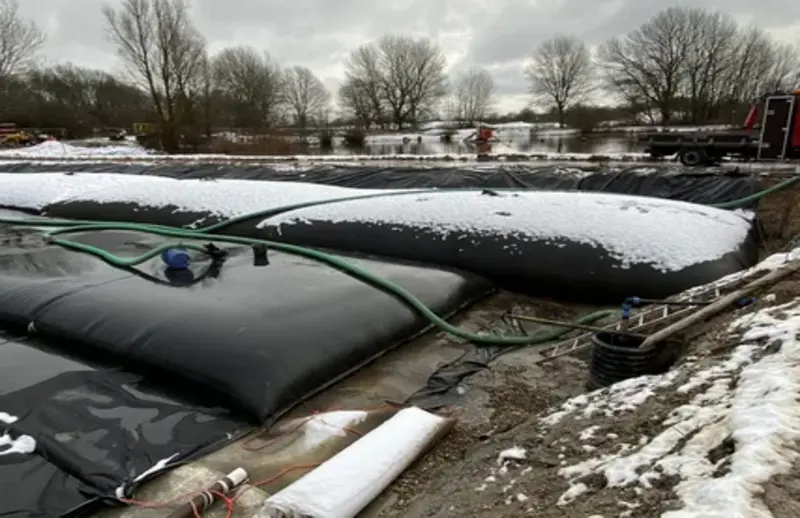

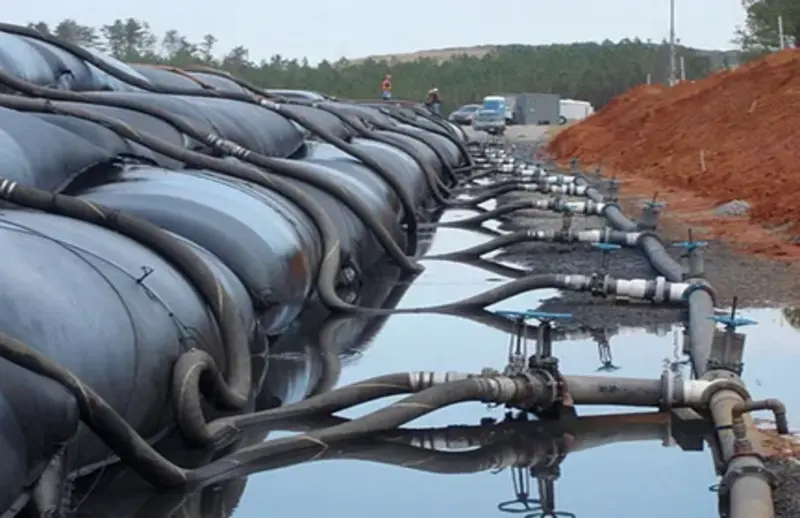

Dewatering Containers: Efficiently contains and de-contaminates sediment/slurry from dredging.
Containment & Structural Fill
Temporary Flood Protection: Rapidly deployable barriers and walls.
Modular Retaining Units: For low-height walls and landscaping.
Foundation Support: Provides stable, reinforced fill for soft subgrades.
Geobag Dewatering Bags
Geobag Dewatering Bags
Geobag Dewatering Bags
Geobag Dewatering Bags
Related Videos
Geobag Dewatering Bags
High Tensile Strength: Ensures durability and reliability in various applications.
PP Woven Geotextile Material: Provides excellent tear resistance and anti-aging properties.
Customizable Dimensions: Tailored to meet specific project needs.
Simple Operation: Easy setup and use without requiring special equipment.
Cost-Effective Management: Effective for managing waste from animal feeding operations.
Geobag Dewatering Bags
Geobag Dewatering Bags
