Dingkun New Material Co., Ltd. can package and transport the products according to the requirements of the customers. please contact us if you need.

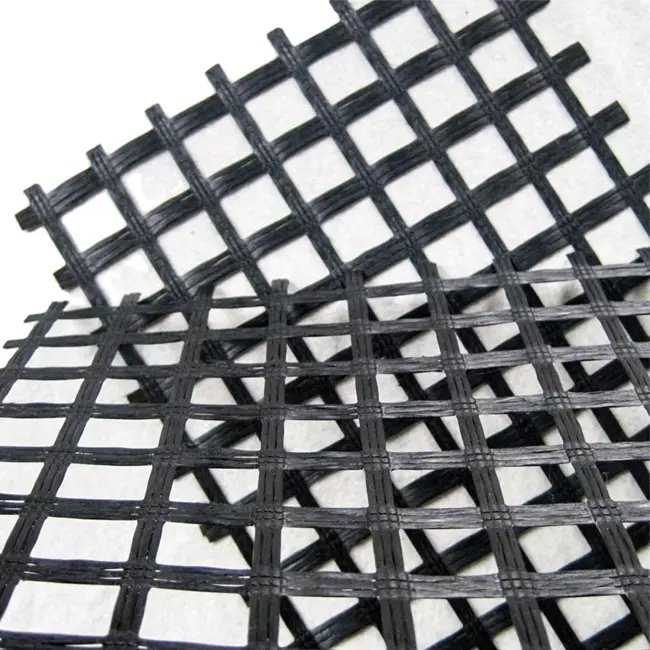

Fiberglass Geogrid
Strength:30-130kn/m
Coating: PVC or Bitumen
Width:1-6m
Length:50-100m/roll
Material: Fiberglass
Description

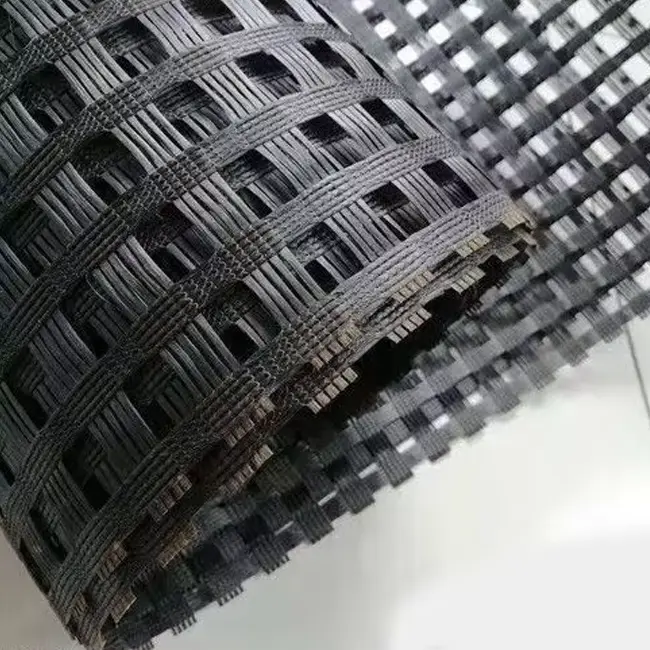

Fiberglass geogrid is a ploymer coated fiberglass geogrid, helps reinforce the asphalt on flexible pavement to enhance pavement life and performance,expand pavement life up to 3 times by reducing reflective cracking.
Fiberglass geogrid feature a unique coating that provides excellent heat resistance and stability to a melting point above 1000 ℃ as well as very low shrinkage and ultimate elongation to create a rigid asphalt layer.
Fiberglass geogrid is highly durable, biologically unaffected by soil micro-organisms, inert to all chemicals normally found in the soil, and formulated to resist ultraviolet degradation.
Fiberglass Geogrid For Road Construction
Fiberglass geogrid is knitted by glass fiber filaments and coated with bitumen to provide a good bond with the asphalt layers, can strengthen the asphalt layer, extend the service life of pavement layers and decrease the occurrence rate of reflective cracking under cyclic traffic load.
High vertical and horizontal tensile strength, low unit extension, high flexibility, and favorable high and low temperature resistance.
The products after surface covering own the favorable property of alkali resistance and aging resistance.
Specifications
|
Biaxial Geogrid |
|
|
|
|
|
|
|
|
Property |
Test Method |
DK 30-30 |
DK 40-40 |
DK 50-50 |
DK 60-60 |
DK 70-70 |
|
|
Ultimate Tensile Strength (KN/m) |
MD |
EN ISO
|
30 |
40 |
50 |
60 |
70 |
|
|
CD |
30 |
40 |
50 |
60 |
70 |
|
|
Elongation at Maximum Load (%) |
MD |
3 |
|||||
|
|
CD |
3 |
|||||
|
Approximate mesh size (mm) |
|
|
12.7*12.7, 25.4*25.4, 40*40 |
||||
|
Roll width (m) |
|
|
1-6m |
||||
|
Roll Length (m) |
|
|
50-200m |
||||
|
|
|
|
|
|
|
|
|
|
Property |
Test Method |
DK 80-80 |
DK 90-90 |
DK 100-100 |
DK 120-120 |
DK130-130 |
|
|
Ultimate Tensile Strength (KN/m) |
MD |
EN ISO
|
80 |
90 |
100 |
120 |
130 |
|
|
CD |
80 |
90 |
100 |
120 |
130 |
|
|
Elongation at Maximum Load (%) |
MD |
3 |
|||||
|
|
CD |
3 |
|||||
|
Approximate mesh size (mm) |
|
|
12.7*12.7, 25.4*25.4, 40*40 |
||||
|
Roll width (m) |
|
|
1-6m |
||||
|
Roll Length (m) |
|
|
50-200m |
||||
Applications

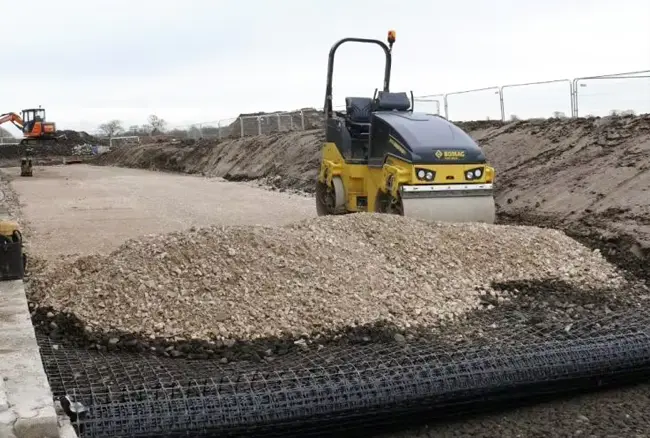

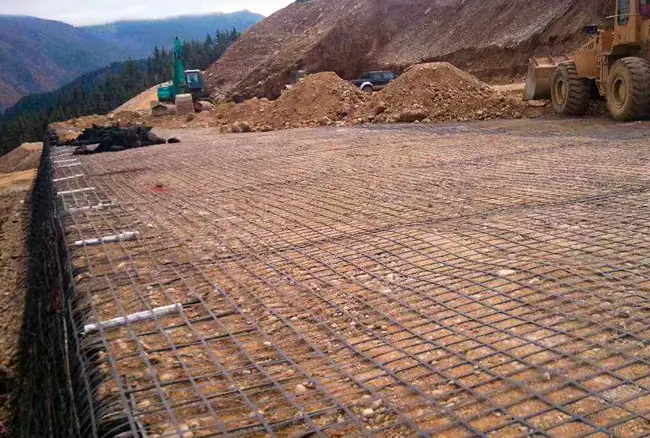

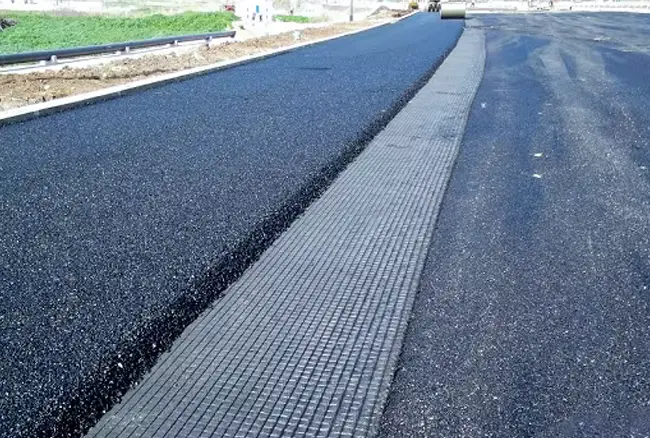

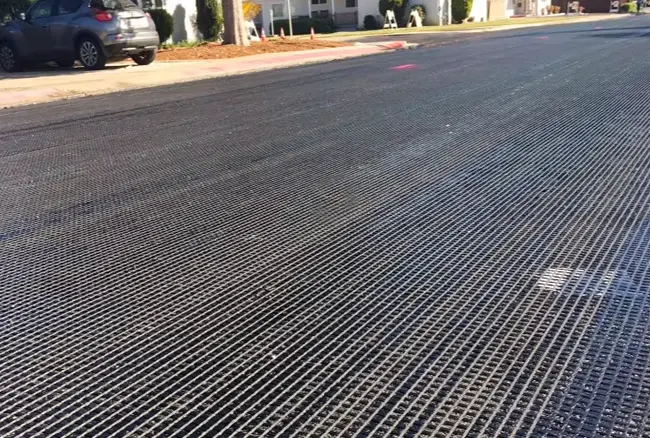

. Placed underneath the bitumen wearing course in roads, highways and airports to control reflective cracking.

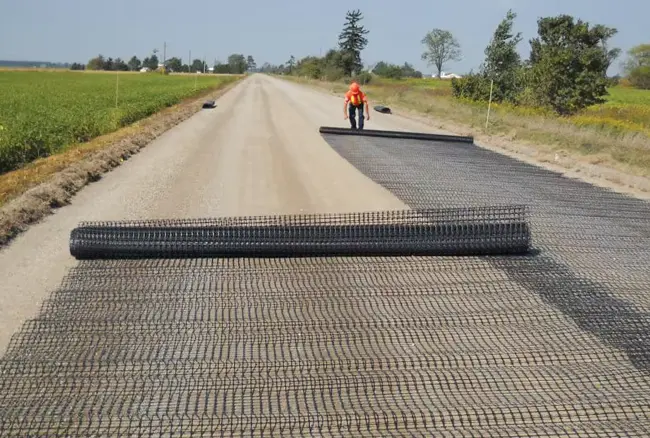

· New build and repairing damaged tarmacked surfaces on roads, motorways, car parks, access roads and airports.
· High traffic pavement to control of rutting.
Fiberglass Geogrid Benefits
· Significantly increases the useful life of roads and other tarmacked surfaces.
· Minimizes both thermal and stress related reflective cracking.
· Reduces pavement rutting under high ambient temperatures and intense wheel loads.
· The polymeric coating helps to further optimize the chemical compatibility between the fiberglass reinforcement and the pavement overlay.
· Prevents the appearance of higher wear-and-tear treads in road areas.
· Provides cost benefits by increasing pavement life cycle.
· Fast, easy installation and recyclable.
· Reduces overlay thickness to a minimum of 50 mm.

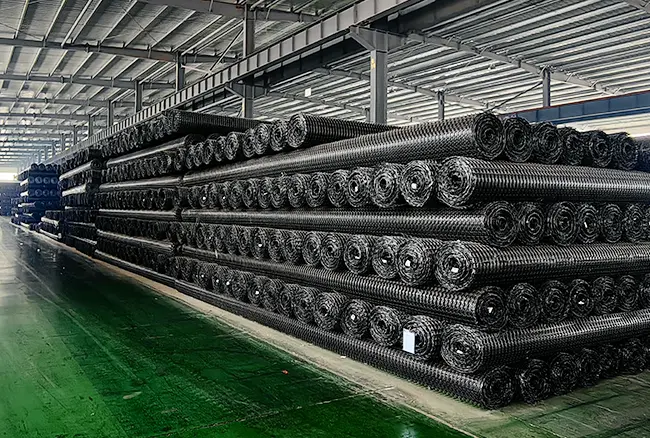

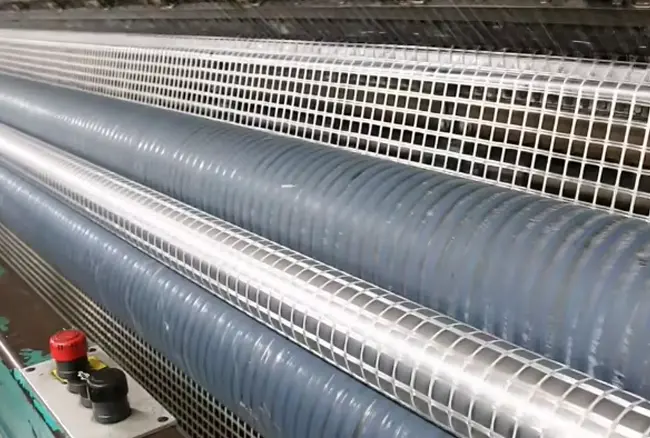

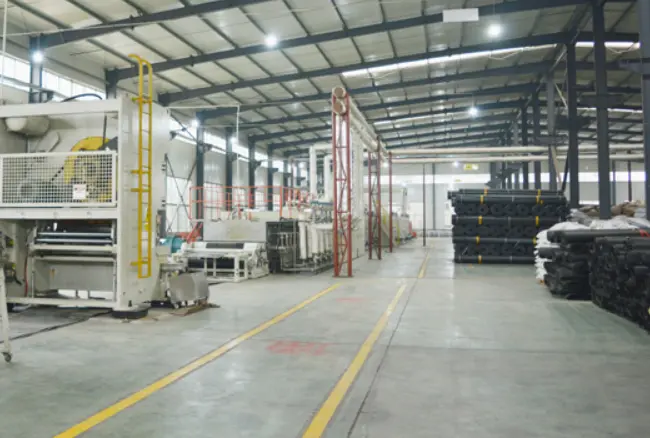

Production workshop
Tai’an Dingkun New Material Co., Ltd. is a collection of independent research and development, production and sales in a body specialized enterprises. Strong technical force, advanced process equipment, complete product range, has a group of professionals engaged in geotechnical materials production of senior technical staff, and national research institutes, universities established close cooperative relations, the Institute and strong technical force, To ensure product stability and forward looking.

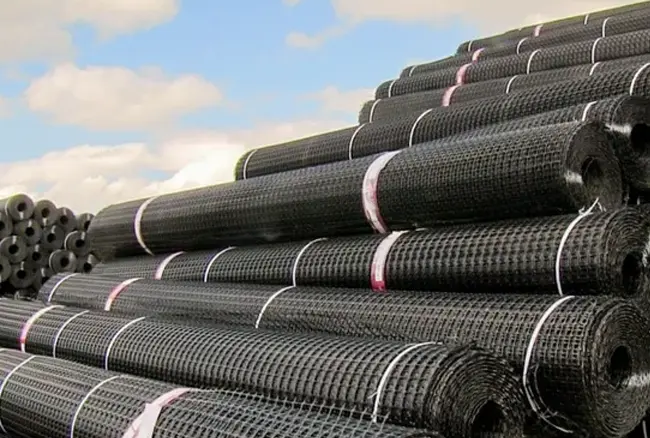

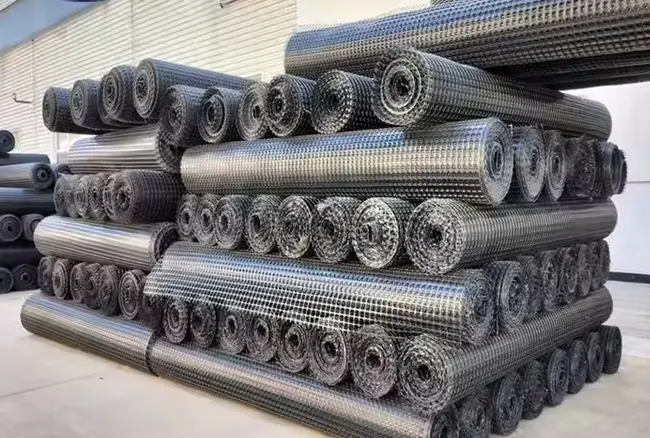

Packing & Delivery
Packed in woven geotextile and strength belt or PE film Or packed according to customers’ requirements such as mark the company Logo (Export standard package).
Packaging size and container capacity vary according to product specifications.
